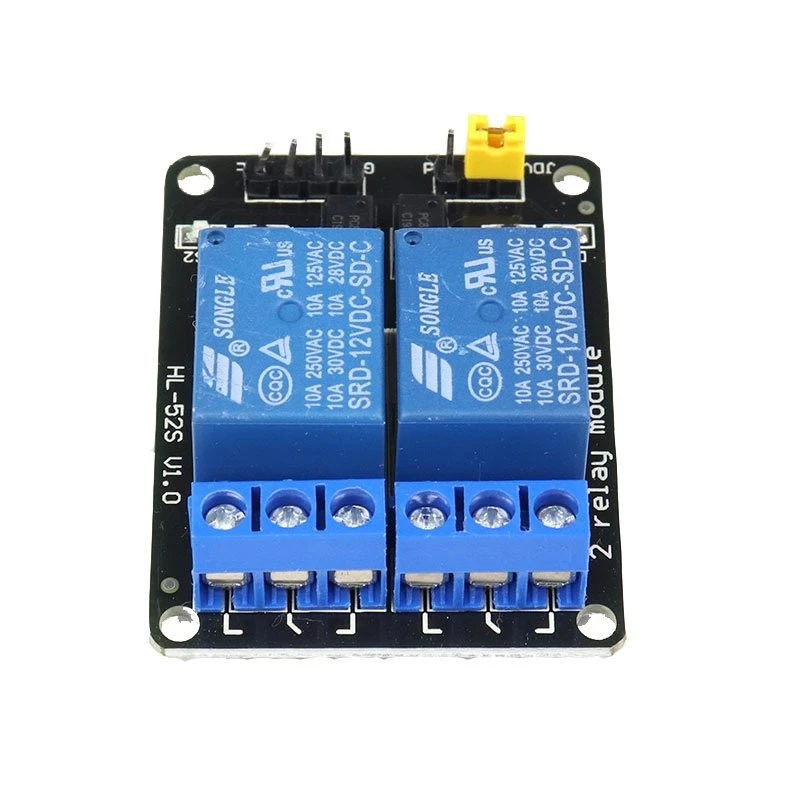

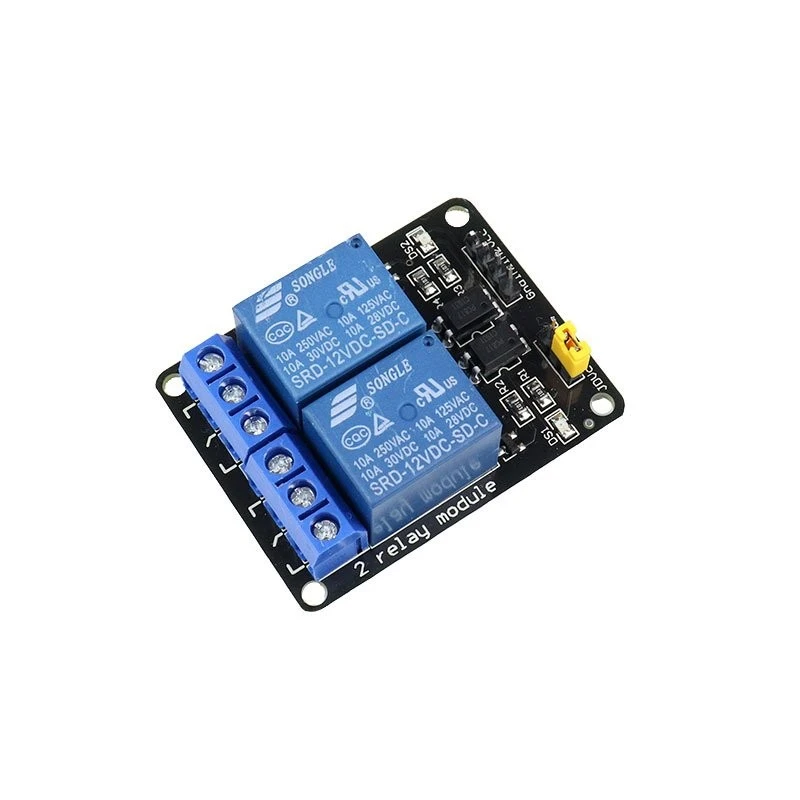

The 2 Channel 12V Relay Module with Optocoupler is a reliable and safe relay board designed with optical isolation to protect sensitive control circuitry. With clear separation between the control area and load area, it ensures stable and secure operation in various applications.
This module uses a double-sided FR4 circuit board and high-quality SMT process for durability. It features LED indicators for power and relay status, along with screw terminals (C, NC, NO) for easy wiring.
It can be controlled directly by popular microcontrollers such as Arduino, AVR, PIC, ARM, and more, making it perfect for both hobby and industrial projects.
Features:
Equipped with high-current relay: 10A @ 250V AC / 10A @ 30V DC
Compatible with both AC and DC loads (motors, solenoids, lights, fans, etc.)
High-quality screw terminals (C, NC, NO) for secure connections
Optical coupling isolation for enhanced safety
Freewheeling diode protection for microcontrollers
LED indicators for relay ON/OFF status
Supports high-level trigger input signals
Mounting holes provided for easy installation

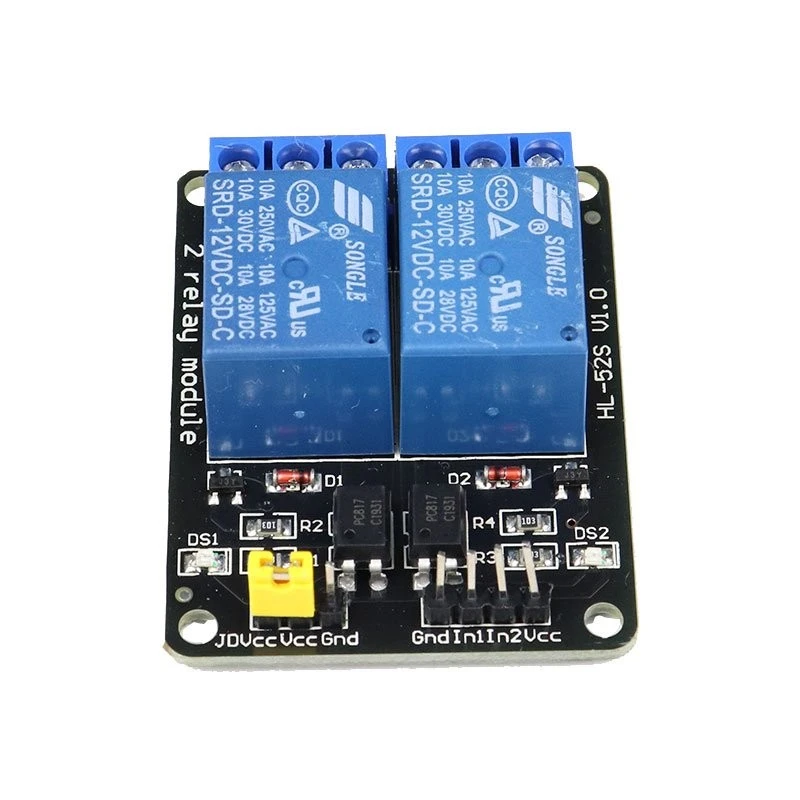

Module Interface:
VCC: Positive supply voltage (12V)
GND: Power ground
IN1: Trigger input for relay channel 1 (high-level trigger)
IN2: Trigger input for relay channel 2 (high-level trigger)
Package Includes:
1 × 2 Channel 12V Relay Module with Optocoupler
Product Specifications:
Number of Channels: 2
Trigger Voltage: 12V
Trigger Current: 20 mA
Switching Voltage (AC): 250V @ 10A
Switching Voltage (DC): 30V @ 10A
Dimensions (L × W × H): 50 × 40 × 20 mm
Weight: 30 g
Applications:
Home automation
Motor and solenoid control
Lighting systems
Robotics
DIY electronics projects
Industrial automation
Disclaimer:
Product specifications, weight, and performance may vary depending on batch and usage conditions. Always use with a protection circuit board.
