Description:

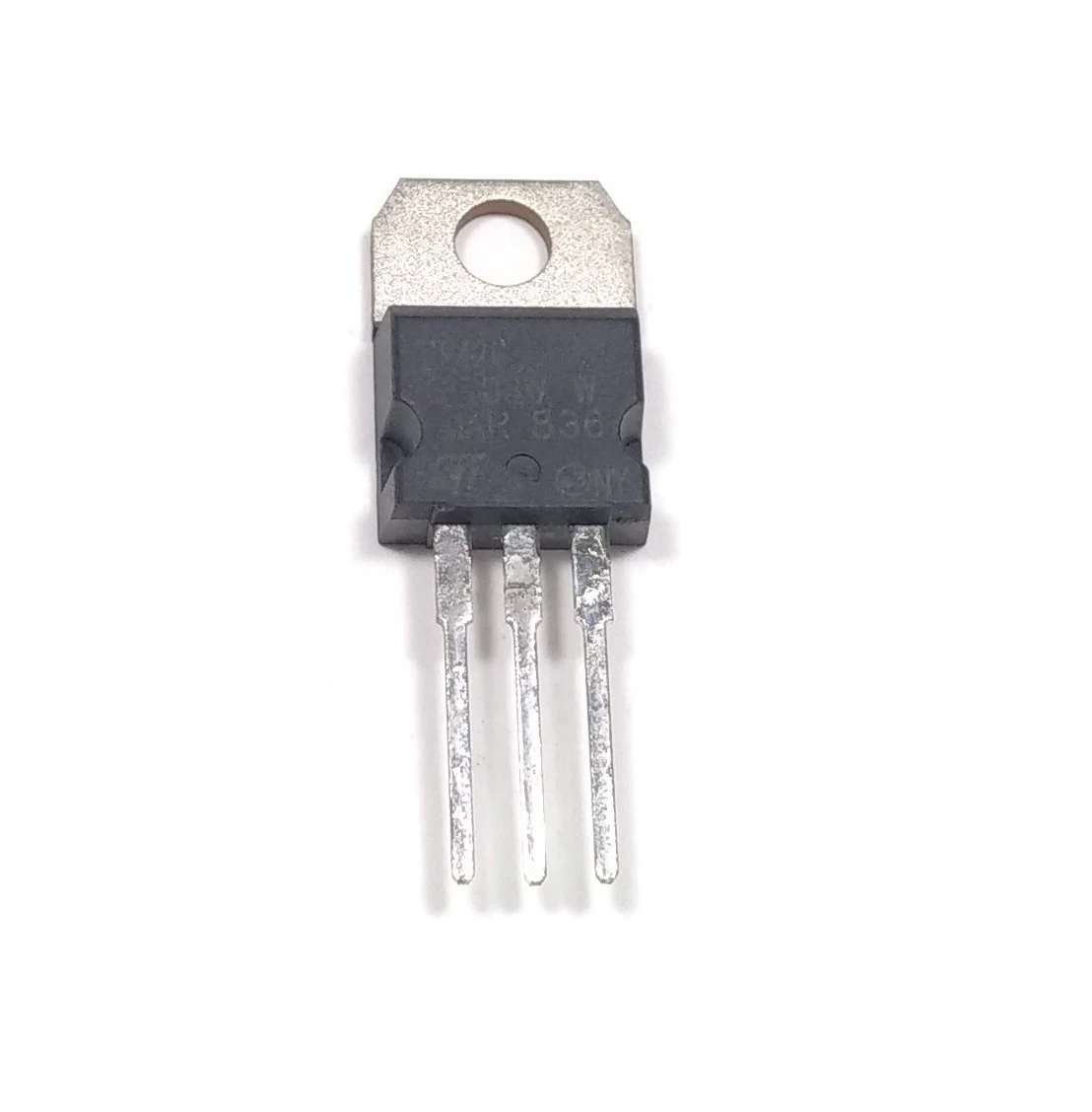

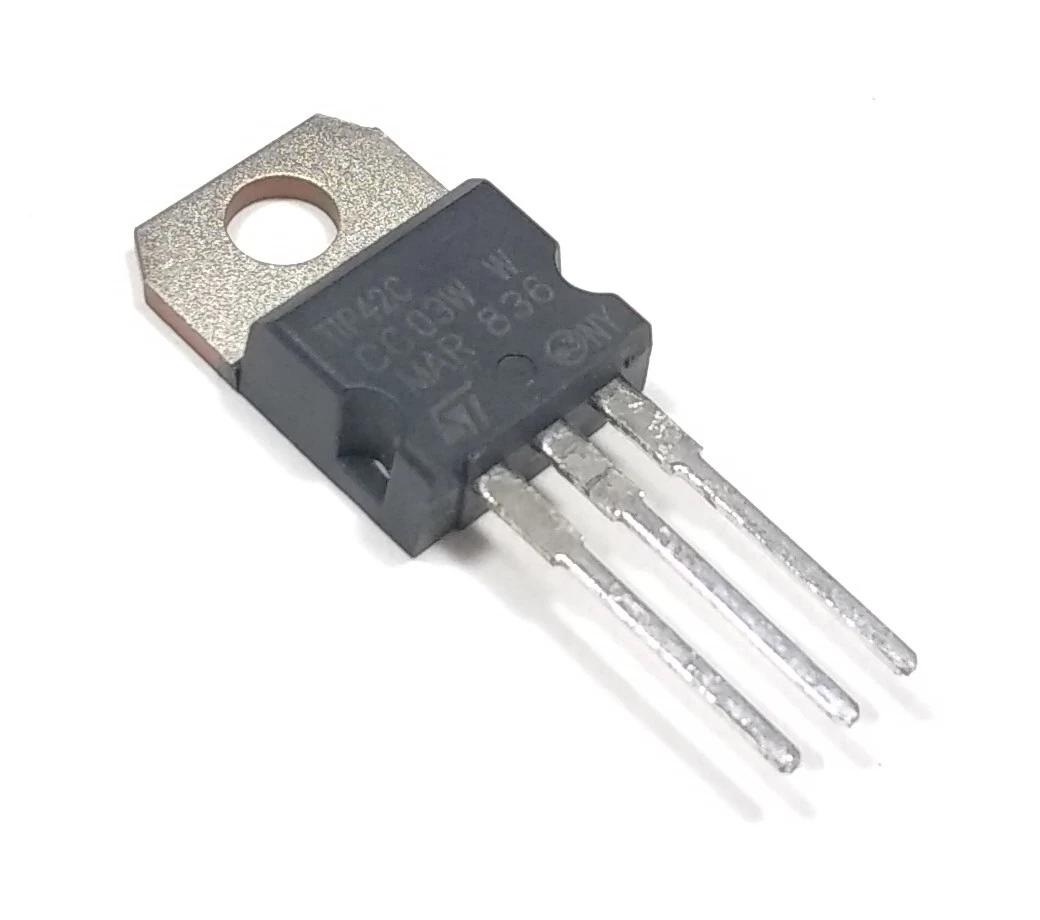

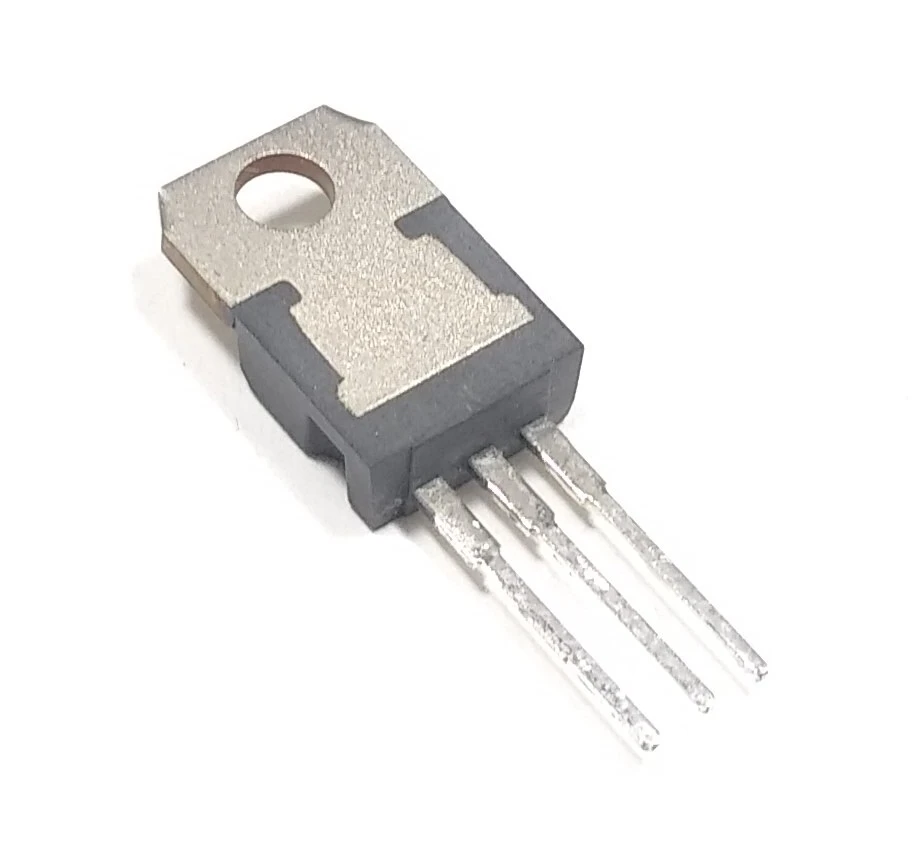

The TIP42C is a high-performance PNP power transistor designed for general-purpose amplifier and switching applications. With its high current handling and power dissipation capabilities, the TIP42C is ideal for use in audio amplifiers, power supplies, and motor control circuits. It features a compact TO-220 AB package that facilitates easy integration into a wide range of electronic systems.

The TIP42C is built to handle continuous collector currents from 6 to 10A, with excellent thermal stability and high current gain. Its low saturation voltage makes it suitable for power switching circuits, while its wide junction temperature range ensures reliability in demanding environments.

Features:

• High current gain: Ensures excellent amplification and switching performance.

• Compact TO-220 package: Provides efficient heat dissipation and easy mounting.

• Collector-Emitter Voltage (V_CEO): 100V, allowing for use in various high-voltage applications.

• Collector Current: Up to 10A, ideal for power amplifiers and motor control circuits.

• Low power dissipation: Rated for up to 2W at 25°C, making it suitable for continuous operation in high-power applications.

• Thermal performance: Derates 0.52W/°C above 25°C, ensuring stable operation even in hot environments.

Electrical Specifications:

• Collector-Emitter Voltage (V_CEO): 100V

• Collector-Base Voltage (V_CBO): 100V

• Emitter-Base Voltage (V_EBO): 5V

• Collector Current (I_C): 6A (min), 10A (max)

• Base Current (I_B): 2A

• Power Dissipation (P_D): 2W (at T_A = 25°C)

• Total Power Dissipation (P_D): 65W (at T_C = 25°C)

• Saturation Voltage (V_CE(sat)): Low, ensuring efficient operation.

Thermal Specifications:

• Operating Junction Temperature (T_j): -65°C to +200°C

• Thermal Resistance Junction to Case (RθJC): 1.9°C/W

• Thermal Resistance Junction to Ambient (RθJA): 62.5°C/W (without heatsink)

Applications:

• Audio Amplifiers: Perfect for use in high-power audio amplification circuits.

• Motor Control: Suitable for controlling DC motors in industrial applications.

• Power Switching Circuits: Ideal for relay or solenoid drivers.

• Voltage Regulators: Used in designing voltage regulators and power supplies.

• Custom Circuit Designs: Versatile enough for use in a wide variety of power circuits.

Package Includes:

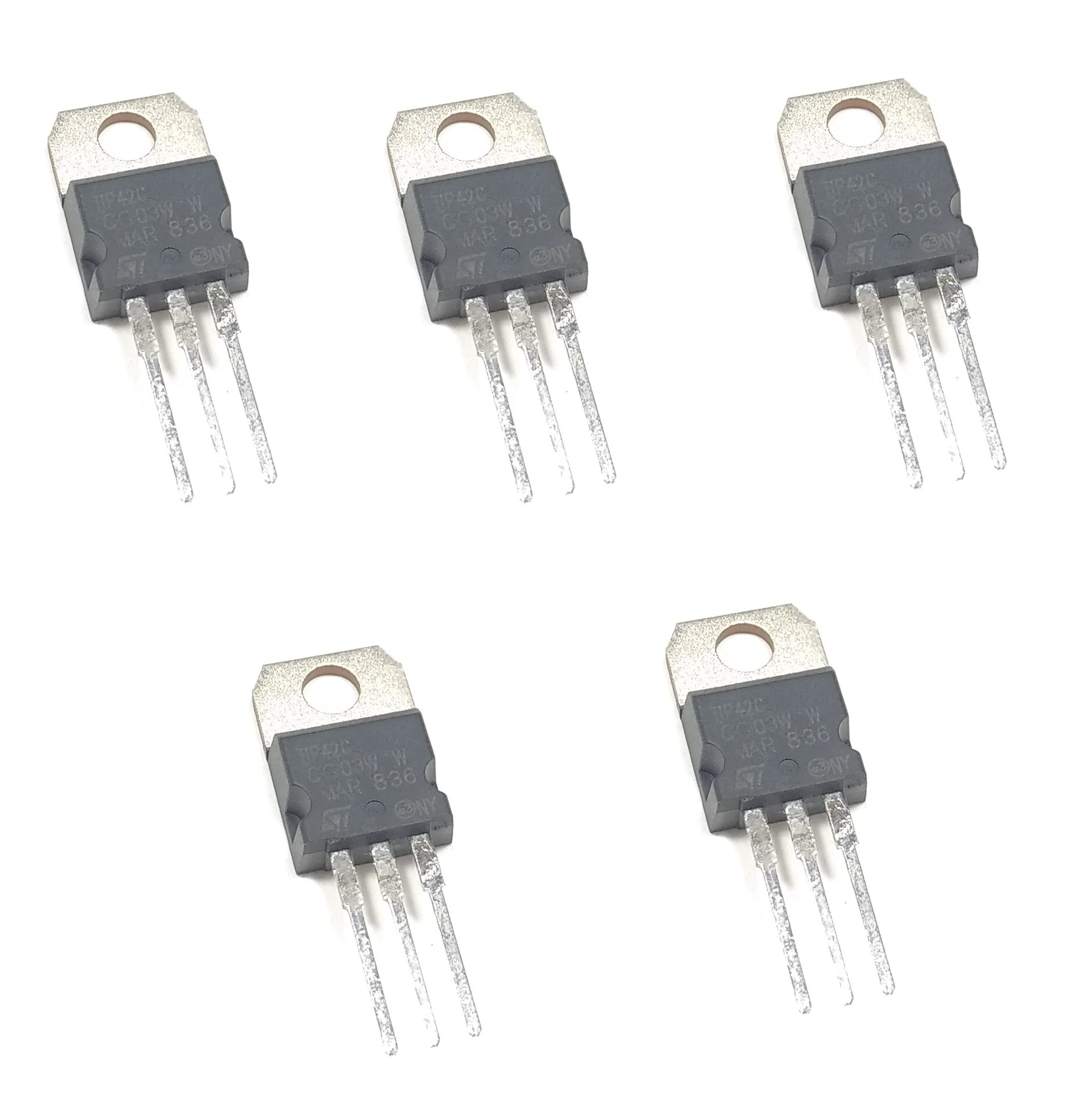

• 5x TIP42C PNP power transistors.

• 1x Heatsink compound (for thermal dissipation).

• 5x Heatsinks (for mounting on each transistor).

• 5x Screws (for secure mounting).

Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
