Description:

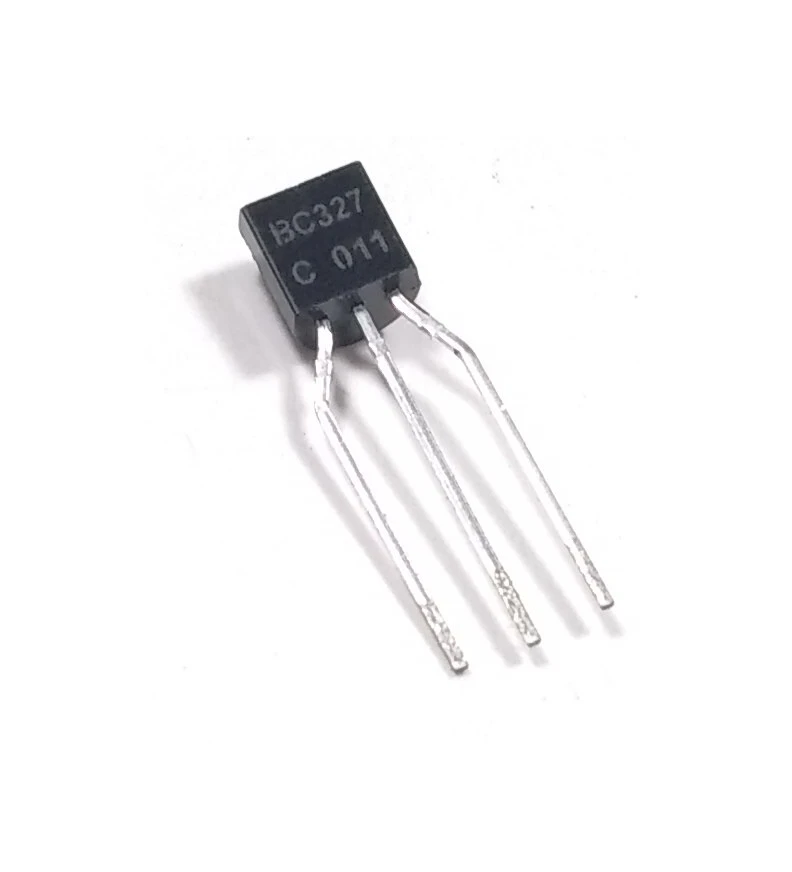

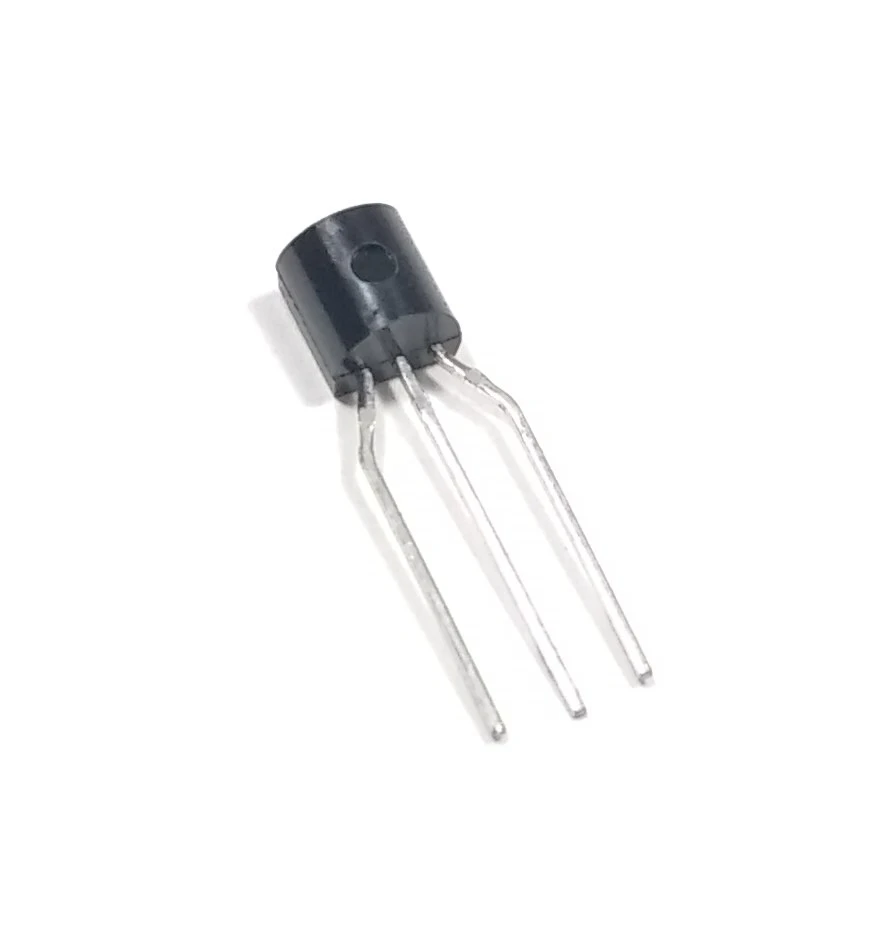

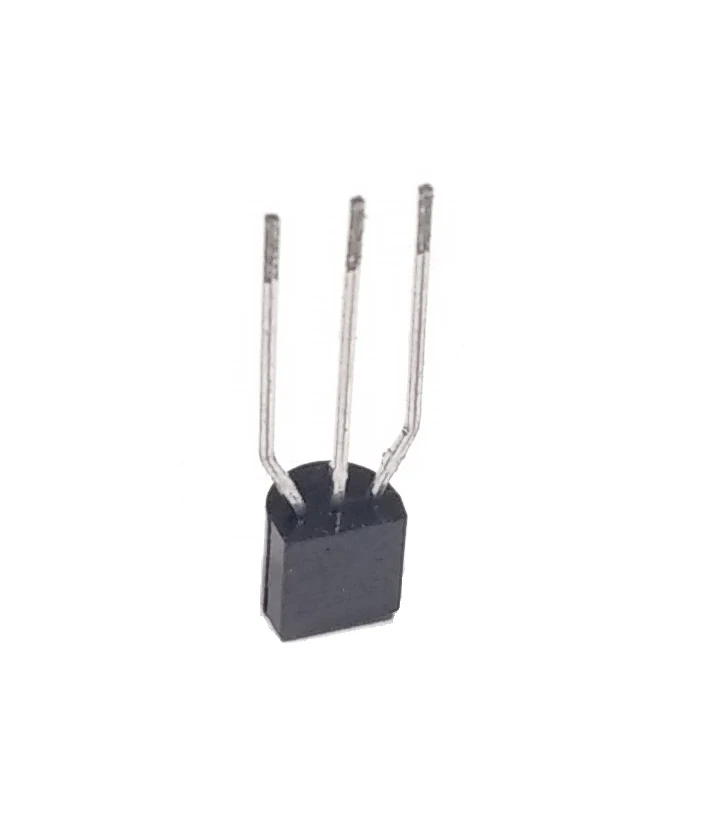

The BC327 is a popular PNP general-purpose transistor, ideal for low-power amplification and switching applications. It is designed to handle moderate current levels and operates effectively in a wide range of circuit configurations.
Polarity: PNP
Collector-Base Voltage (VCBO): -50 V
Collector-Emitter Voltage (VCEO): -45 V
Emitter-Base Voltage (VEBO): -5 V
Collector Current (IC): -800 mA
Power Dissipation @ TA = 25°C: 625 mW
Derating above 25°C (Ambient): 5.0 mW/°C
Power Dissipation @ TC = 25°C: 1.5 W
Derating above 25°C (Case): 12 mW/°C
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 to 150 °C
Thermal Resistance (RθJA): 200 °C/W
Low-power amplification
Switching applications
Signal processing
Hobby electronics and DIY projects

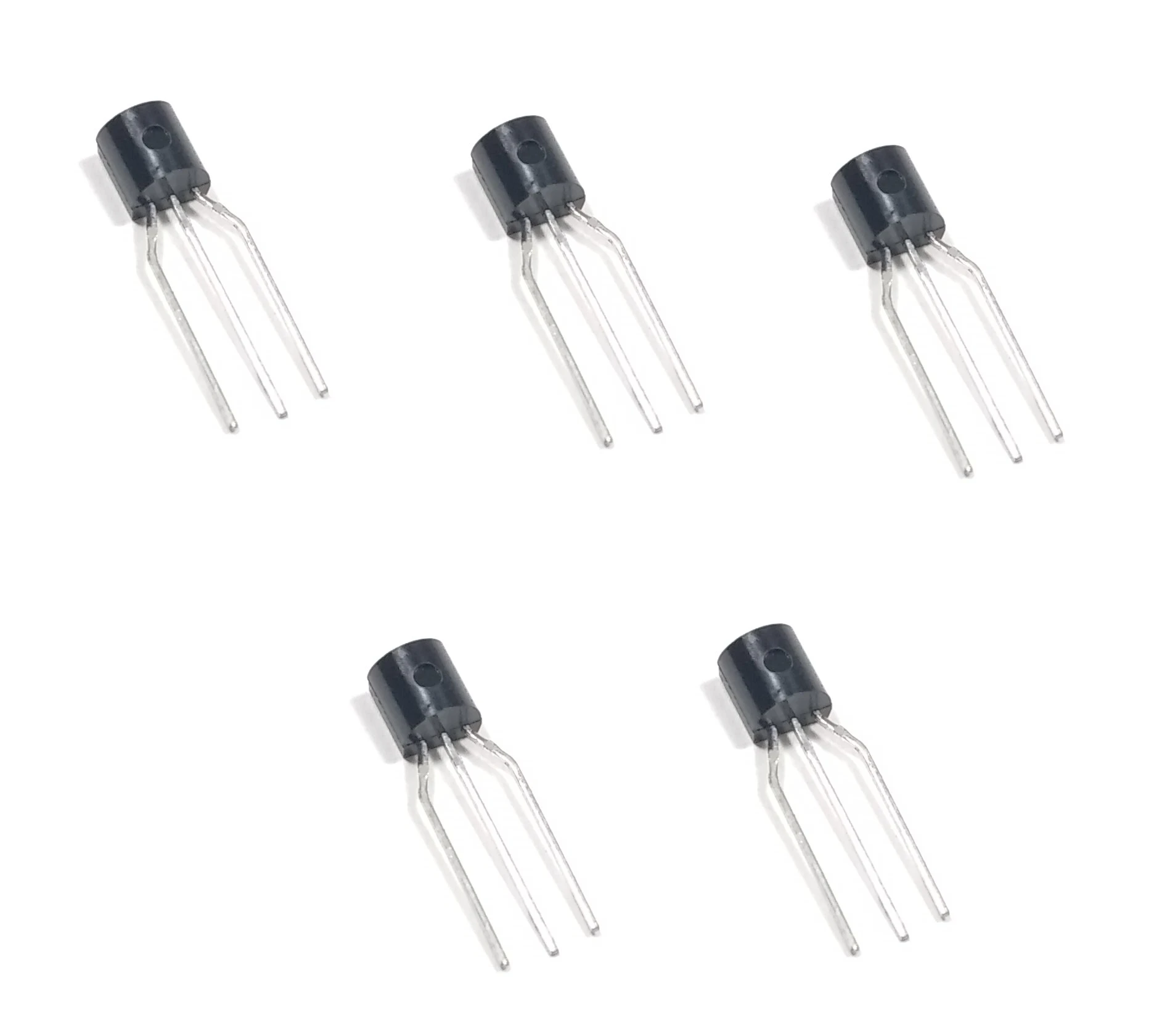

5x BC327 PNP Transistors
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
