BC337 Transistor (pack of 5)

In Stock

SKU: R3-F-4-14-COMB

BC337 Transistor (pack of 5)

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹31.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The BC337 is a widely used NPN general-purpose transistor suitable for medium current and low-power switching or amplification. It offers robust performance in switching circuits and signal processing applications.

Features:

Polarity: NPN
Collector-Base Voltage (VCBO): 50 V
Collector-Emitter Voltage (VCEO): 45 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 800 mA
Power Dissipation @ TA = 25°C: 625 mW
Derating above 25°C (Ambient): 5.0 mW/°C
Power Dissipation @ TC = 25°C: 1.5 W
Derating above 25°C (Case): 12 mW/°C
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 to 150 °C
Thermal Resistance (RθJA): 200 °C/W

Applications:

Signal amplification
Switching operations
LED drivers
Hobby electronics and educational kits

Package Includes:

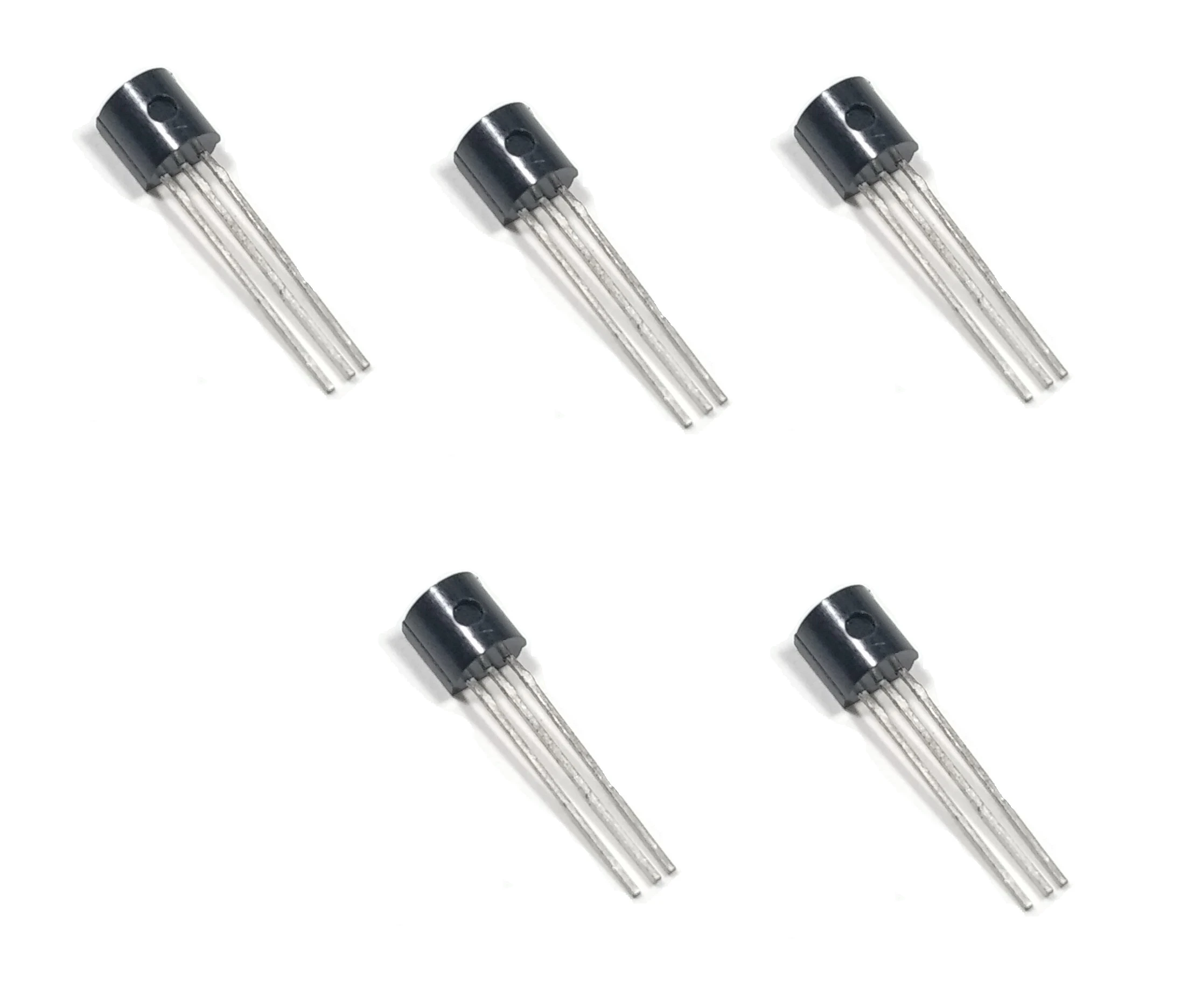

5x BC337 NPN Transistors

Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
