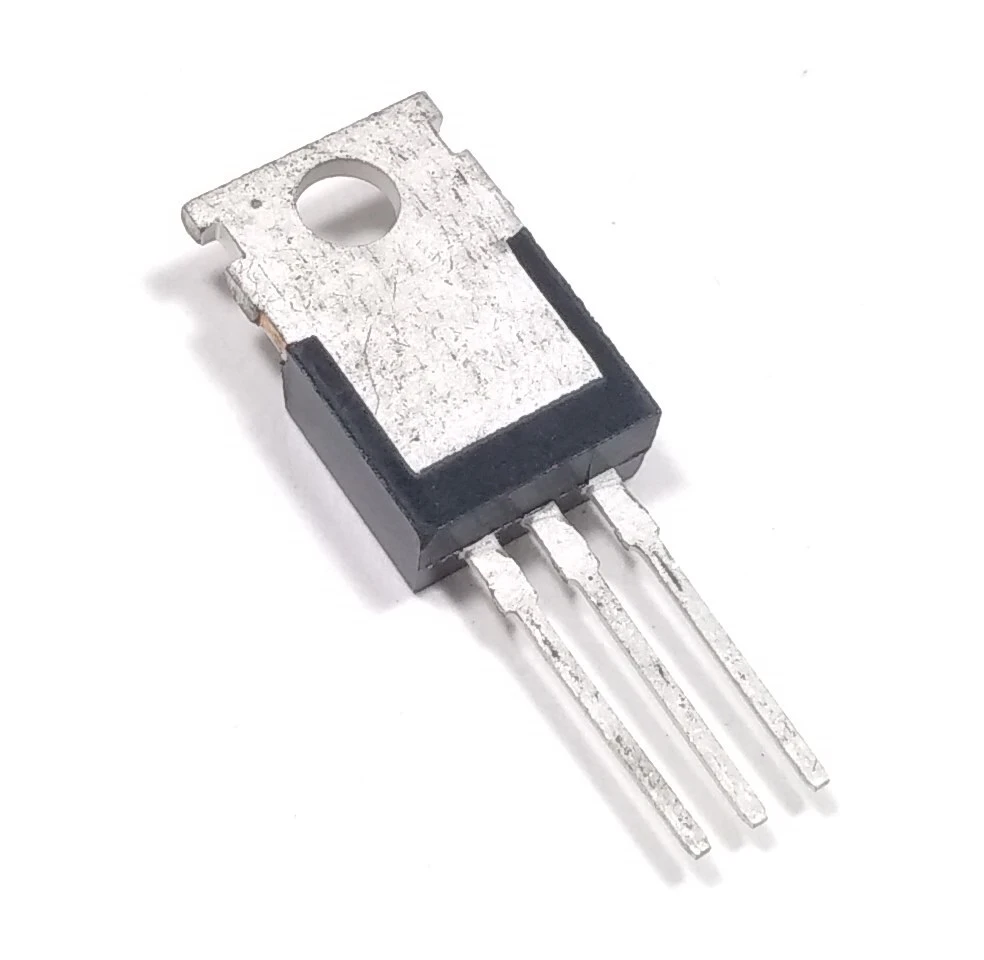

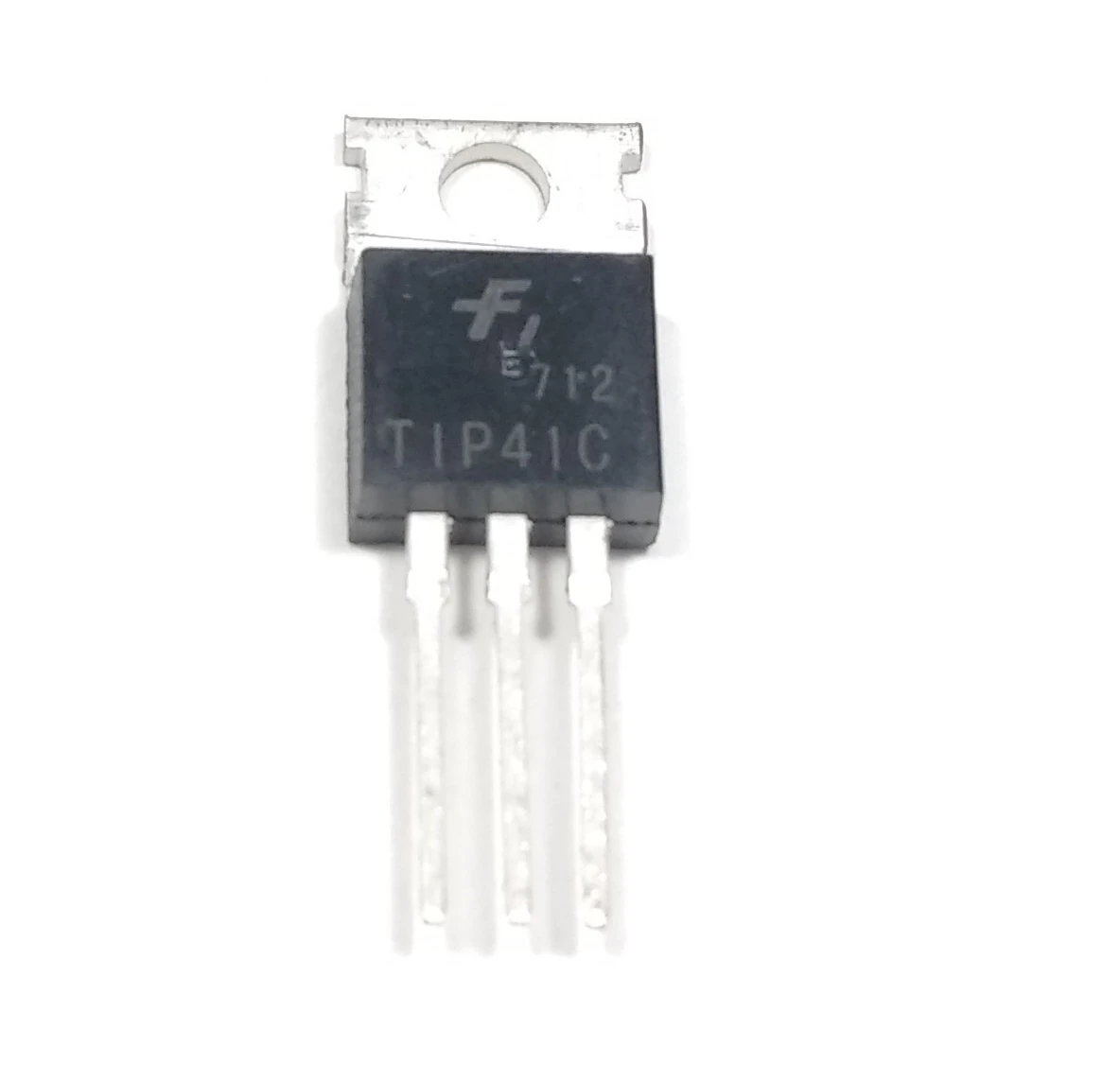

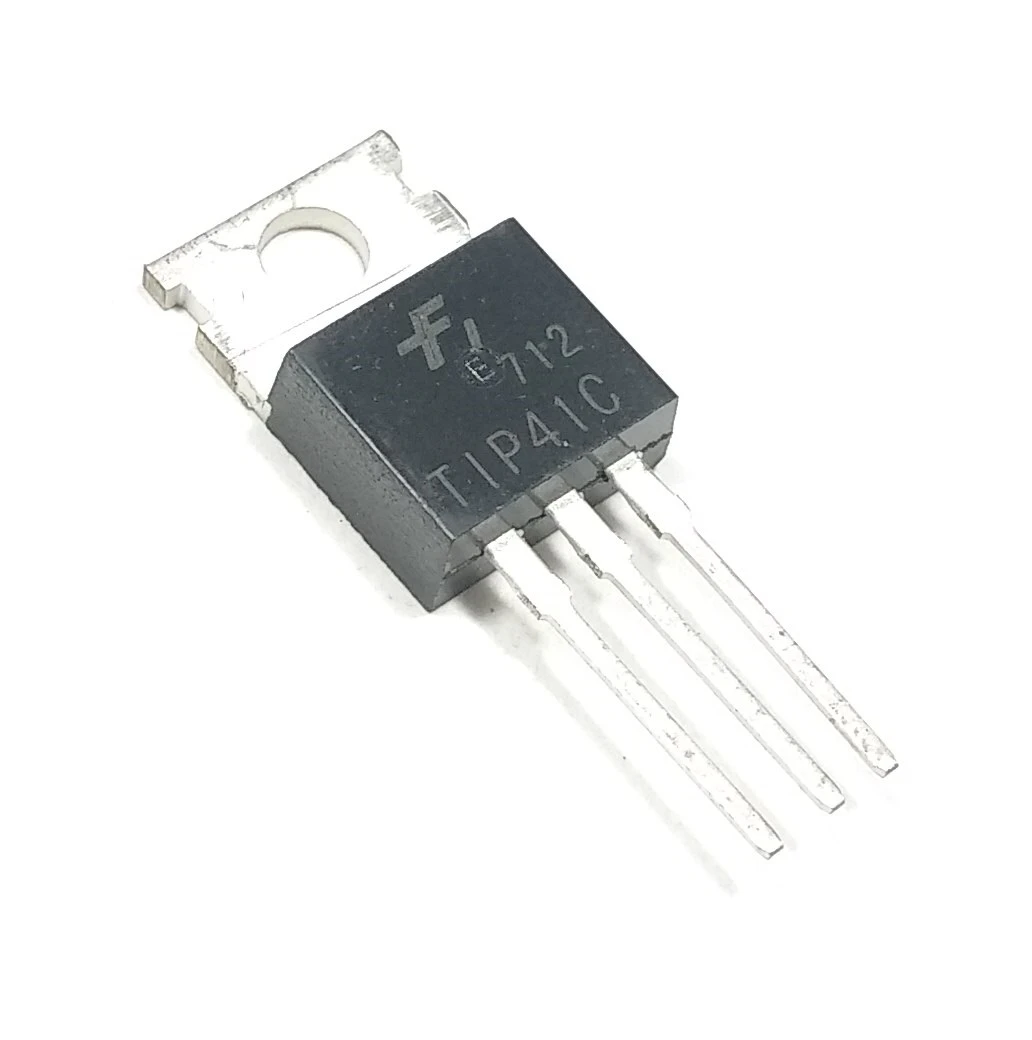

Description:

The TIP41C is a high-performance NPN power transistor, designed for general-purpose amplifier and switching applications. Its versatile design makes it ideal for use in a wide range of electronic systems, including audio amplifiers, motor control circuits, and power supplies. With a compact TO-220 AB package, it offers efficient heat dissipation and easy mounting, ensuring durability and reliable operation.

This transistor is capable of handling collector currents from 6 to 10A and offers excellent current gain. It also features thermal shutdown protection, which ensures the safety of your circuits even under demanding conditions. The TIP41C is commonly used in power switching circuits and low-distortion complementary designs, making it a must-have component for your next electronics project.

Features:

• High Current Gain: Ensures reliable amplification and switching performance.

• Compact TO-220 Package: Provides efficient thermal management and easy integration into electronic circuits.

• Collector-Emitter Voltage (V_CEO): 100V, making it suitable for various high-voltage applications.

• Collector Current (I_C): Handles up to 10A of continuous current, ideal for power amplifiers and motor controllers.

• Power Dissipation: Rated for up to 2W at 25°C, enabling long-term stability in high-power applications.

• Excellent Thermal Performance: Derates at 0.52W/°C above 25°C, ensuring operational reliability even in hot environments.

Electrical Specifications:

• Collector-Emitter Voltage (V_CEO): 100V

• Collector-Base Voltage (V_CBO): 100V

• Emitter-Base Voltage (V_EBO): 5V

• Collector Current (I_C): 6A (min), 10A (max)

• Base Current (I_B): 2A

• Power Dissipation (P_D): 2W (at T_A = 25°C)

• Total Power Dissipation (P_D): 65W (at T_C = 25°C)

• Saturation Voltage (V_CE(sat)): Low saturation voltage for improved efficiency.

Thermal Specifications:

• Operating Junction Temperature (T_j): -65°C to +200°C

• Thermal Resistance Junction to Case (RθJC): 1.9°C/W

• Thermal Resistance Junction to Ambient (RθJA): 62.5°C/W (without heatsink)

Applications:

• Audio Amplifiers: Ideal for use in power audio amplification circuits.

• Motor Control: Suitable for controlling DC motors in industrial automation systems.

• Power Switching: Can be used in relay drivers, solenoid circuits, and other power switching applications.

• Voltage Regulation: Suitable for use in designing power supply circuits and voltage regulators.

• General Electronics: A versatile transistor for use in various custom circuit designs.

Package Includes:

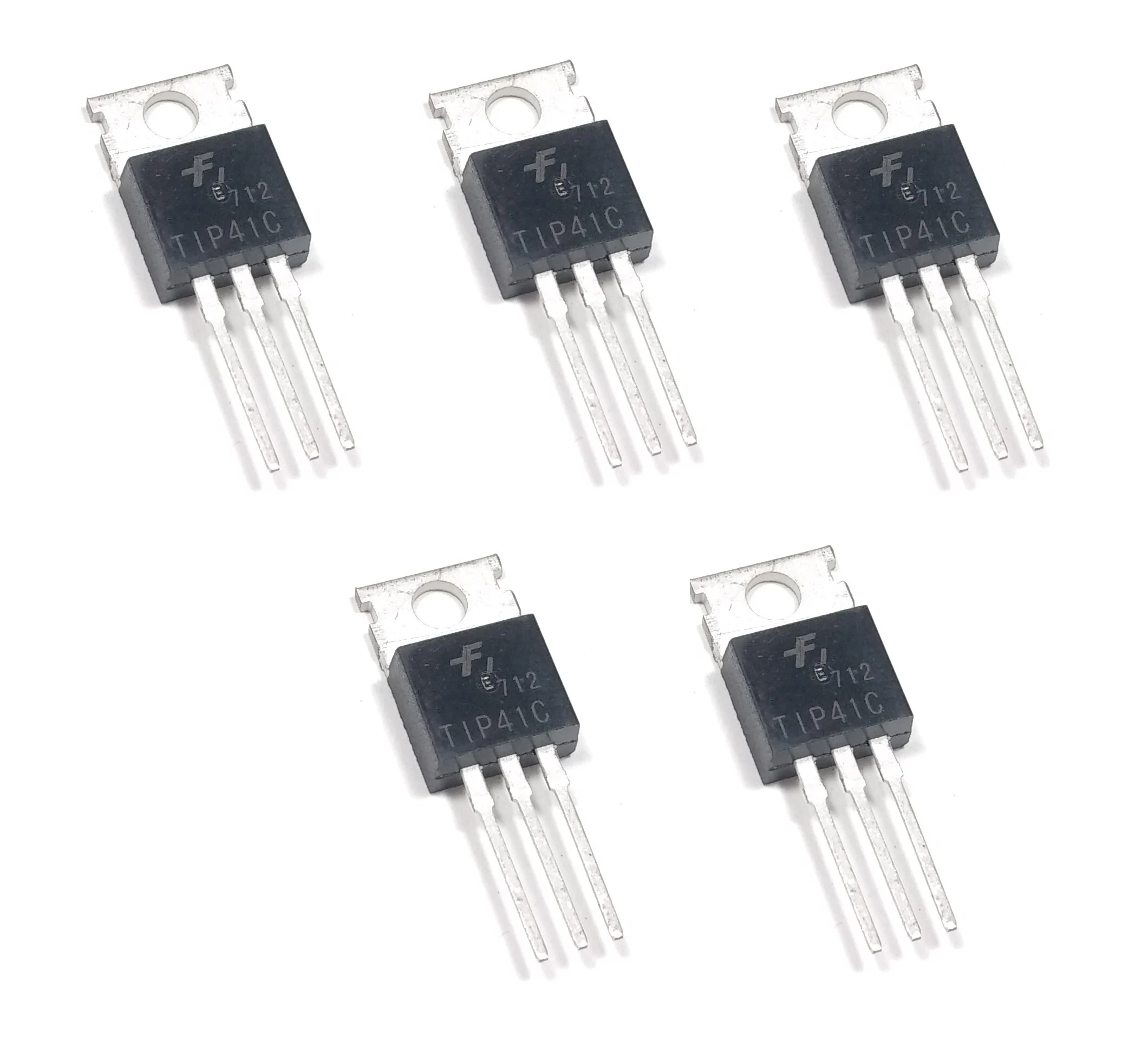

• 5x TIP41C NPN power transistors.

• 1x Heatsink compound (for thermal dissipation).

• 5x Heatsinks (for mounting each transistor).

• 5x Screws (for secure mounting).
