Description:

The TIP147 is a high-performance NPN power transistor designed for switching and linear amplification applications. It is widely used in circuits where high current handling, high voltage protection, and good thermal stability are required. The TIP147 features a Darlington configuration that offers high current gain, making it perfect for driving loads like motors, solenoids, and lights, particularly in control circuits for microcontrollers like Arduino.

This pack includes 5 TIP147 transistors, which are ideal for projects requiring multiple transistors for controlling high-power devices.

Features:

• Darlington transistor for high current gain and low base current requirements.

• High collector current: Up to 16A.

• Low saturation voltage: Ensures efficient switching and minimal heat dissipation.

• Wide operating temperature: -65°C to +150°C.

• Ideal for driving high-power devices such as motors, relays, and actuators.

• Built-in protection: Thermal shutdown and current limiting features.

• Package: TO-220, which is suitable for use with a heatsink for improved cooling.

Electrical Specifications:

• Collector-Emitter Voltage (V_CEO): 80V

• Collector-Base Voltage (V_CBO): 100V

• Emitter-Base Voltage (V_EBO): 5V

• Collector Current (I_C): 16A (continuous)

• Base Current (I_B): 150mA

• Power Dissipation (P_D): 125W (at T_C = 25°C)

• Saturation Voltage (V_CE(sat)): 2V (at I_C = 8A)

• DC Current Gain (hFE): 1000 (at I_C = 8A, V_CE = 5V)

Thermal Specifications:

• Junction to Case Thermal Resistance (RθJC): 1.0°C/W

• Junction to Ambient Thermal Resistance (RθJA): 62.5°C/W (without heatsink)

Applications:

• Power switching circuits for motors, lights, and relays.

• Amplifiers for audio and power applications.

• Microcontroller projects (e.g., Arduino) requiring high-current switching.

• Power supplies, inverters, and other high-voltage circuits.

• Automotive and industrial applications.

Package Includes:

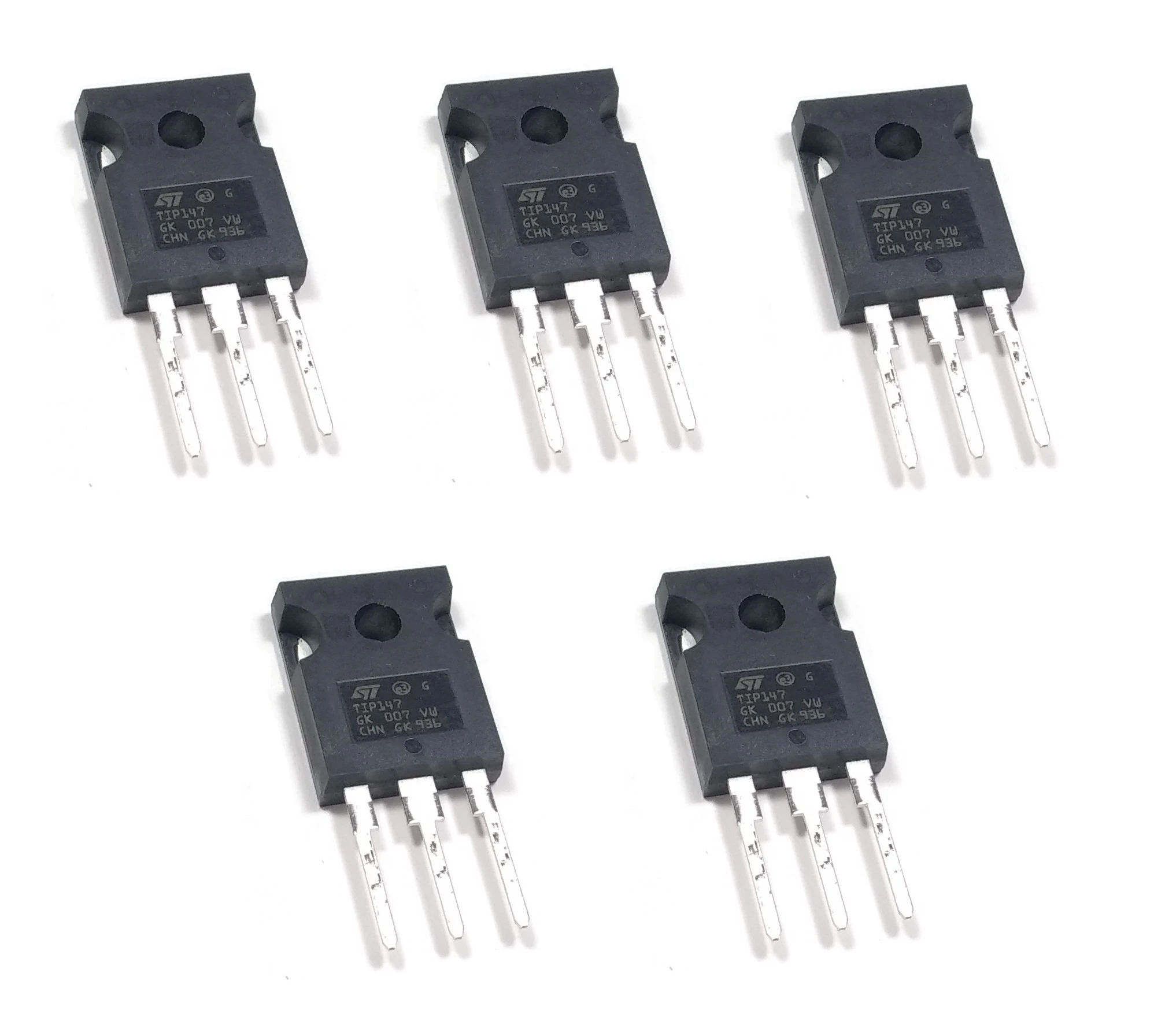

• 5 x TIP147 Darlington NPN transistors.

• 5 x Heat sink compound (for effective heat dissipation).

• 5 x Heat sink (2 x 1.5 cm) for cooling.

• 5 x Screws for securing transistors.
