Description:

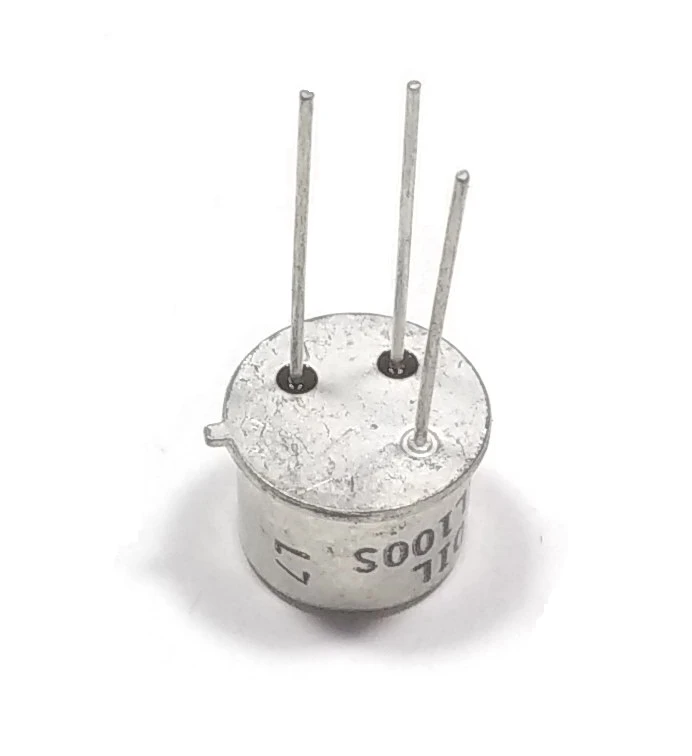

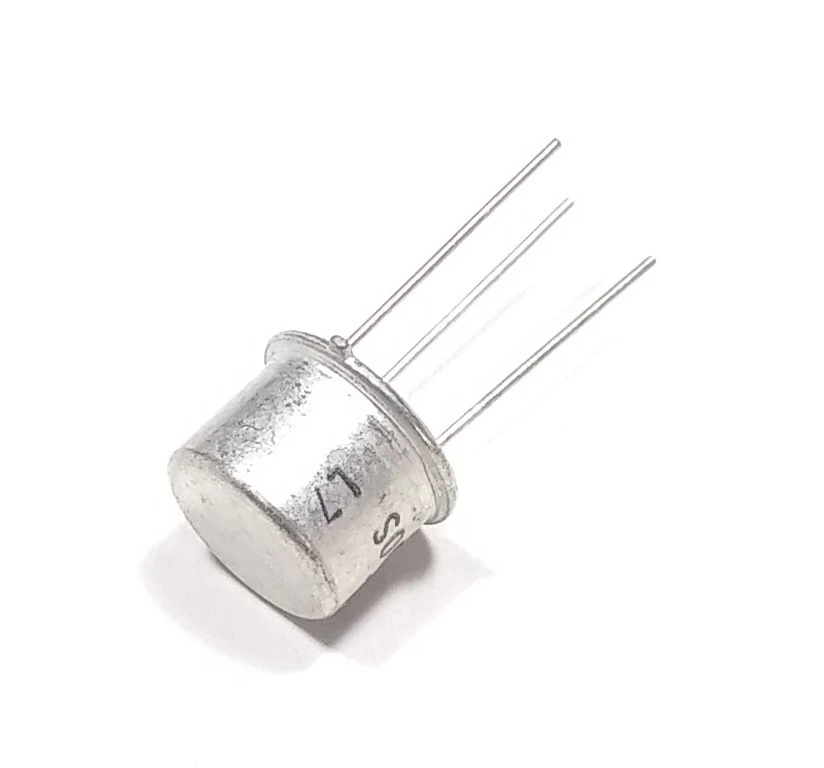

The SL100 is a general-purpose NPN transistor designed for medium power applications. It comes in a compact TO-39 package, making it suitable for a wide range of electronic circuits. This transistor is ideal for use in low-power amplification, switching applications, and signal processing tasks. With its relatively low power dissipation and robust voltage ratings, it is a reliable choice for various consumer and industrial applications.

The SL100 can handle continuous collector currents of up to 0.5A and is rated for a collector-emitter voltage of 50V, making it perfect for circuits with moderate voltage and current requirements. Its wide temperature operating range ensures it can perform well in different environmental conditions.

Features:

• Polarity: NPN (Negative-Positive-Negative configuration)

• Collector-Emitter Voltage (BV_CEO): 50V for reliable voltage tolerance.

• Collector-Base Voltage (BV_CBO): 60V for higher voltage handling capabilities.

• Emitter-Base Voltage (BV_EBO): 5V.

• Collector Current (I_C): 0.5A continuous, suitable for medium power applications.

• Power Dissipation (P_D): 800mW at T_A = 25°C, providing sufficient power handling capability for most circuits.

• Operating Junction Temperature: -65°C to +200°C, offering versatility in various environmental conditions.

Electrical Specifications:

• Collector-Emitter Voltage (BV_CEO): 50V

• Collector-Base Voltage (BV_CBO): 60V

• Emitter-Base Voltage (BV_EBO): 5V

• Collector Current (I_C): 0.5A (max continuous)

• Power Dissipation (P_D): 800mW at T_A = 25°C

Thermal Specifications:

• Operating Junction Temperature (T_j): -65°C to +200°C

• Storage Temperature (T_stg): -65°C to +200°C

Applications:

• General-Purpose Amplification: Suitable for use in medium-power audio and signal amplification circuits.

• Switching Circuits: Ideal for use in general switching tasks in consumer and industrial devices.

• Signal Processing: Can be used in signal processing circuits for low-to-medium power applications.

• Voltage Regulation: Works well in voltage regulation circuits for moderate power demands.

Package Includes:

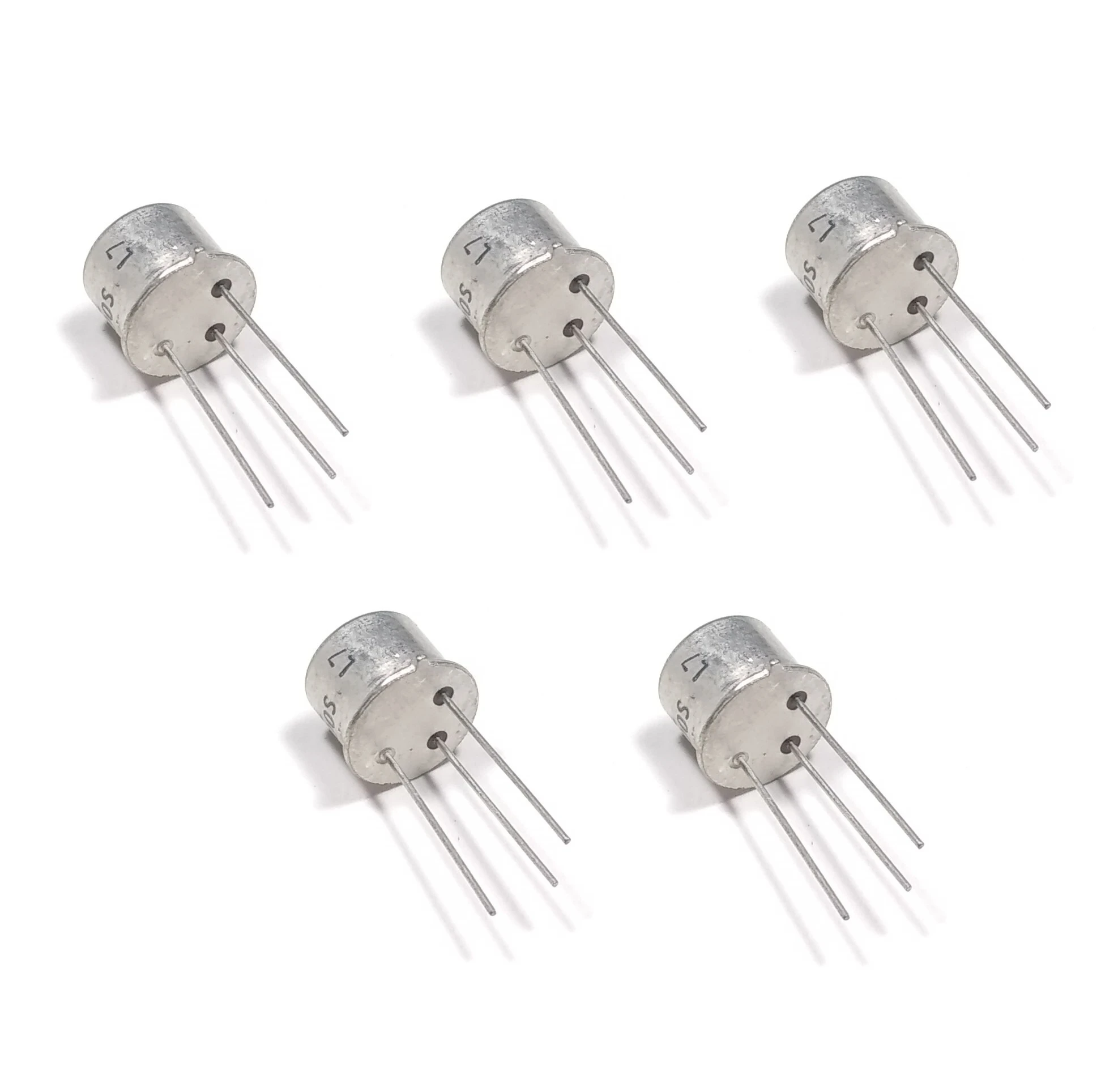

• 5x SL100 NPN medium-power transistors.

• 1x Heatsink compound (for thermal management).

• 5x Heatsinks (for mounting each transistor).

• 5x Screws (for secure mounting).

Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
