S8050 NPN Transistor

In Stock

SKU: R3-F-8-3

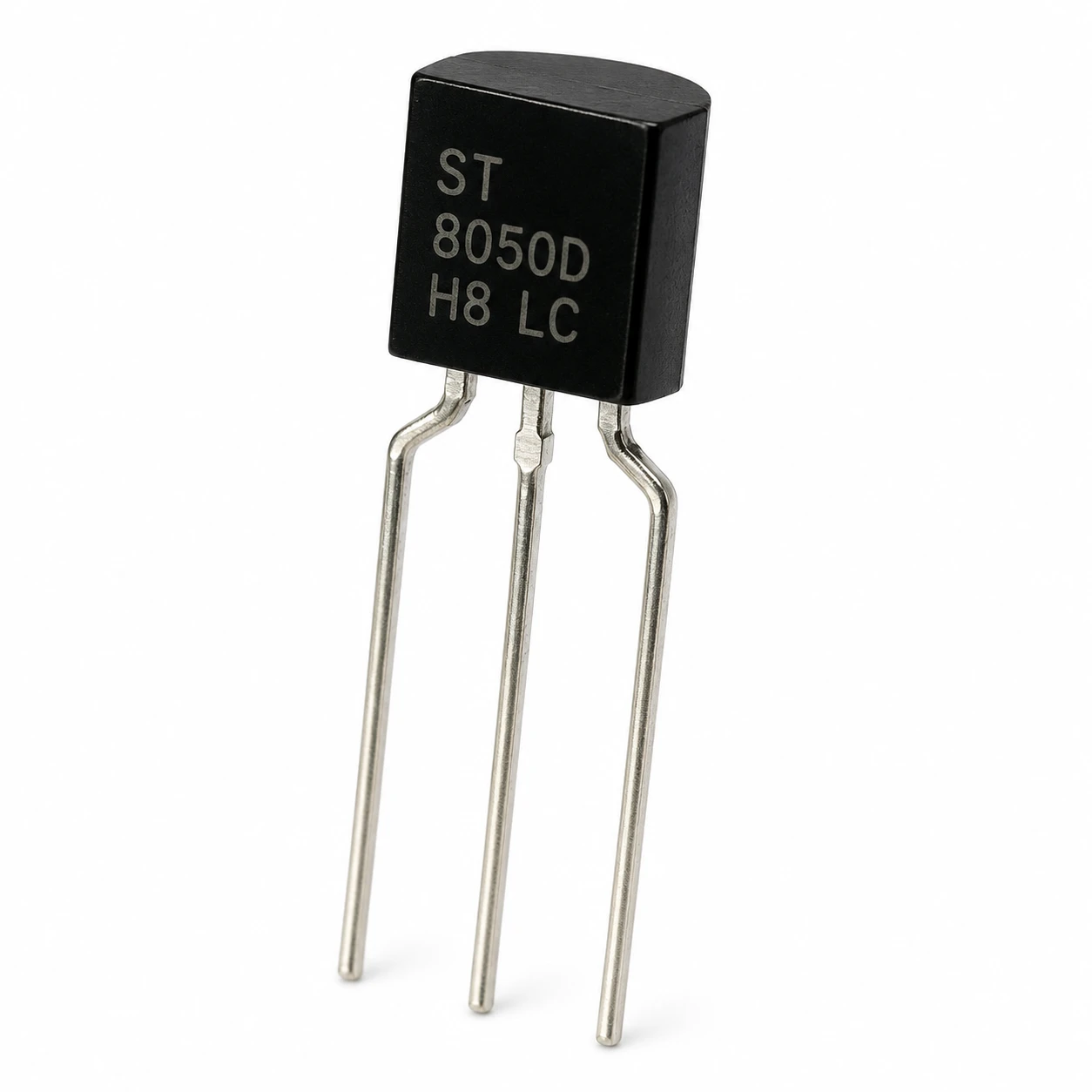

S8050 NPN Transistor

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹8.50 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The S8050 is a general-purpose NPN bipolar junction transistor (BJT) designed for low- to medium-power switching and amplification applications. It is widely used in electronic circuits for driving relays, LEDs, buzzers, small DC motors, signal amplification, and microcontroller interfacing. Its compact TO-92 package and high current capability make it suitable for hobby, educational, and industrial projects.

Features

General-purpose NPN transistor
TO-92 through-hole package
High current gain (hFE)
Suitable for switching and amplification
Low saturation voltage
Compact and lightweight
Easy to use in breadboard and PCB projects
Reliable performance for general electronics

Specifications

Parameter	Value
Transistor Type	NPN BJT
Package	TO-92
Collector-Emitter Voltage (VCEO)	25 V
Collector Current (IC Max)	500 mA
Power Dissipation	Up to 625 mW (Typical)
Transition Frequency (fT)	150 MHz (Typical)
Operating Temperature	-55°C to +150°C

Specifications may vary slightly depending on the manufacturer.

Applications

LED switching
Relay driver circuits
Buzzer driver
Small DC motor control
Audio signal amplification
Sensor interface circuits
Arduino and ESP32 projects
Logic level switching
Educational electronics experiments

Package Includes

1 × S8050 NPN Transistor (TO-92)

Advantages

Cost-effective
Easy to integrate into electronic circuits
Suitable for beginners and professionals
Compatible with breadboards and PCBs
Supports both switching and amplification applications

Safety Instructions

Operate within the specified voltage and current ratings.
Observe the correct pin orientation before soldering.
Protect against electrostatic discharge (ESD) during handling.
Avoid excessive heat while soldering.
Store in a dry environment.

Disclaimer

Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
