The LM7908 is a negative voltage regulator IC that provides a stable -8V output, making it suitable for circuits requiring a regulated negative voltage. It is part of the LM79XX series and can supply an output current in excess of 1A, with the ability to handle up to 1.5A with the appropriate heat dissipation.
The LM7908 features internal thermal overload protection, short circuit protection, and safe-area compensation, making it a reliable and efficient choice for electronic circuits requiring stable negative voltage sources. This IC is ideal for applications that need a high ripple rejection and a low tolerance of 4% on the preset output voltage.

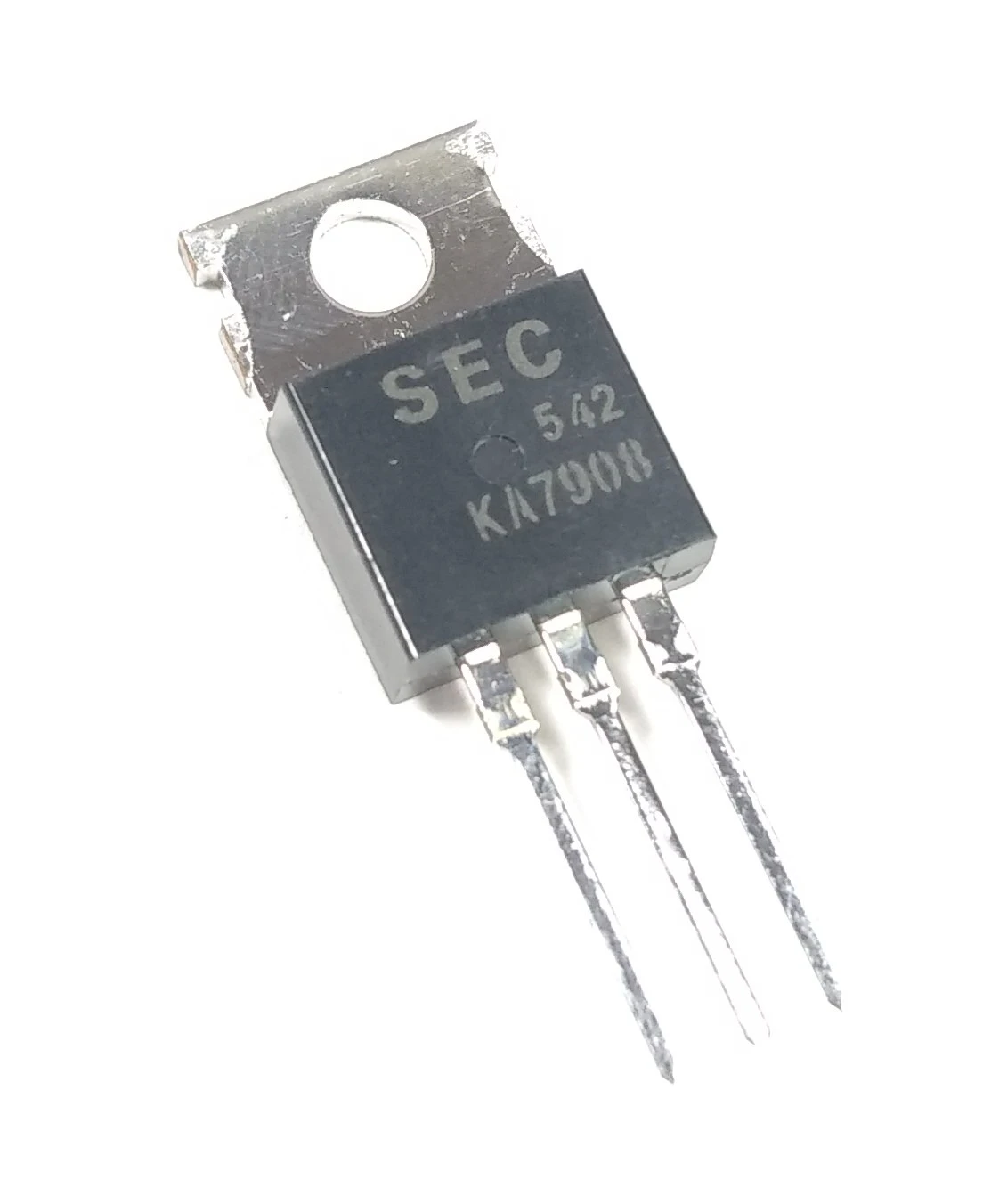

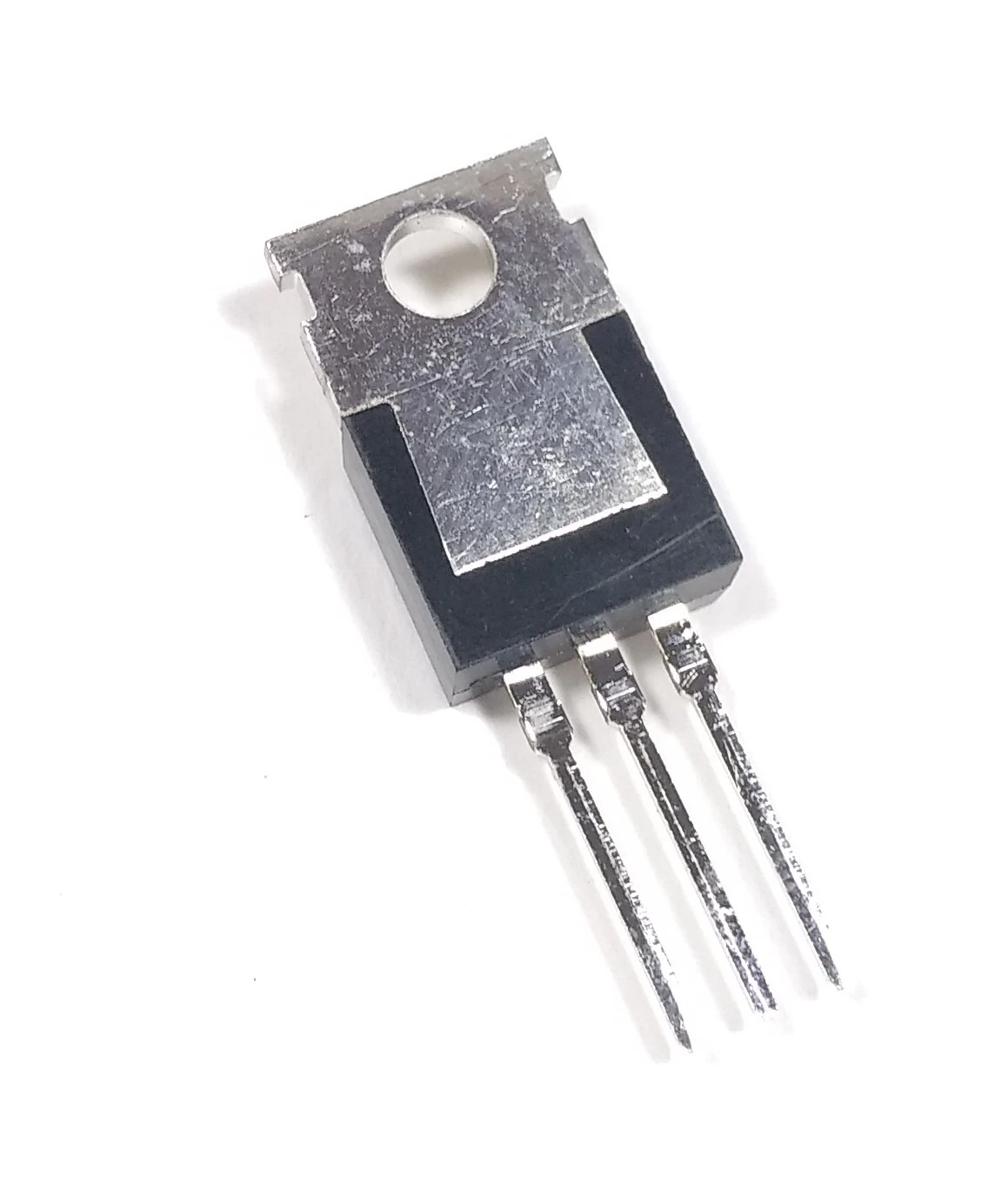

The LM7908 comes in a TO-220 package and only requires a single external compensation capacitor at the output for optimal performance.
Output Voltage: Provides a regulated -8V output.
Output Current: Capable of delivering 1A to 1.5A of output current.
Internal Protections: Features thermal overload protection, short circuit protection, and safe-area compensation for reliability.
High Ripple Rejection: Ensures clean and stable output even in noisy environments.
4% Tolerance: Preset output voltage tolerance of 4% for better accuracy.
Low Quiescent Current Drain: Ensures efficient operation with minimal energy loss.
TO-220 Package: Ideal for heat dissipation and easy integration into circuits.
Power Supply Systems: Used in circuits that require a -8V regulated negative voltage.
Audio Systems: Powers audio equipment that needs a negative voltage.
Communication Systems: Used in communication circuits requiring stable negative biasing.
Signal Processing Circuits: Ideal for operational amplifier circuits and other applications requiring negative voltage.
For applications where the current draw is high or the input-output voltage differential is significant, it is recommended to use a heat sink to prevent overheating and ensure reliable performance.

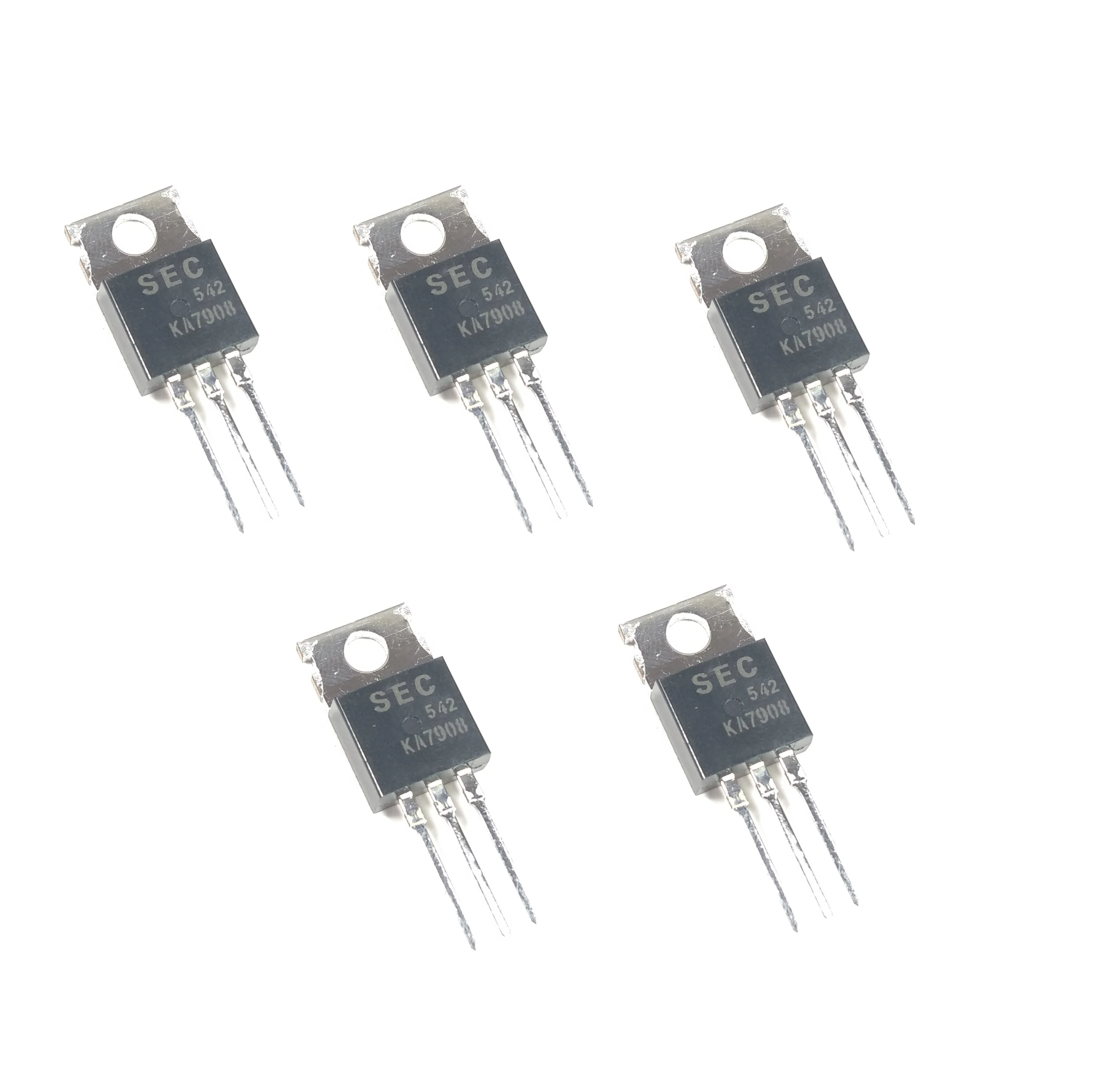

5 x LM7908 Negative Voltage Regulator IC (TO-220 Package).
Product specifications, features, and design may change over time due to product updates or improvements.
