LM7906 Transistor (pack of 2)

In Stock

SKU: R3-F-2-3

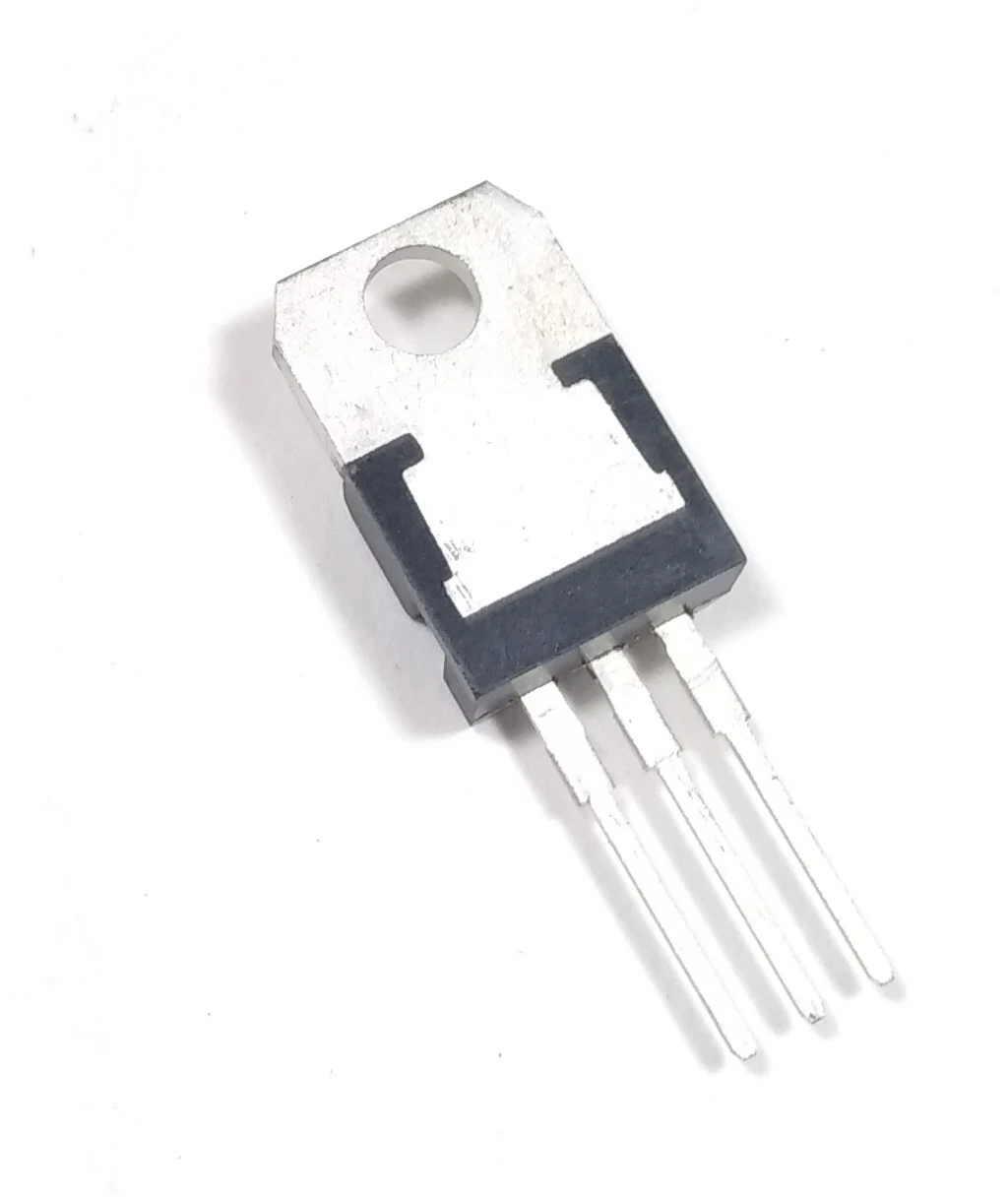

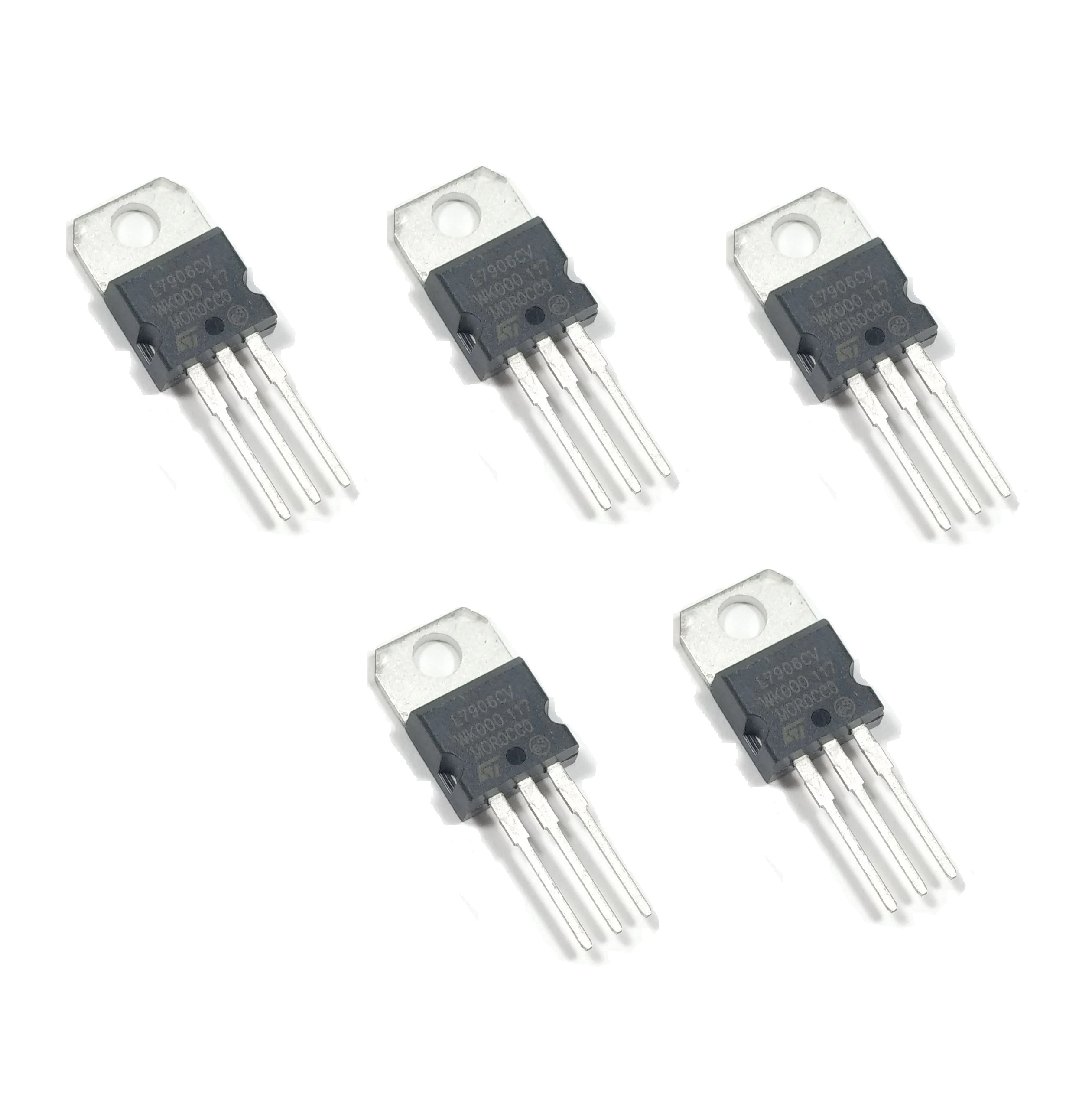

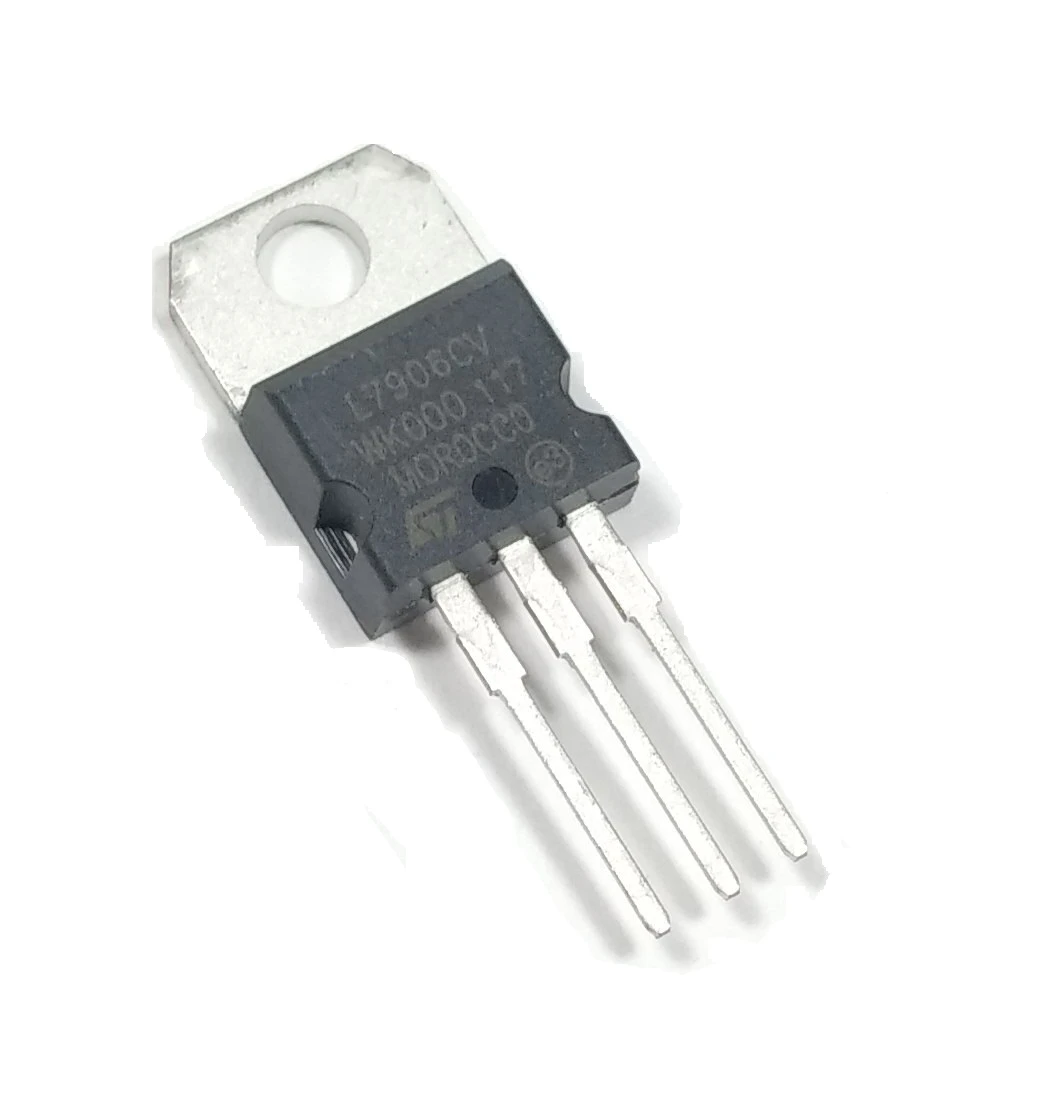

LM7906 Transistor (pack of 2)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹53.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The LM7906 is a negative voltage regulator IC that provides a stable -6V output, ideal for circuits requiring a regulated negative voltage. This IC is part of the 79xx series and is capable of delivering up to 1A of output current. The LM7906 features built-in thermal overload protection, short circuit protection, and safe area protection, ensuring its reliability and longevity in electronic circuits.

Typically used in power supply systems, audio equipment, and other applications requiring a stable negative voltage source, the LM7906 is available in a convenient TO-220 package that can easily be mounted to a heat sink for improved thermal dissipation.

Features:

-6V Negative Voltage Regulator: Provides a stable output of -6V.
Input Voltage Range: Minimum input voltage of 8V, with a typical range up to 35V.
Output Current: Delivers up to 1A of output current.
Built-in Protections: Includes thermal overload and short circuit protection for reliable operation.
TO-220 Package: Easy to mount and capable of effective heat dissipation.
Low Noise: Ensures clean and stable output for sensitive applications.

Applications:

Power Supply Systems: Provides a regulated -6V output for various power supply applications.
Audio Equipment: Powers components in audio systems that require a negative voltage.
Communication Equipment: Used in communication systems requiring a stable negative power source.
Signal Processing Circuits: Ideal for circuits needing negative biasing for operational amplifiers or transistors.

Heat Dissipation Consideration:

Since the LM7906 is a linear regulator, it may dissipate heat when there is a significant difference between the input and output voltages. It is recommended to use a heat sink in applications with higher current draw to prevent overheating.
