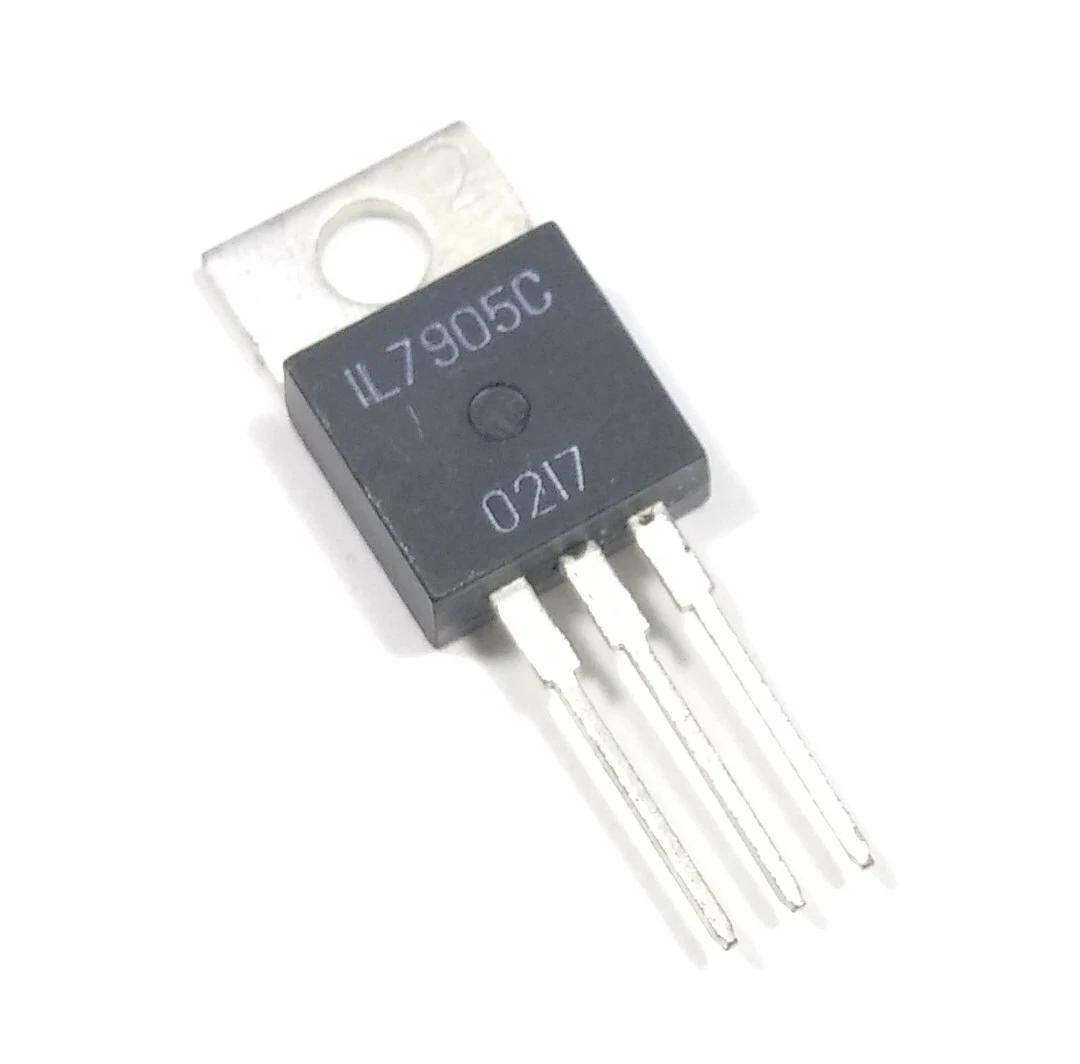

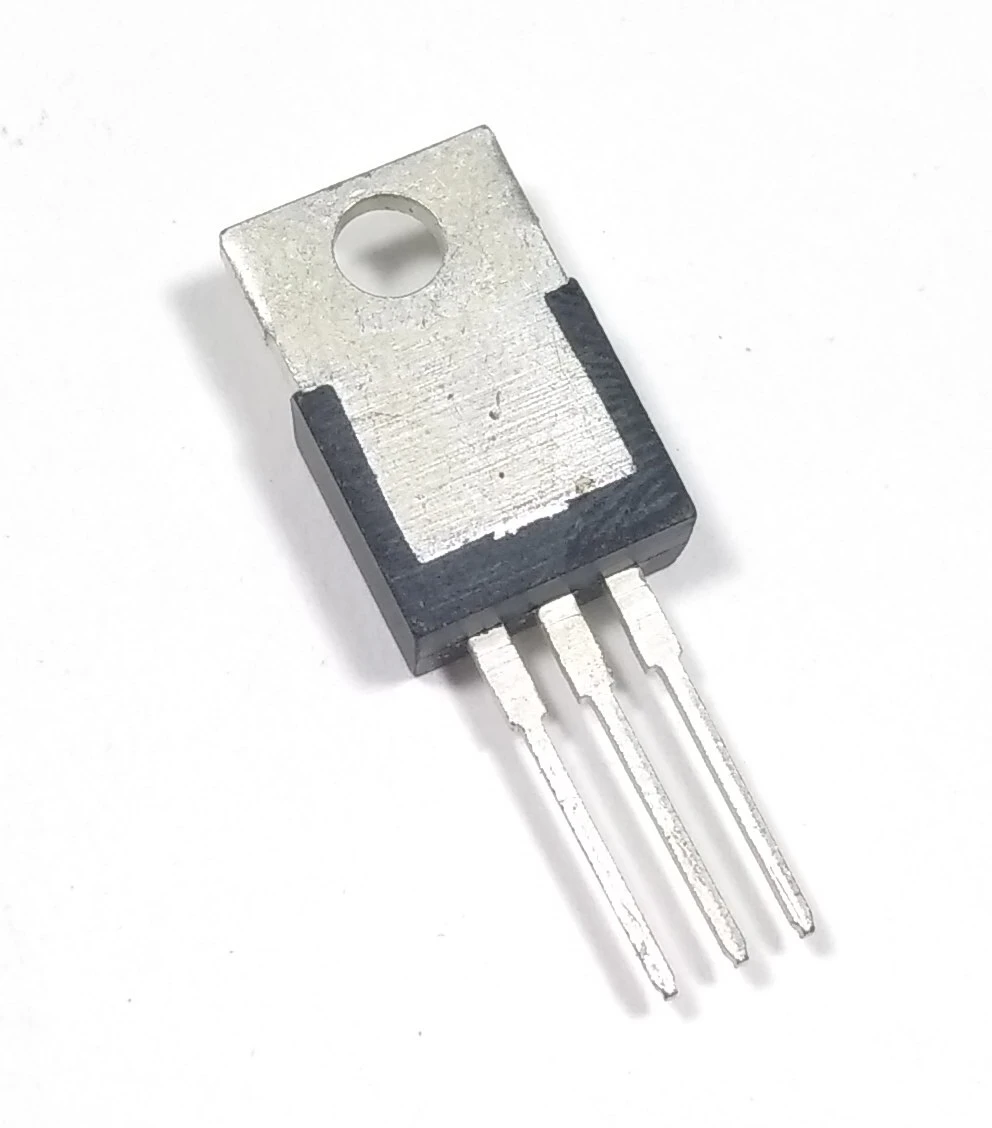

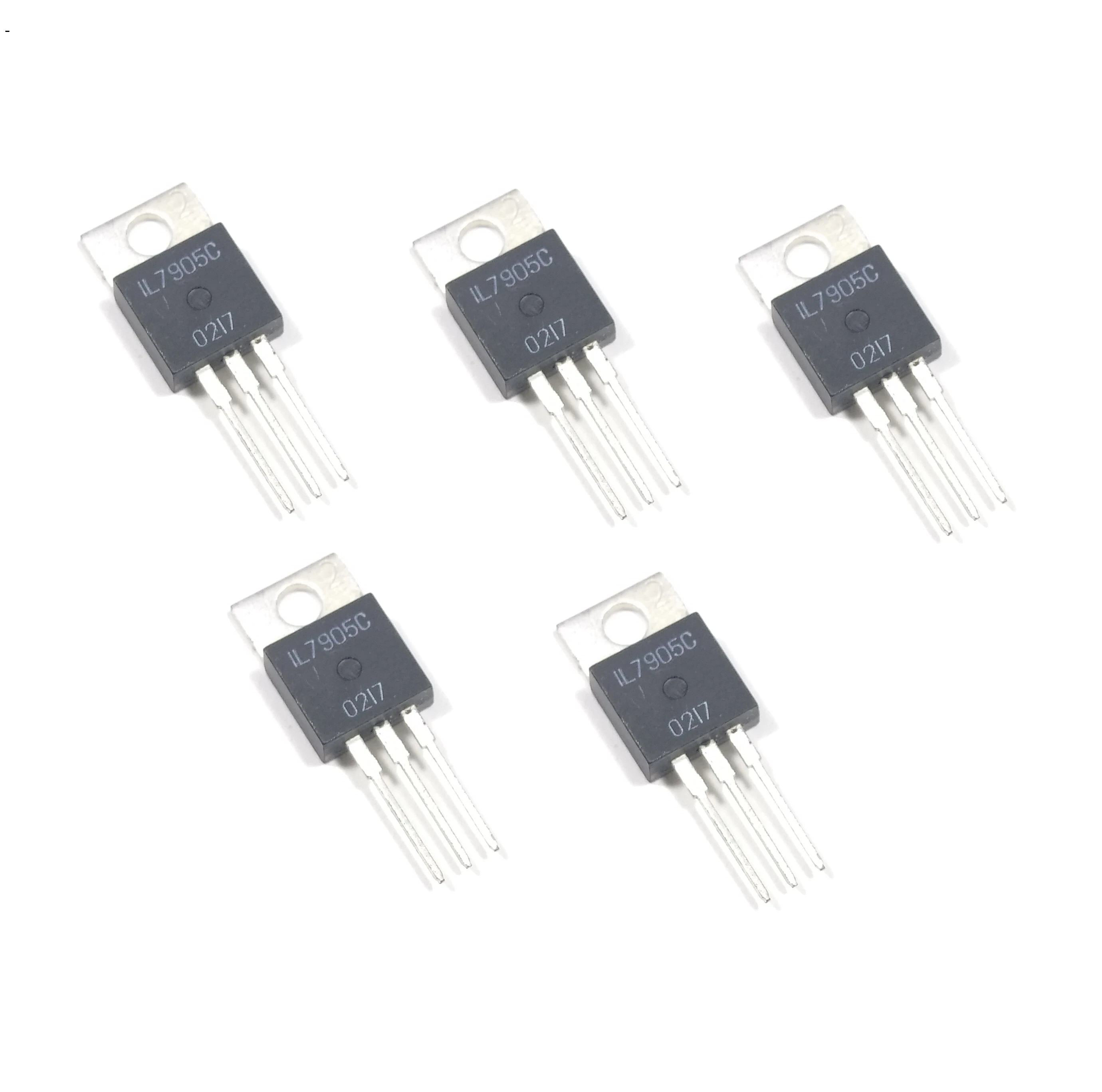

LM7905 Transistor (pack of 2)

In Stock

SKU: R3-F-2-2

LM7905 Transistor (pack of 2)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹53.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The LM7905 is a negative voltage regulator IC designed to provide a stable -5V output. As part of the 79xx series of voltage regulators, the LM7905 is used in various electronic circuits that require a consistent negative voltage. It is capable of providing up to 1A of output current, making it suitable for low-power applications.

This IC comes with built-in protection features, including thermal overload protection and short circuit protection, ensuring reliable and safe operation. The LM7905 is ideal for circuits requiring negative power supplies, such as audio systems, power supplies, and communication devices.

Features:

-5V Negative Voltage Regulator: Provides a stable -5V output.
Input Voltage Range: Minimum input voltage of 7V, with a typical range up to 35V.
Output Current: Capable of supplying up to 1A of output current.
Thermal and Short Circuit Protection: Ensures safe operation even under high load or short circuit conditions.
TO-220 Package: Easy to mount, with the capacity for effective heat dissipation.
High Reliability: Long operational life with low noise and stable performance.

Applications:

Power Supply for Analog Circuits: Provides negative voltage for analog components.
Battery-Powered Devices: Powers circuits in battery-operated systems needing a regulated negative voltage.
Audio Equipment: Used in audio systems that require a -5V supply for certain components.
Communication Equipment: Powers communication systems requiring negative voltage regulation.
Signal Processing Circuits: Ideal for circuits requiring negative biasing for transistors or operational amplifiers.

Heat Dissipation Consideration:

As with other linear regulators, the LM7905 can dissipate heat when there is a significant voltage drop between the input and output. A heat sink is recommended for applications drawing higher currents to ensure proper thermal management.
