LM7812 Transistor with Heat sink and Heat sink compound (pack of 5)

In Stock

SKU: 170191

LM7812 Transistor with Heat sink and Heat sink compound (pack of 5)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹78.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

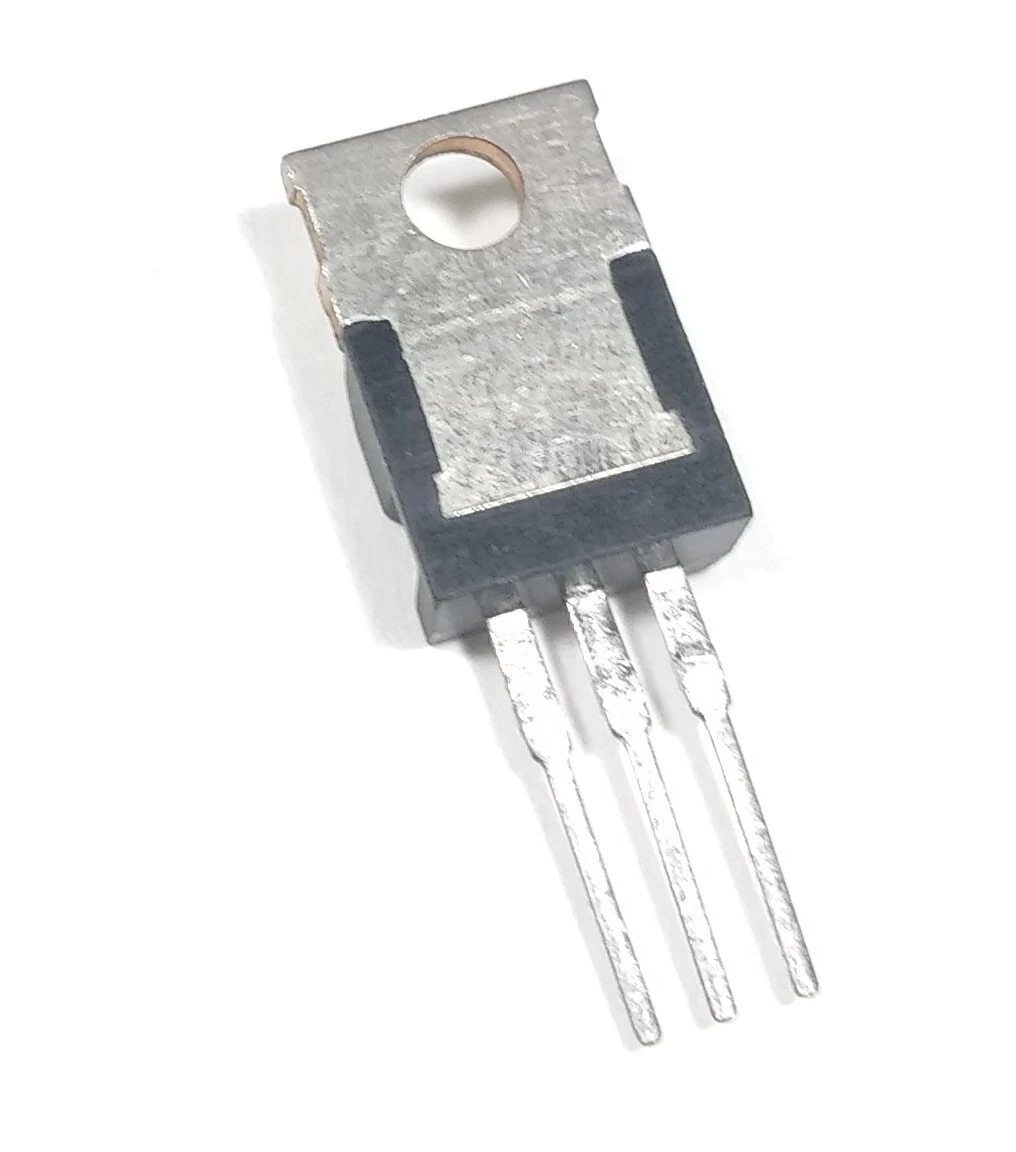

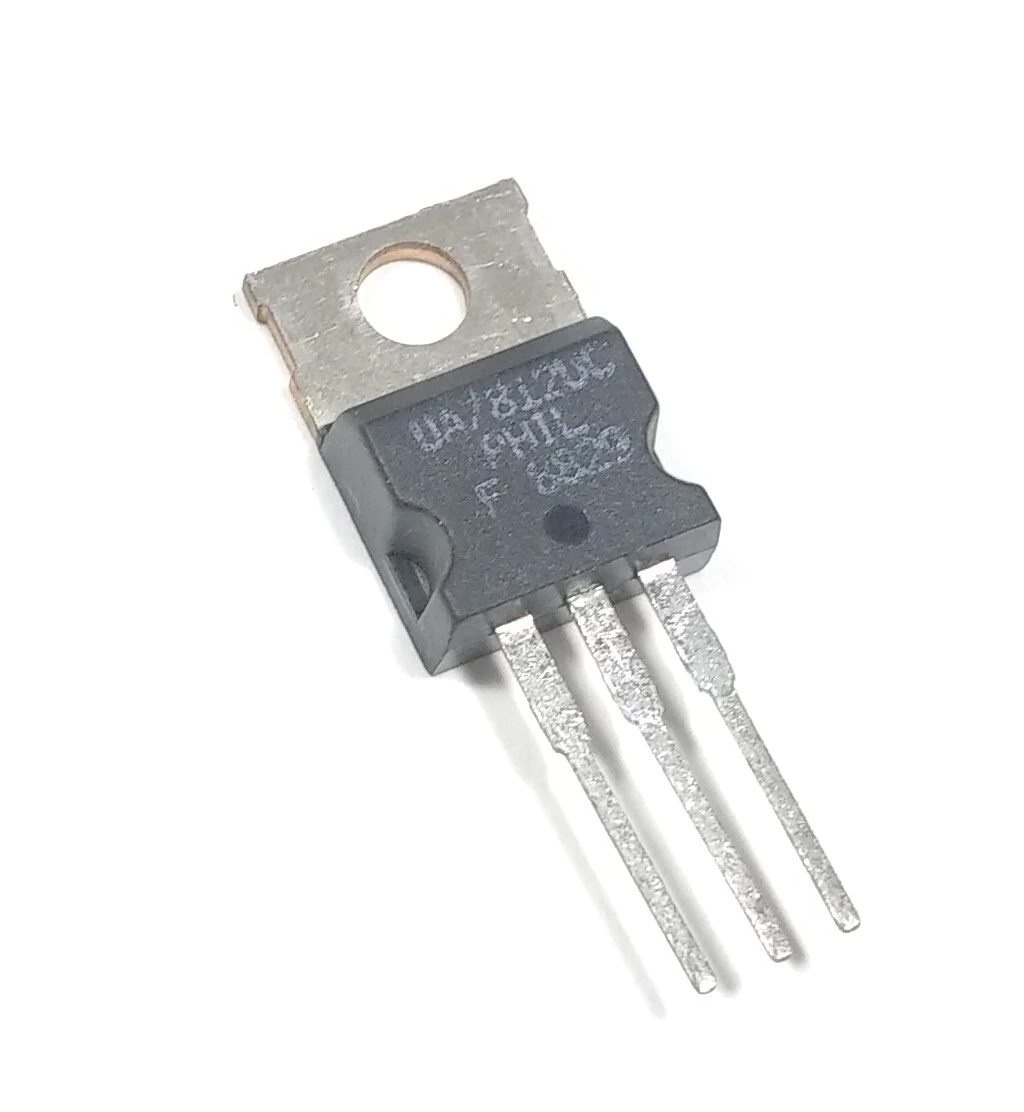

The LM7812 is a positive voltage regulator designed to provide a stable +12V output. It is part of the L78 series and comes in a TO-220 package. With a 1.5A output current, it is ideal for use in various electronic projects and circuits. The LM7812 features thermal overload protection and short circuit protection, making it highly reliable for commercial and DIY applications.

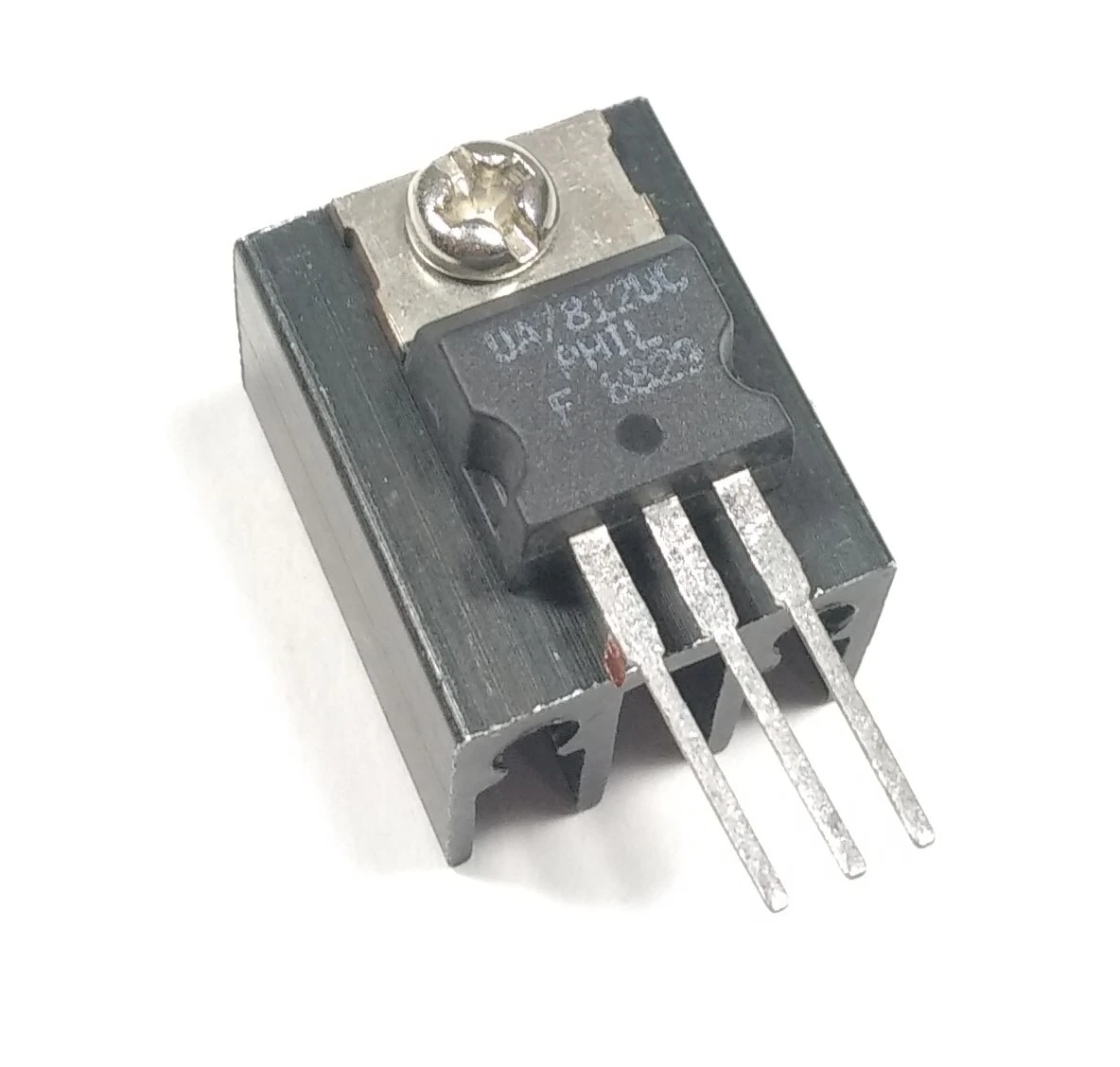

The IC's internal protections ensure that it can handle overloads without being damaged, as long as a heat sink is used for proper heat dissipation. The LM7812 can be used as a fixed voltage regulator, and with external components, it can provide adjustable voltage and current.

Features:

Output Voltage: +12V (fixed)
Output Current: 1.5A
Thermal Overload Protection: Built-in thermal shutdown function
Short Circuit Protection: Built-in short circuit shutdown function
Package: TO-220
Operating Temperature Range: -40°C to +125°C
Thermal Resistance Junction-Cases (TO-220): °C/W
Thermal Resistance Junction-Air (TO-220): °C/W

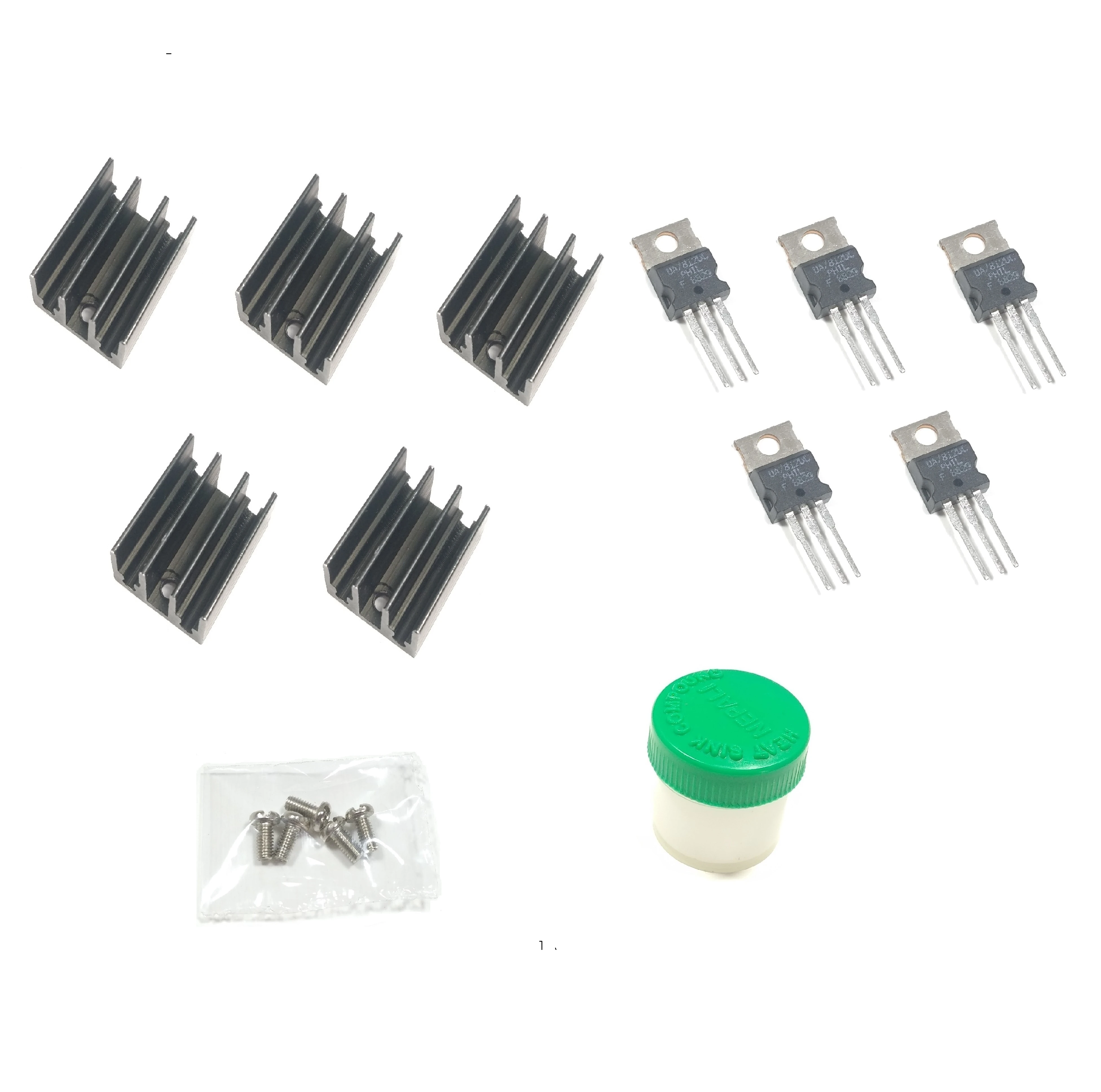

Package Includes:

1x Heat Sink Compound
5x LM7812 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws

Applications:

Voltage Regulation Circuits
Power Supply Units
Commercial and DIY Equipment
Overload and Short Circuit Protection Systems
