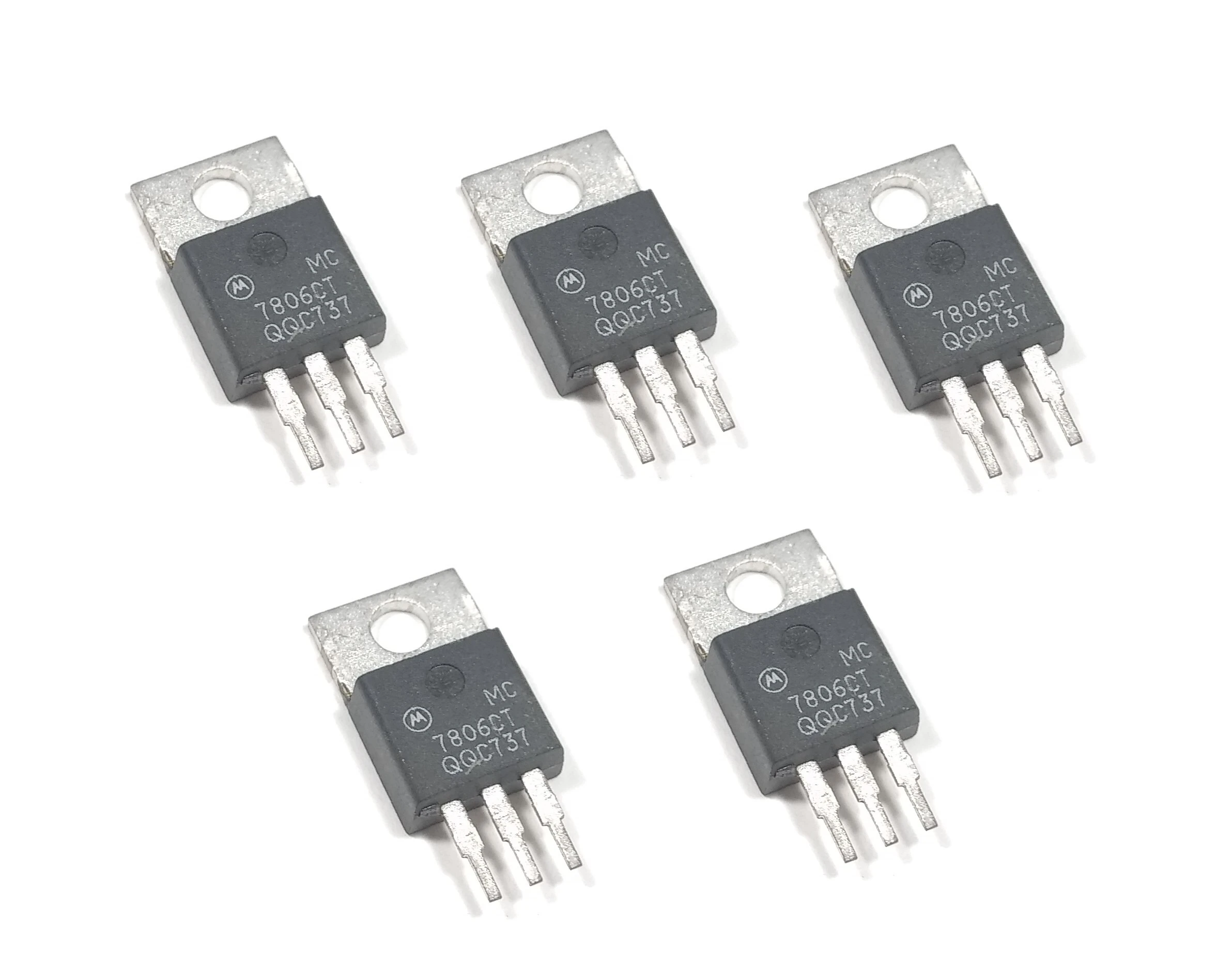

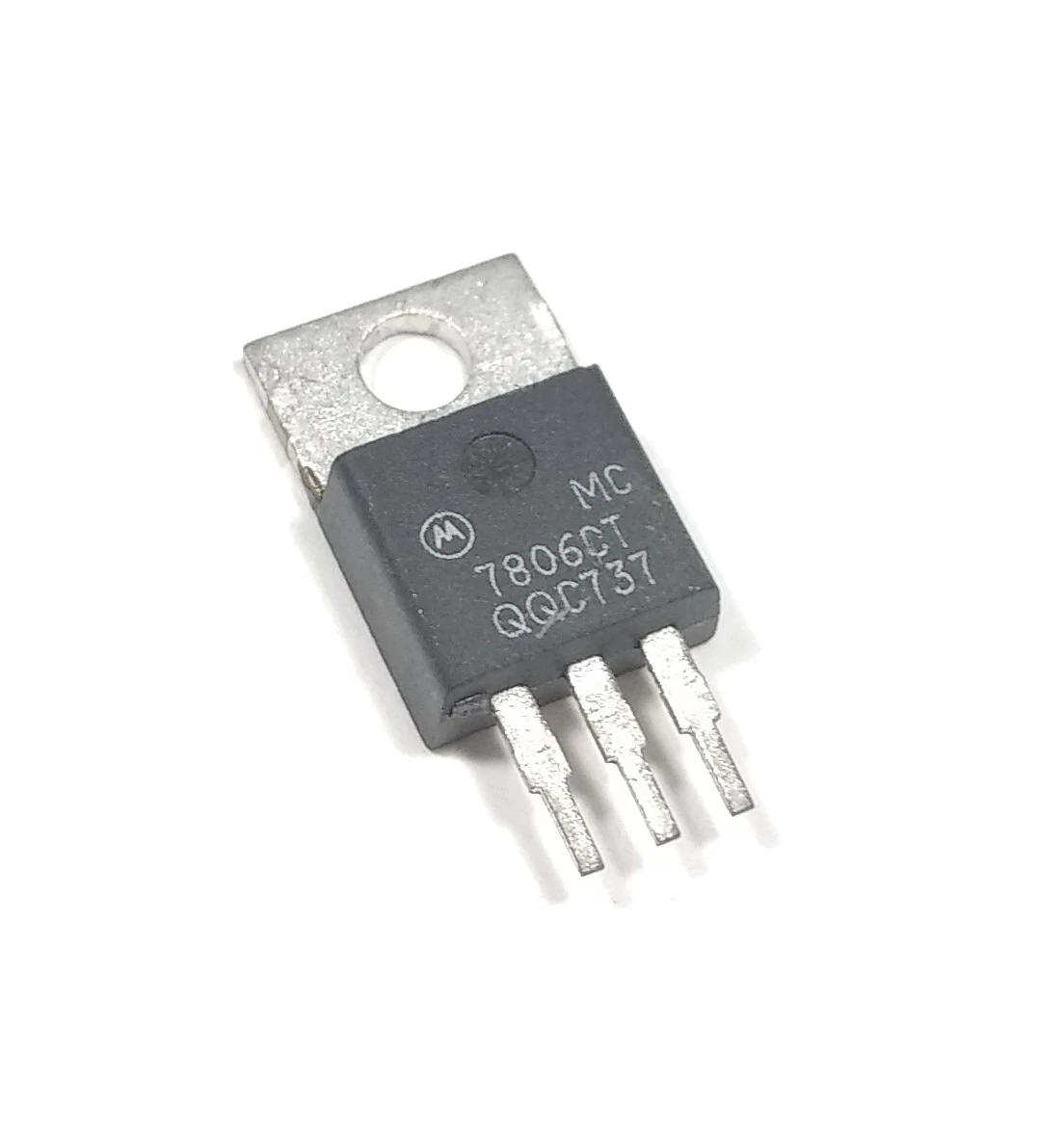

The LM7806 is a positive linear voltage regulator that delivers a stable 6V DC output with a current capacity ranging from 1A to 1.5A. It is part of the popular LM78xx series and is packaged in the standard TO-220 form factor, making it suitable for a wide range of electronic circuits and power supplies.
Built-in protection features such as short circuit protection, thermal overload shutdown, and safe operating area compensation ensure reliable performance and durability under demanding conditions. To maintain a stable 6V output, the input voltage must be at least 2V higher, i.e., minimum 8V DC.
Due to potential heat dissipation, especially under high load, a proper heatsink is strongly recommended.

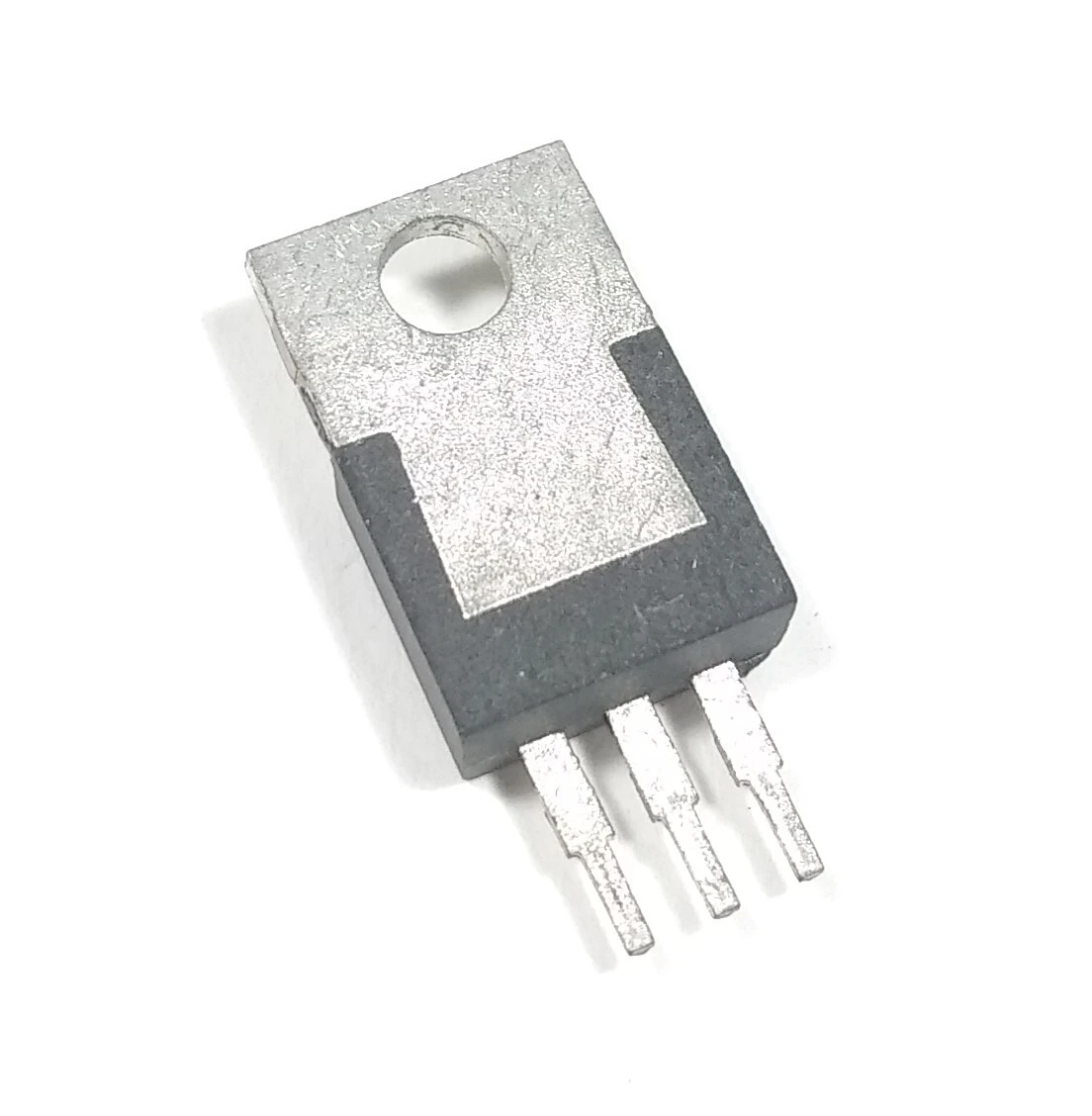

TO-220 Package
Output Current: 1A to 1.5A
Fixed 6V Positive Output
Built-in Short Circuit Protection
Overheat Shutdown Protection
Dropout Voltage: Max 2V @ 1A
Quiescent Current: 8mA (Low standby)
Reliable for Commercial Equipment
Maximum Input Voltage: 35V DC
Category: Linear Voltage Regulators
Polarity: Positive
Operating Temperature Range: 0°C to +125°C
Low-cost and easy to use
| Parameter | Value |
|---|---|
| Output Voltage | +6V |
| Output Current | 1A to 1.5A |
| Input Voltage Range | 8V to 35V |
| Dropout Voltage | 2V @ 1A |
| Quiescent Current | 8mA |
| Package Type | TO-220 |
| Protection Features | Thermal, Short Circuit |
| Operating Temperature | 0°C to +125°C |
Regulated power supplies
Industrial control systems
Consumer electronics
Educational and DIY electronics projects
Battery-powered devices needing 6V regulation
Product specifications, features, and design may change over time due to product updates or improvements.
