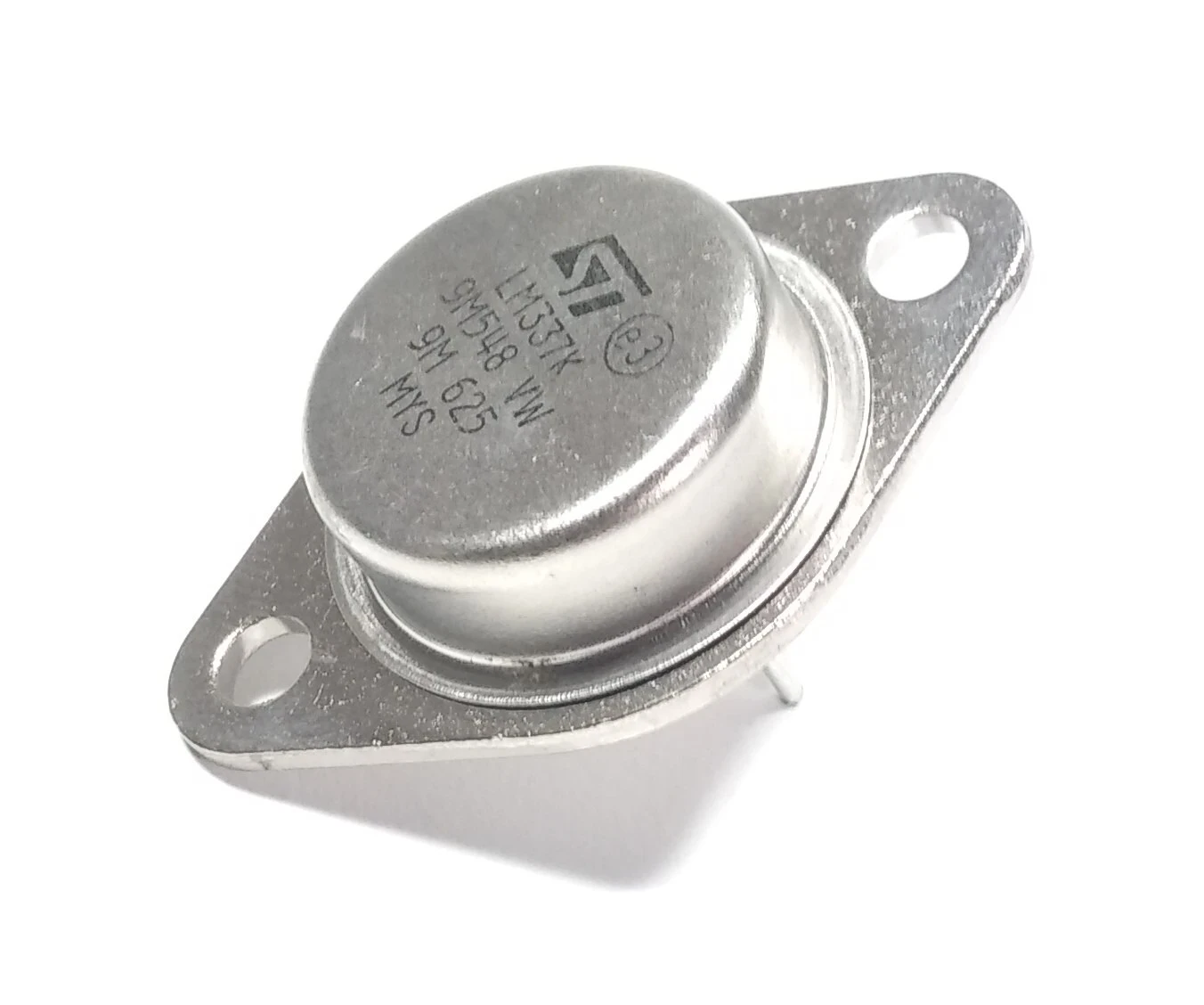

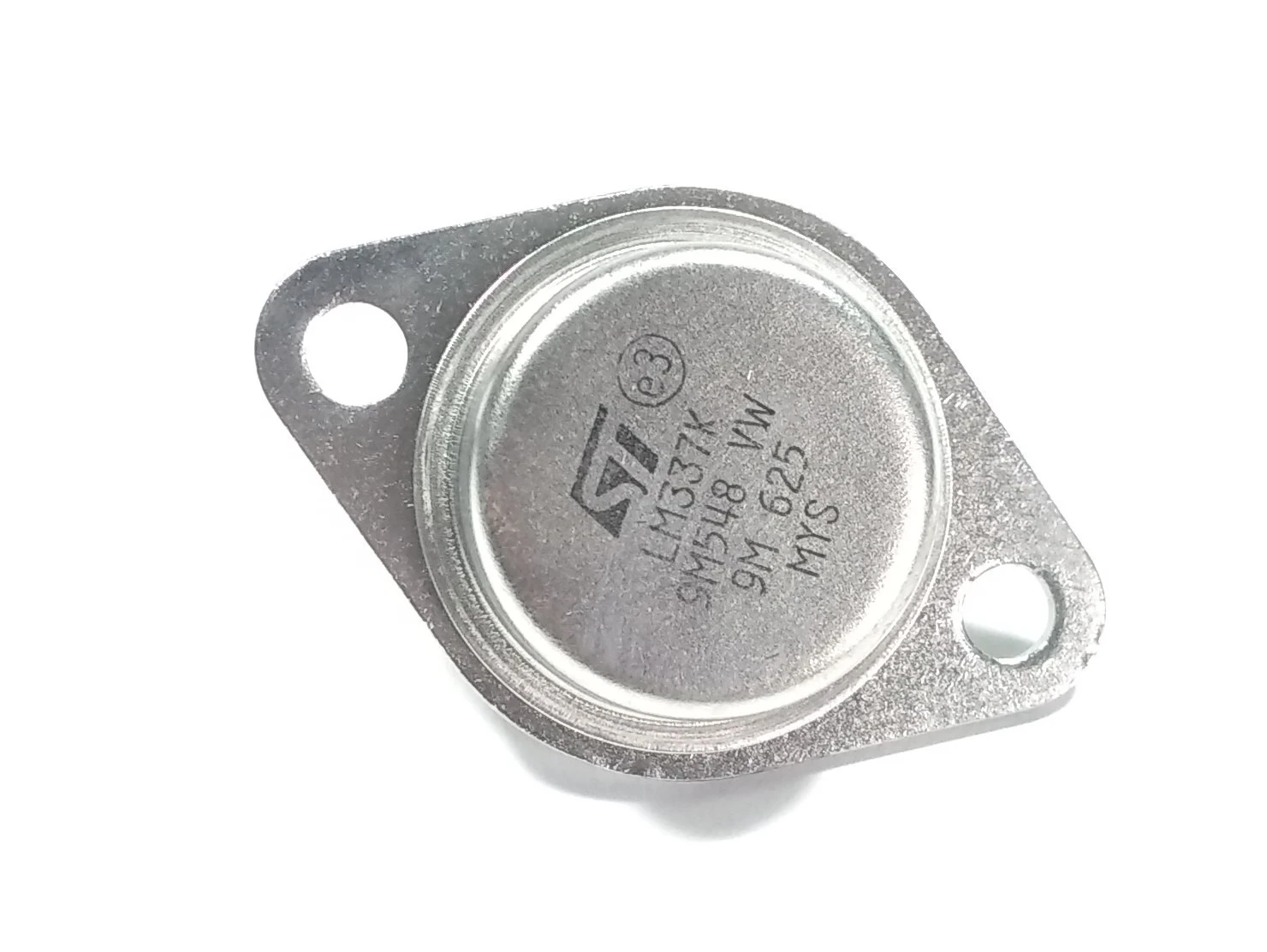

The LM337K is a versatile 3-terminal negative voltage regulator capable of supplying in excess of -1.5A output current with an output voltage adjustable from -1.2V to -37V. Packaged in the robust TO-3 metal can, it is ideal for high-reliability and high-power applications requiring regulated negative voltage.

Features

TO-3 metal package for excellent thermal dissipation
Output voltage adjustable from -1.2V to -37V
Output current up to -1.5A
Line regulation: 0.01%/V (typical)
Load regulation: 0.3% (typical)
Ripple rejection: 77 dB
Thermal overload protection
Short-circuit current limiting
Safe area protection
Requires only two external resistors for output adjustment
Compatible with standard TO-3 heat sinks

Product Specification

Package Type: TO-3 Metal Can
Output Voltage Range: -1.2V to -37V
Output Current: ≥ -1.5A
Input – Output Voltage Differential (VI - VO): 35V max
Maximum Power Dissipation: Internally limited
Operating Junction Temperature: 0°C to +125°C
Storage Temperature Range: -65°C to +150°C
Temperature Coefficient: 50 ppm/°C

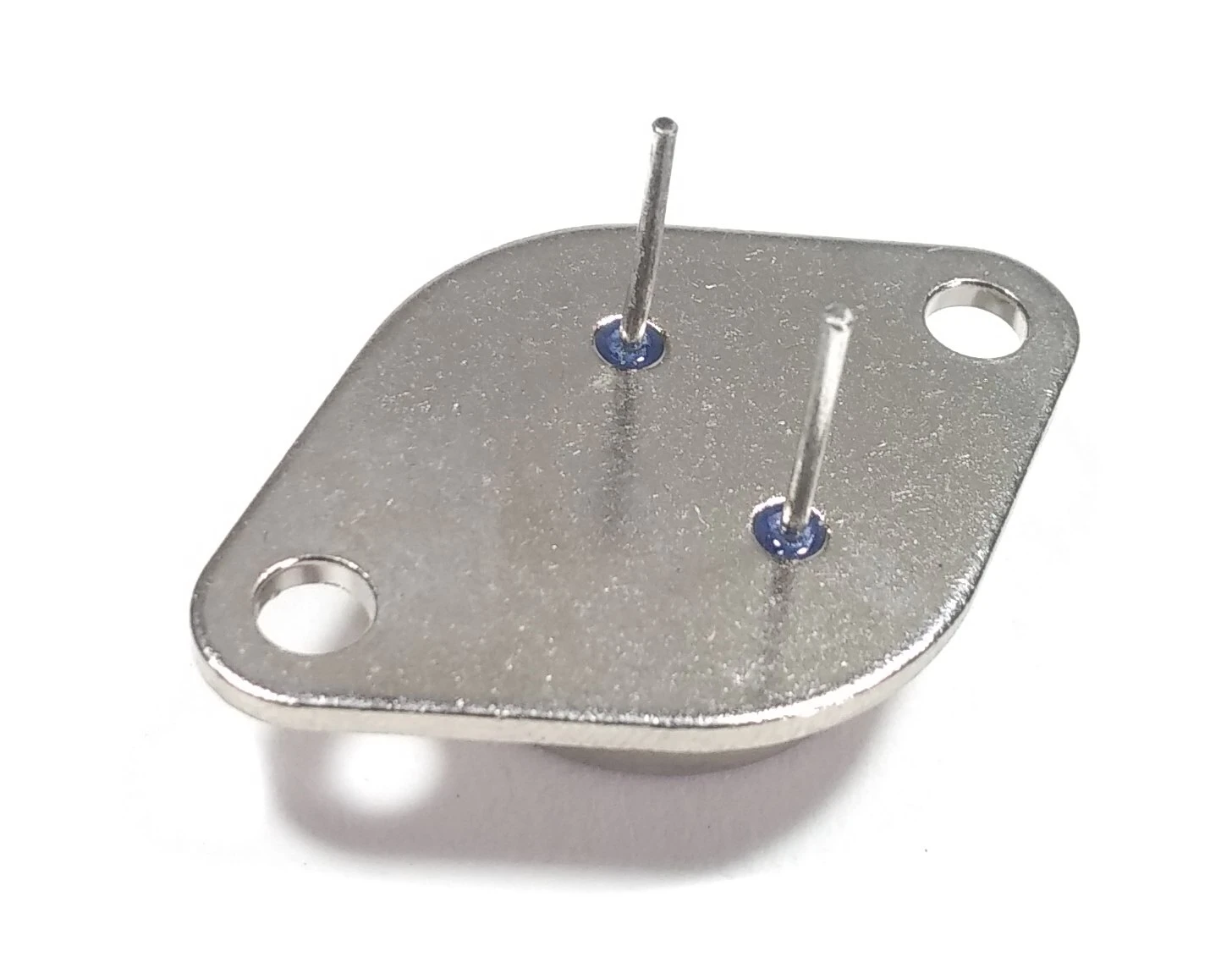

Pin Configuration (TO-3):
- Pin 1: Adjust
- Pin 2: Output
- Case: Input (Negative)

Application

Negative power supply rails
Dual power supplies for op-amps or analog circuits
Bench adjustable power supplies
Audio equipment and instrumentation
Industrial automation requiring negative voltage regulation

Package Include

1x Heat sink compound
2x LM337K Negative Voltage Regulator (TO-3 Package)
2x TO-3 compatible heat sinks
4x mounting screws
