LM337 Transistor with Heat sink and Heat sink compound (pack of 5)

In Stock

SKU: COMB-R3-F-3-4

LM337 Transistor with Heat sink and Heat sink compound (pack of 5)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹73.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

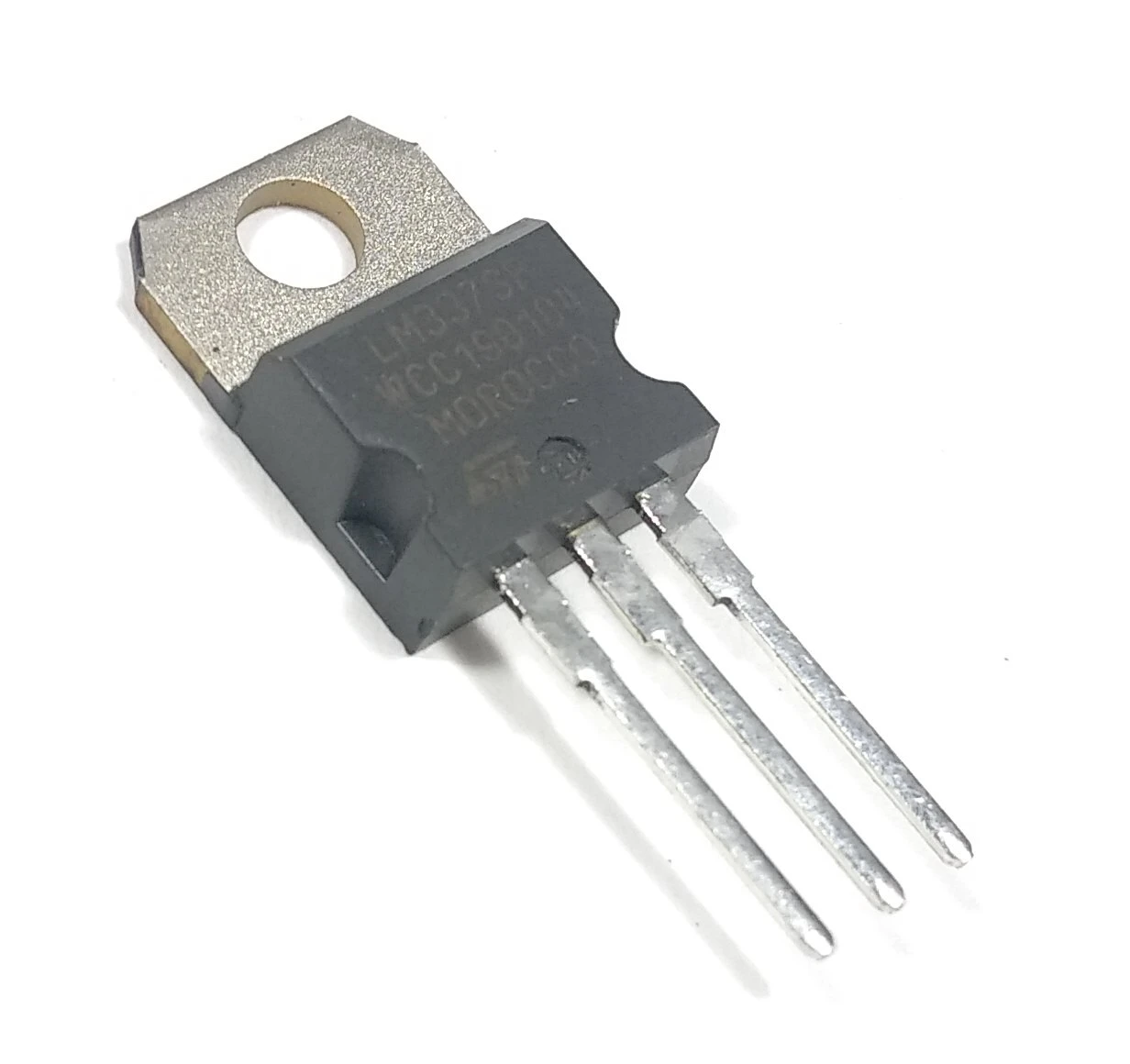

The LM337 series is a 3-terminal adjustable negative voltage regulator capable of supplying -1.5A output current over an adjustable voltage range of -1.2V to -37V. This regulator offers superior performance compared to standard fixed voltage regulators and is designed for easy use with only two external resistors needed for output voltage adjustment.

With excellent thermal regulation and low temperature coefficient, the LM337 provides better line and load regulation than typical fixed regulators. This makes it ideal for a variety of applications where negative voltage regulation is required, and the full overload protection ensures reliable and durable operation. The regulator is housed in a standard 3-lead transistor package, which is easy to handle and mount.

Features:

Adjustable Output Voltage: From -1.2V to -37V
Output Current: 1.5A guaranteed
Excellent Load Regulation: 0.3%/V typical
Line Regulation: 0.01%/V typical
Ripple Rejection: 77 dB
Temperature Coefficient: 50 ppm/°C
Thermal Regulation: 0.002%/V
Overload Protection: Built-in overload protection circuitry
Standard 3-Lead Package: Easy mounting and handling
Current Limit Constant with Temperature

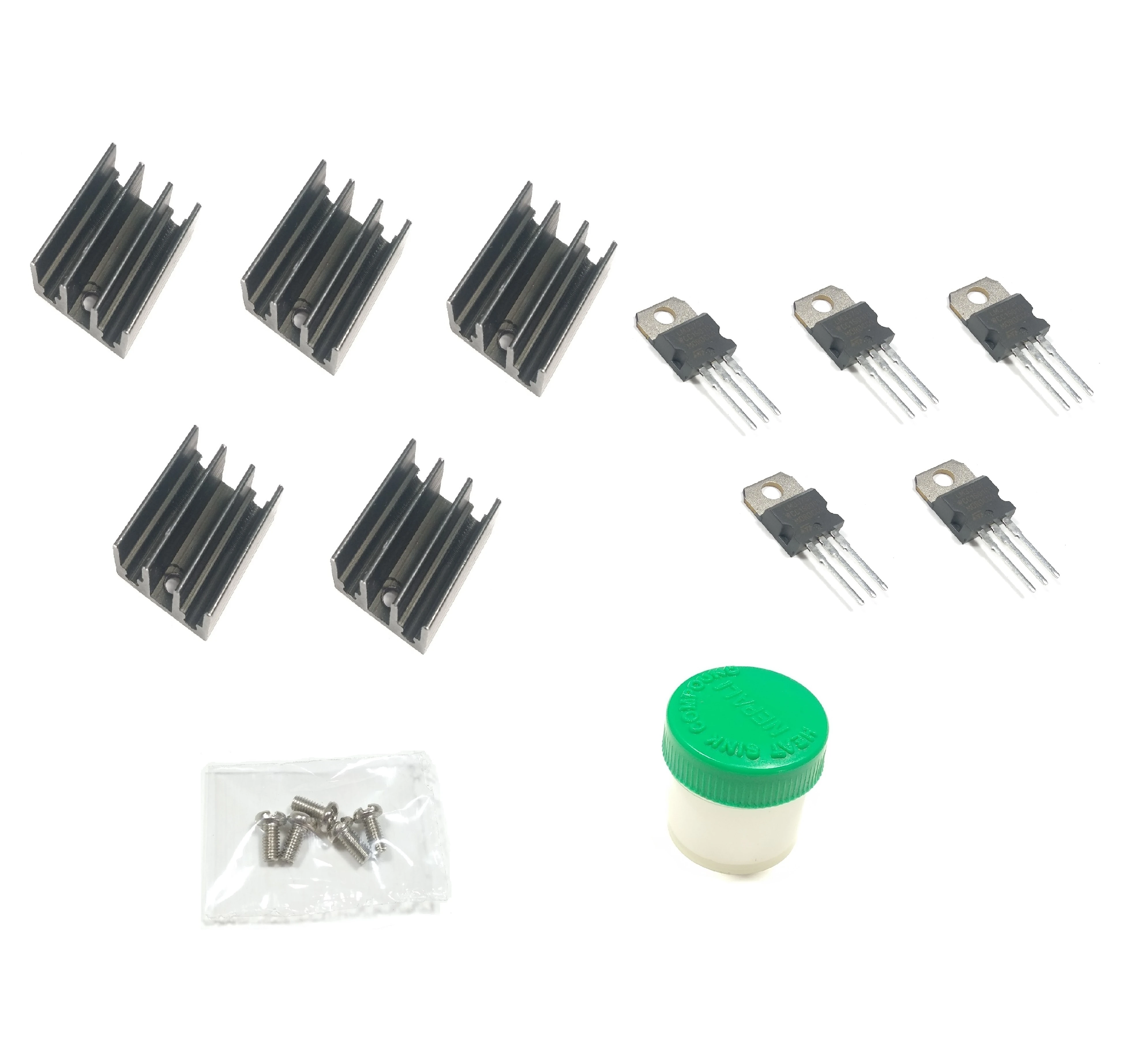

Package Includes:

1x Heat Sink Compound
5x LM337 Adjustable Voltage Regulators

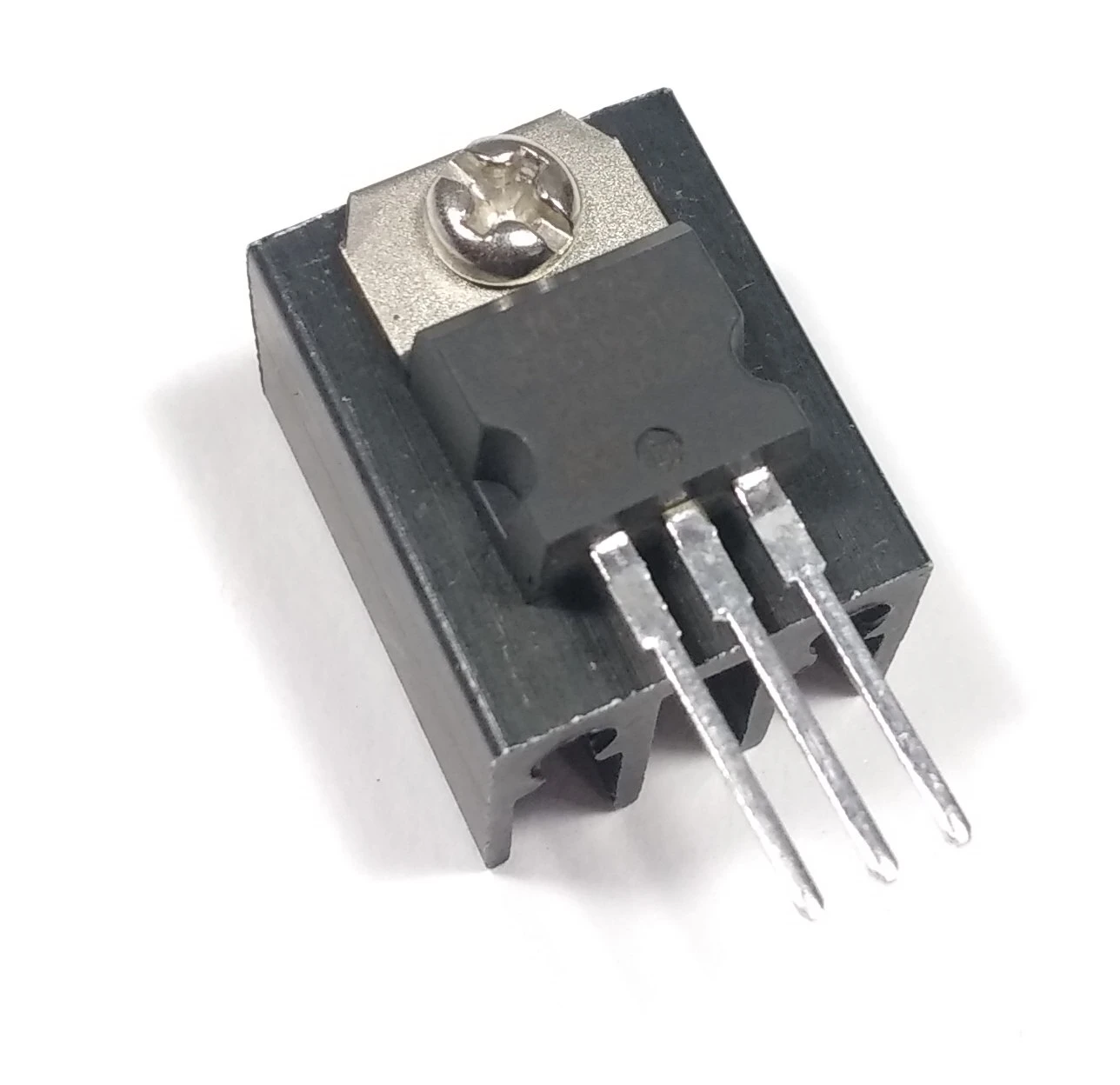

5x Heat Sinks (2 x 1.5 cm)
5x Screws

Applications:

Negative Voltage Power Supplies
Battery-Powered Systems
Audio Equipment
Analog Circuits Requiring Negative Voltage
