Features

• Switch mode step down voltage regulator
• Output Voltage for fixed voltage regulator: 3.3V, 5V, 12V or 15V
• Output Voltage for Variable type regulator: 1.23V to 37V
• Output Current: Up to 3A
• Maximum Input Voltage:  40V
• In-built Thermal Shutdown and Current Limit Protection
• Internal Oscillator: 52-kHz (Fixed Frequency)
• Available in TO-220

Description:

The LM2576T-ADJ series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step-down switching regulator (buck converter).

All circuits of this series are capable of driving a 3.0A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5.0V, 12V and an adjustable output version.

These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2576T-ADJ are offered by several different inductor manufacturers.

Since the LM2576T-ADJ converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages

In many cases, the power dissipated is so low that no heatsink is required or its size could be reduced dramatically. A standard series of inductors optimized for use with the LM2576T-ADJ are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies. The LM2576T-ADJ features include a guaranteed +/- 4% tolerance on output voltage within specified input voltages and output load conditions, and +/-10% on the oscillator frequency (+/- 2% over 0°C to 125°C).

External shutdown is included, featuring 80μA(typical) standby current. The output switch includes cycle-by- cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

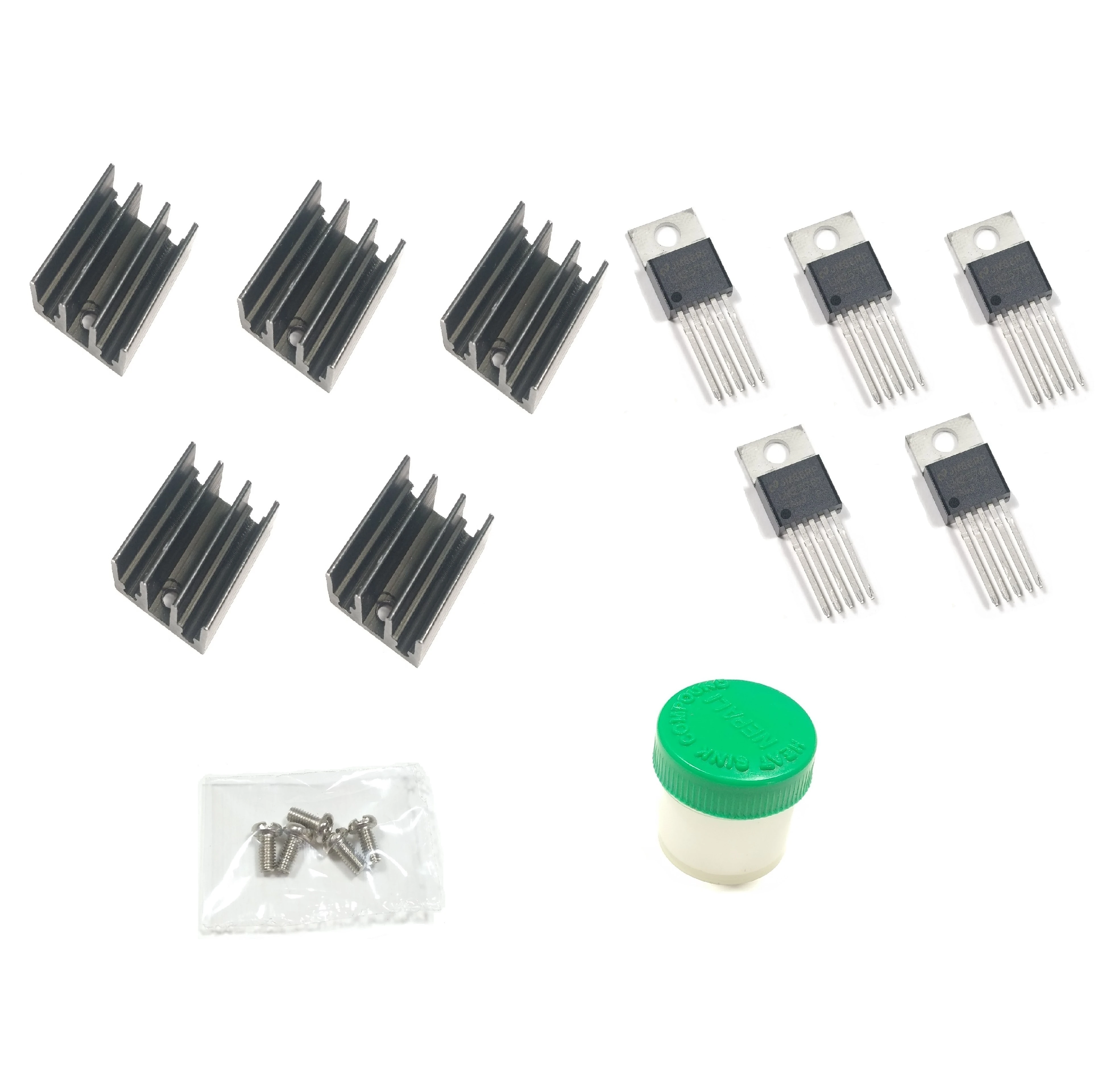

Package include:

1x Heat sink compound

5x LM2576T

5x Heat sink (2 x 1.5 cm)

5x screw
