In Stock
SKU: 141098

LD1117 Transistor (pack of 2)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed
₹53.00 (Excluded Tax)
Total price: (Tax : )
Download Data Sheet

Description:

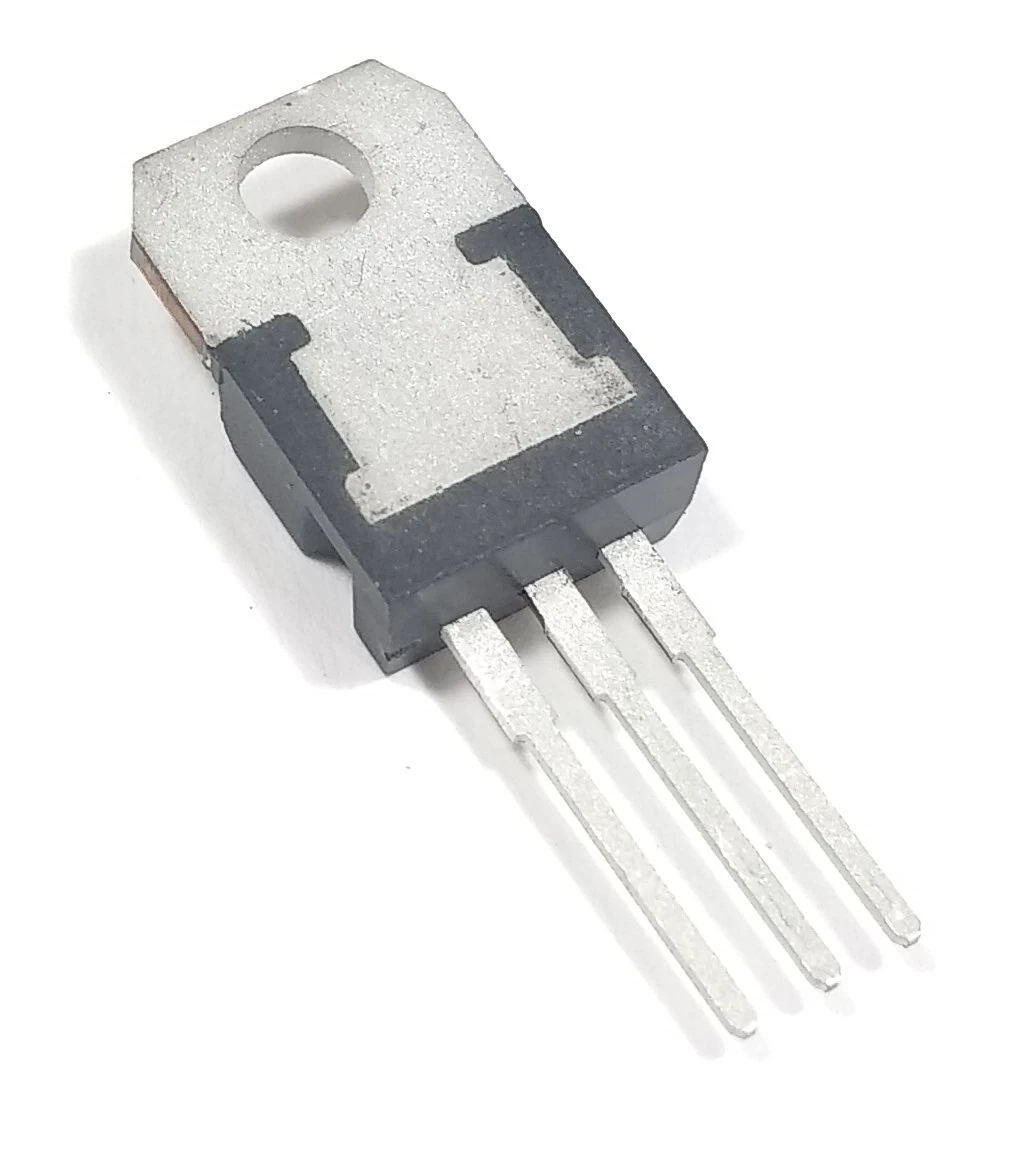

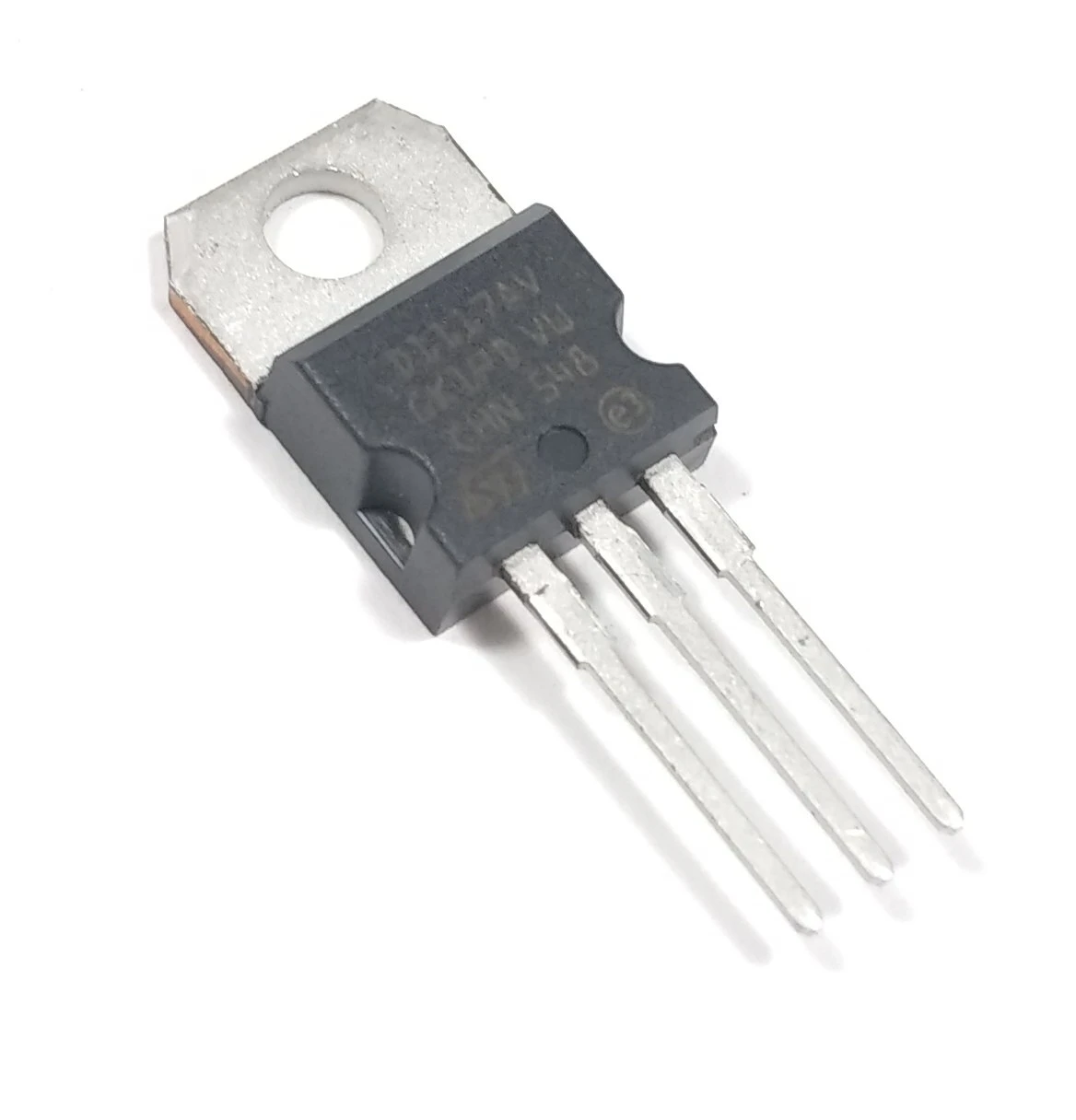

The LD1117 3.3V Linear Voltage Regulator in the TO-220 package provides a stable 3.3V output from an input voltage range of 4.3V to 15V. It is designed to offer low dropout voltage of 1V, making it suitable for use in low-voltage systems and battery-powered devices.

This regulator is capable of delivering up to 950mA of output current (with a 1300mA maximum output with appropriate heat sinking). It is commonly used for converting 5V to 3.3V in power supplies, voltage regulation for other components, and various consumer electronics projects. Its low quiescent current of 5mA ensures minimal power consumption when not in load.

Features:

  • Output Voltage: 3.3V (Fixed)

  • Input Voltage Range: 4.3V to 15V

  • Dropout Voltage: 1V (Linear)

  • Output Current: Up to 950mA (1300mA max with adequate heat sinking)

  • Line Regulation: 1mV (6mV max)

  • Load Regulation: 1mV (10mV max)

  • Quiescent Current: 5mA (10mA max)

  • Package: TO-220

  • Temperature Range: 0°C to 150°C

Applications:

  • Power Supply Conversion: 5V to 3.3V for powering components.

  • Voltage Regulation for sensitive electronics.

  • Consumer Electronics: Used in power supply circuits for stable voltage.

  • Battery-Powered Devices that require a low-dropout regulator.

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements.
