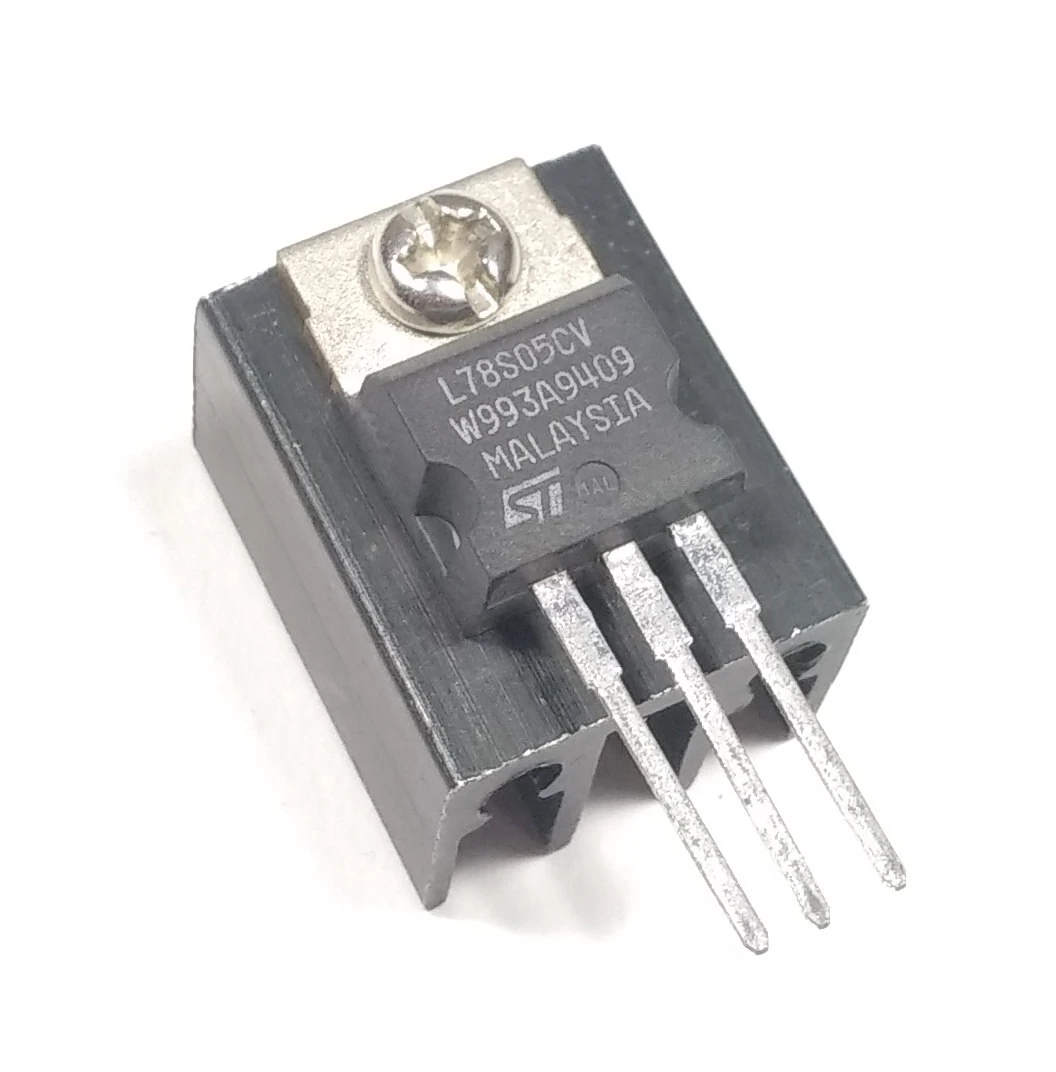

L78S05 Transistor with Heat Sink and Heat Sink Compound (pack of 5)

In Stock

SKU: 142978

L78S05 Transistor with Heat Sink and Heat Sink Compound (pack of 5)

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹210.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

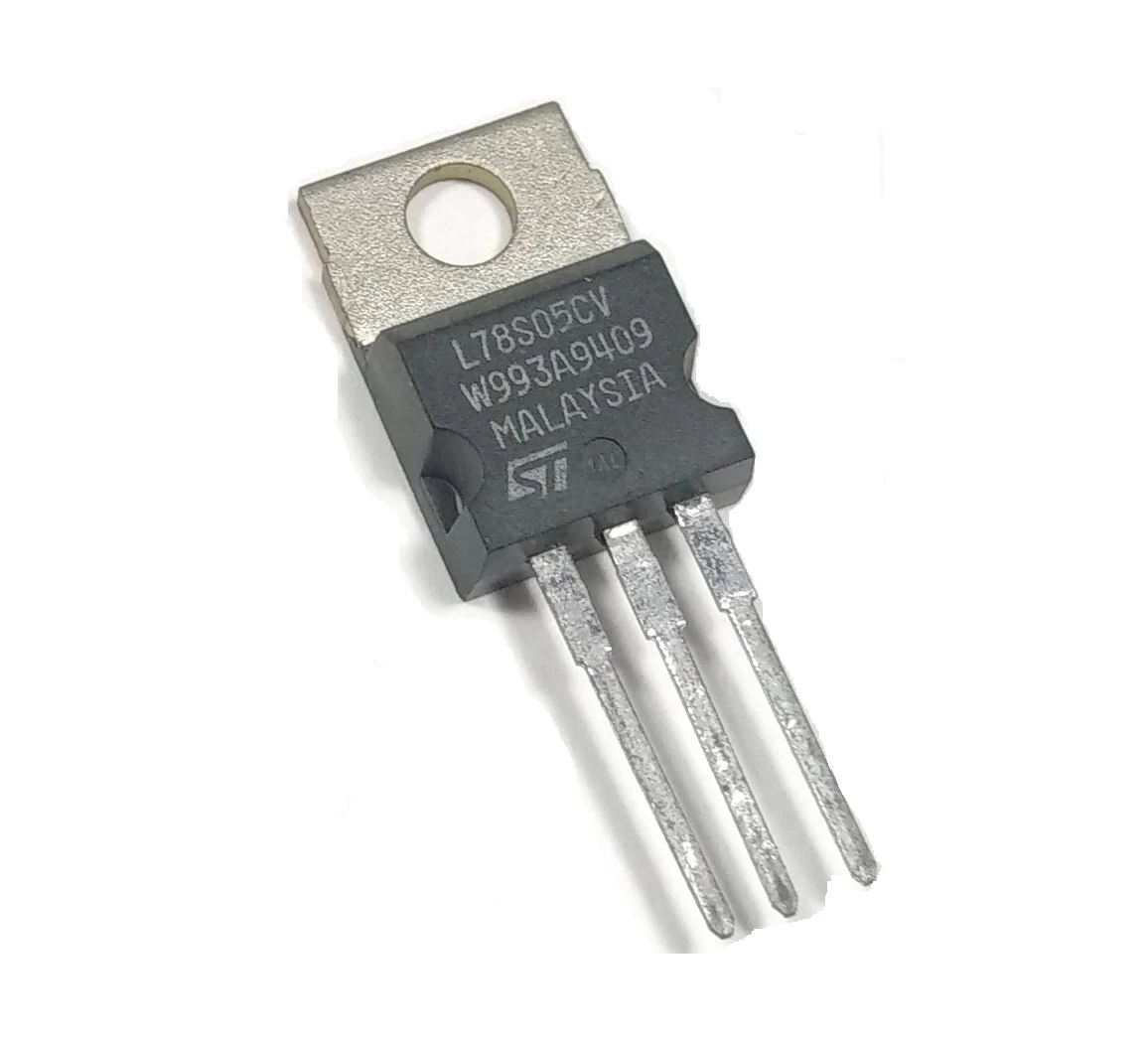

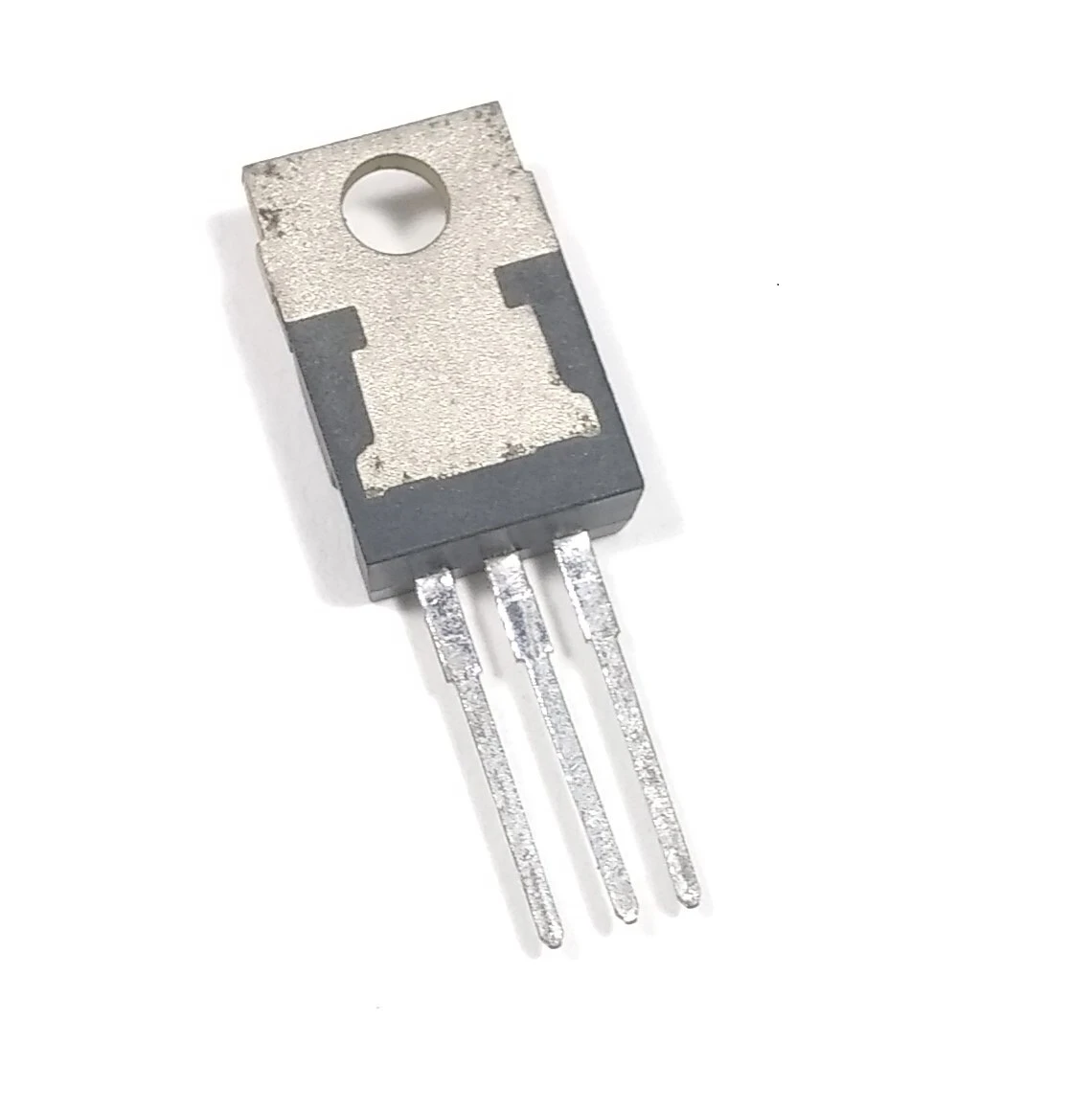

The LM78S05 belongs to the L78S00 series of three-terminal positive voltage regulators and comes in a TO-220 package. It provides a fixed 5V output voltage with up to 500mA current and is suitable for a wide range of electronic applications requiring stable voltage regulation.

These regulators are ideal for on-card local regulation, minimizing issues related to centralized power distribution. The LM78S05 features internal current limiting, thermal shutdown, and safe area protection, which collectively make it a highly reliable and robust solution. With sufficient heat sinking, it can handle currents exceeding 2A, and although it's primarily a fixed regulator, external components can be added to enable adjustable output functionality.

Features:

Package/Case: TO-220
Number of Outputs: 1
Polarity: Positive
Output Voltage: 5V (Fixed)
Output Current: Up to 500mA (can exceed 2A with proper heat sinking)
Input Voltage Range: 7V to 35V
Load Regulation: 100 mV
Line Regulation: 100 mV
Quiescent Current: 6 mA
Operating Temperature: 0°C to +150°C
Internal Protections: Current limiting, thermal shutdown, and SOA protection

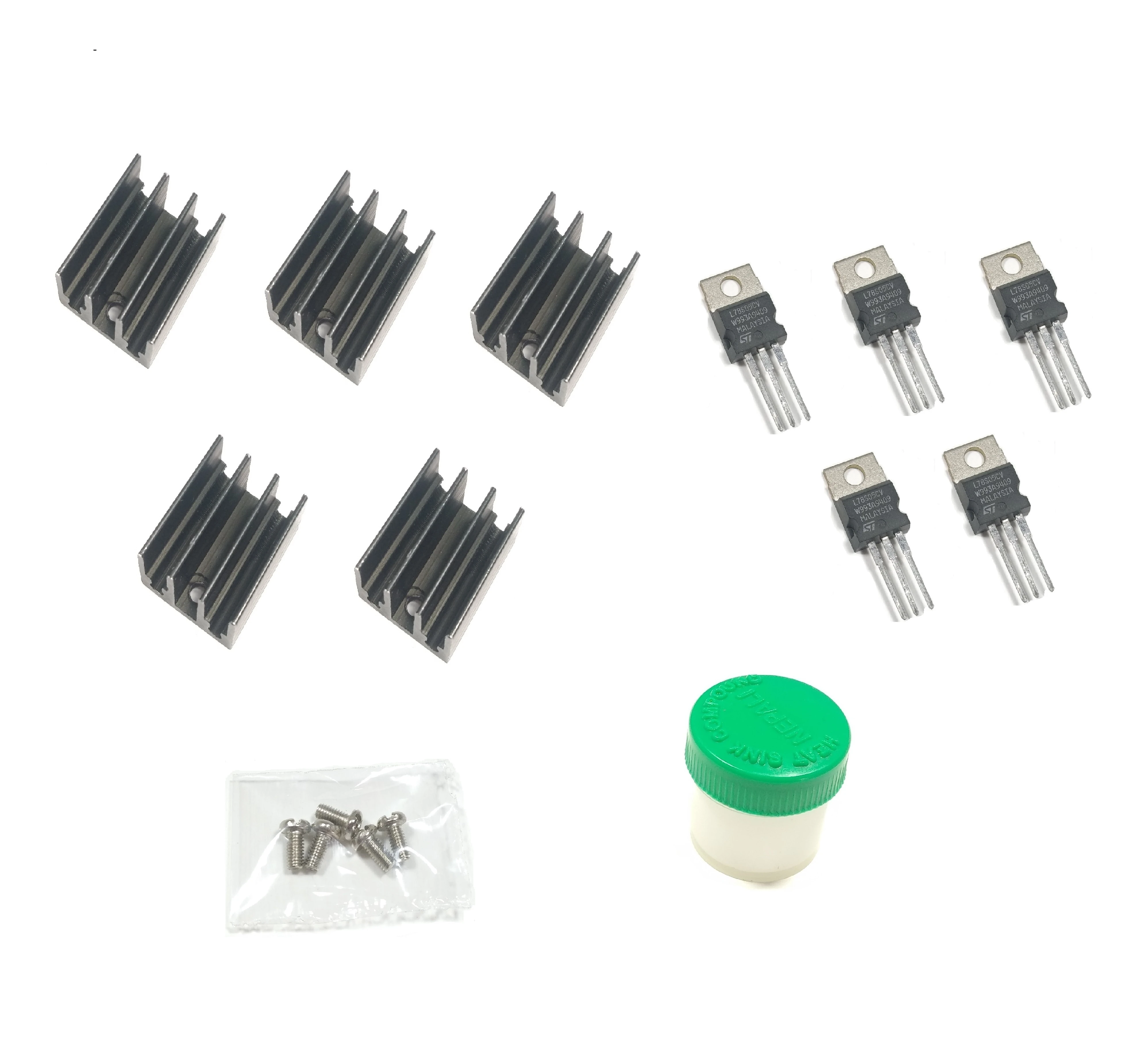

Package Includes:

1x Heat Sink Compound
5x LM78S05 Voltage Regulators
5x Heat Sinks (2 x 1.5 cm)
5x Screws

Applications:

On-board voltage regulation
Embedded systems
DIY electronics and hobby projects
Power supplies for microcontrollers and sensors
