Description:

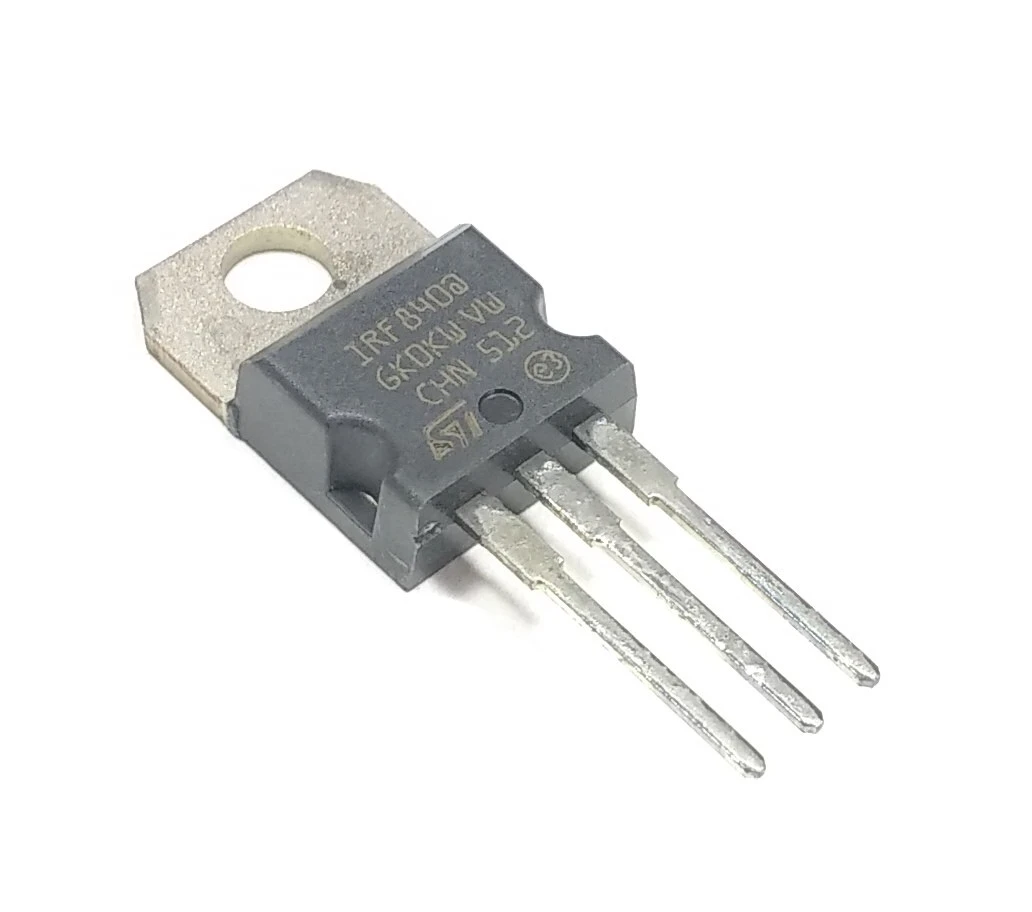

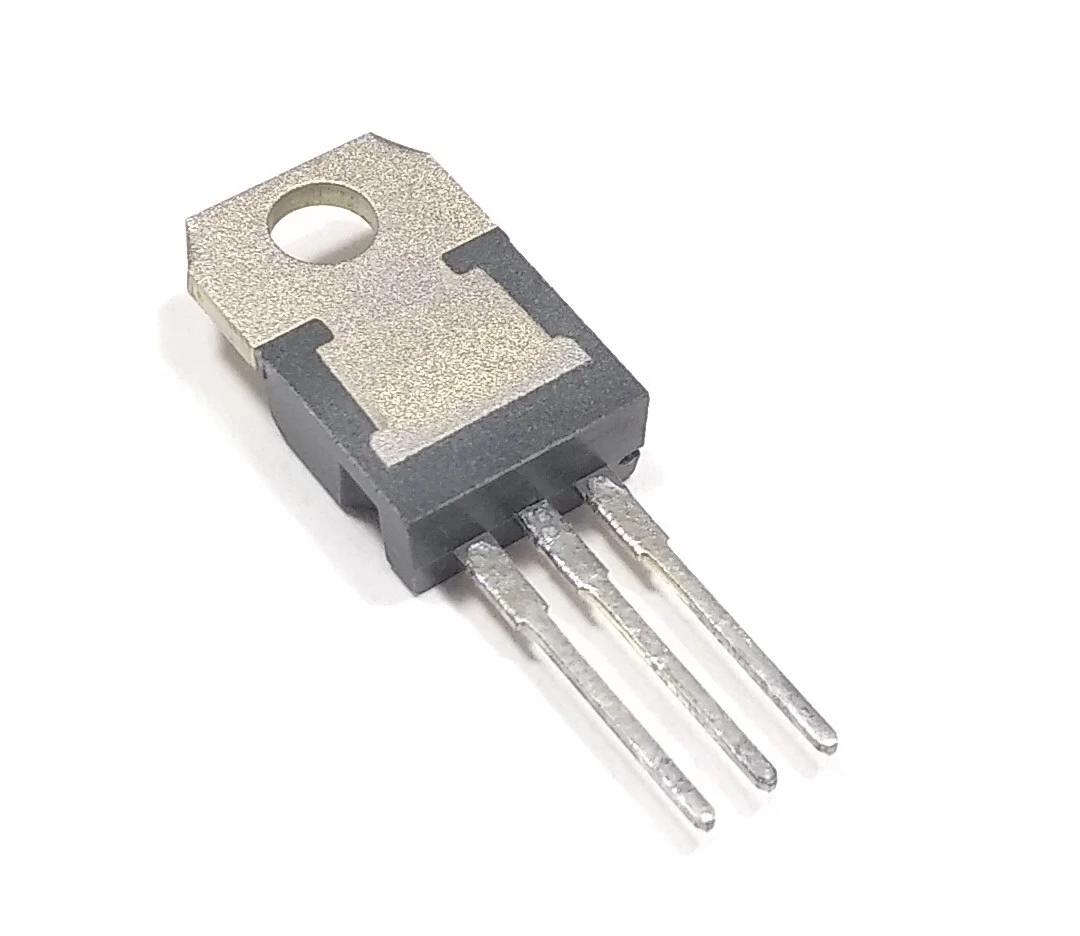

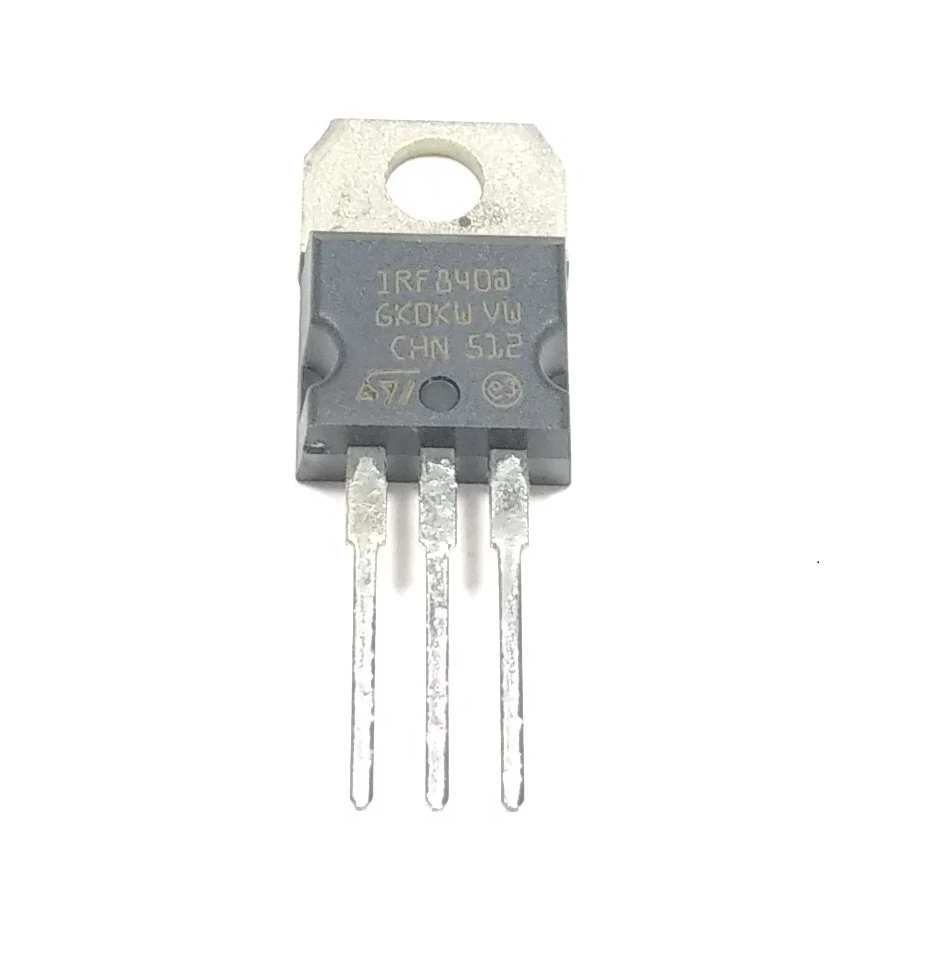

The IRF840 is a high-power N-channel MOSFET, designed for high-speed switching and power applications. With its 500V drain-source voltage rating and 8A continuous drain current, the IRF840 is ideal for demanding applications such as switch-mode power supplies (SMPS), DC-AC converters, motor drivers, and welding equipment. Its low on-resistance and high power dissipation make it perfect for handling large currents efficiently.

Features:

• Drain-Source Voltage (V_DS): 500V, ensuring reliable performance at high voltages.

• Gate-Source Voltage (V_GS): ±20V for safe and efficient gate control.

• Continuous Drain Current (I_D): 8A at Tc = 25°C, suitable for power switching applications.

• Pulsed Drain Current (I_DM): 32A for high-speed switching applications.

• Power Dissipation (P_tot): 125W at Tc = 25°C, with a derating factor of 1.0W/°C for high efficiency.

• Operating Junction Temperature (T_j): Max. 150°C for high thermal endurance.

• Storage Temperature (T_stg): -65°C to 150°C for versatile environmental use.

Electrical Specifications:

• V_DS (Drain-Source Voltage): 500V

• V_GS (Gate-Source Voltage): ±20V

• I_D (Continuous Drain Current): 8A at Tc = 25°C

• I_DM (Pulsed Drain Current): 32A

• P_tot (Total Power Dissipation): 125W at Tc = 25°C

• Derating Factor: 1.0W/°C

Applications:

• Switch-Mode Power Supplies (SMPS): Excellent for use in power conversion systems.

• DC-AC Converters: Ideal for motor drivers and inverter systems.

• Welding Equipment: Suitable for high-current applications like welding.

• Uninterruptible Power Supplies (UPS): Efficient for backup power systems.

• Motor Drivers: Reliable for high-performance motor control circuits.

Package Includes:

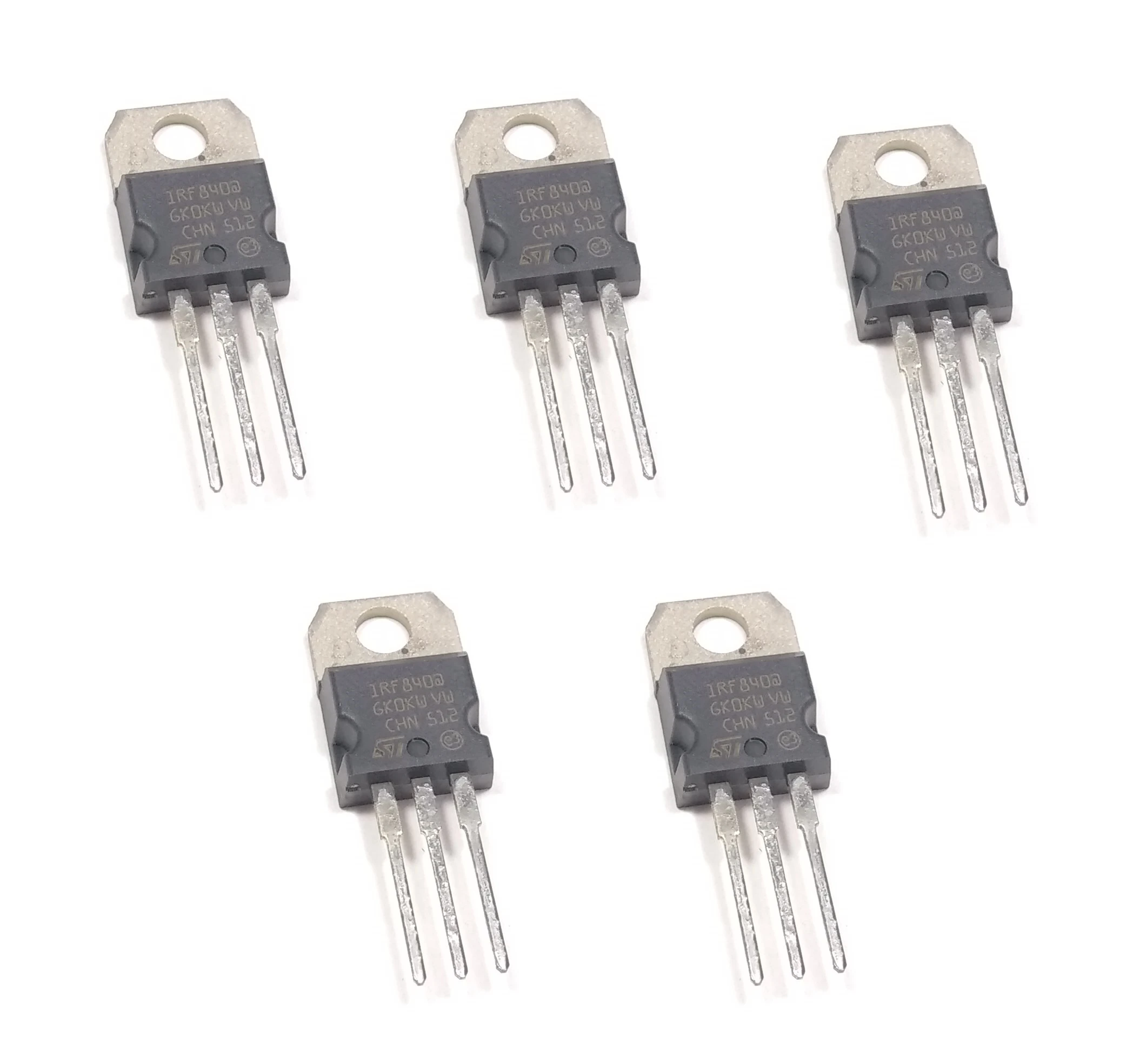

• 5x IRF840 N-channel MOSFET transistors.

• 1x Heatsink compound (for effective heat dissipation).

• 5x Heatsinks (for mounting each transistor).

• 5x Screws (for secure mounting).

Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
