Description:

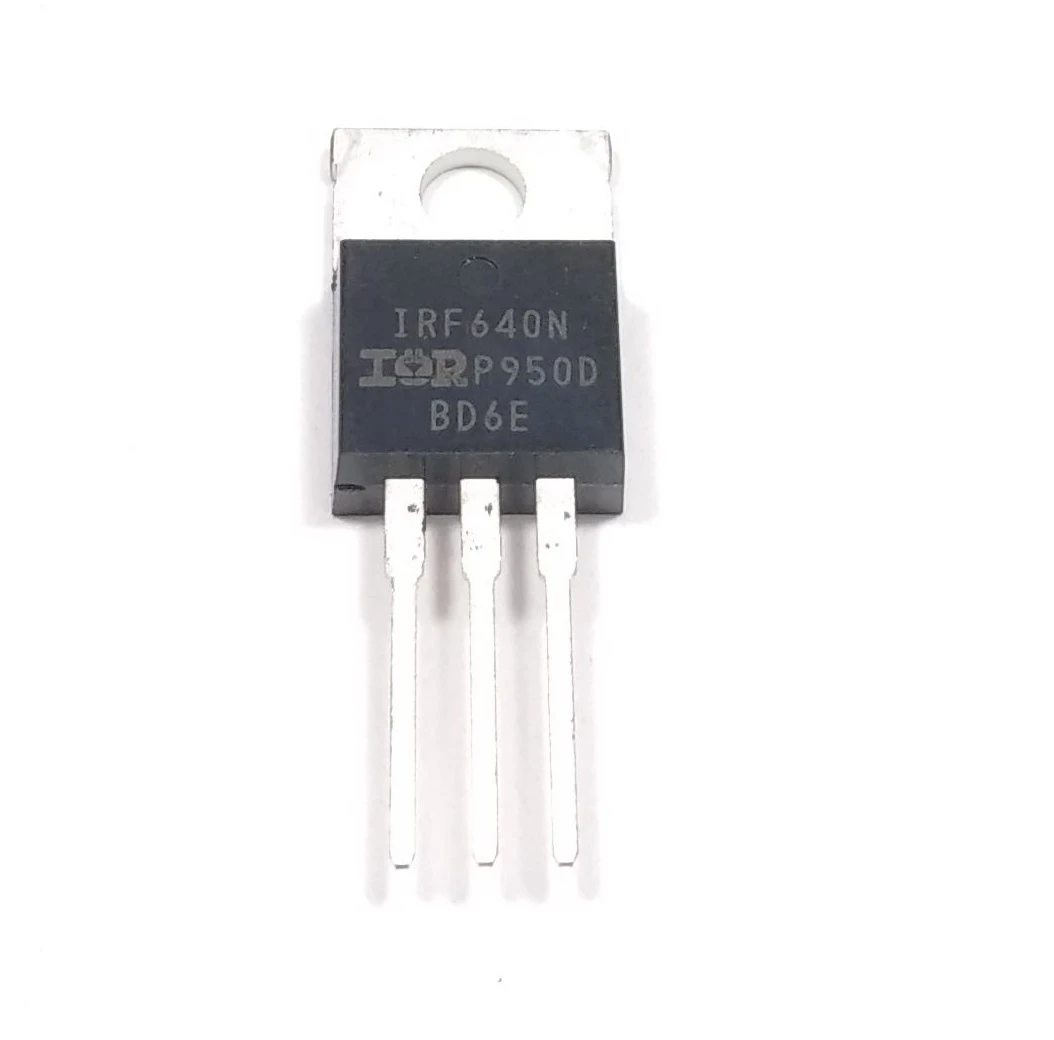

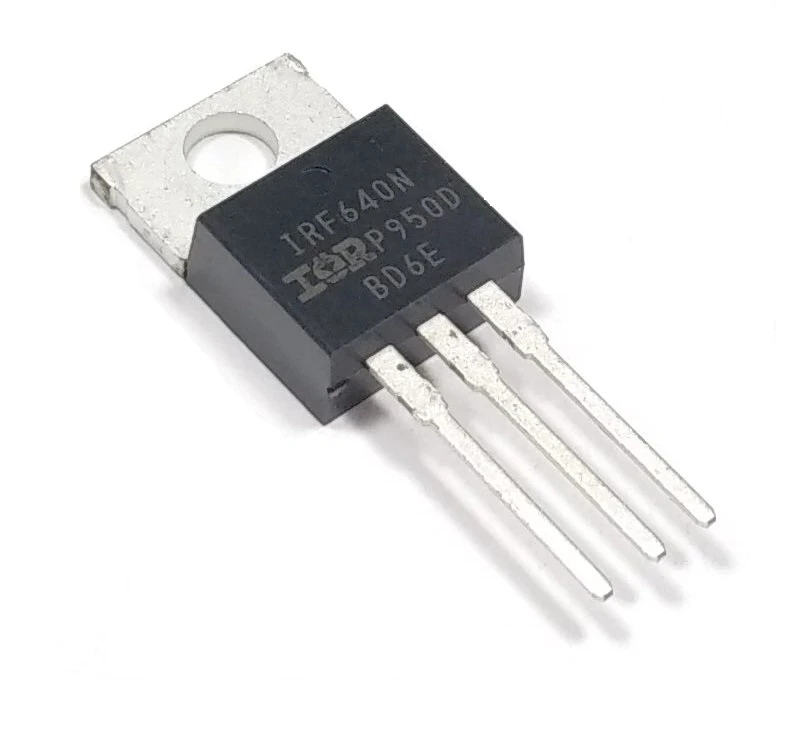

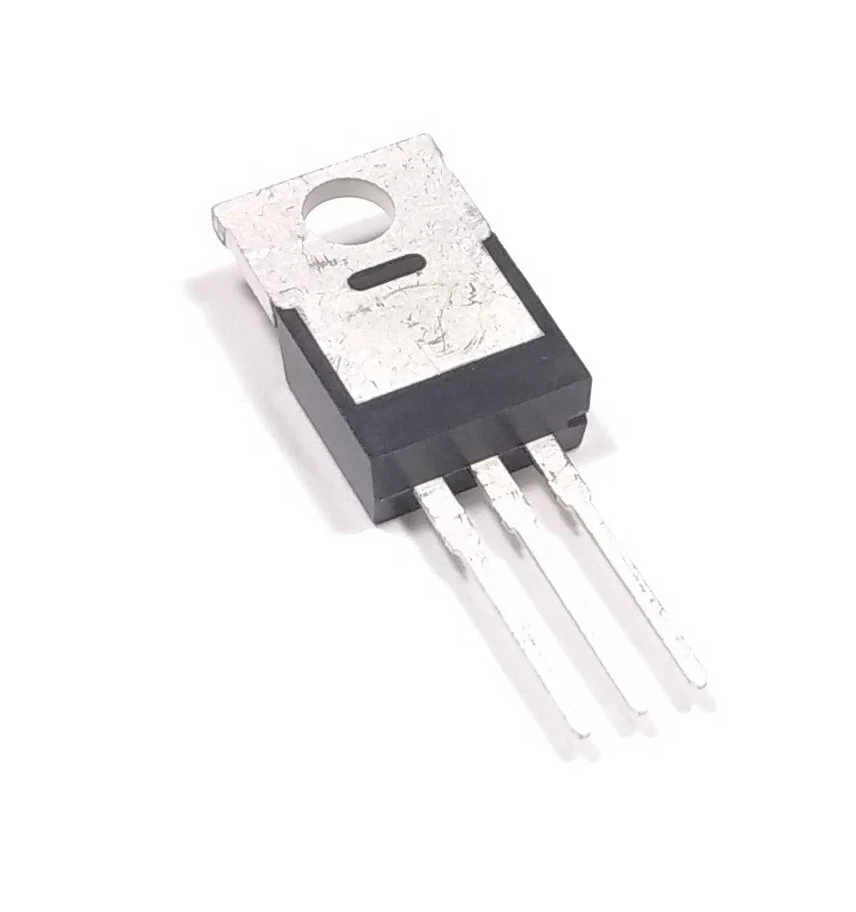

The IRF640 is an N-channel MOSFET designed for high current switching applications. With a drain-source voltage rating of 200V and continuous drain current of 18A, this transistor is perfect for a variety of power control applications. It’s well-suited for use in uninterruptible power supplies (UPS), DC-DC converters for telecom, industrial, and lighting systems, as well as other power electronic circuits that require efficient, high-speed switching.

Features:

• Drain-Source Voltage (V_DS): 200V, ideal for medium voltage applications.

• Gate-Source Voltage (V_GS): ±20V, ensures safe operation of the gate drive.

• Continuous Drain Current (I_D): 18A at Tc = 25°C, providing high current handling capacity.

• Pulsed Drain Current (I_DM): 72A, suitable for dynamic switching applications.

• Total Power Dissipation (P_tot): 125W at Tc = 25°C with a derating factor of 1.0W/°C.

• Operating Junction Temperature (T_j): Max. 150°C, designed for high-temperature applications.

• Storage Temperature (T_stg): -65°C to 150°C for broad environmental compatibility.

Electrical Specifications:

• V_DS (Drain-Source Voltage): 200V

• V_GS (Gate-Source Voltage): ±20V

• I_D (Continuous Drain Current): 18A at Tc = 25°C

• I_DM (Pulsed Drain Current): 72A

• P_tot (Total Power Dissipation): 125W at Tc = 25°C

• Derating Factor: 1.0W/°C

Applications:

• High Current Switching: Suitable for switching high currents in power systems.

• Uninterruptible Power Supply (UPS): Essential for backup power applications.

• DC-DC Converters: Used in telecom, industrial, and lighting equipment for efficient power conversion.

• Power Conversion: Ideal for use in power systems that require medium voltage handling and high current efficiency.

Package Includes:

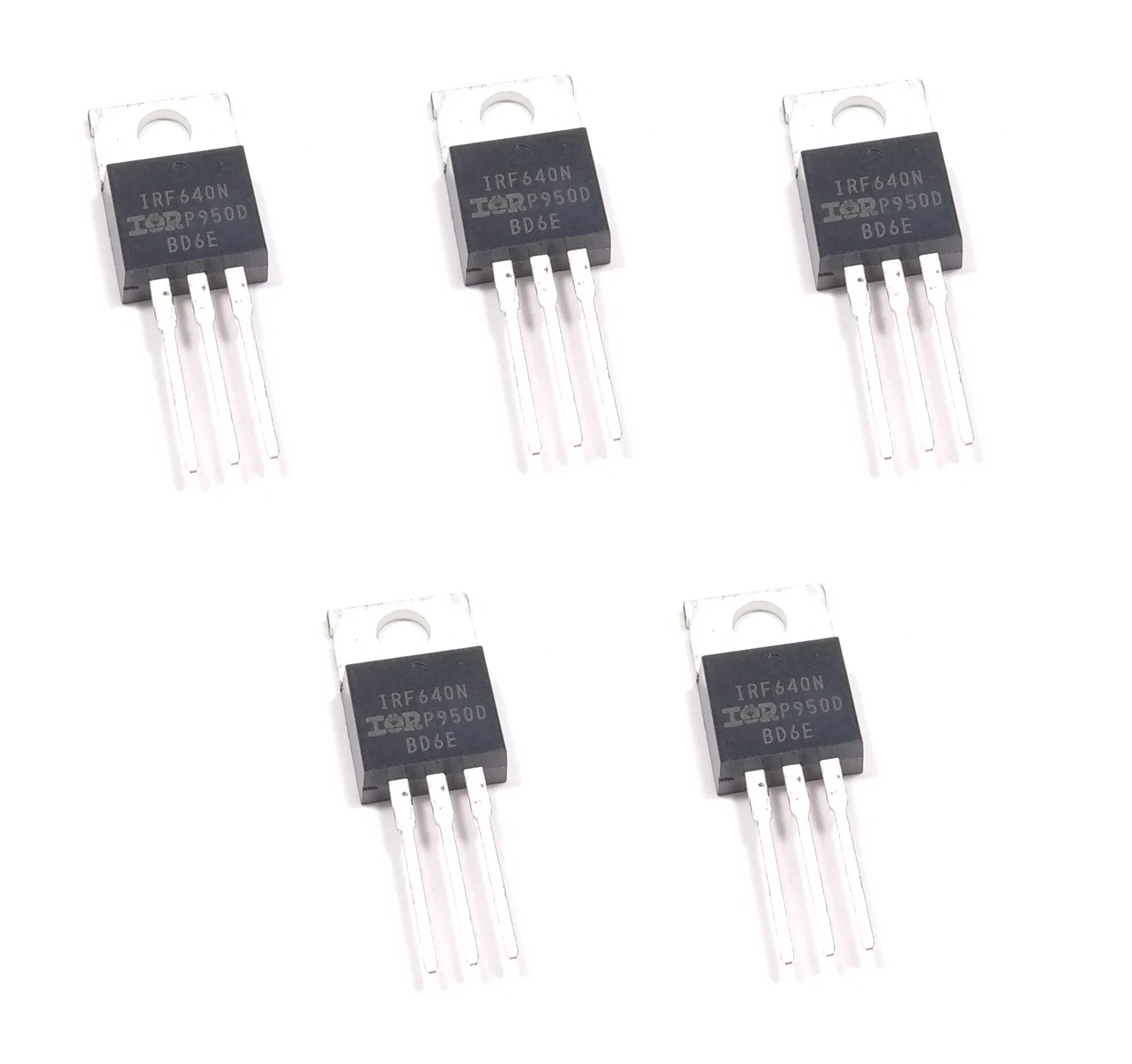

• 5x IRF640 N-channel MOSFET transistors.

• 1x Heatsink compound (for optimal heat dissipation).

• 5x Heatsinks (for proper cooling of each transistor).

• 5x Screws (for secure mounting).

Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
