Description:

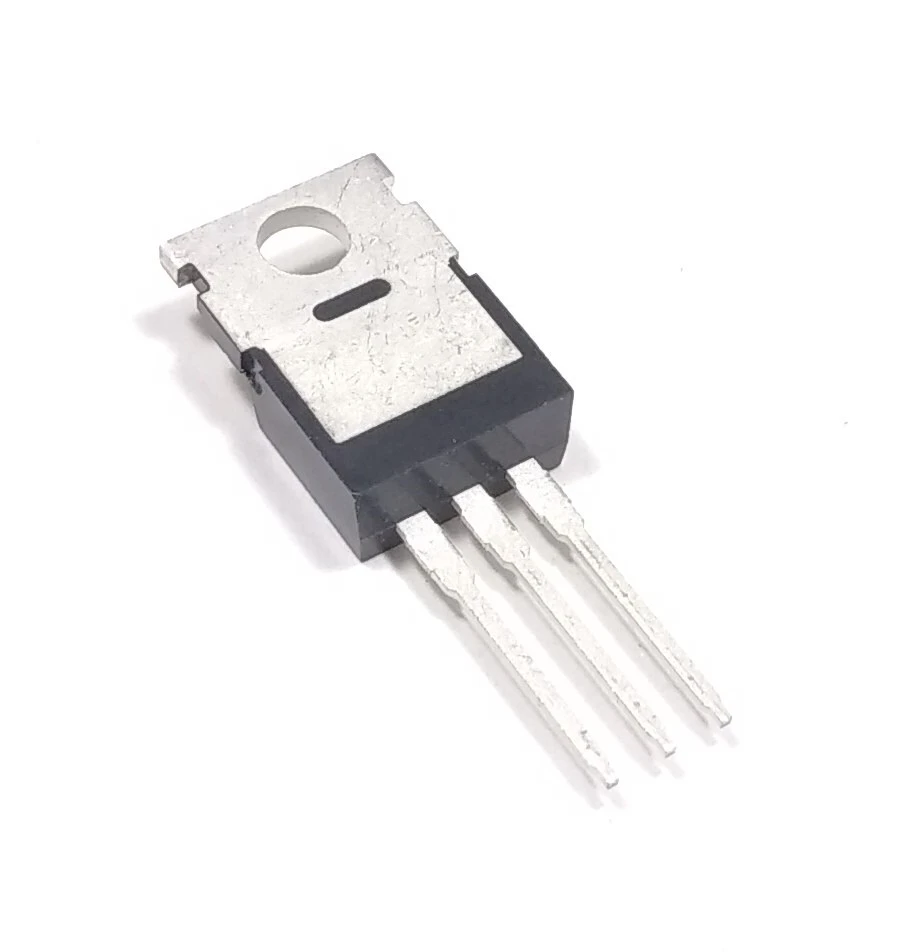

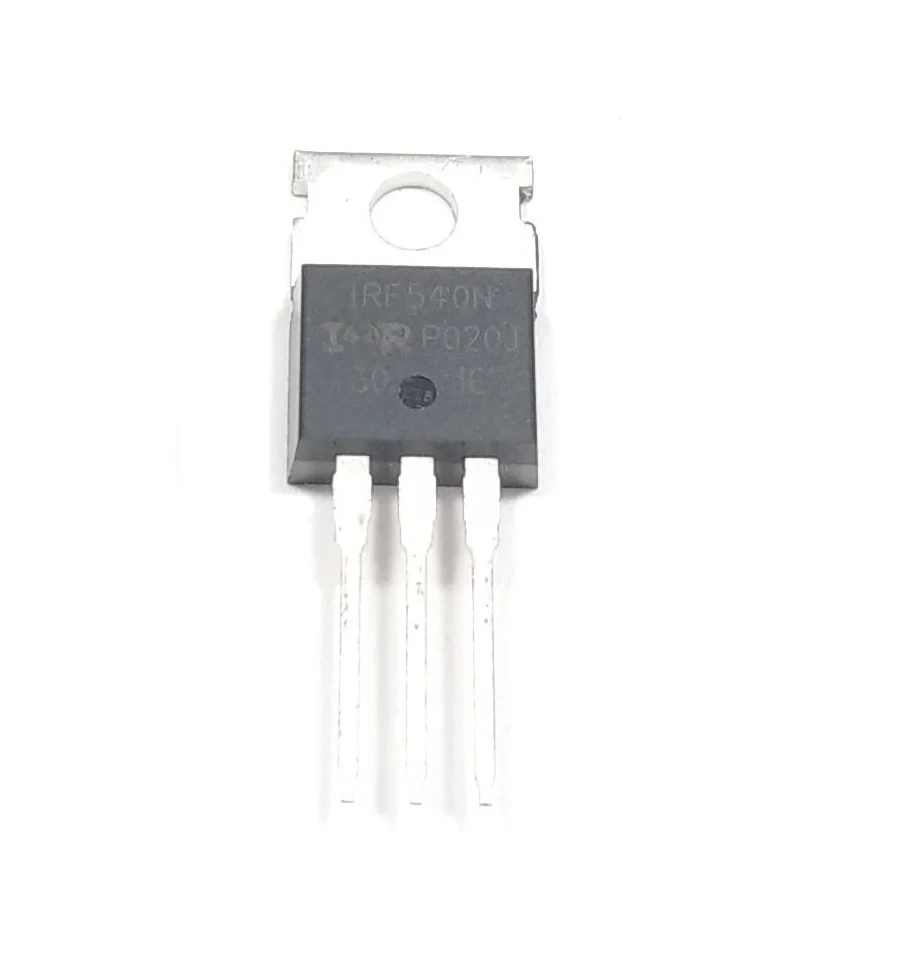

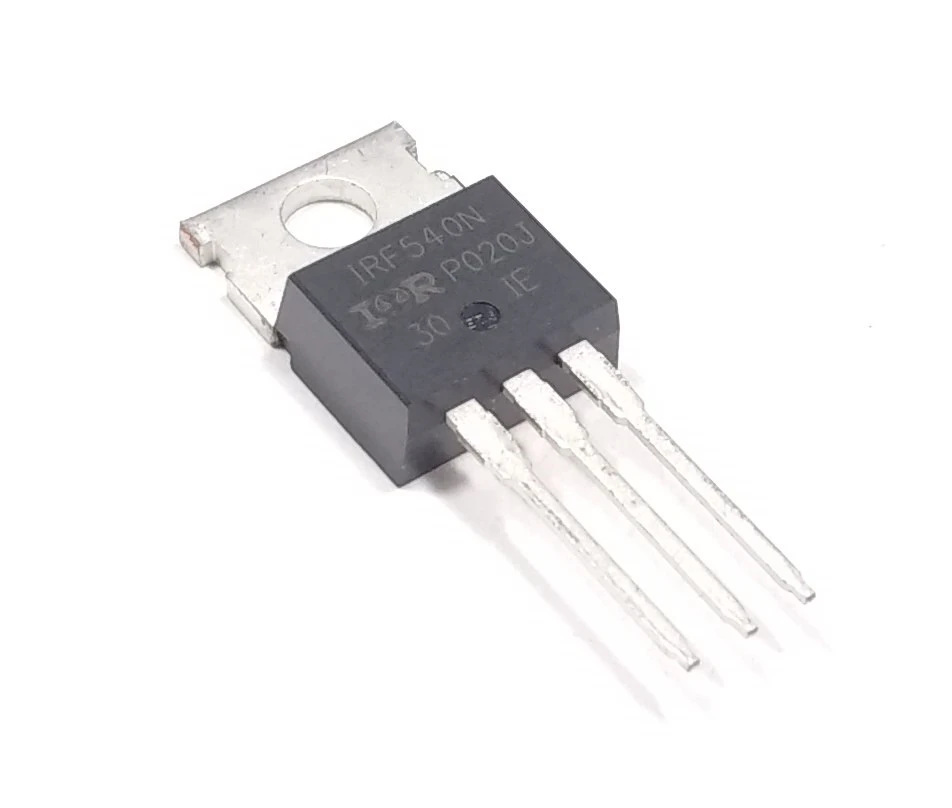

The IRF540 is an N-channel MOSFET designed for high current, high-speed switching applications. It offers a drain-source voltage of 100V and continuous drain current of 30A, making it suitable for a wide range of power electronics, including solenoid and relay drivers, DC-DC converters, and automotive applications such as ABS, airbag systems, and lamp drivers. With a low Rds(on) of 0.050Ω and the capability to operate at temperatures up to 175°C, this transistor delivers excellent performance and reliability.

Features:

• Drain-Source Voltage (V_DSS): 100V, optimized for medium voltage applications.

• Drain Current (I_D): 30A continuous, providing robust current handling capacity.

• Rds(on): 0.050Ω (typical), ensuring minimal voltage drop and power loss during operation.

• Avalanche Rugged Technology: 100% avalanche tested to handle high-energy transients.

• Repetitive Avalanche Data: Proven reliability at 100°C, ensuring stability under harsh conditions.

• Low Gate Charge: Improves switching speed and efficiency.

• High Current Capability: Suitable for high-speed switching applications.

• Operating Temperature: Rated for operation up to 175°C, ideal for demanding environments.

• Application-Oriented Characterization: Tested and characterized for a wide range of practical applications.

Applications:

• High Current, High Speed Switching: Ideal for power systems requiring efficient switching.

• Solenoid and Relay Drivers: Perfect for controlling high-power relays and solenoids.

• DC-DC & DC-AC Converters: Used in power conversion systems for efficient voltage regulation.

• Automotive Environment: Suitable for critical automotive applications such as injection, ABS, air-bag systems, and lamp drivers.

Package Includes:

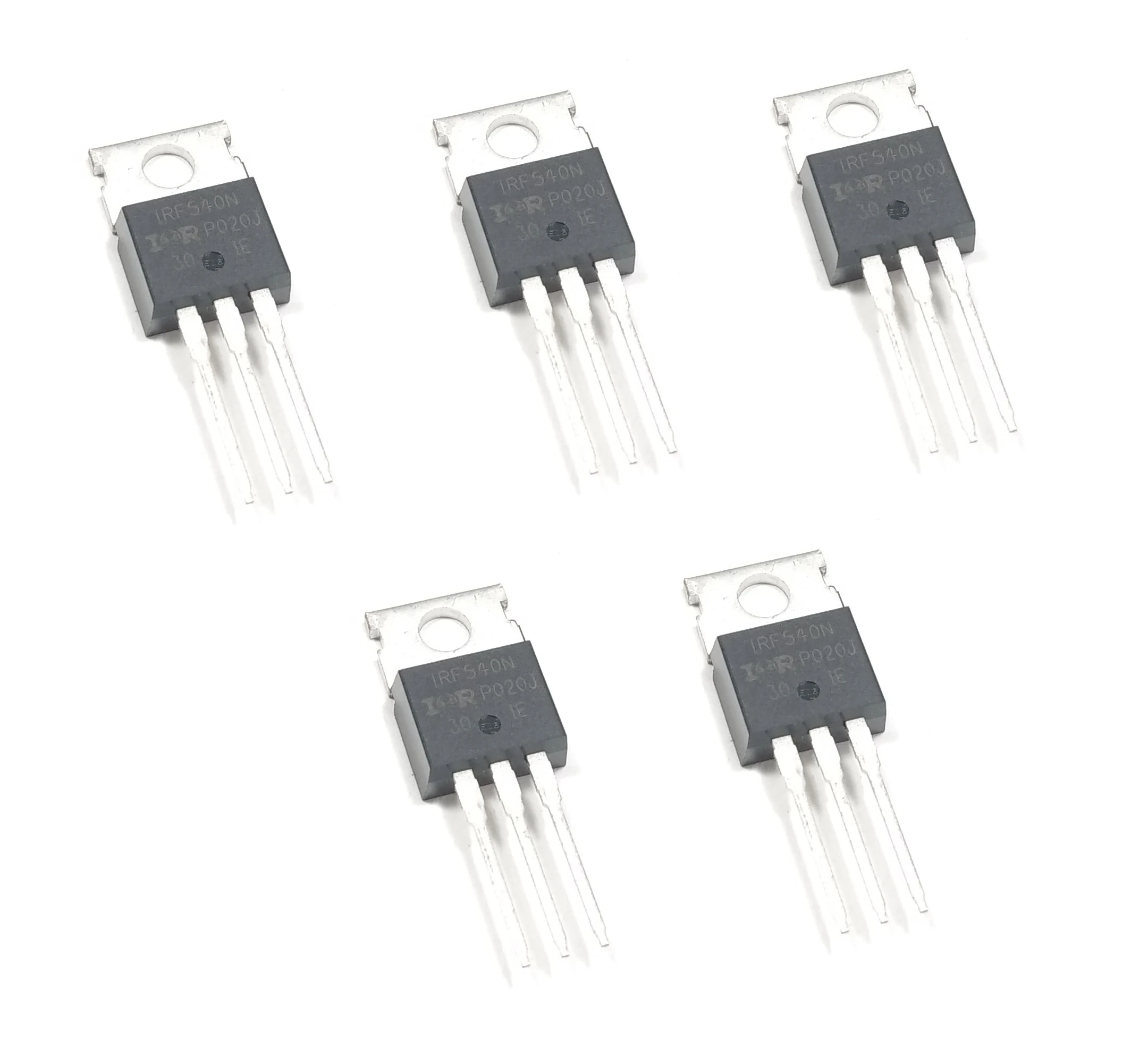

• 5x IRF540 N-channel MOSFET transistors.

• 1x Heatsink compound (for optimal thermal performance).

• 5x Heatsinks (for efficient heat dissipation).

• 5x Screws (for secure mounting).

Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
