Description:

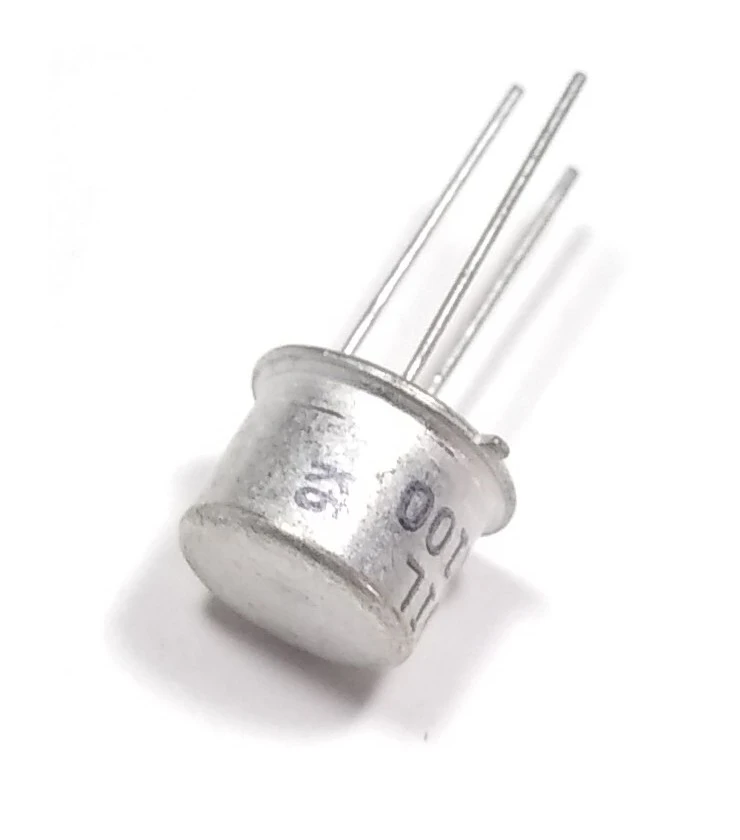

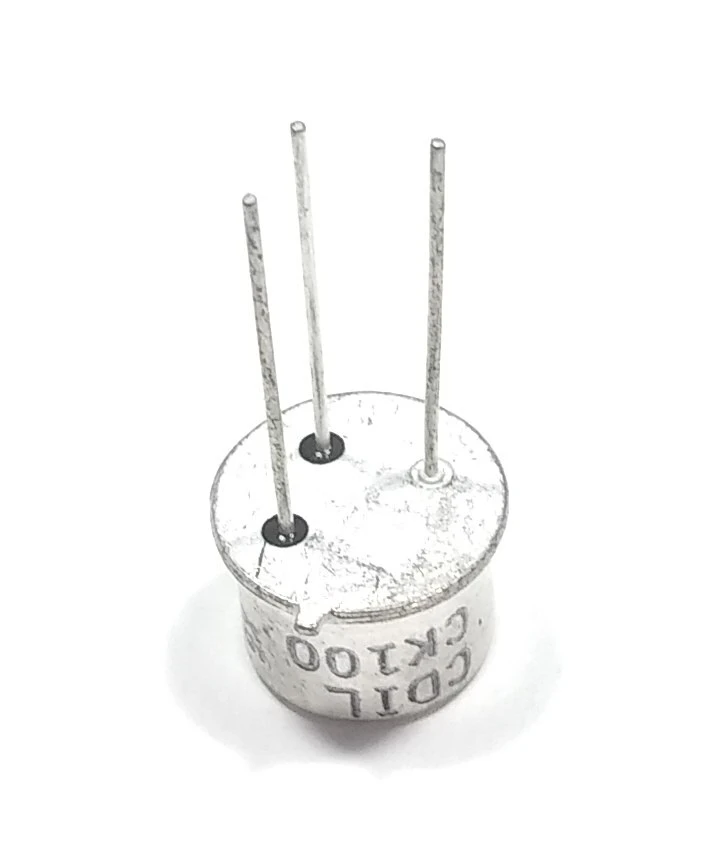

The CK100 is a high-performance NPN transistor designed for use in general-purpose applications such as amplification and switching circuits. This versatile transistor comes in a compact package and is ideal for low-to-medium power tasks in audio, control systems, and signal processing. With its high voltage and current ratings, the CK100 provides reliable performance in diverse electronic applications.
Polarity: NPN (Negative-Positive-Negative configuration)
Collector-Emitter Voltage (V_CEO): 80V for reliable voltage handling.
Collector-Base Voltage (V_CBO): 100V for a broader voltage tolerance range.
Emitter-Base Voltage (V_EBO): 5V.
Collector Current (I_C): 1A continuous, suitable for moderate power applications.
Power Dissipation (P_D): 1W at T_A = 25°C, making it effective for medium power use.
Collector-Emitter Voltage (V_CEO): 80V
Collector-Base Voltage (V_CBO): 100V
Emitter-Base Voltage (V_EBO): 5V
Collector Current (I_C): 1A (max continuous)
Power Dissipation (P_D): 1W at T_A = 25°C
Operating Junction Temperature (T_j): -65°C to +200°C
Storage Temperature (T_stg): -65°C to +200°C
Amplification: Ideal for use in audio and signal amplification circuits.
Switching: Suitable for general switching applications in consumer and industrial devices.
Signal Processing: Can be used in low-to-medium power signal processing circuits.
Voltage Regulation: Works well in regulating circuits for moderate power loads.

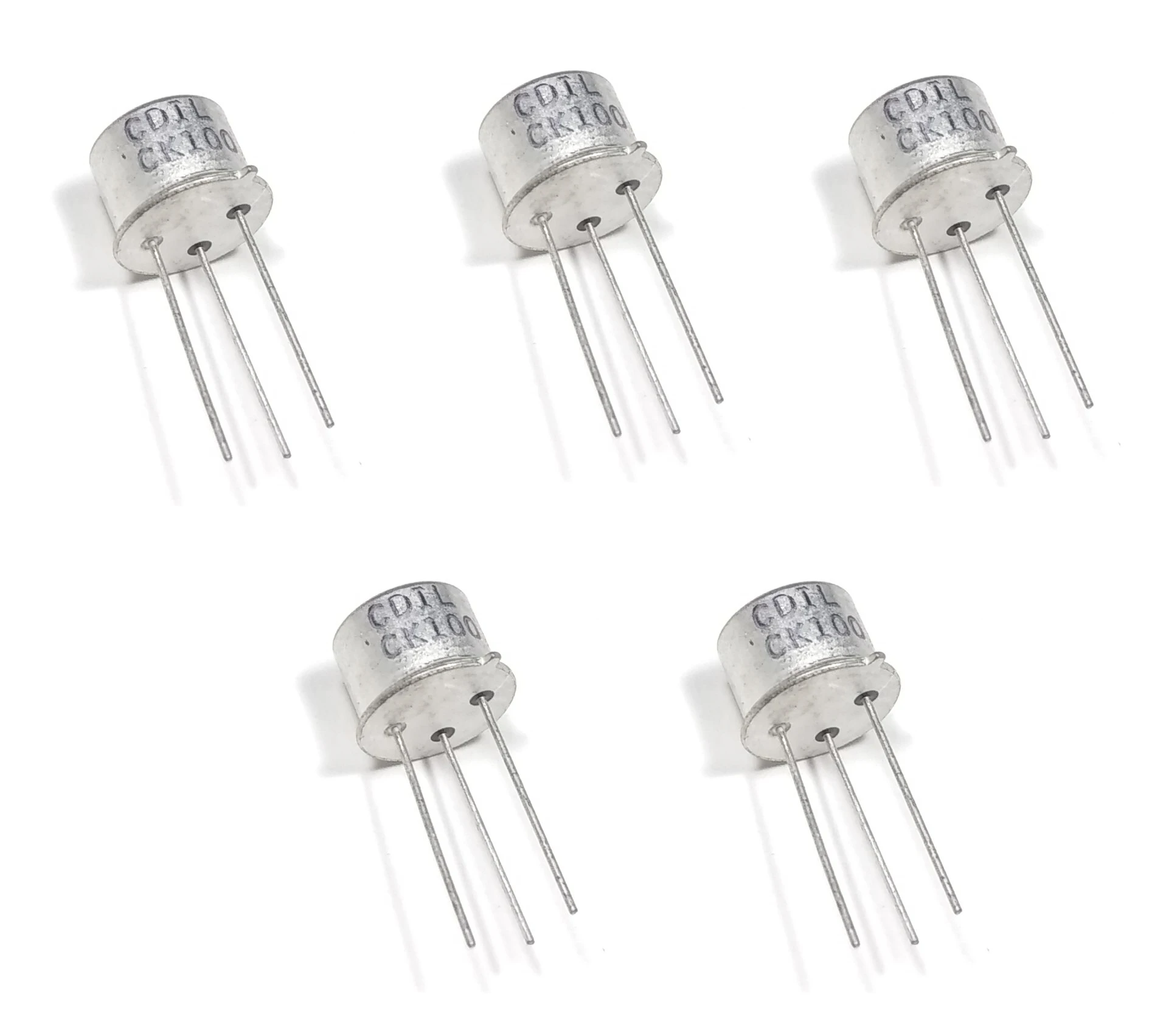

5x CK100 NPN transistors.
1x Heatsink compound (for thermal management).
5x Heatsinks (for mounting each transistor).
5x Screws (for secure mounting).
Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
