Description:

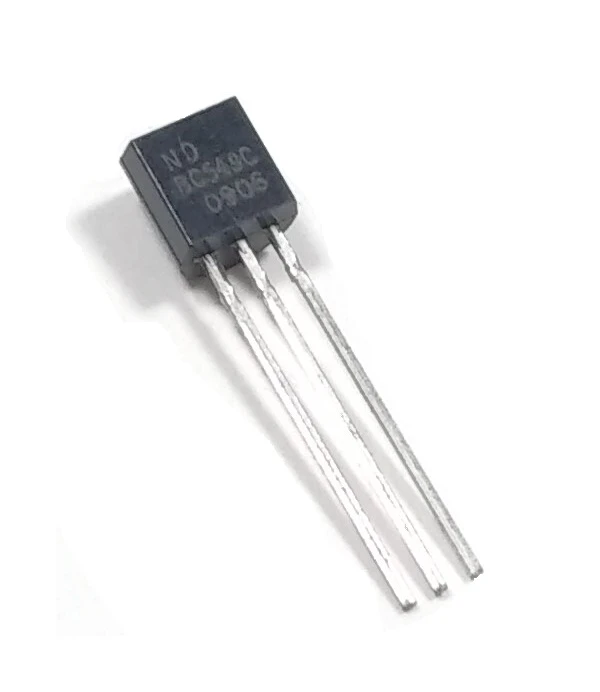

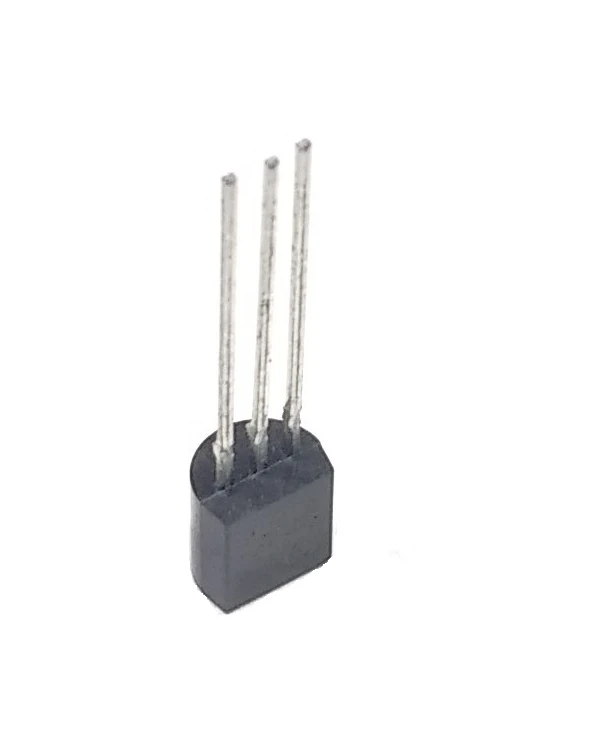

The BC549 is a general-purpose NPN bipolar junction transistor designed for low-noise stages and signal amplification. Ideal for use in audio, switching, and small signal processing applications.
Polarity: NPN
Collector-Base Voltage (VCBO): 30 V
Collector-Emitter Voltage (VCEO): 30 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 100 mA
Power Dissipation @ TA = 25°C: 625 mW
Derating above 25°C (Ambient): 5.0 mW/°C
Power Dissipation @ TC = 25°C: 1.5 W
Derating above 25°C (Case): 12 mW/°C
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 °C to +150 °C
Thermal Resistance (RθJA): 200 °C/W
Low-noise signal amplification
Audio and radio frequency (RF) circuits
Hobbyist and prototyping projects
General-purpose low-power switching

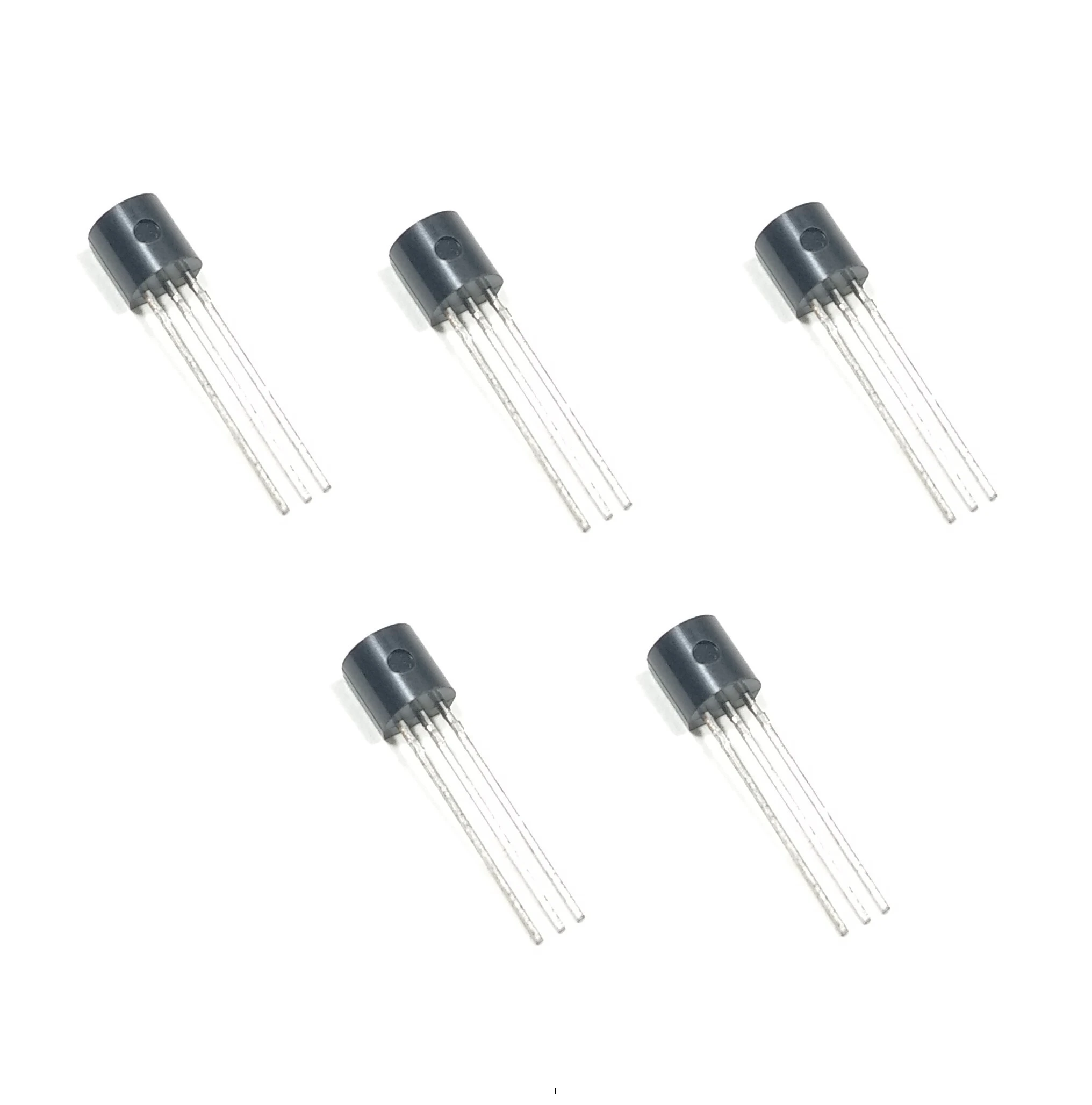

5x BC549 NPN Transistors
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
