Description:

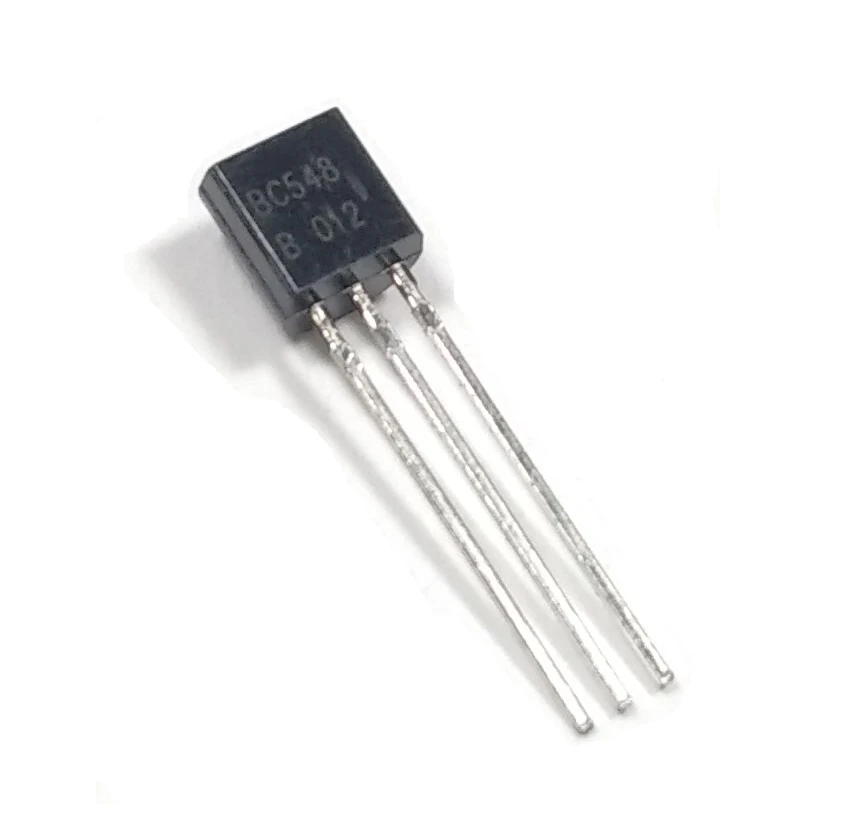

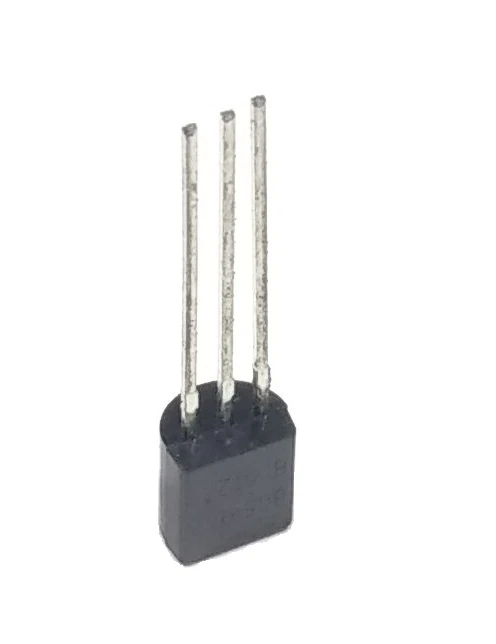

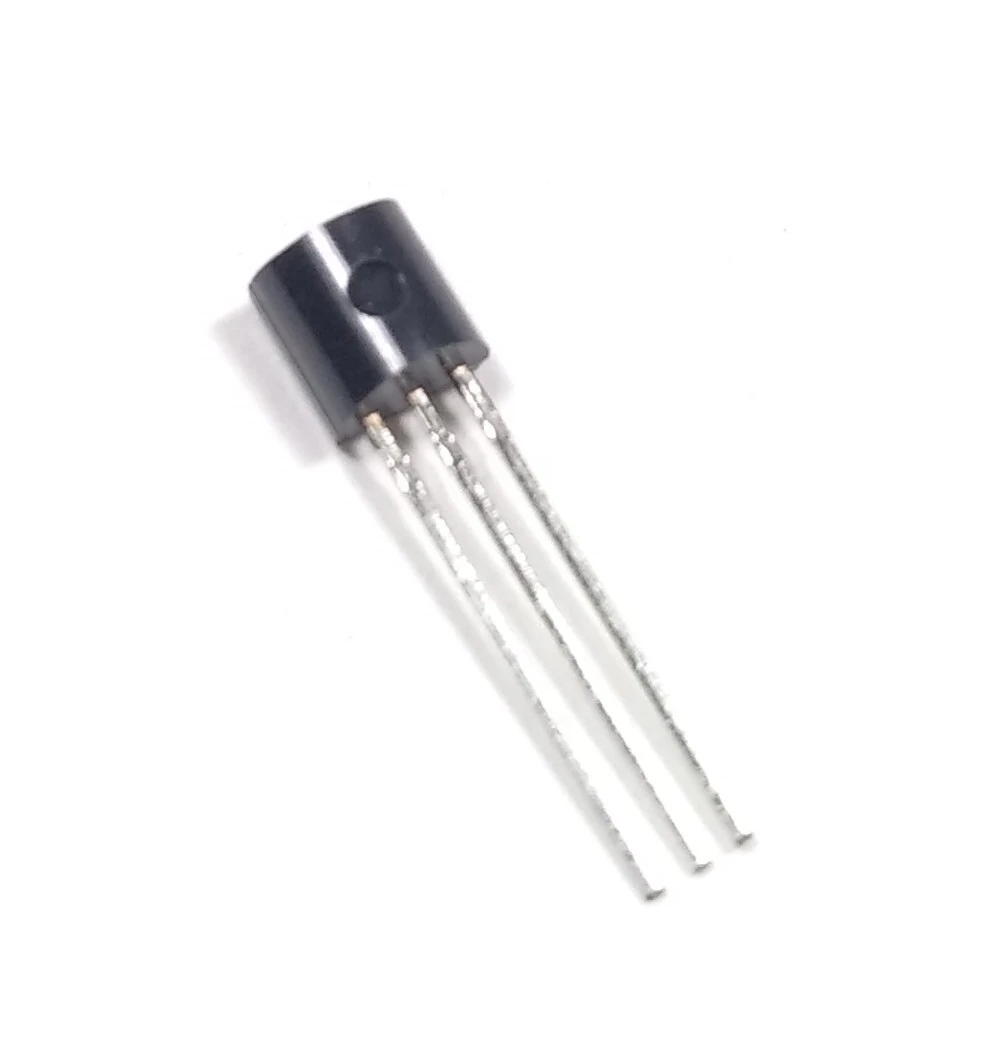

The BC548 is a widely used NPN general-purpose transistor suitable for switching and amplification. Its low power dissipation and good gain characteristics make it ideal for analog and digital circuit designs.
Polarity: NPN
Collector-Base Voltage (VCBO): 30 V
Collector-Emitter Voltage (VCEO): 30 V
Emitter-Base Voltage (VEBO): 5 V
Collector Current (IC): 100 mA
Power Dissipation @ TA = 25°C: 625 mW
Derating above 25°C (Ambient): 5.0 mW/°C
Power Dissipation @ TC = 25°C: 1.5 W
Derating above 25°C (Case): 12 mW/°C
Junction Temperature (Tj): 150 °C
Storage Temperature Range (Tstg): -55 to 150 °C
Thermal Resistance (RθJA): 200 °C/W
General-purpose switching
Signal amplification in low power circuits
Hobby electronics and prototyping
Audio amplifier input stages

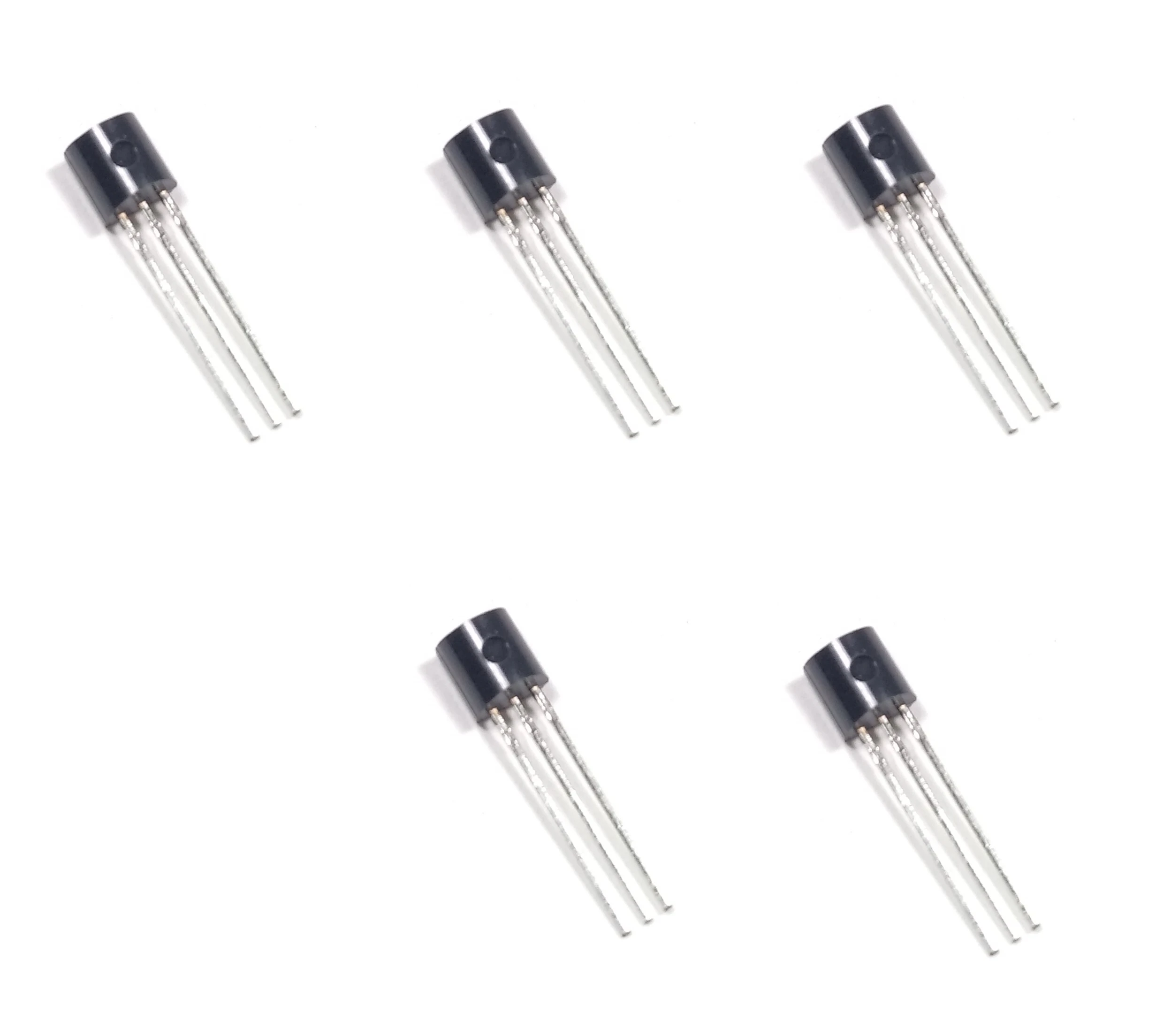

5x BC548 NPN Transistors
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
