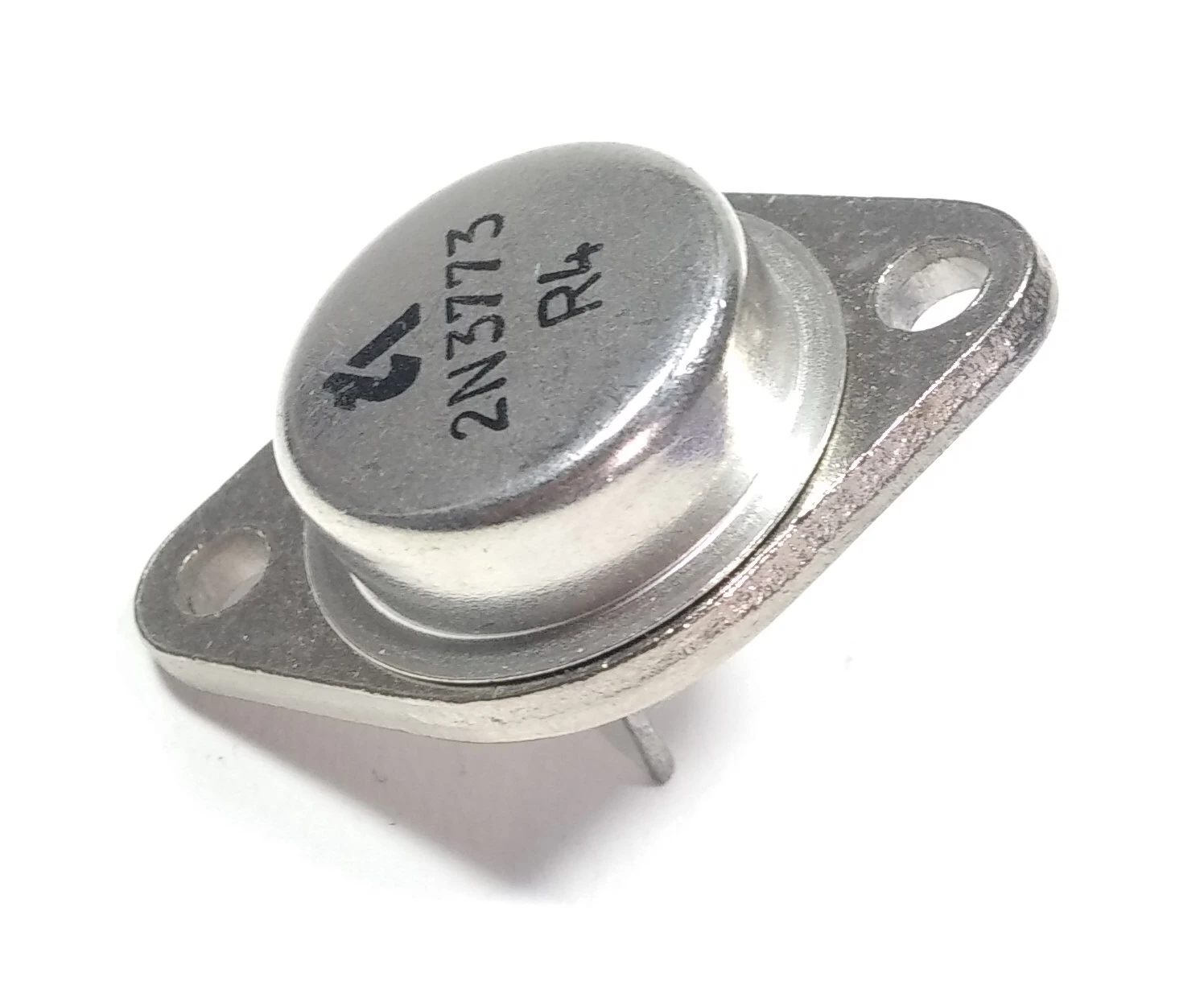

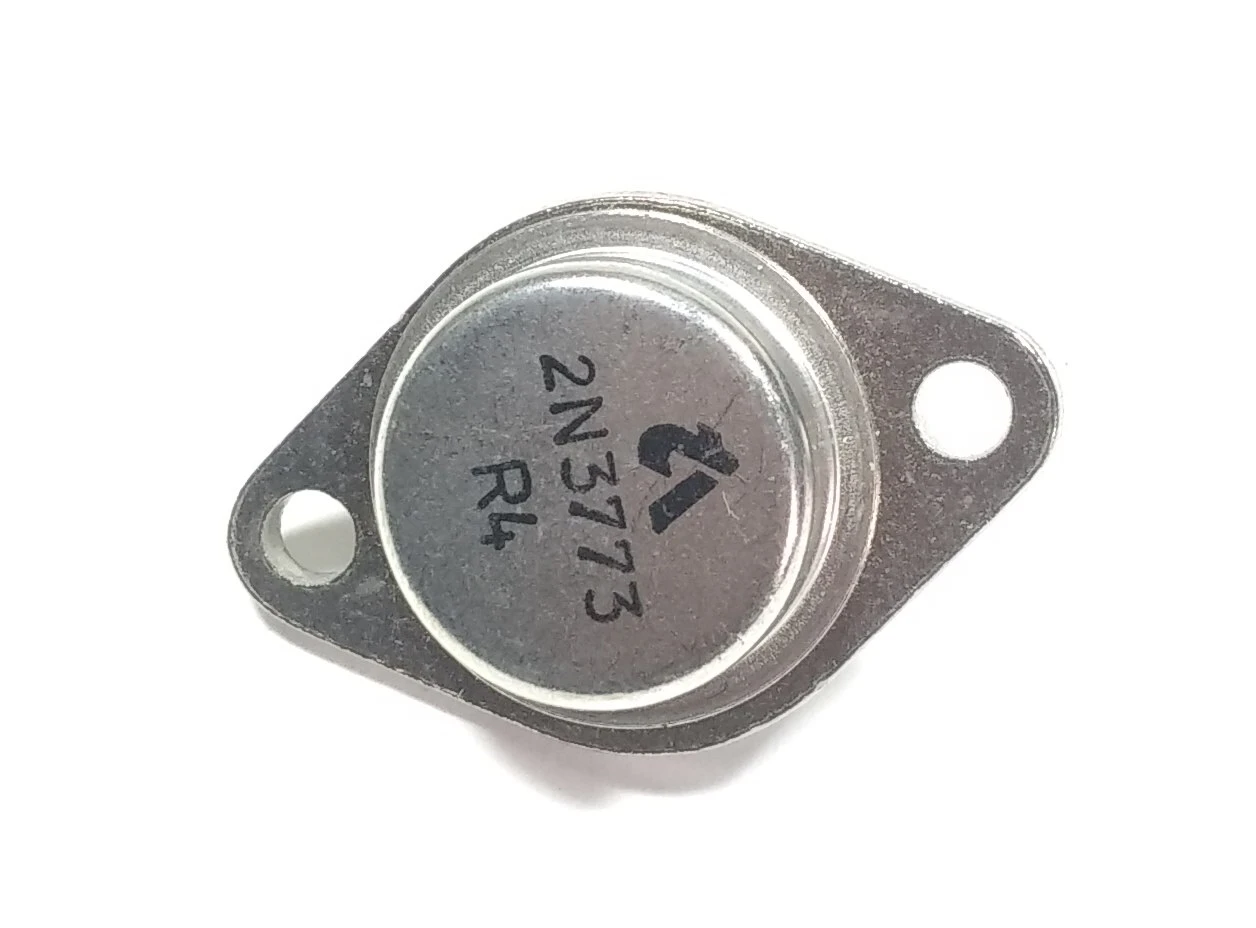

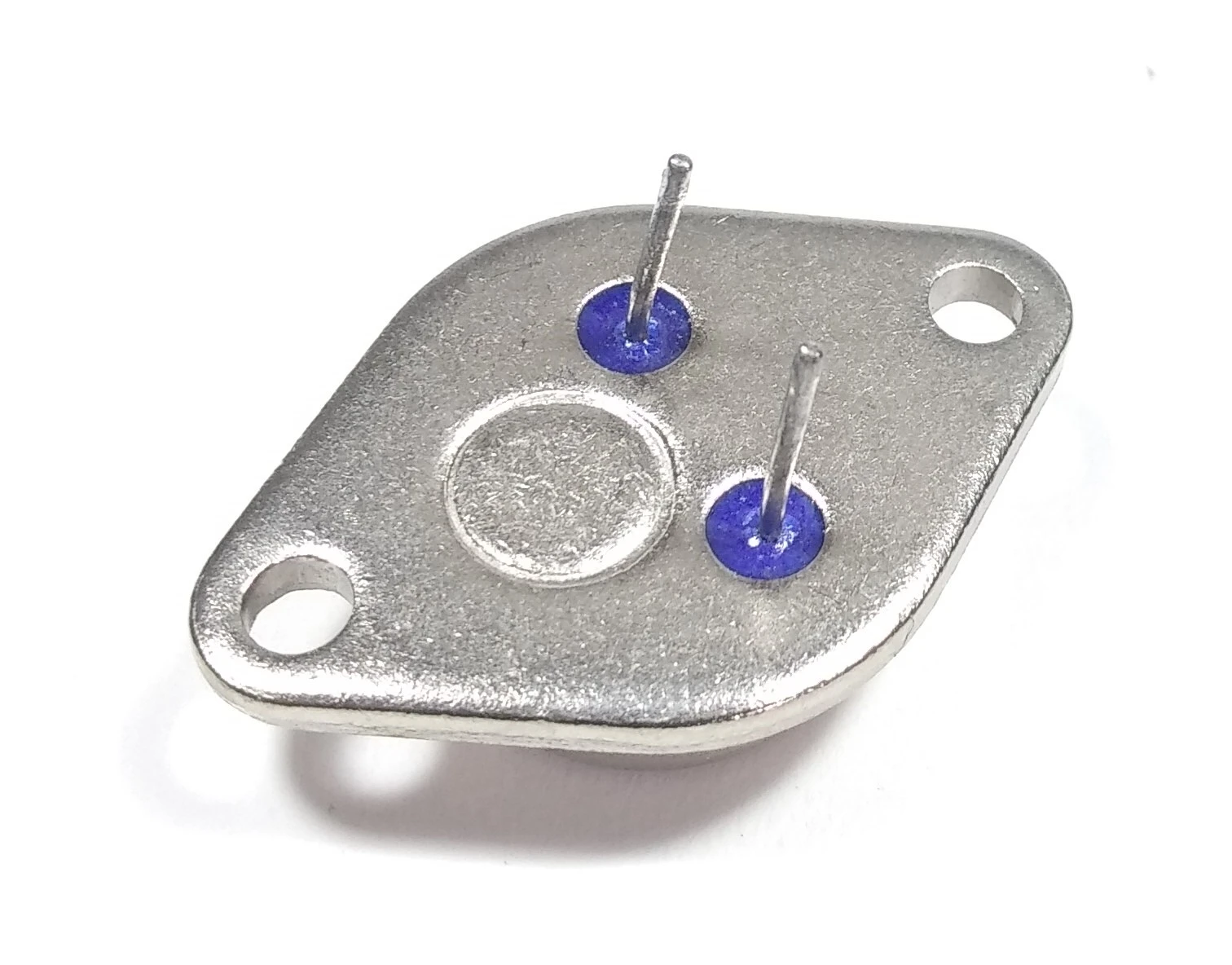

2N3773 Transistor

In Stock

SKU: R3-F-7-1

2N3773 Transistor

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹53.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

The 2N3773 is a high-performance PowerBase NPN transistor designed for linear and switching applications. Ideal for high-power audio, servo motors, DC-DC converters, and relay drivers, it offers excellent linearity, current gain, and thermal performance in a rugged TO-3 metal can package.

Features

High Safe Operating Area: 150 W @ 100 V (100% tested)
High current gain: hFE ≥ 15 @ 8A, 4V
Low saturation voltage: VCE(sat) ≤ 1.4 V @ 8A, 0.8A base
Designed for linear and switching use
Suitable for complementary designs with low distortion
Pb-Free and RoHS compliant
Completely characterized for linear operation
TO-3 metal package for superior heat dissipation

Product Specification

Package Type: TO-3 Metal Can
Transistor Type: NPN
Collector-Emitter Voltage (VCEO): 140V
Collector-Base Voltage (VCBO): 160V
Emitter-Base Voltage (VEBO): 7V
Collector Current (IC): 16A continuous, up to 30A peak
Base Current (IB): 7A max
Power Dissipation (PD): 150W @ 25°C
Thermal Derating: 0.855 W/°C above 25°C
Operating Temperature Range (Tj, Tstg): -65°C to +200°C

Application

High-power audio amplifier output stages
DC-DC converters and power inverters
Motor and solenoid drivers
Power supplies and UPS systems
Linear and regulated power designs requiring durability and stability

Package Include

1x Heat sink compound
2x 2N3773 Power Transistors (TO-3 Package)
2x TO-3 heat sinks
4x mounting screws

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements. The image provided is solely for illustrative purposes, and the actual product brand and color may vary. Please refer to the specific product details for accurate information.
