Features:
Description:

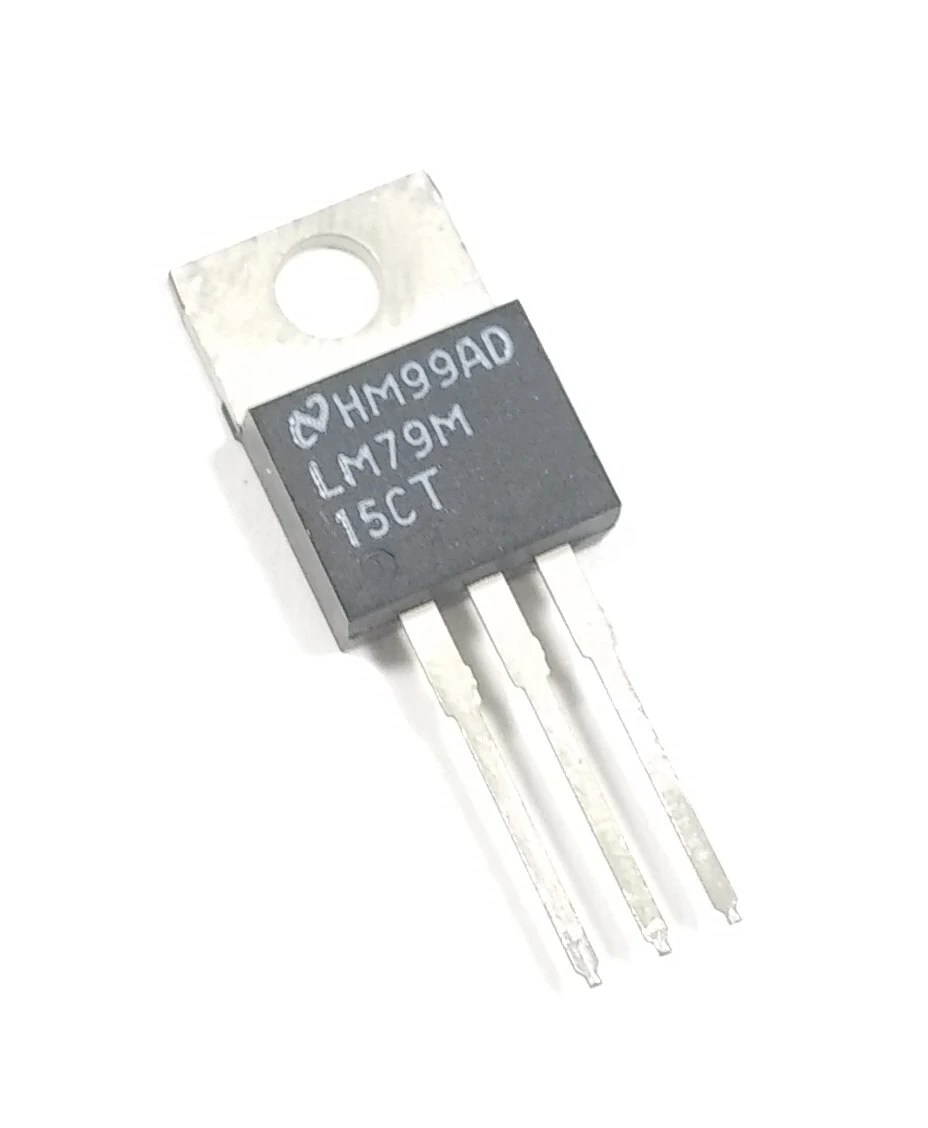

LM7915 is an IC of LM79xx series; this series contains a variety of different fixed output negative voltage regulators. All these regulators are built to provide a specific output voltage. The output voltage of the ICs in LM79xx series can be checked by looking at the last two digits of the IC after LM79. The IC provides fixed -15V at the output with the output current of 1.5A, however for getting stable -15V output the input voltage should be 2V to 3V higher than -15V. Moreover for 1.5A output current, a suitable should be required with the IC, or else the IC will continuously go shutdown whenever the load is connected.
LM7915 is a reliable IC to use in commercial equipment, the built-in thermal protection, overcurrent protection, and safe area protection circuitry make the IC robust and failproof in a variety of wrong and uncertain situations.
As shown in the above LM7915 pinout image the IC also requires input and output capacitors in some conditions such as the input capacitor required when the IC is more than 3 inches away from the input supply and the output capacitor is required for the stability of output.
LM7915 regulator can be used in a variety of applications such as power supplies, dual power supplies, etc. Using the IC is pretty much simple and straight forward as shown in the LM7915 pinout image above in which the IC is connected between the negative supply.

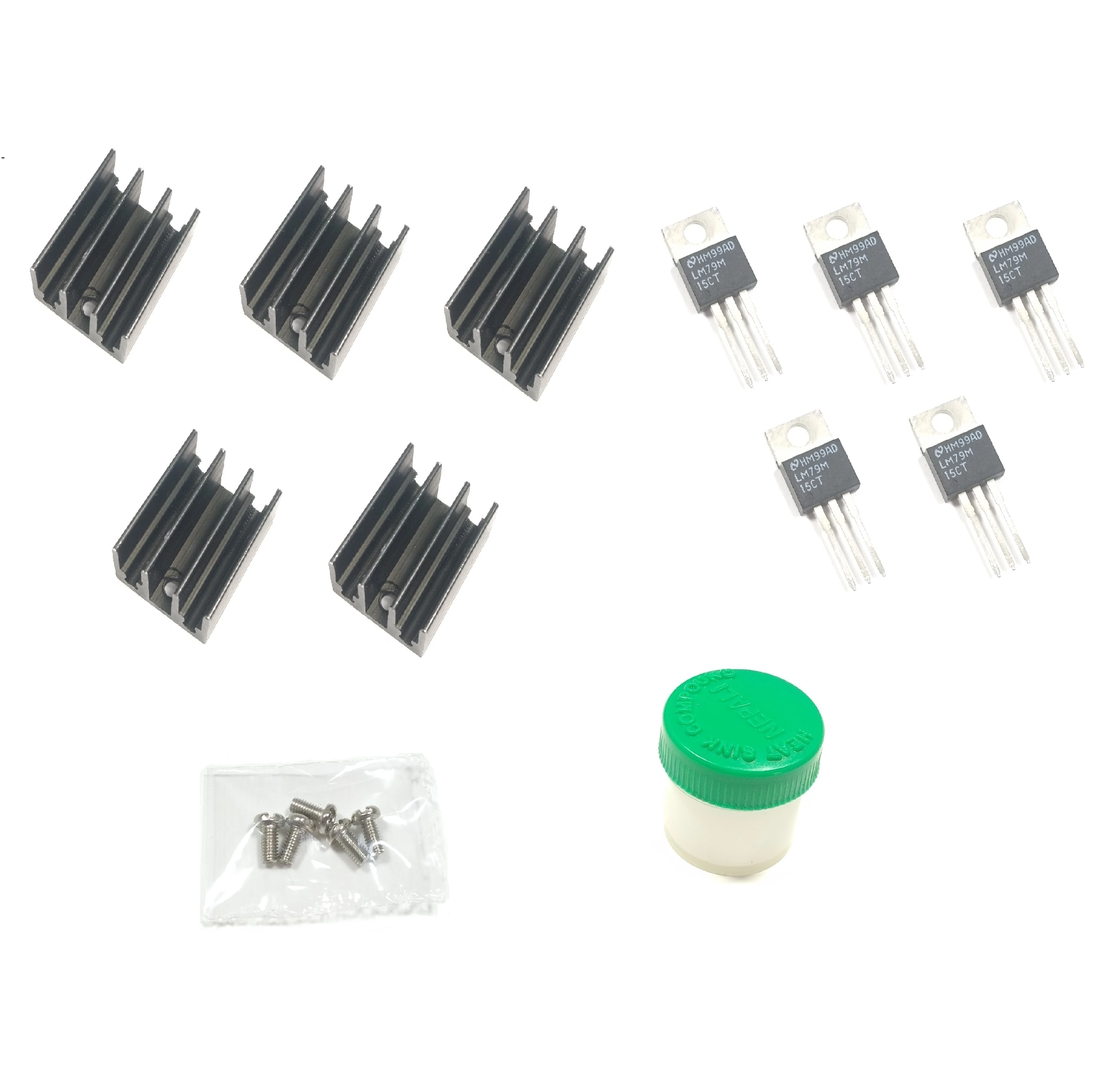

Package include:
1x Heat sink compound
5x LM7915
5x Heat sink (2 x 1.5 cm)
5x screw
Disclaimer: The image provided is solely intended for illustrative purposes, and it's important to note that the brand name and colour may change. This allows for flexibility in adapting to evolving market trends and consumer preferences. Please refer to the specific product details for accurate information.
