Voltage regulators are very common in electronic circuits. They provide a constant output voltage for a varied input voltage. The name 7815 signifies two meanings, “78” means that it is a positive voltage regulator and “15” means that it provides 15V as output. So, our 7805 will provide a +15V output voltage.
The output current of this IC can go up to 1.5A. But the IC suffers from heavy heat loss, hence a Heat sink is recommended for projects that consume more current. For example, if the input voltage is 20V and you are consuming 1A, then (20-5) * 1 = 15W. This 15 Watts will be dissipated as heat.
This is a typical application circuit of the 7815 IC. We just need two capacitors of value 0.33uf and 0.1uf to get this IC working. The input capacitor 0.33uF is a ceramic capacitor that deals with the input inductance problem and the output capacitor 0.1uF is also a ceramic capacitor that adds to the stability of the circuit. These capacitors should be placed close to the terminals for them to work effectively. Also, they should be of the ceramic type, since ceramic capacitors are faster than electrolytic.
Package include:
1x Heat sink compound

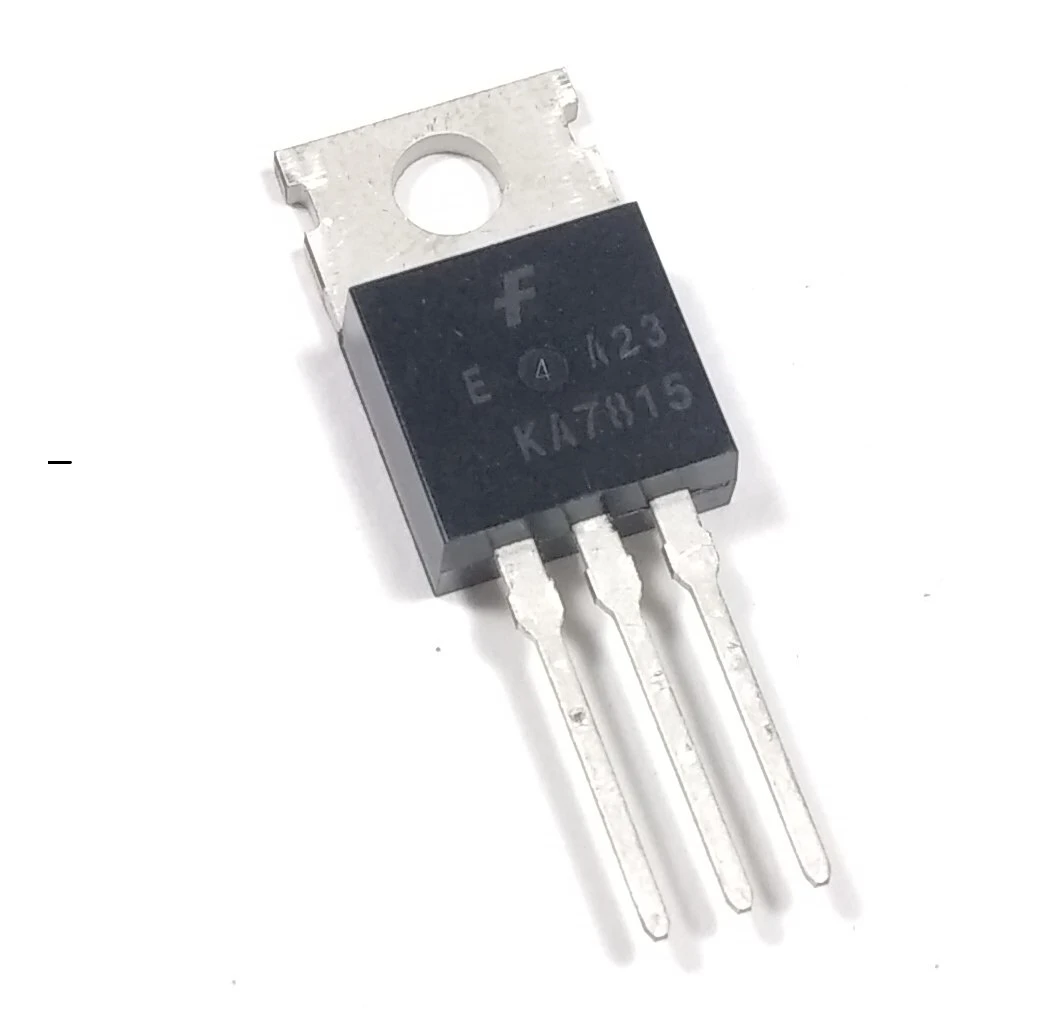

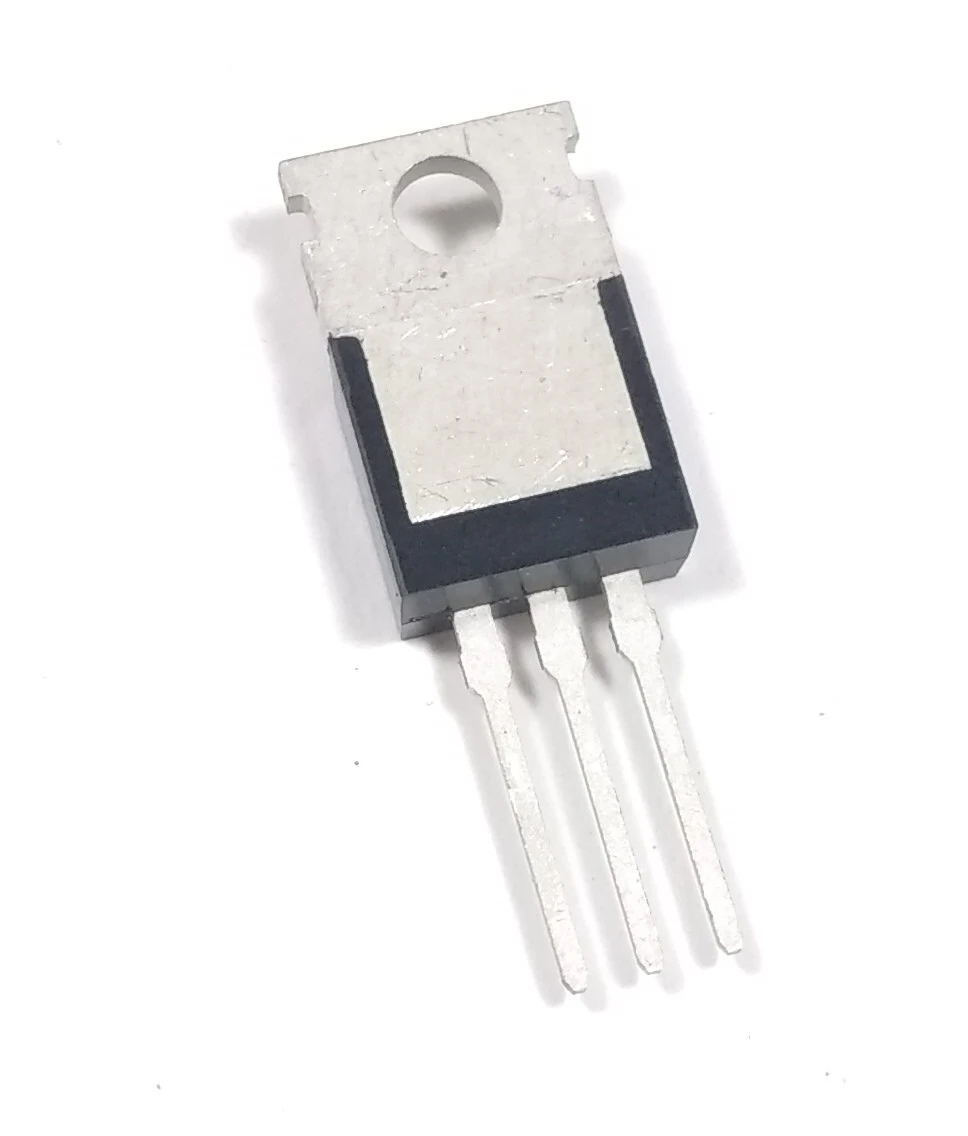

5x LM7815

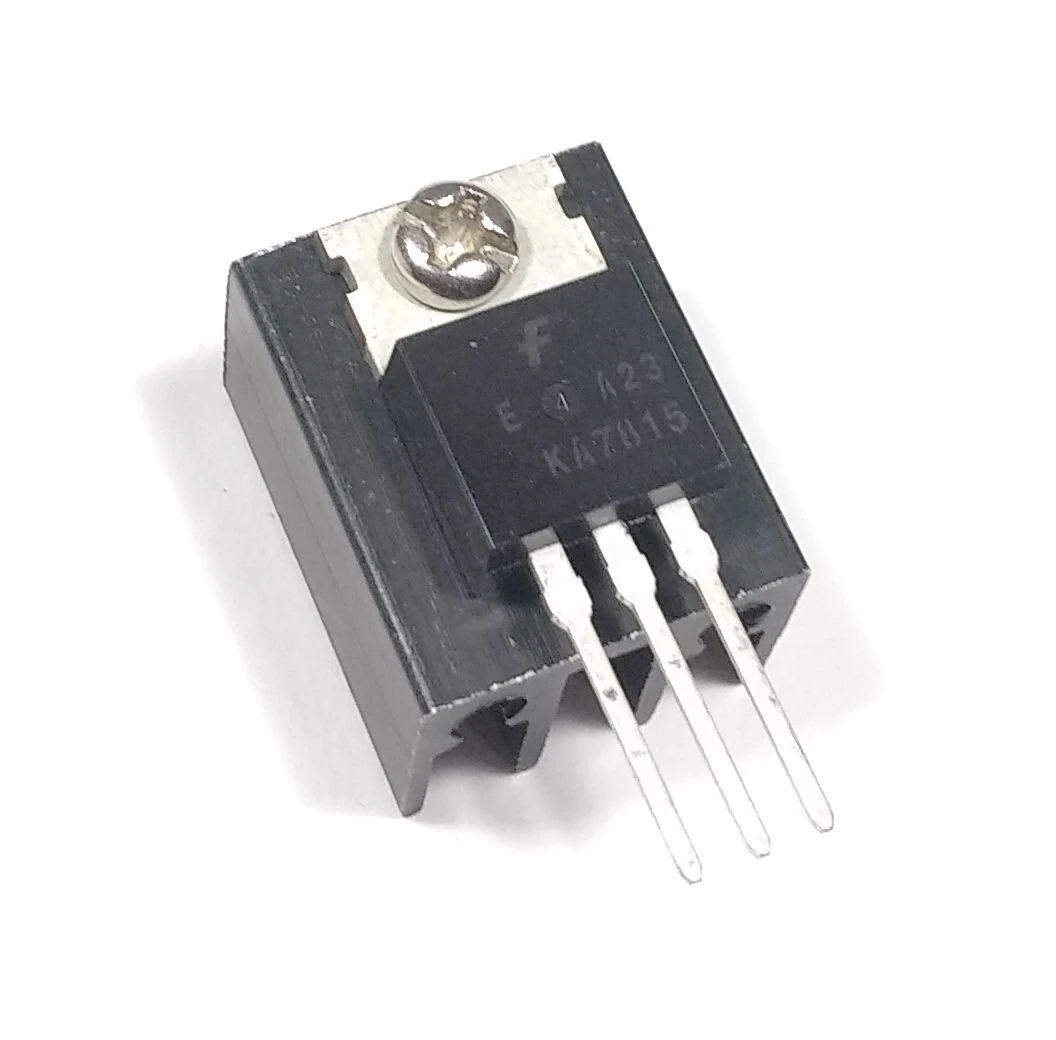

5x Heat sink (2 x 1.5 cm)
5x screw
