HC-12 433MHz Wireless Serial Communication Module

In Stock

SKU: R5-E-10

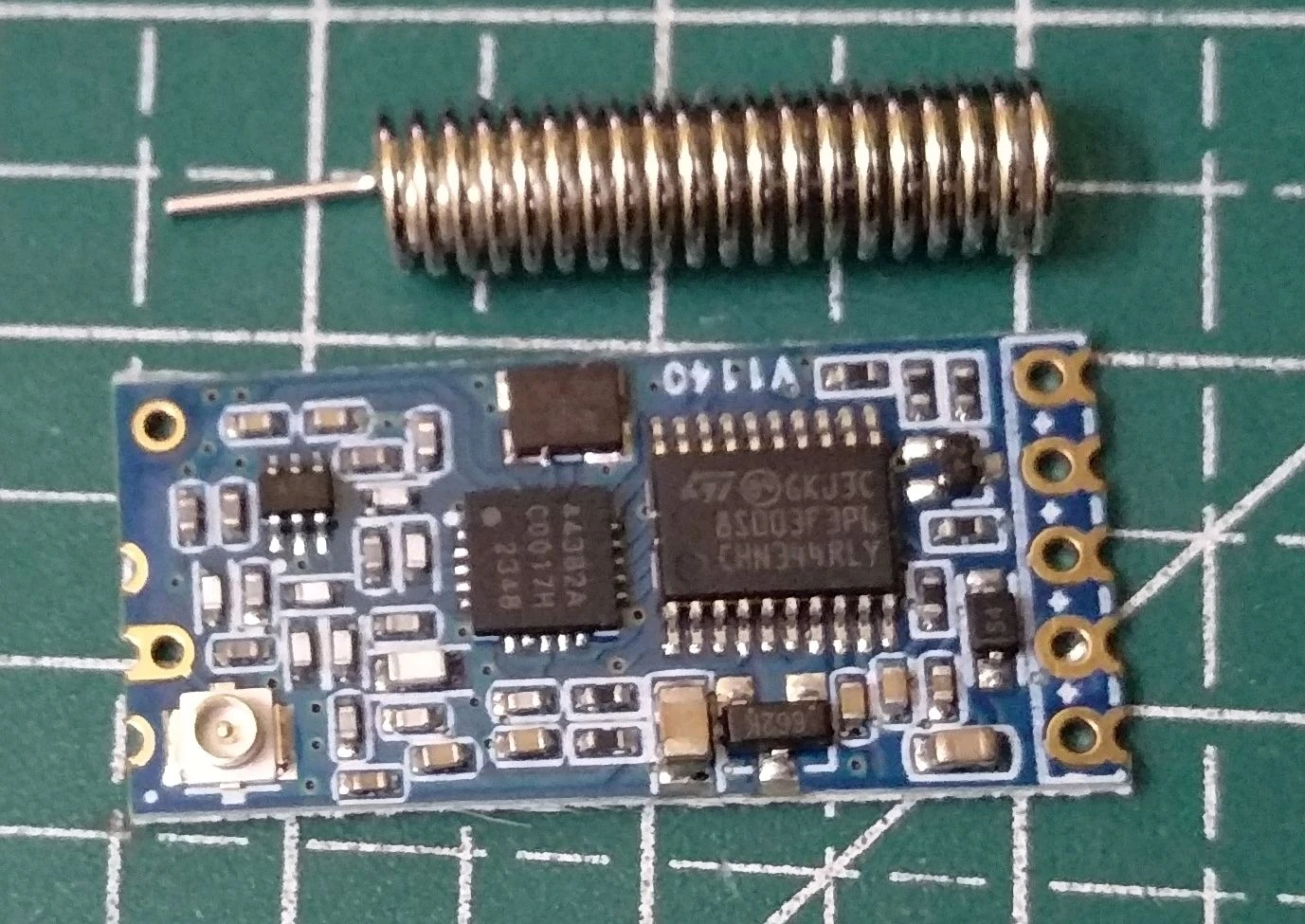

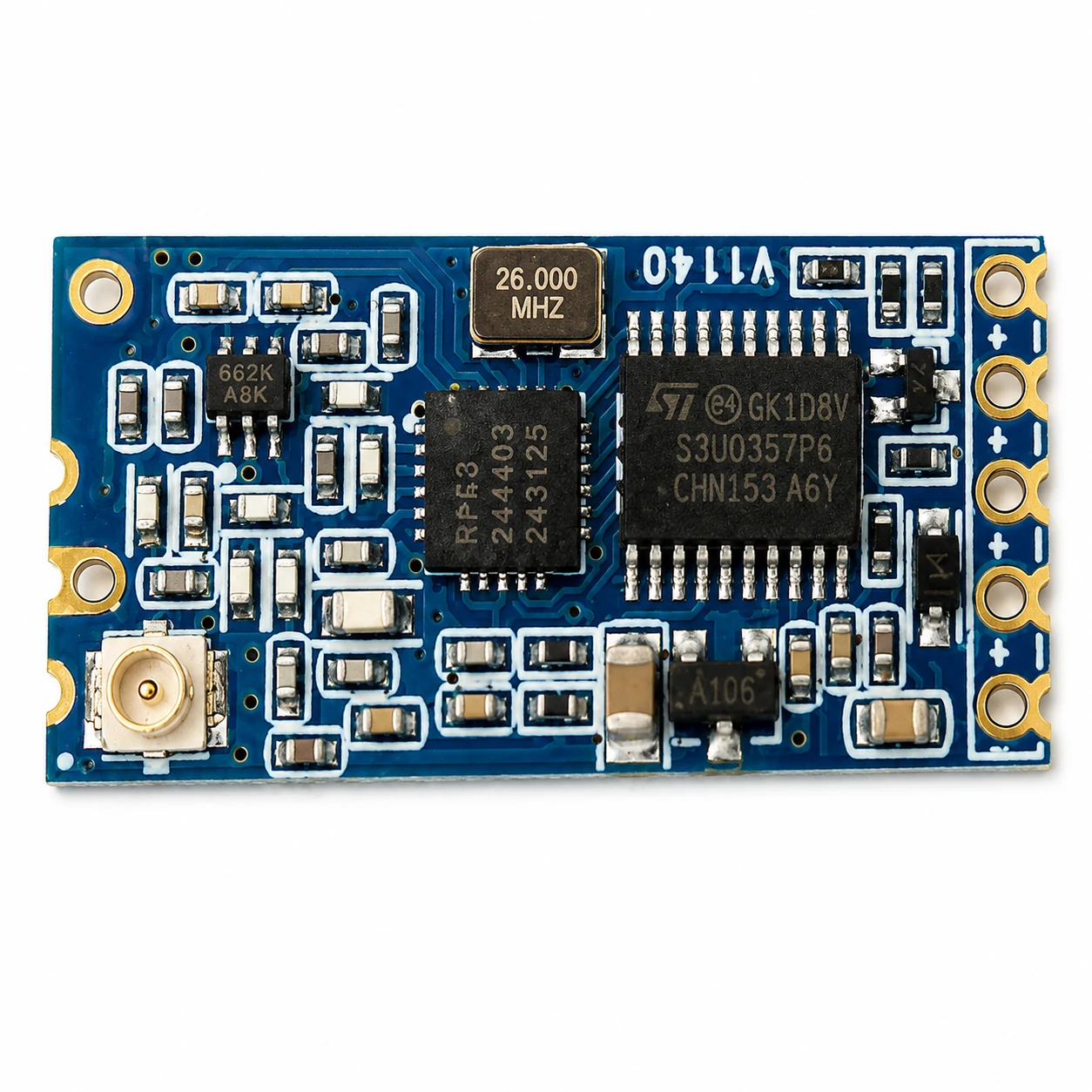

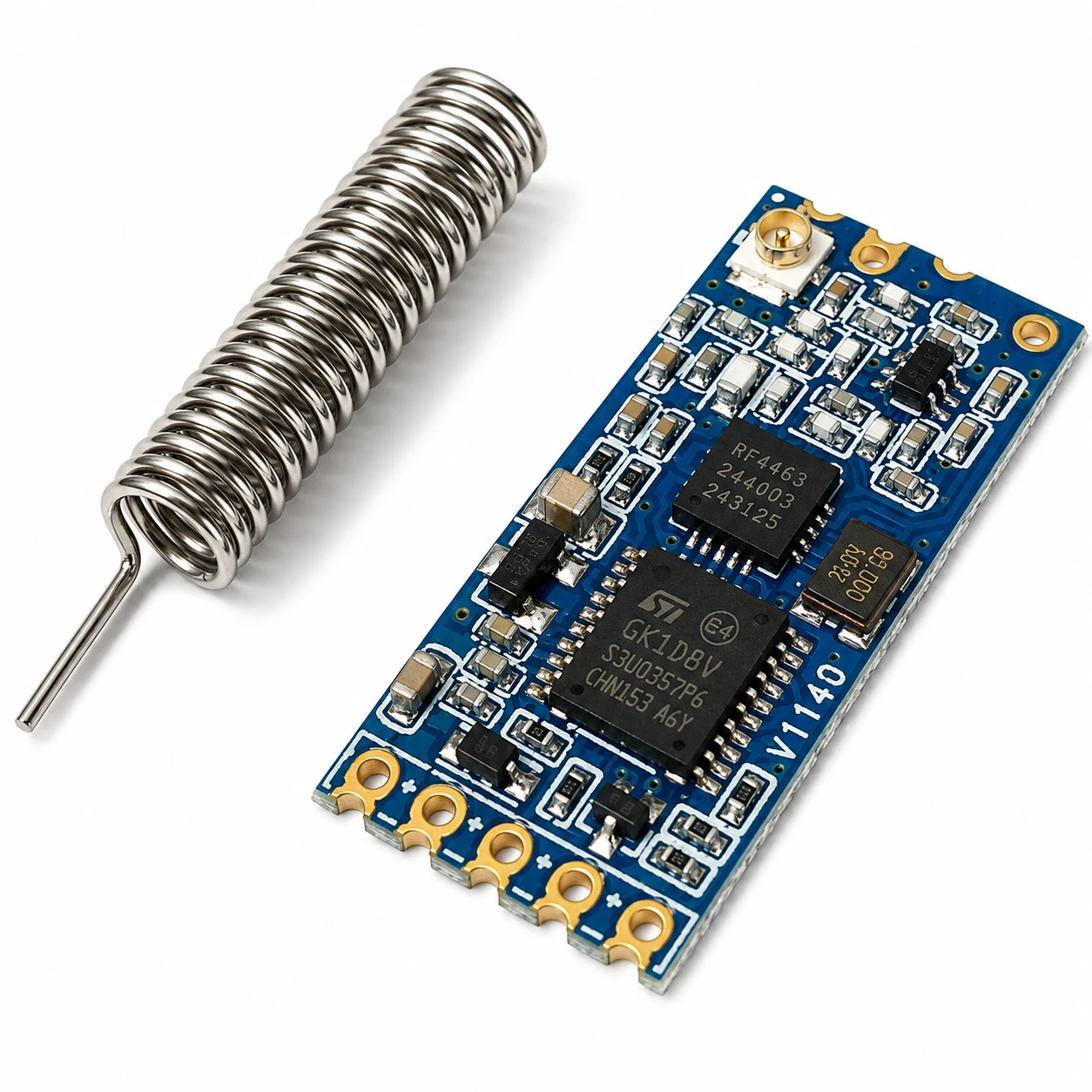

HC-12 433MHz Wireless Serial Communication Module

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹249.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The HC-12 Wireless Serial Communication Module is a long-range 433MHz RF transceiver designed for transparent wireless serial data transmission between microcontrollers, computers, sensors, and embedded systems. It provides a simple UART interface, allowing wireless communication without complex RF programming.

Based on the SI4463/SI4438 wireless communication chipset, the HC-12 supports multiple communication channels and can achieve communication distances of up to 1 km or more in open environments depending on configuration and operating conditions.

Features

433MHz wireless communication
Transparent UART serial interface
Long-range data transmission
Multiple communication channels
Low power consumption
Adjustable transmission power
Easy integration with Arduino, ESP32, STM32, and Raspberry Pi
Compact and lightweight design

Product Specifications

Specification	Details
Product Name	HC-12 Wireless Serial Communication Module
HSN Code	85176290
Frequency Range	433.4MHz – 473.0MHz
Communication Type	Half-Duplex Wireless Serial
Operating Voltage	3.2V – 5.5V DC
Interface	UART (TX/RX)
Channels	Up to 100 Channels
Maximum Transmit Power	100mW (20dBm)
Communication Distance	Up to 1 km+ (Open Area)
Antenna	External Spring Antenna
Applications	Wireless Data Communication

The HC-12 operates within the 433.4–473.0MHz frequency range, supports up to 100 communication channels, and typically operates from a 3.2V–5.5V supply.
