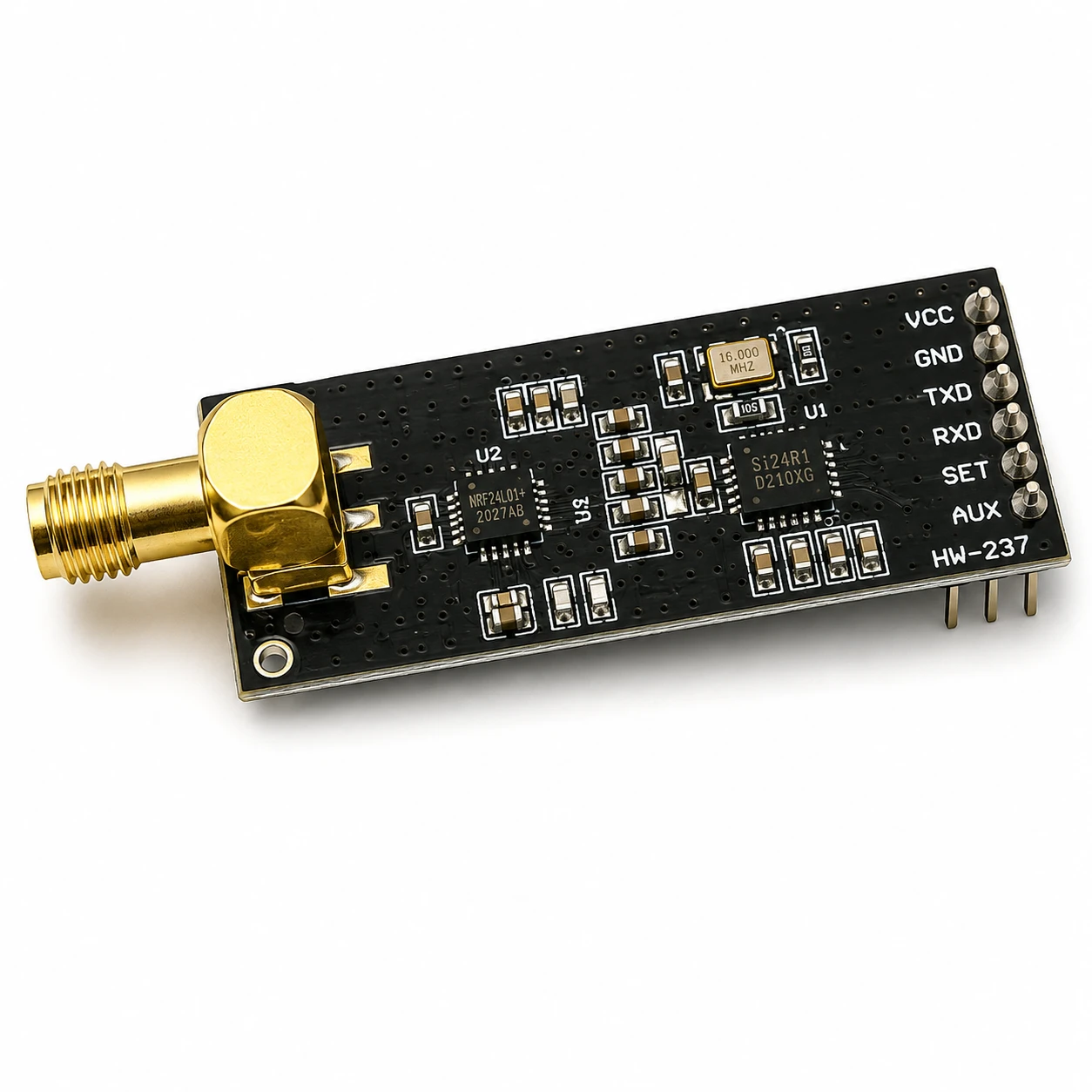

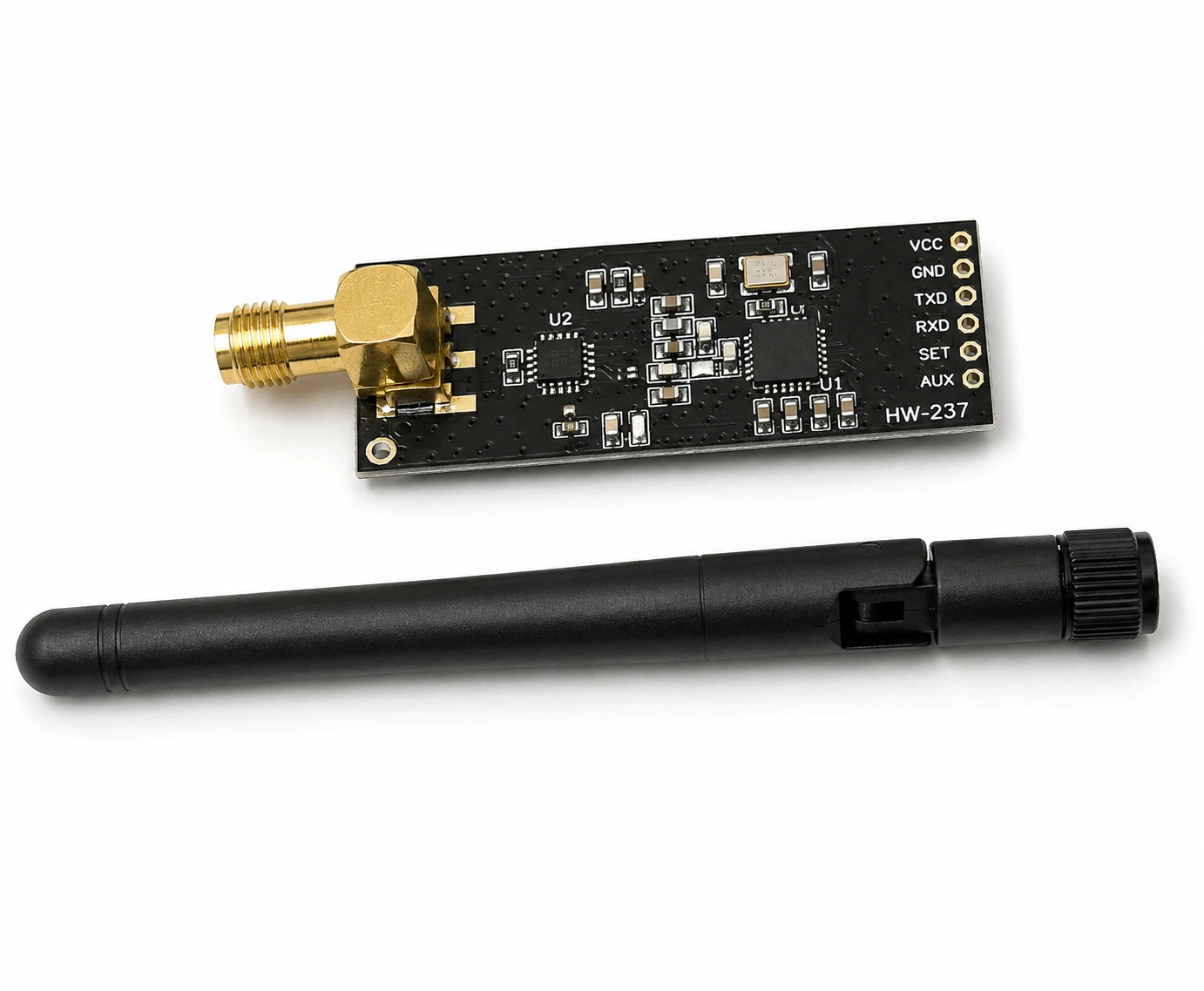

The 2.4GHz NRF24L01+ Wireless Transceiver Module with Antenna is a low-power RF communication module designed for reliable wireless data transmission between microcontrollers and embedded systems. Based on the Nordic NRF24L01+ transceiver chip, it operates in the worldwide 2.4GHz ISM frequency band and supports high-speed wireless communication through an SPI interface.
The module is widely used in Arduino, ESP32, STM32, Raspberry Pi, robotics, home automation, wireless sensor networks, and IoT applications. The external antenna improves communication range and signal stability compared to standard onboard antenna versions.
| Specification | Details |
|---|---|
| Product Name | NRF24L01+ Wireless Transceiver Module with Antenna |
| HSN Code | 85176290 |
| Operating Frequency | 2.4GHz ISM Band |
| Communication Interface | SPI |
| Supply Voltage | 1.9V – 3.6V DC |
| Air Data Rate | 250 kbps, 1 Mbps, 2 Mbps |
| RF Channels | Up to 126 Channels |
| Antenna Type | External Antenna |
| Communication Type | Half-Duplex Wireless Communication |
| Applications | IoT, Robotics, Wireless Data Transfer |
The NRF24L01+ supports operation in the 2.4GHz ISM band with data rates of 250 kbps, 1 Mbps, and 2 Mbps while using an SPI interface for communication.
Product specifications, features, and design may change over time due to product updates or improvements.
