Description:

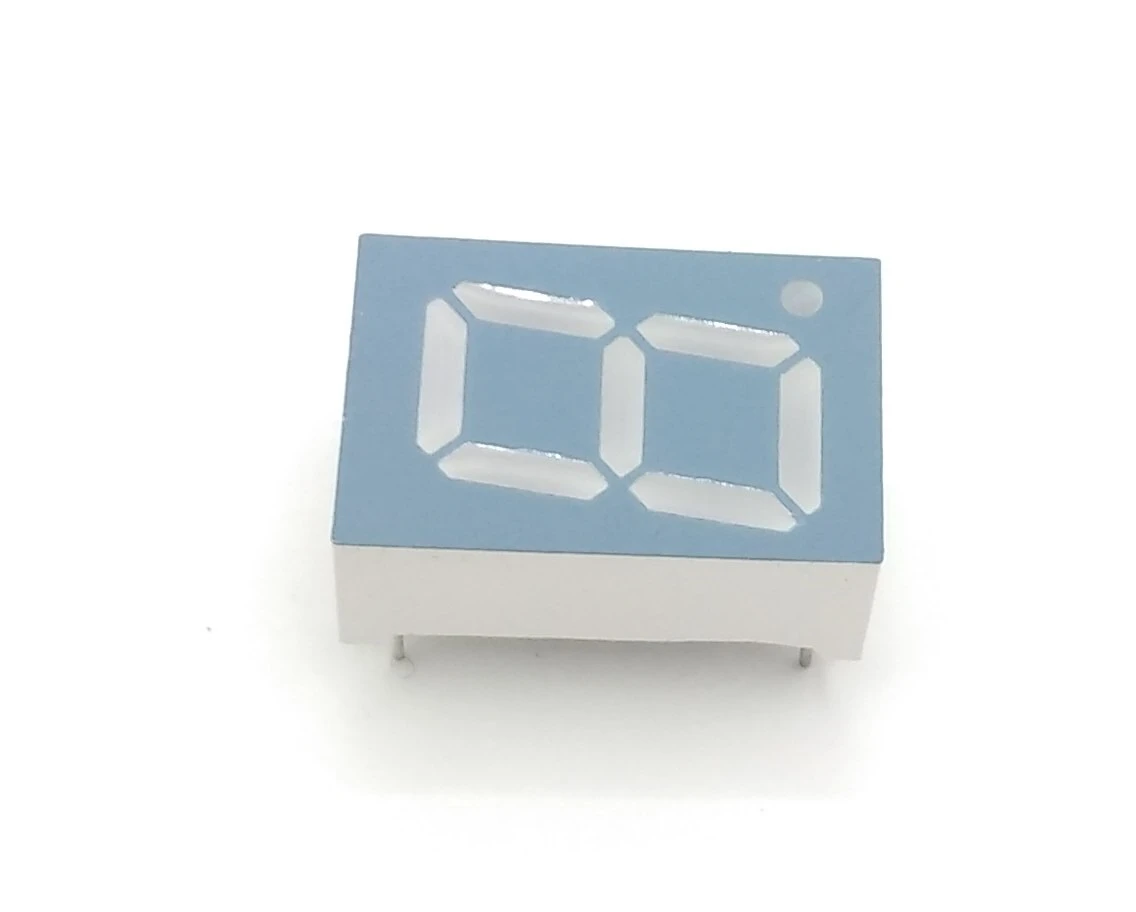

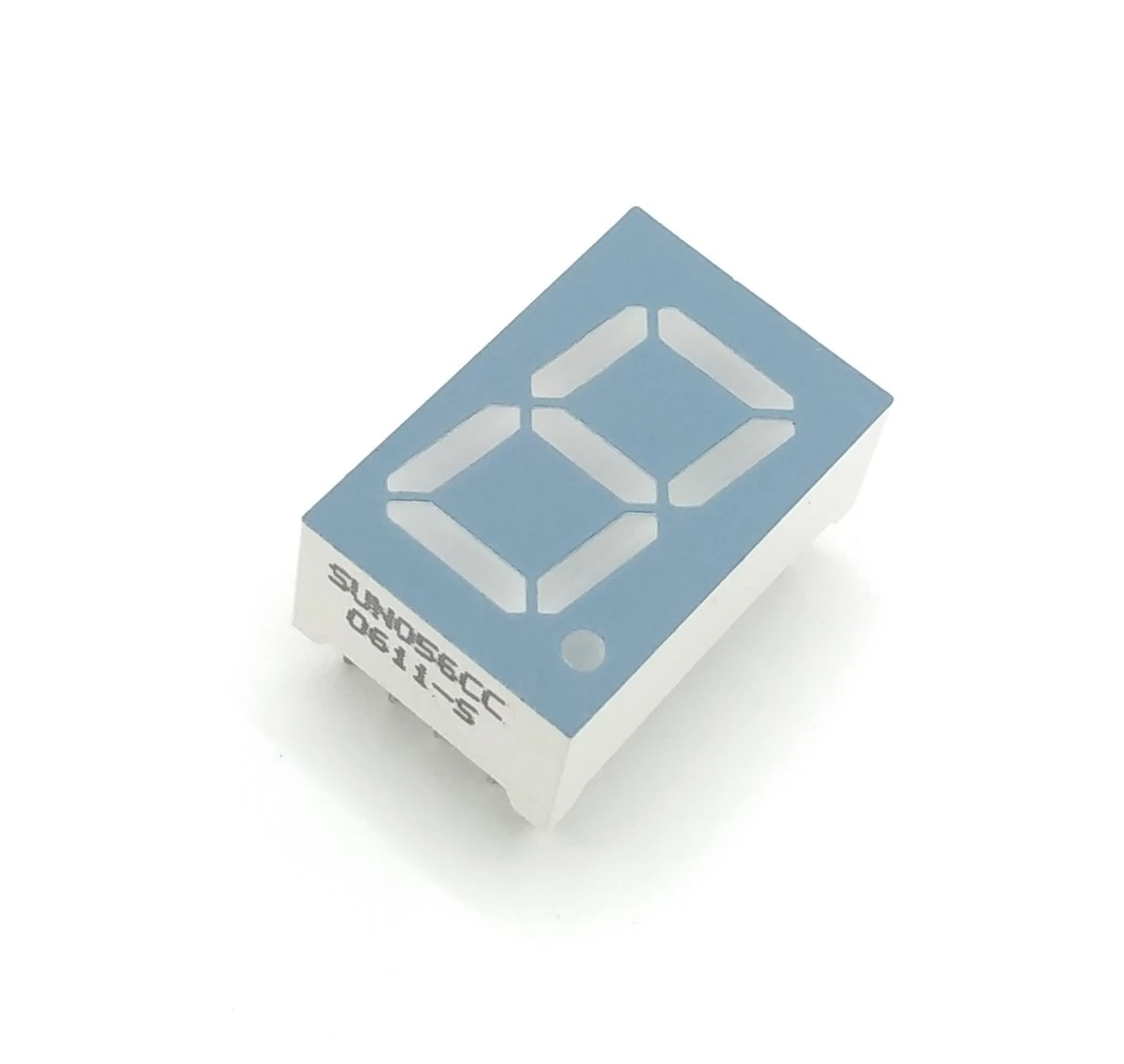

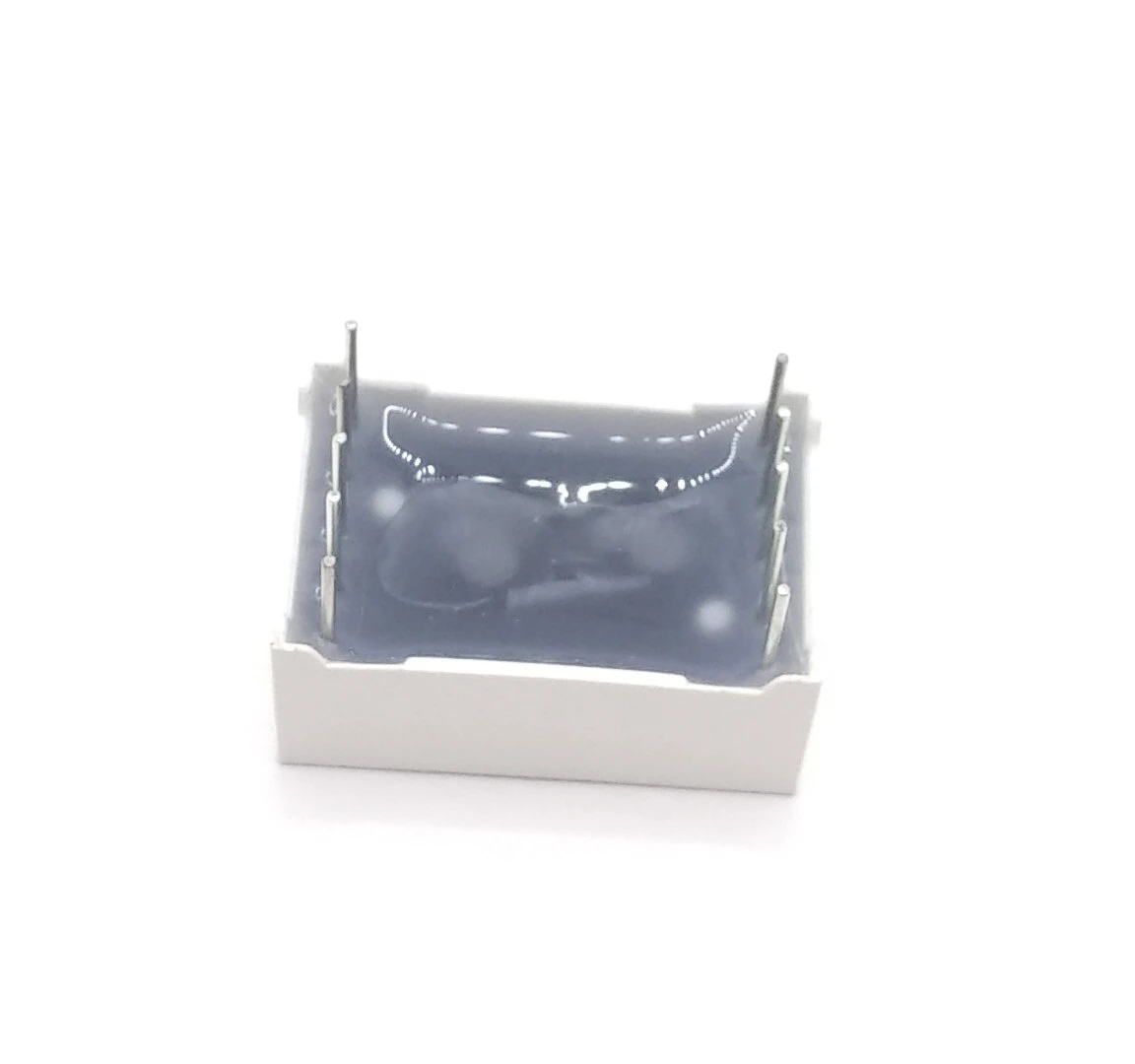

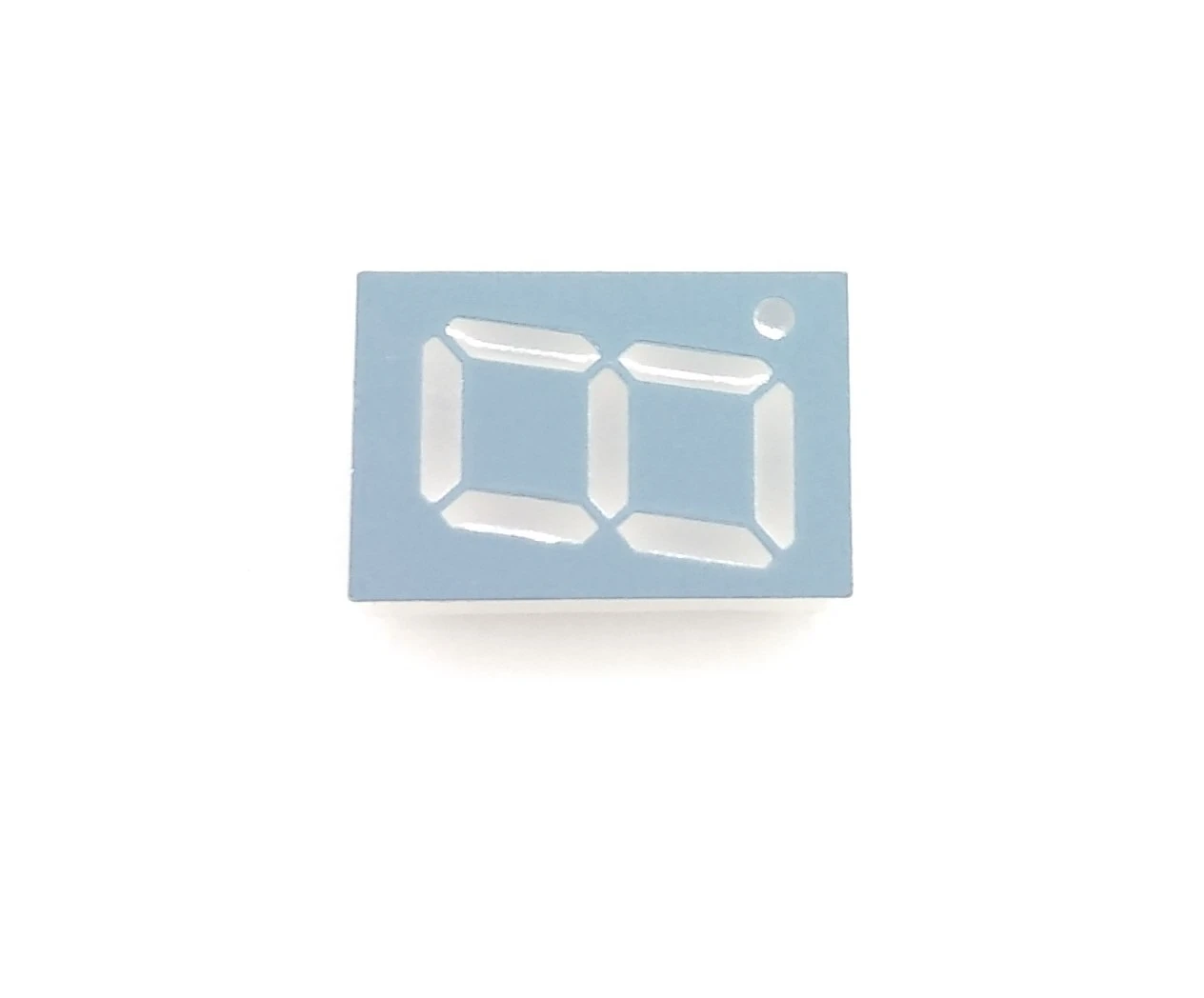

This single-digit 7-segment display features a red LED and a breadboard-friendly 10-pin layout, designed for easy use in prototyping and educational applications. With a Common Cathode configuration, it is ideal for use with various microcontrollers, allowing for efficient control of each segment.
Features:
Low power consumption
Robust and durable package
I.C. compatible for easy integration
Standard configuration: gray face with white segments
Optional black face for superior color contrast
RoHS compliant
Product Specification:
Type: Common Cathode
LED Colour: Red
Pin Count: 10
Reverse Voltage (VR): 5 V
Forward Current (IF): 30 mA
Forward Current (Peak, 1/10 Duty Cycle, 0.1ms Pulse Width, iFS): 185 mA
Power Dissipation (PD): 75 mW
Operating Temperature (TA): -40 ~ +85 °C
Storage Temperature (Tstg): -40 ~ +85 °C
Application:
Digital displays for clocks, counters, and timers
Microcontroller interfacing (Arduino, PIC, etc.)
DIY electronic projects
Learning kits for electronics education
Consumer and industrial digital indicators
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
