7 Segment Single digit Red display Common Anode

In Stock

SKU: R3-E-13-2

7 Segment Single digit Red display Common Anode

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹61.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

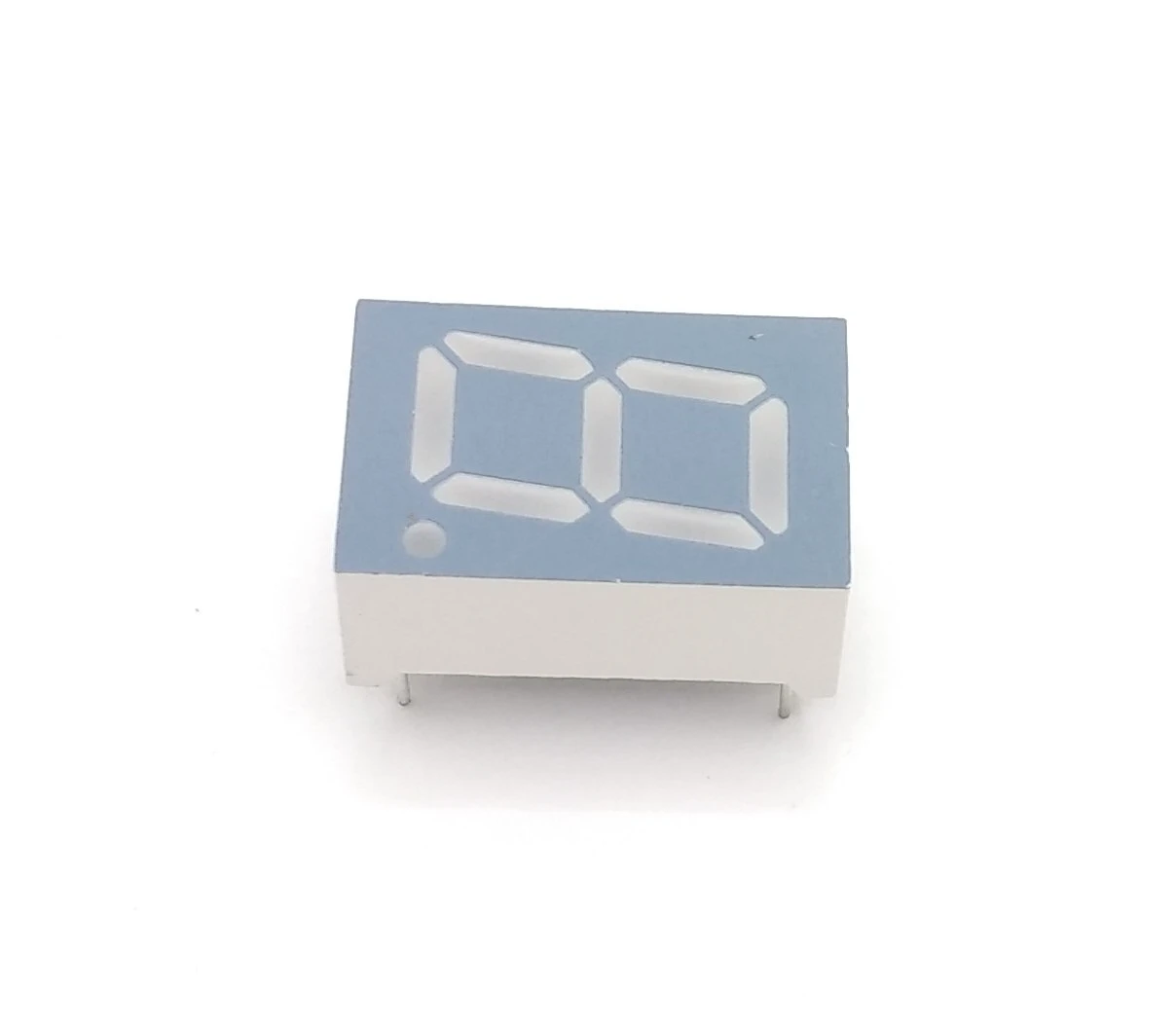

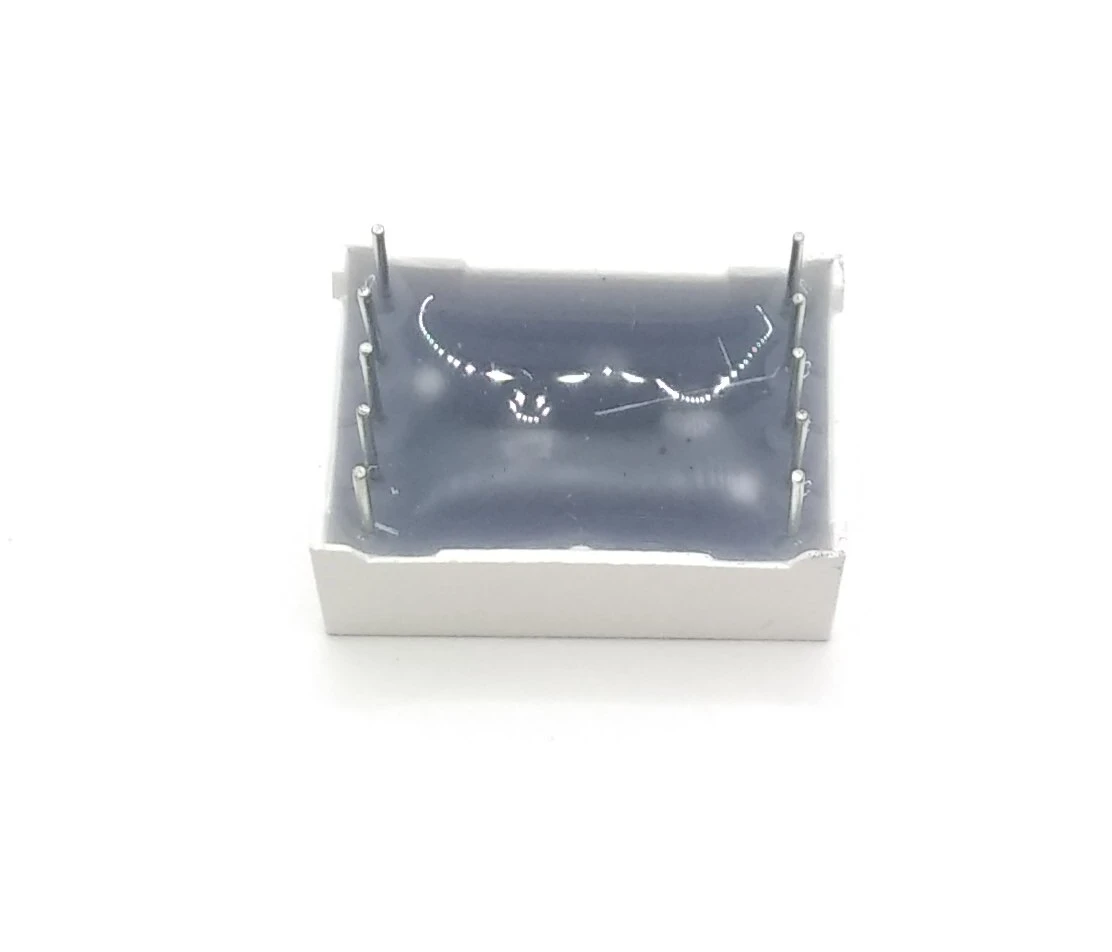

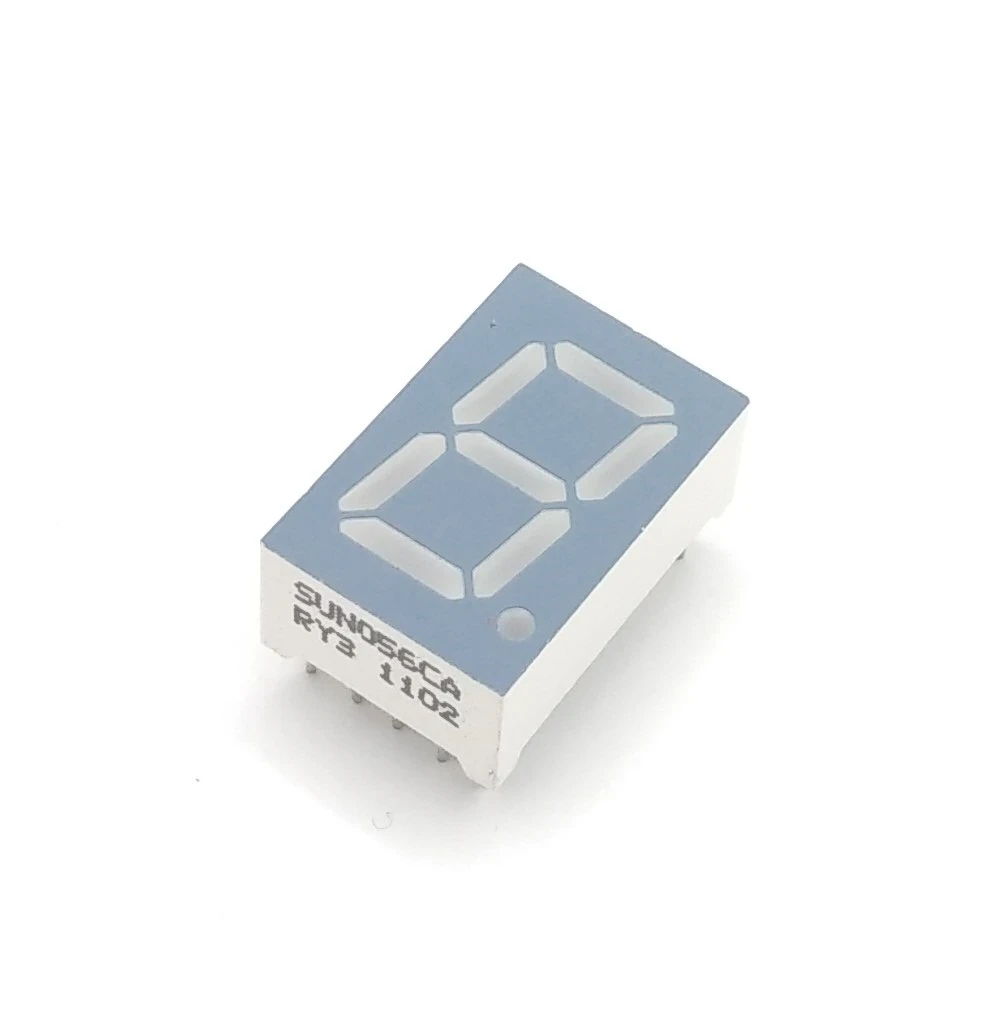

This single-digit 7-segment display features a red LED and a breadboard-friendly 10-pin layout, making it ideal for prototyping and educational projects. It uses a Common Anode configuration and is compatible with standard ICs, offering easy integration with microcontrollers and display drivers.

Features:

Low power consumption
Robust and durable package
I.C. compatible for seamless integration

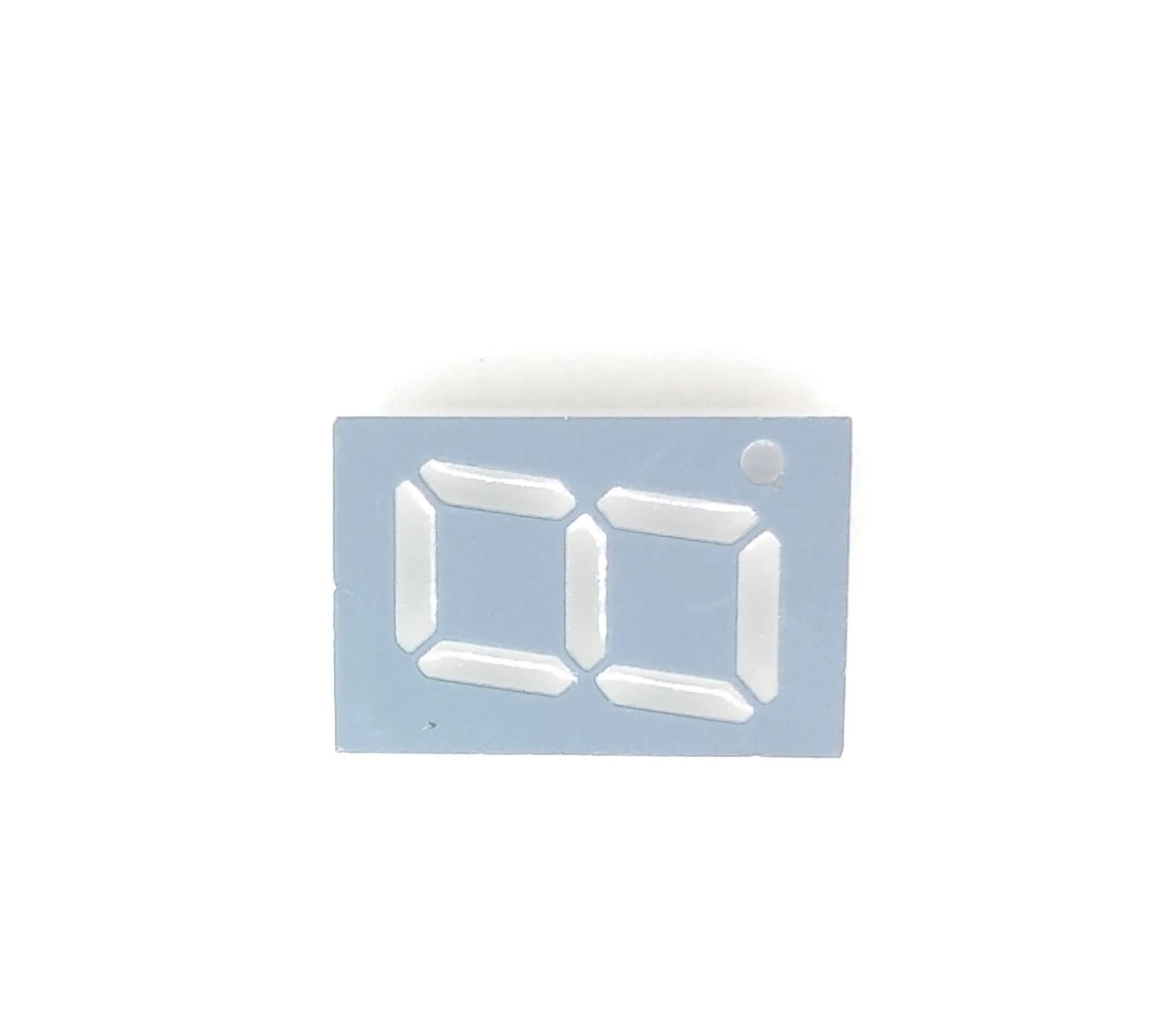

Standard configuration: gray face with white segments
Optional black face for superior color contrast
RoHS compliant

Product Specification:

Type: Common Anode
LED Colour: Red
Pin Count: 10
Reverse Voltage (VR): 5 V
Forward Current (IF): 30 mA
Peak Forward Current (IFM): 160 mA
Power Dissipation (PD): 75 mW
Operating Temperature (TA): -40 ~ +85 °C
Storage Temperature (Tstg): -40 ~ +85 °C

Application:

Digital counters and clocks
DIY electronic projects and displays
Microcontroller interfacing (Arduino, PIC, etc.)
Learning kits for electronics education
Industrial or consumer visual indicators

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
