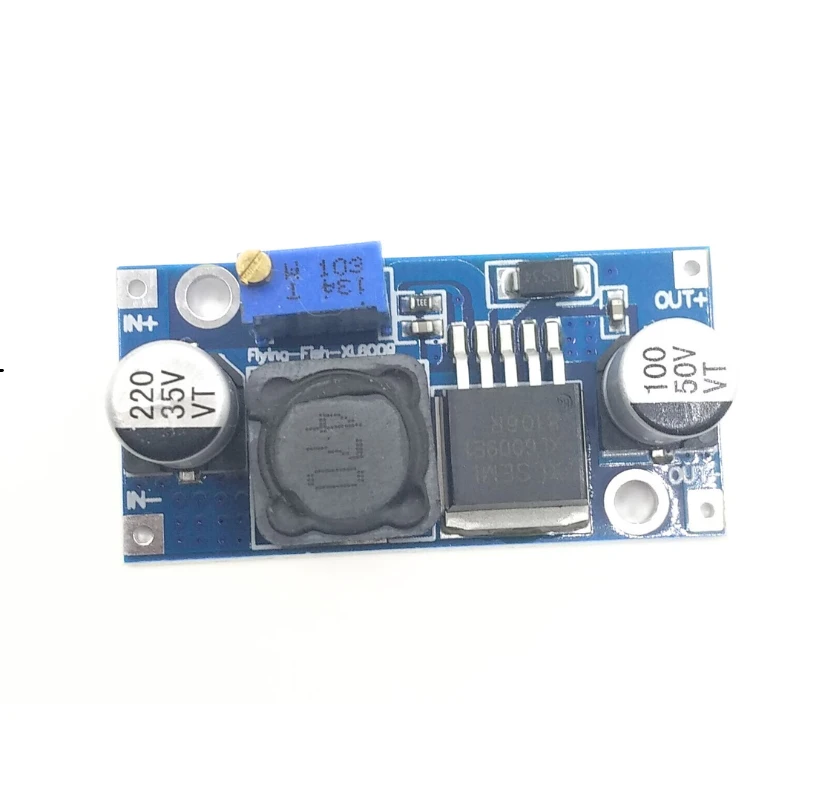

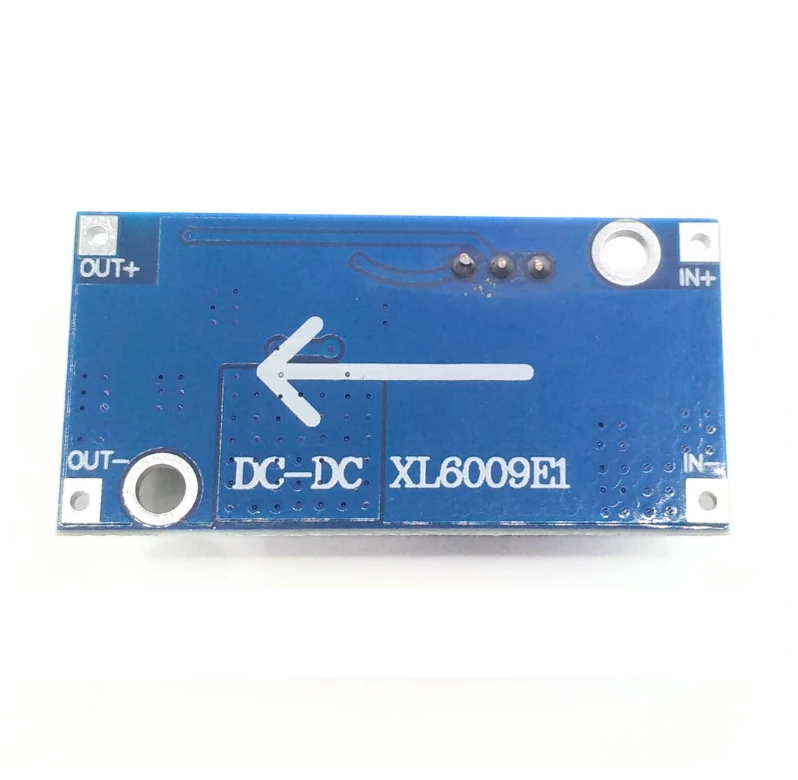

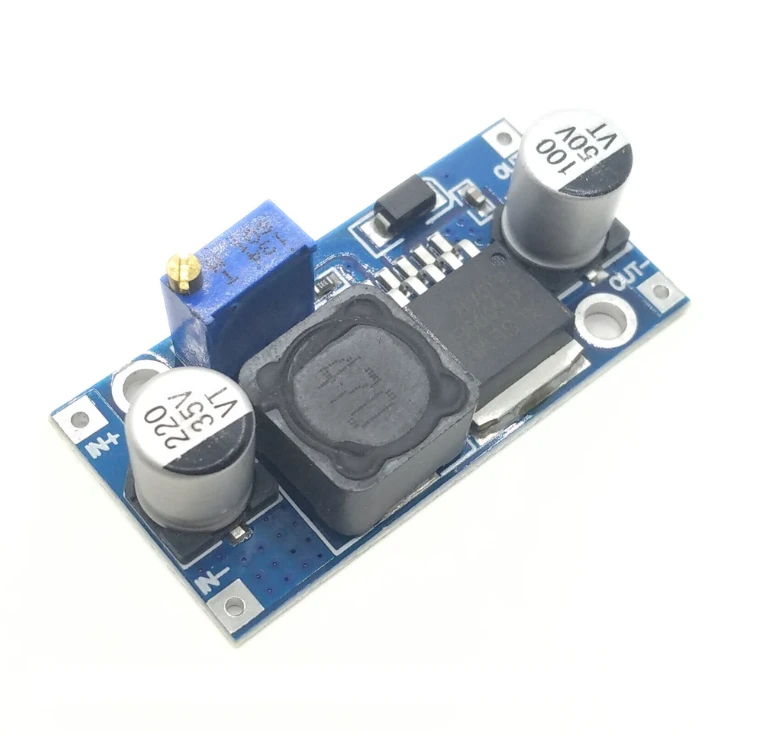

XL6009 DC-DC Step-up boost power converter module

In Stock

SKU: R3-D-13

XL6009 DC-DC Step-up boost power converter module

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹69.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description: The XL6009 DC-DC Step-up Converter Module is a highly efficient, non-isolated boost converter that features adjustable output voltage. Powered by the second generation XL6009E1 chip, this module outperforms the older LM2577 in terms of efficiency and cost-effectiveness. With a high conversion efficiency of up to 94%, it is ideal for powering devices that require higher voltage than the input voltage.

Equipped with 4A high-efficiency MOSFET switches and operating at a high switching frequency of 400kHz, the module delivers low ripple and excellent performance even with small-capacity filter capacitors.

Features:

Outperforms the LM2577 in terms of performance and cost.
Non-isolated Boost converter with adjustable output.
Equipped with high-efficiency MOSFET switches for better performance.
High conversion efficiency of up to 94%.
Compact design and low ripple for clean, stable output.
Operating frequency of 400kHz for improved results with small capacitors.

Product Specification:

Input Voltage (V): 3 to 32
Input Current (A): 4
Output Voltage (V): 5 ~ 35
Output Ripple (mV): 50
Efficiency: 94%
Switching Frequency (kHz): 400
Load Regulation: ±0.5%
Voltage Regulation: ±0.5%
Length (mm): 43
Width (mm): 20
Height (mm): 12
Weight (g): 12

Pins:

IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative

Application:

Ideal for use in projects requiring stable and adjustable output voltage.
Commonly used in power supplies, battery-powered devices, and portable electronics.
Suitable for driving high-voltage devices from lower voltage power sources.

Package Includes:

1 x XL6009 DC-DC Step-up Converter Module

Disclaimer: Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
