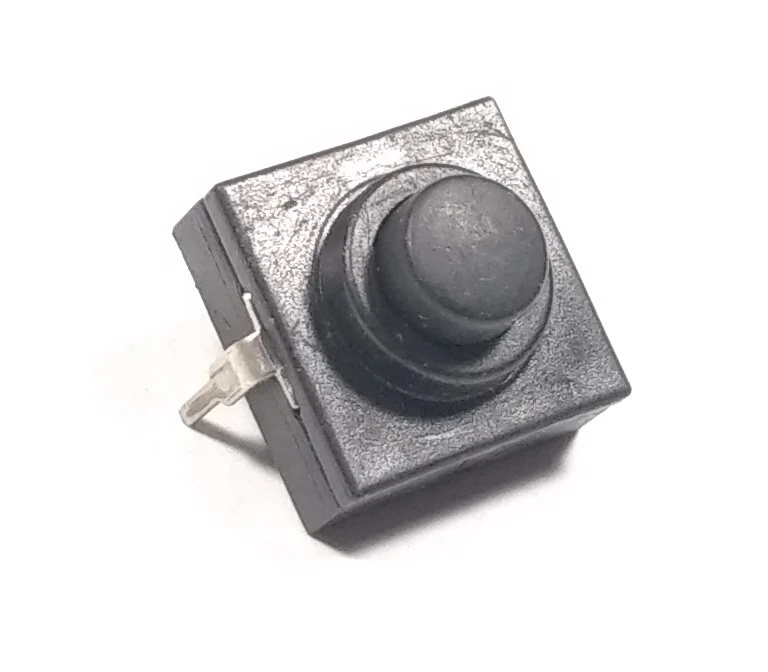

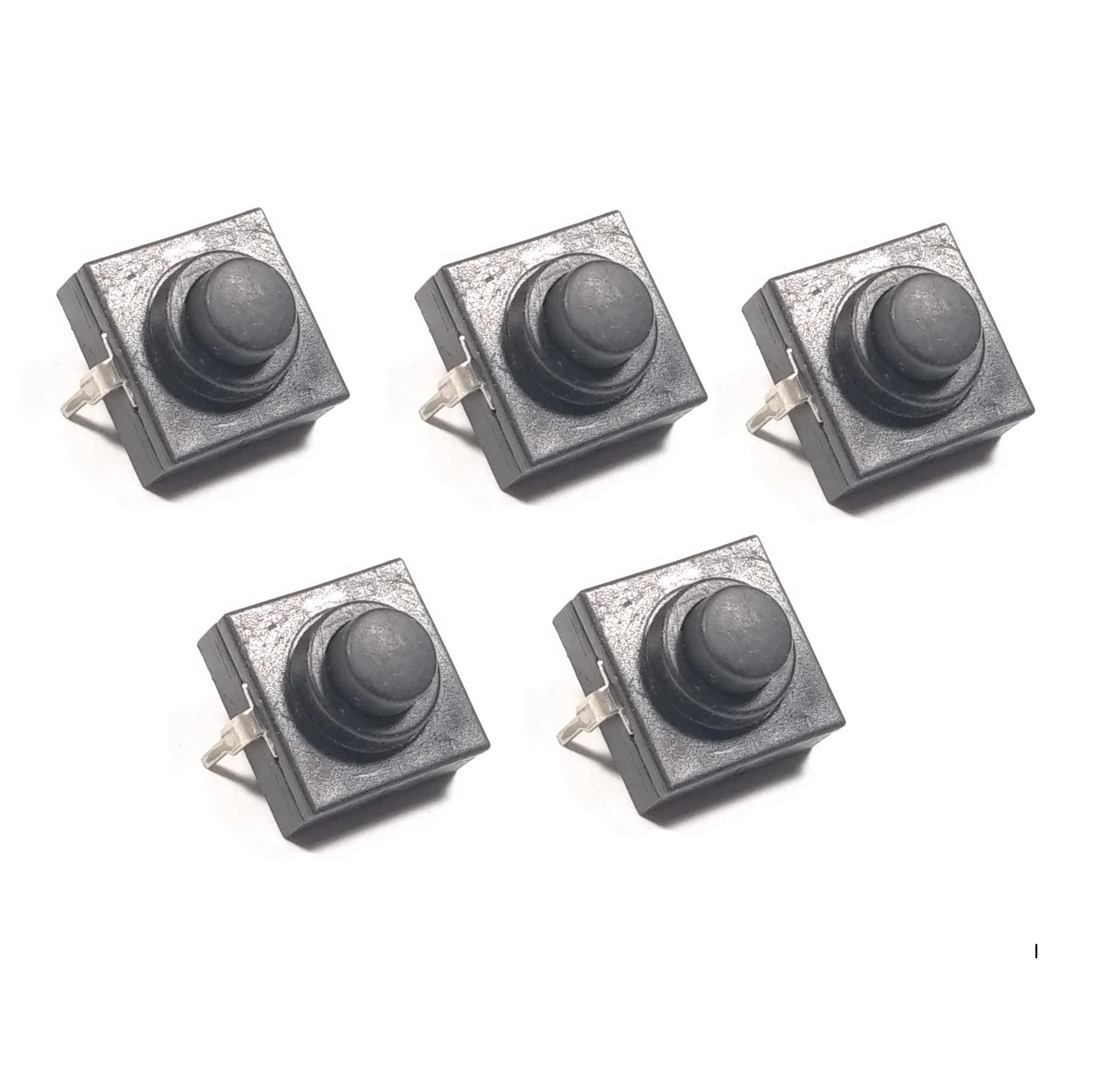

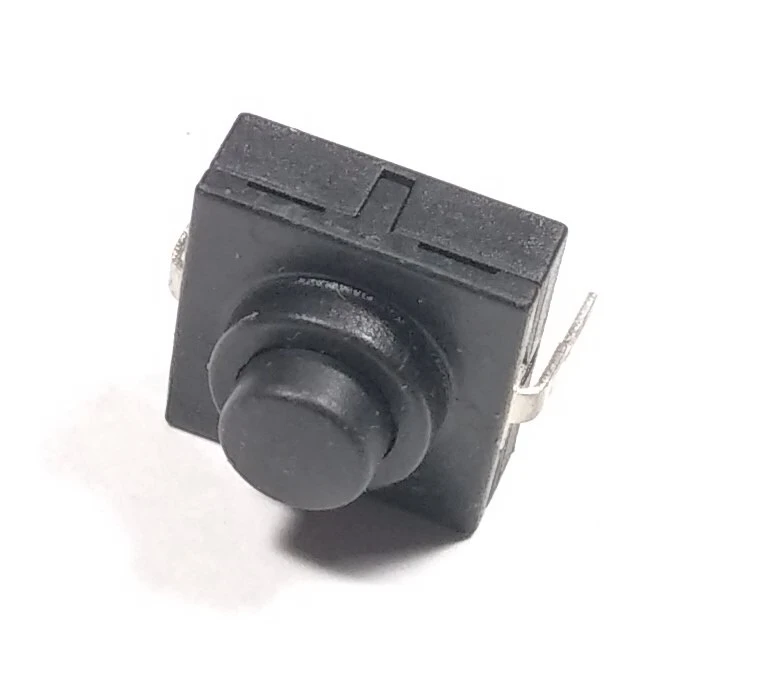

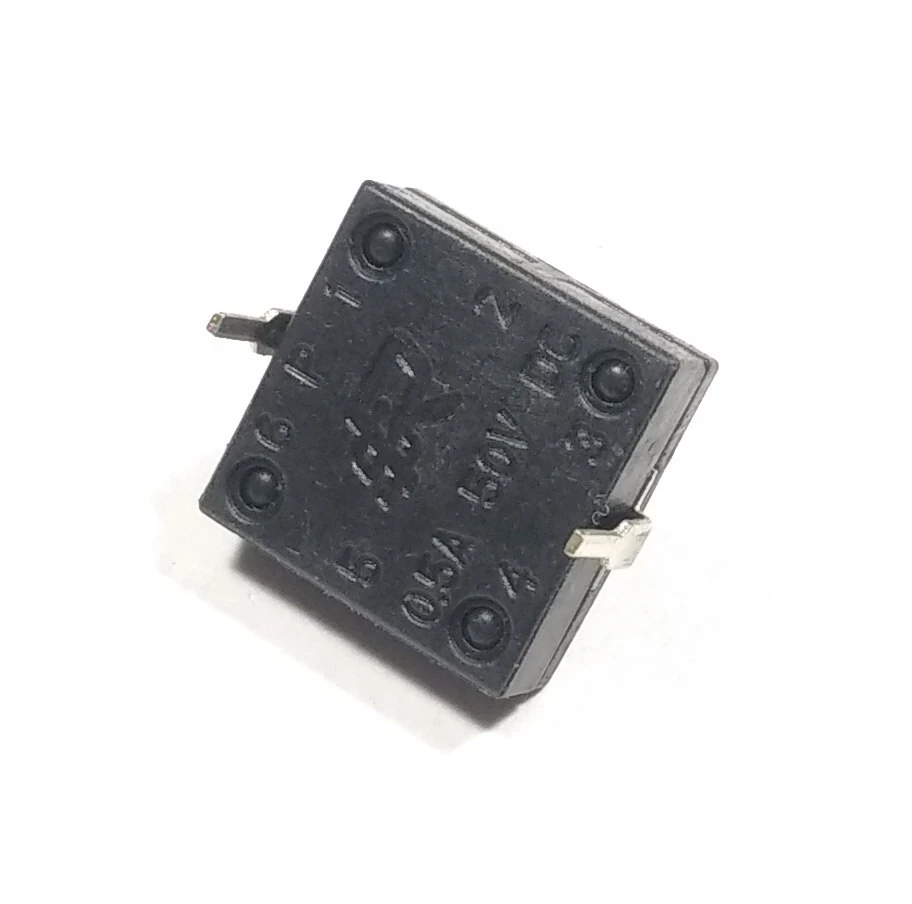

A compact and reliable tactile switch ideal for torches and small electronic projects. This 2-pin push button offers a firm tactile response in a durable 12×12×9 mm body, perfect for through-hole mounting in tight spaces.
Tactile feedback with momentary operation
Compact 12×12×9 mm size
Easy 2-pin configuration
Long mechanical life
Suited for torch applications and control circuits
Switch Type: Momentary push button
Pin Count: 2
Dimensions: 12 mm × 12 mm × 9 mm (L×W×H)
Mounting: Through-hole
Contact Resistance: ≤ 100 mΩ
Insulation Resistance: ≥ 100 MΩ
Operating Voltage: Up to 50V DC
Rated Current: ~50–100 mA
Actuation Force: 180–260g
Mechanical Life: ≥ 100,000 cycles
Operating Temperature: -20°C to +70°C
Torch switches
DIY electronics
Power/reset buttons
Embedded systems
Control panels
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
