Description:

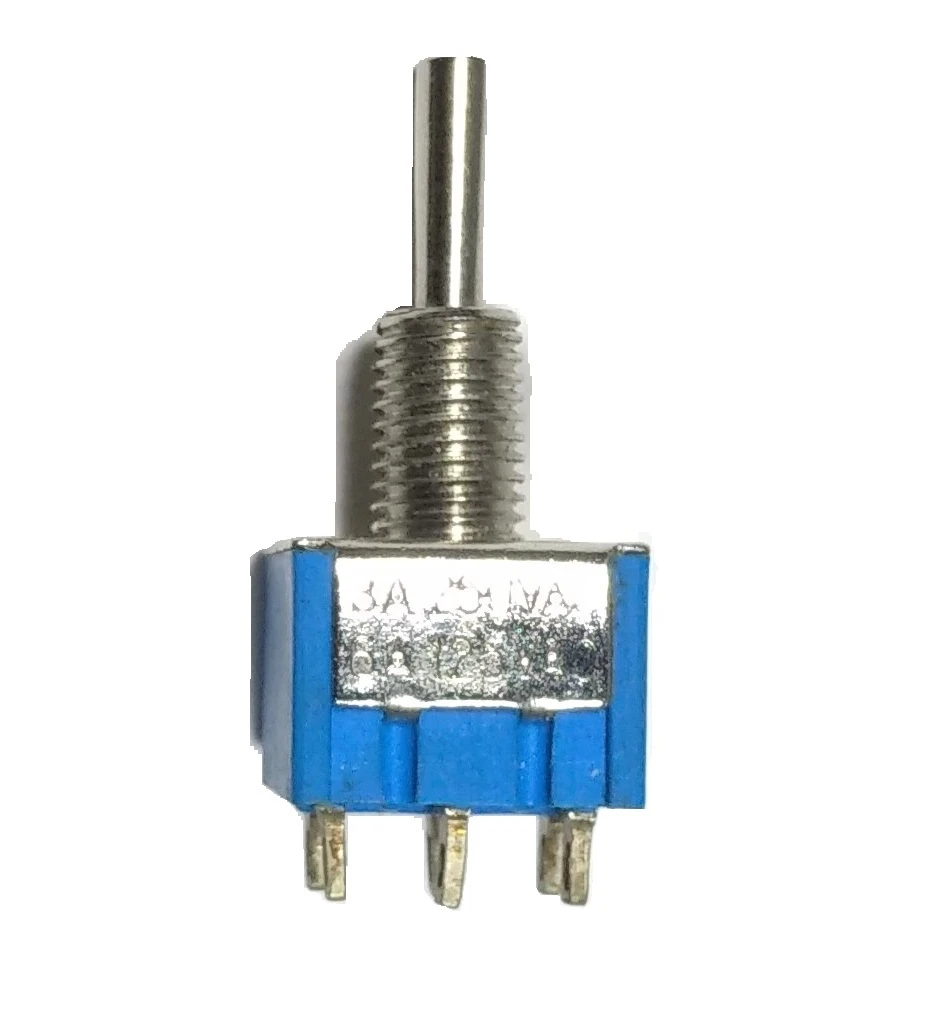

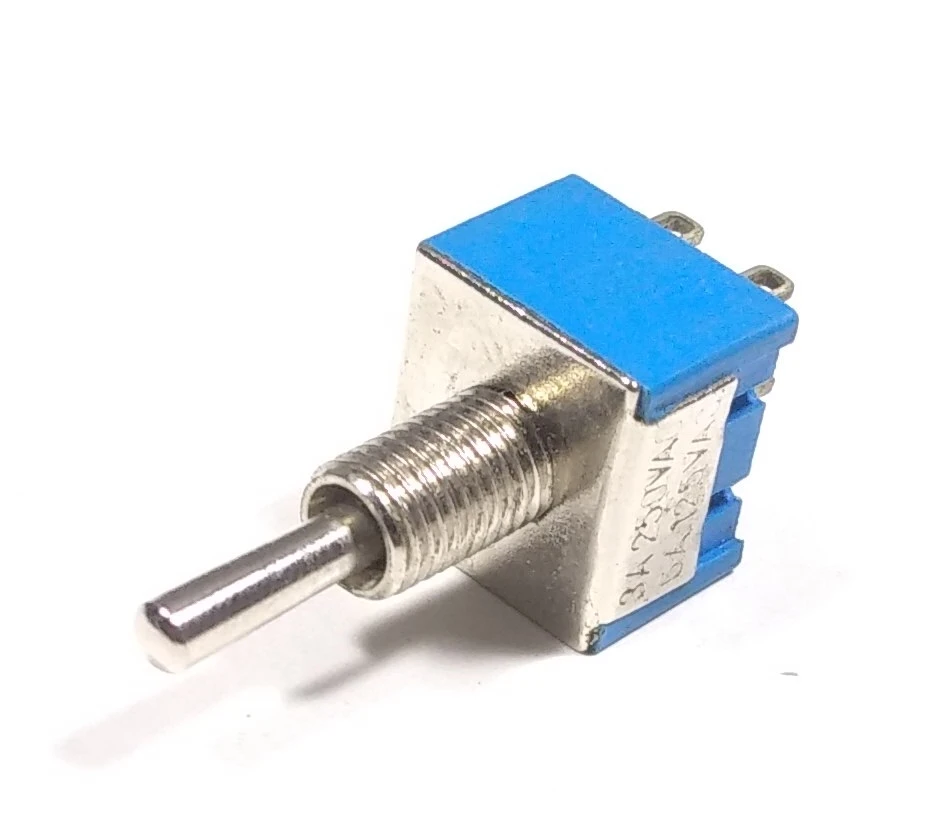

The 6-Pin DPDT Toggle Switch (Double Pole Double Throw) is a heavy-duty mechanical switch ideal for reversing polarity, motor control, and complex ON-ON or ON-OFF-ON applications. Designed to handle up to 3A at 250V AC, this switch is perfect for both DIY electronics and industrial projects. Its sturdy build and durable lever ensure reliable performance even under frequent switching operations.
Double Pole Double Throw (DPDT) configuration

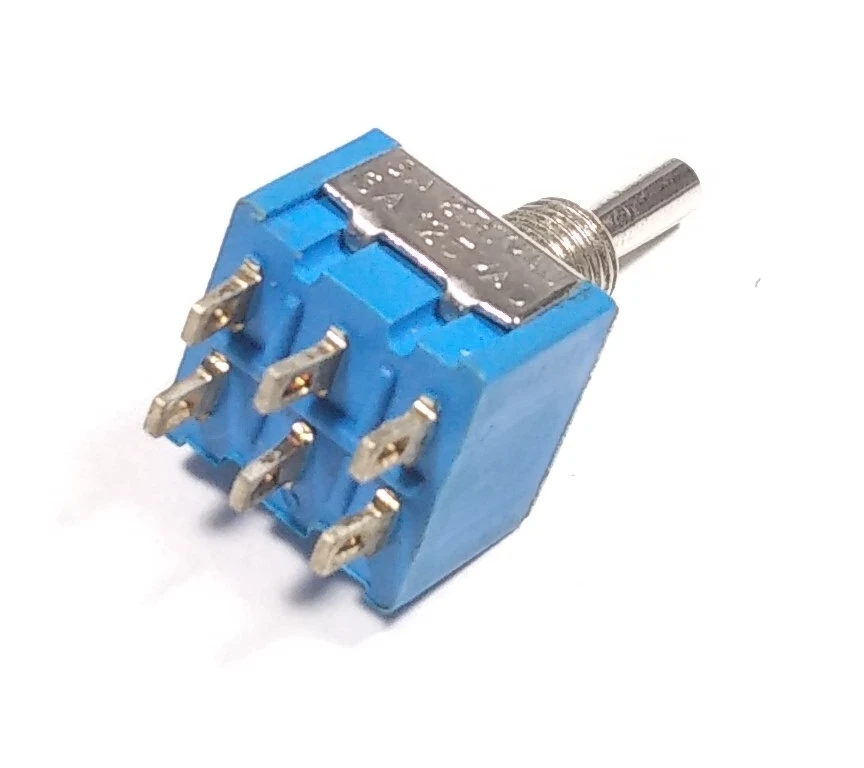

6-pin layout for versatile wiring options

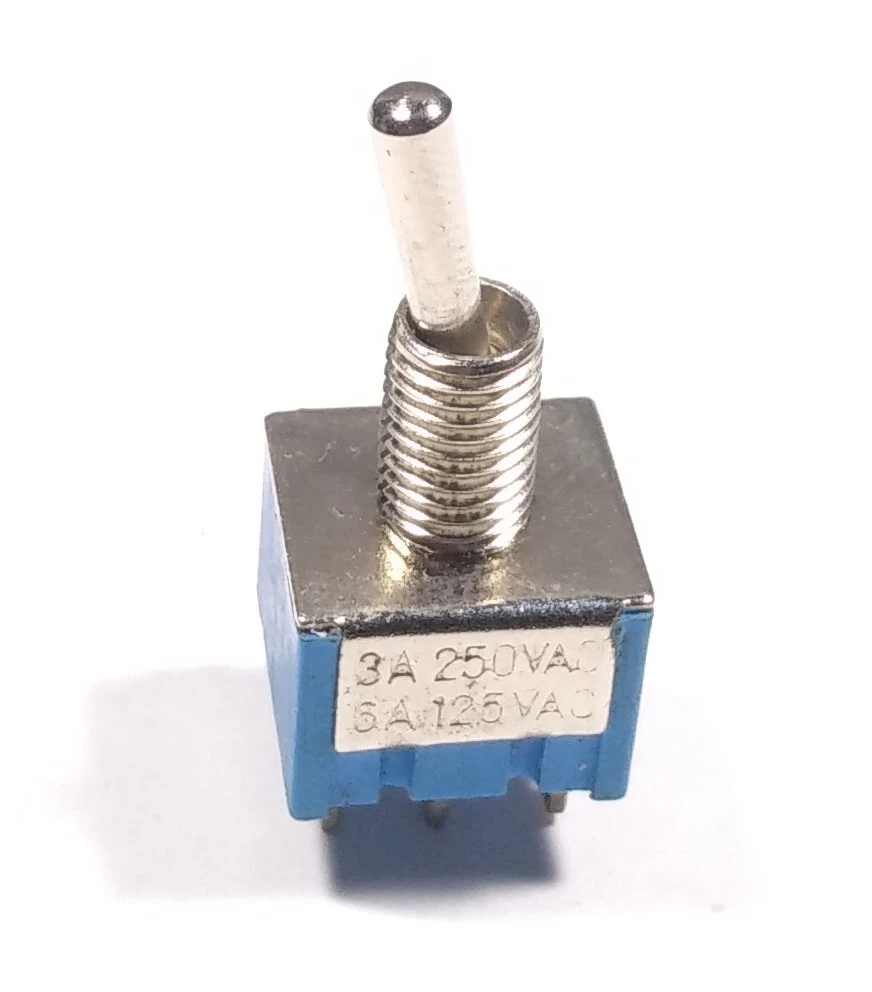

Rated for up to 3A at 250V AC
Rugged metal toggle lever
Secure panel mount design
Long mechanical and electrical life
Switch Type: DPDT (6 Pins)
Rated Current: 3A
Rated Voltage: 250V AC
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Dielectric Strength: 1500V AC for 1 minute
Mechanical Life: ≥ 10,000 cycles
Mounting Type: Panel mount with nut and washer
Toggle Action: Latching (maintains position)
Body Material: Metal and thermoplastic composite
Operating Temperature: -25°C to +85°C
Polarity switching for DC motors
Audio equipment and signal routing
Robotics and automation systems
Industrial control panels
DIY electronics and prototyping

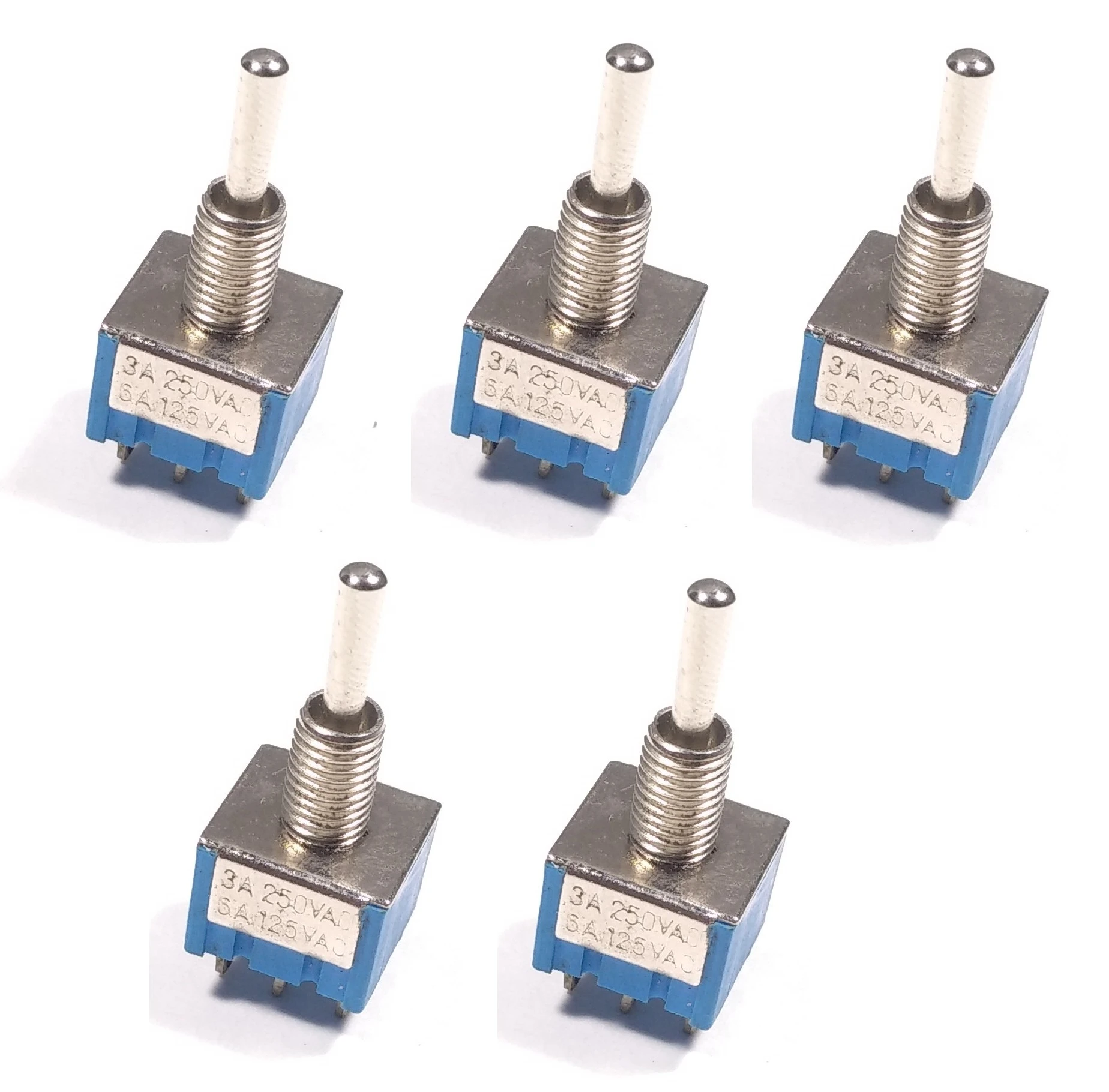

5 × DPDT Toggle Switches (6-Pin, 3A 250V)
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Actual product may vary slightly based on stock availability.
