Description:

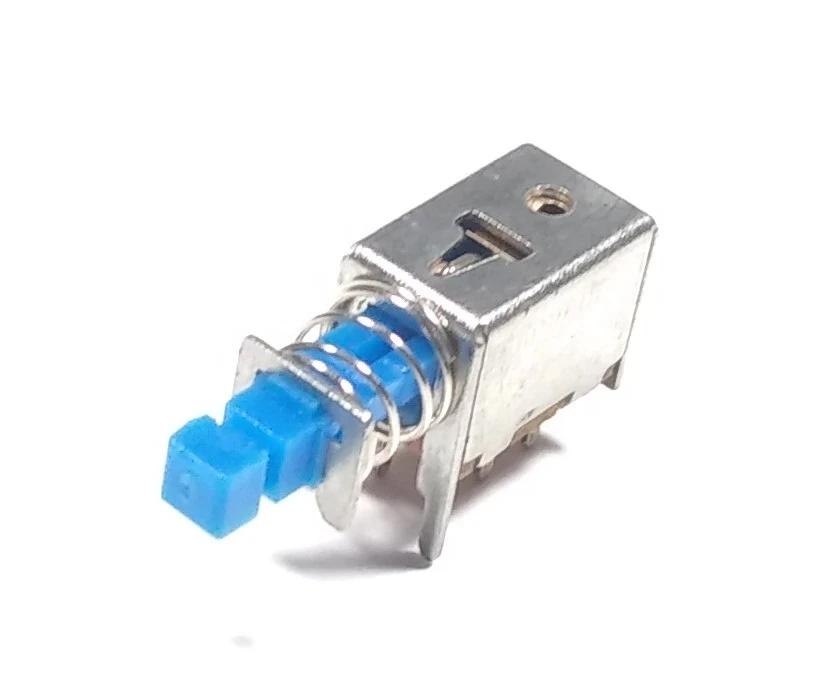

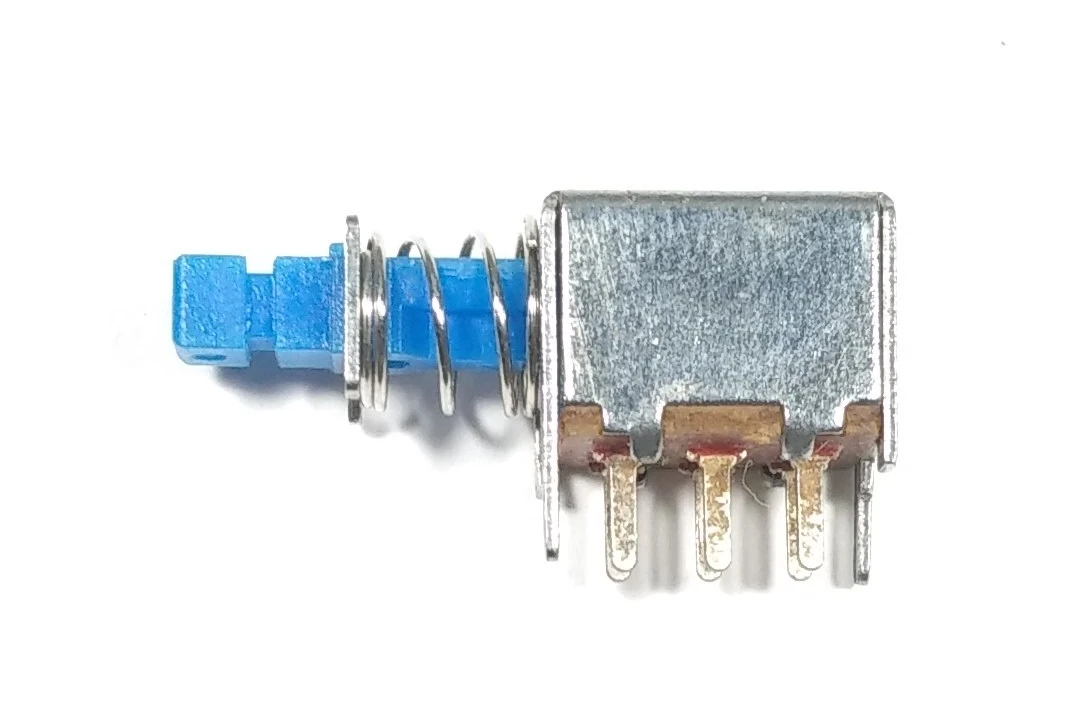

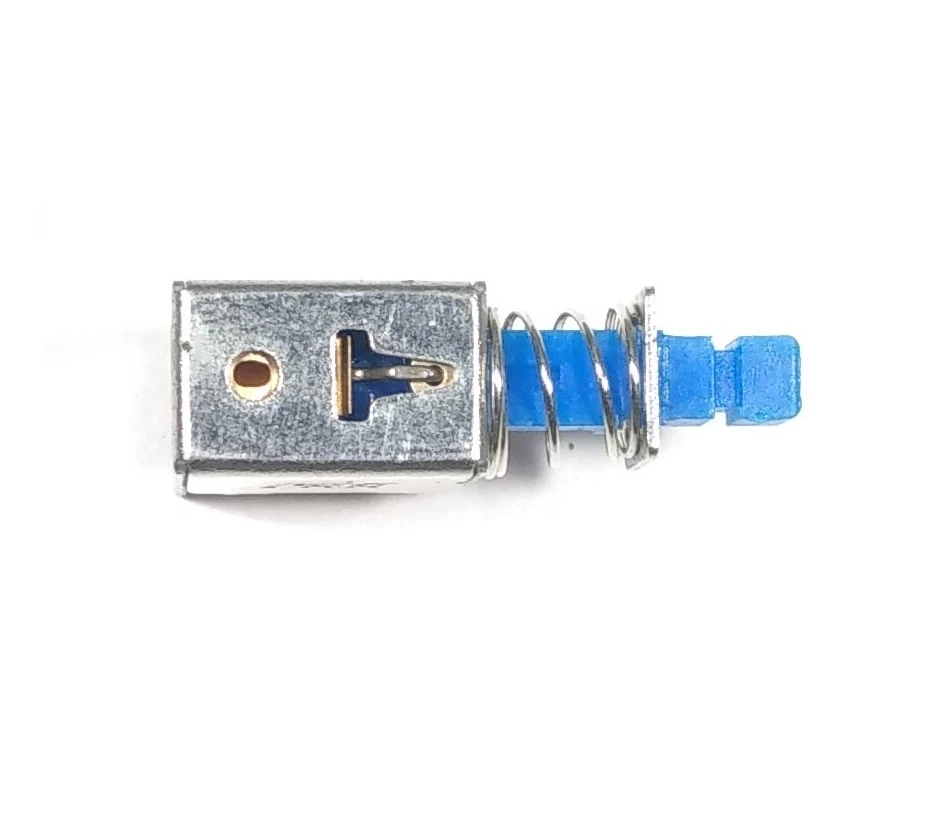

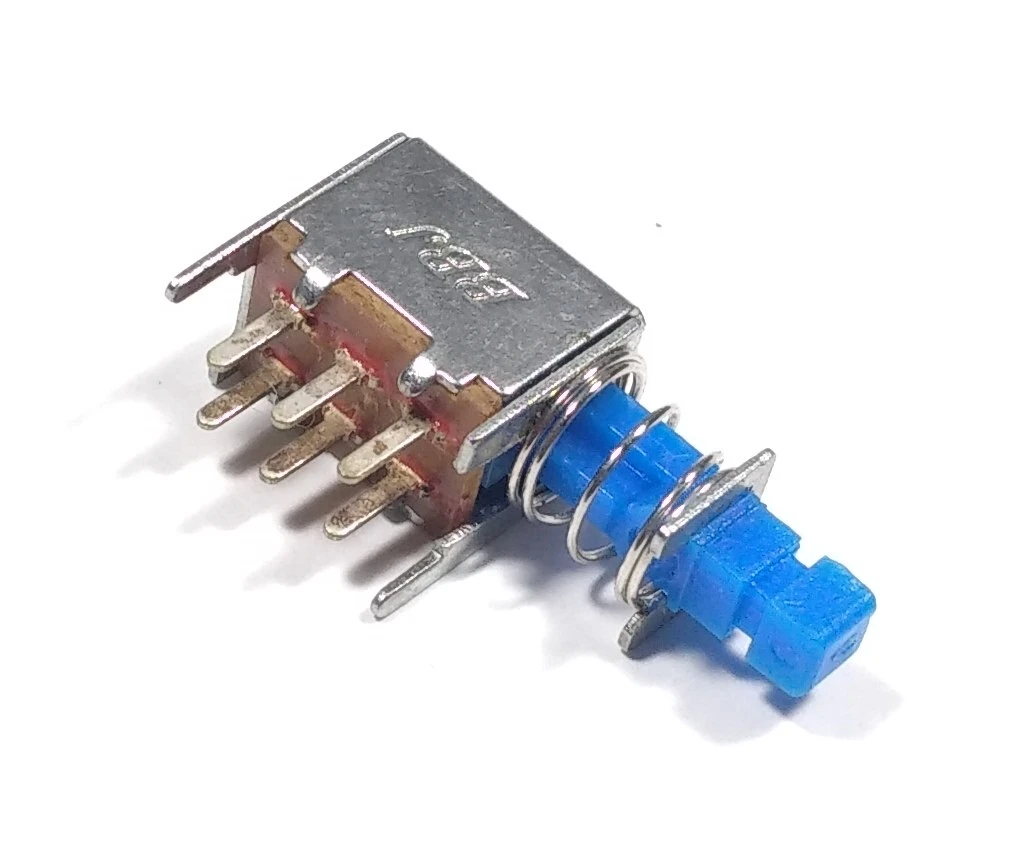

This 6-pin DPDT self-locking push button switch provides reliable latching functionality in a compact form. Press once to latch ON, press again to release — making it ideal for circuits requiring maintained ON/OFF states. With double pole double throw (DPDT) configuration, it supports complex circuit switching including polarity reversal and dual-channel control.
DPDT (Double Pole Double Throw) 6-pin configuration
Self-locking/latching action — push ON, push again to OFF
Suitable for low to medium current applications
Compact design for easy PCB or panel integration
Durable plastic and metal construction
Long mechanical life cycle
Switch Type: Push Button, Latching (Self-locking)
Configuration: DPDT, 6 Pins
Contact Rating: Typically up to 1A–3A @ 125V AC or 30V DC (varies by manufacturer)
Contact Resistance: ≤ 50mΩ
Insulation Resistance: ≥ 100MΩ
Operating Voltage: Max 250V AC
Actuation Force: ~250g
Mounting Type: Through-hole / PCB mount
Button Type: Round/Square (varies)
Operating Temperature: -25°C to +85°C
Power control in electronics projects
DIY audio/lighting switchboards
Robotics and automation
On/off toggles for dual circuits
Reversible polarity control

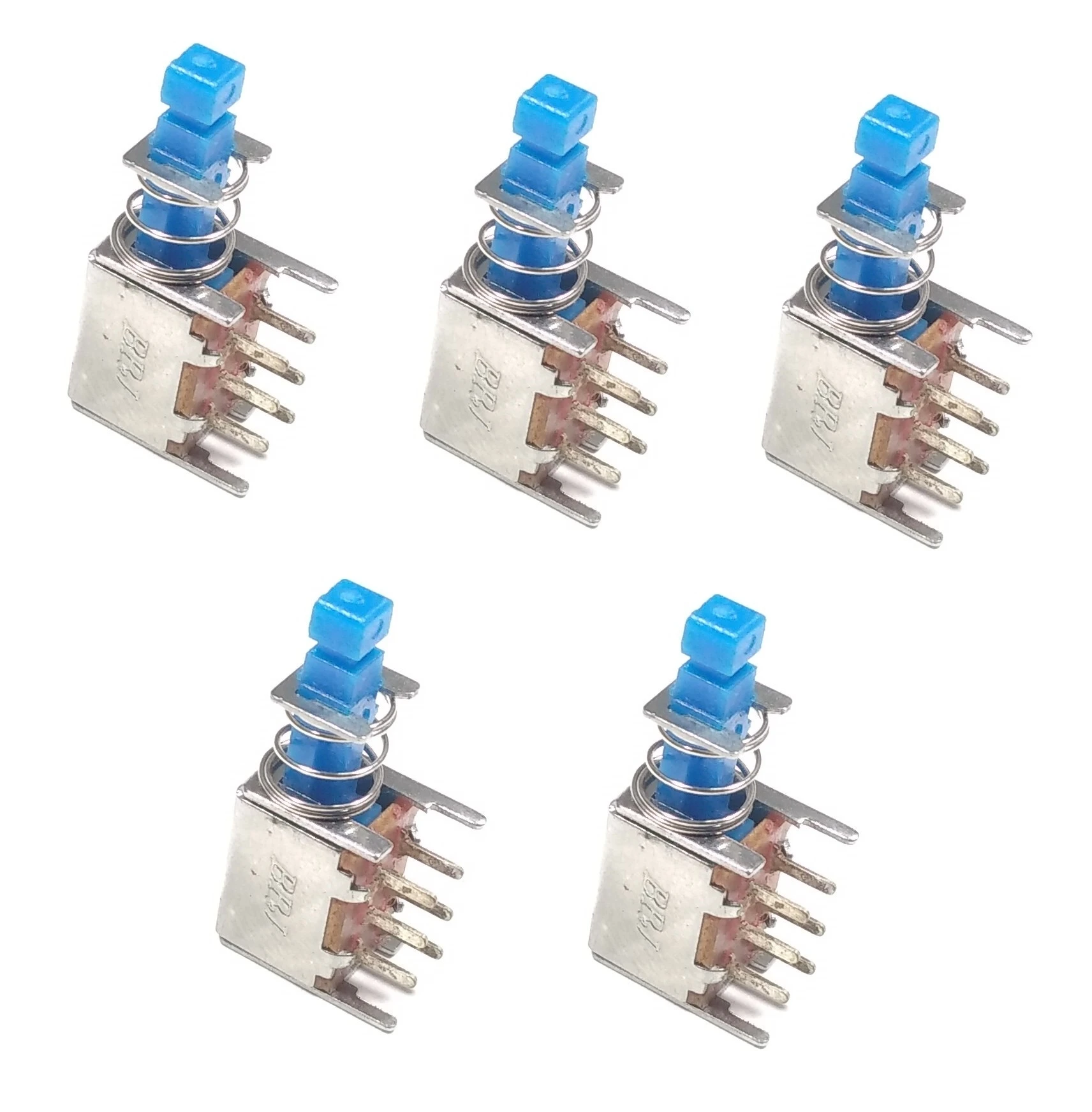

5 × 6-Pin DPDT Self-Locking Push Button Switches
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Actual product may vary slightly based on stock availability.
