Description

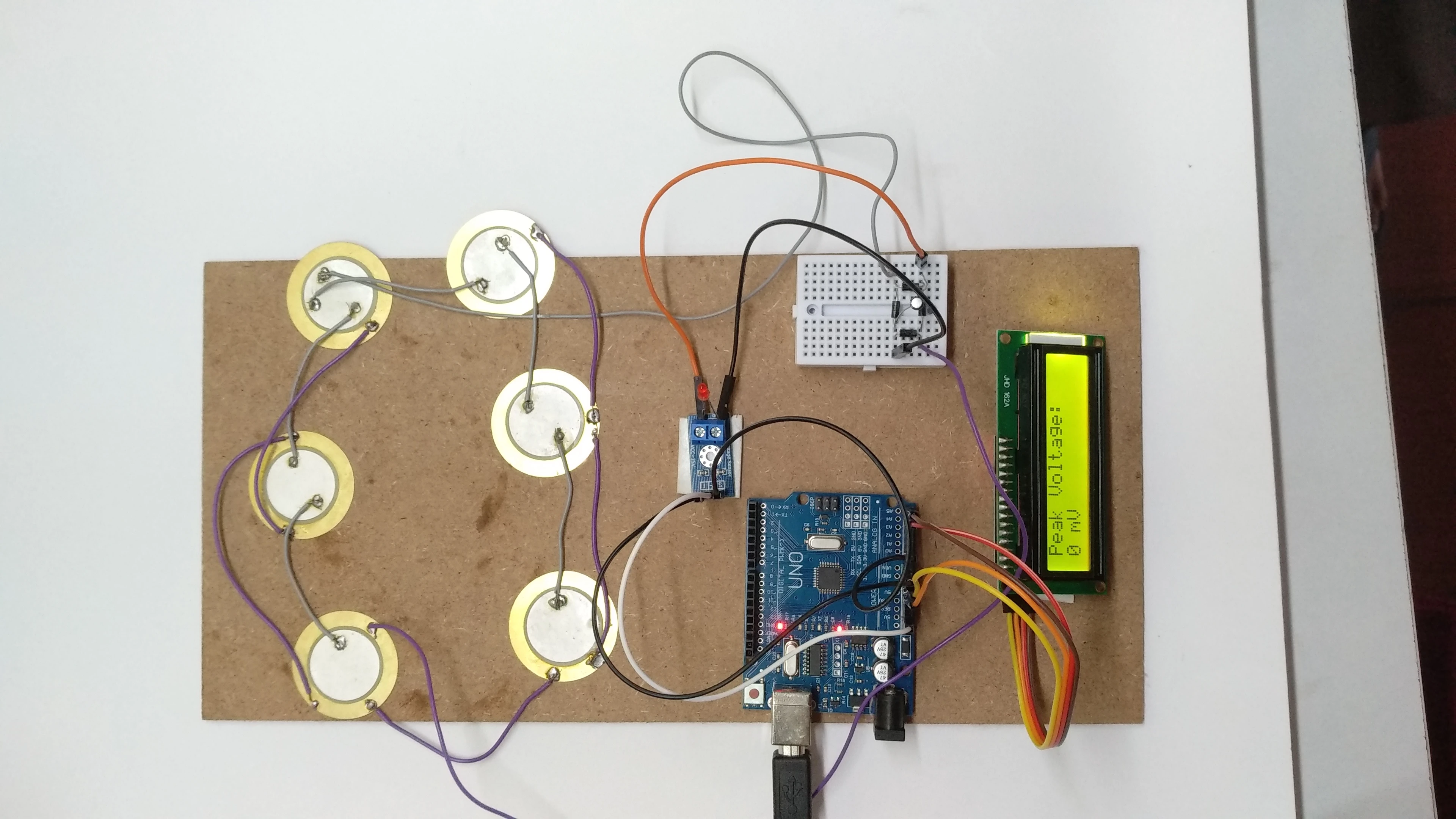

The Piezoelectric Energy Harvesting STEM Kit is an educational science kit that demonstrates how mechanical pressure can be converted into electrical energy using piezoelectric sensors. When force is applied to the piezo discs by pressing or stepping on them, they generate electrical energy that is conditioned through the onboard circuit and displayed on an LCD screen.

This ready-to-use educational model helps students understand the principles of renewable energy, piezoelectricity, voltage generation, and energy harvesting. It is ideal for STEM education, engineering laboratories, science exhibitions, and practical demonstrations of sustainable energy technologies.

Features

• Demonstrates piezoelectric energy generation
• Converts mechanical pressure into electrical energy
• Real-time voltage monitoring using LCD display
• Built using multiple piezoelectric sensors
• Ready-to-use educational model
• Arduino-based control system
• Hands-on renewable energy learning
• Ideal for science fairs and classroom demonstrations

Kit Contents

• Arduino UNO Compatible Board – 1 No.
• 170-Point Mini Breadboard – 1 No.
• Piezoelectric Sensors (35 mm) – 6 Nos.
• Voltage Sensor Module – 1 No.
• 16×2 LCD Display – 1 No.
• I2C LCD Interface Module – 1 No.
• IN4007 Diodes – 4 Nos.
• 16V 10µF Capacitor – 1 No.
• 3 mm LED – 1 No.
• Jumper Wires – 10 Nos.
• Red & Black Connecting Wire – 1 m Each
• USB Flash Drive with Project Code – 1 No.

Specifications

Working Principle

1. Mechanical pressure is applied to one or more piezoelectric discs.
2. The piezo sensors generate electrical voltage through the piezoelectric effect.
3. The generated voltage is rectified and filtered using diodes and a capacitor.
4. The Arduino measures the generated voltage through the voltage sensor module.
5. The measured value is displayed on the LCD, demonstrating real-time energy generation.

Learning Outcomes

• Piezoelectric Effect
• Renewable Energy Concepts
• Energy Harvesting Techniques
• Voltage Measurement
• Sensor Interfacing
• Arduino Programming
• Analog Electronics
• STEM Project Development

Applications

• STEM Education
• Science Fair Projects
• Renewable Energy Demonstrations
• Engineering Laboratories
• Physics Experiments
• Electronics Training
• Educational Workshops
• DIY Learning

Advantages

• Practical renewable energy demonstration
• Real-time voltage display
• Easy to understand and operate
• Hands-on learning experience
• Reusable educational components
• Encourages innovation in sustainable energy
• Suitable for students, hobbyists, and educators

Package Includes

• 1 × Piezoelectric Energy Harvesting STEM Kit (Assembled)
• Project Source Code (USB Flash Drive)

Safety Instructions

• Do not apply excessive force on the piezoelectric sensors.
• Keep the kit away from water and moisture.
• Use only the recommended power source for the controller board.
• Handle electronic components carefully to avoid damage.
• Disconnect power before modifying any wiring connections.
• Adult supervision is recommended during classroom use.

Disclaimer

Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
