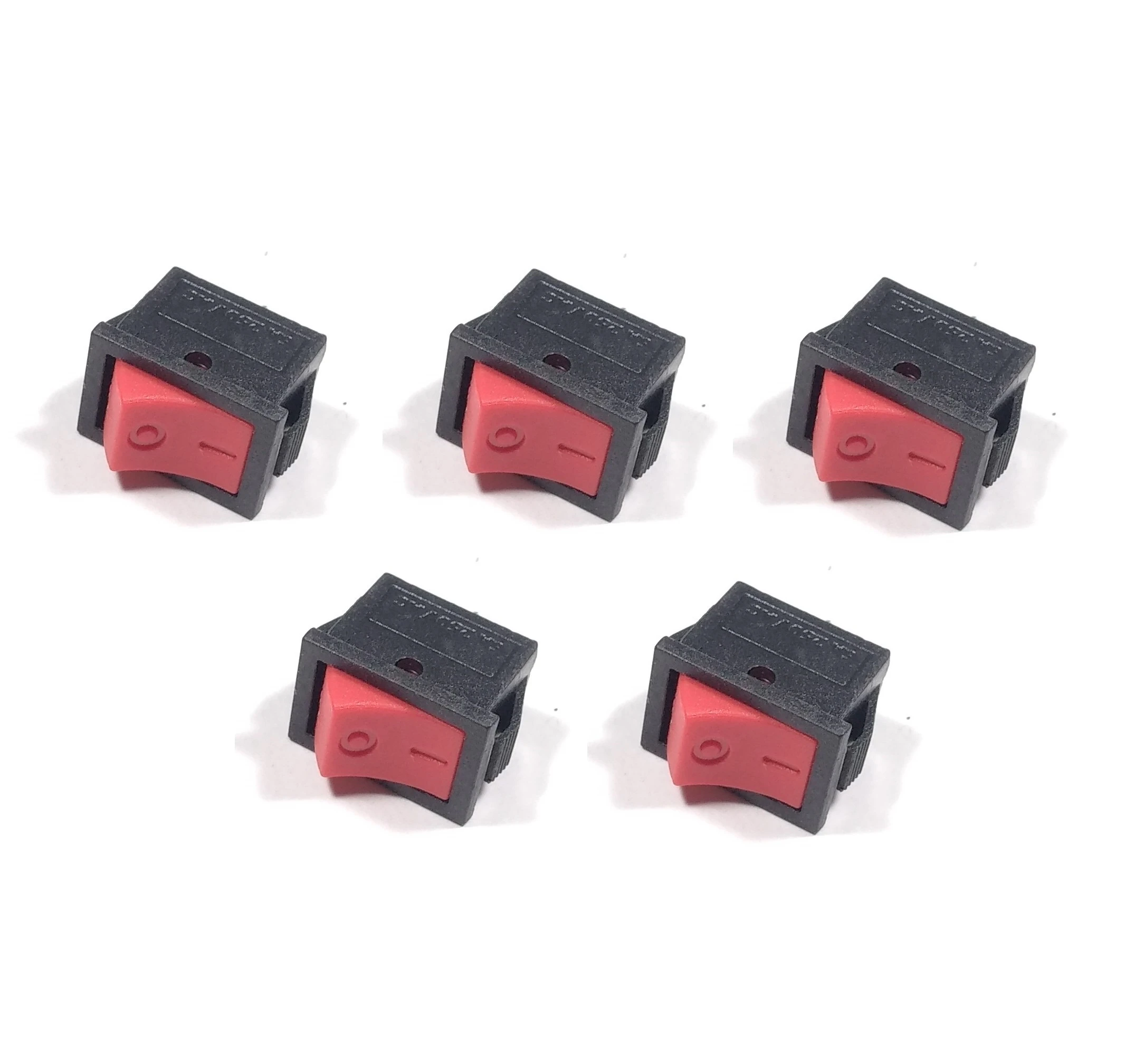

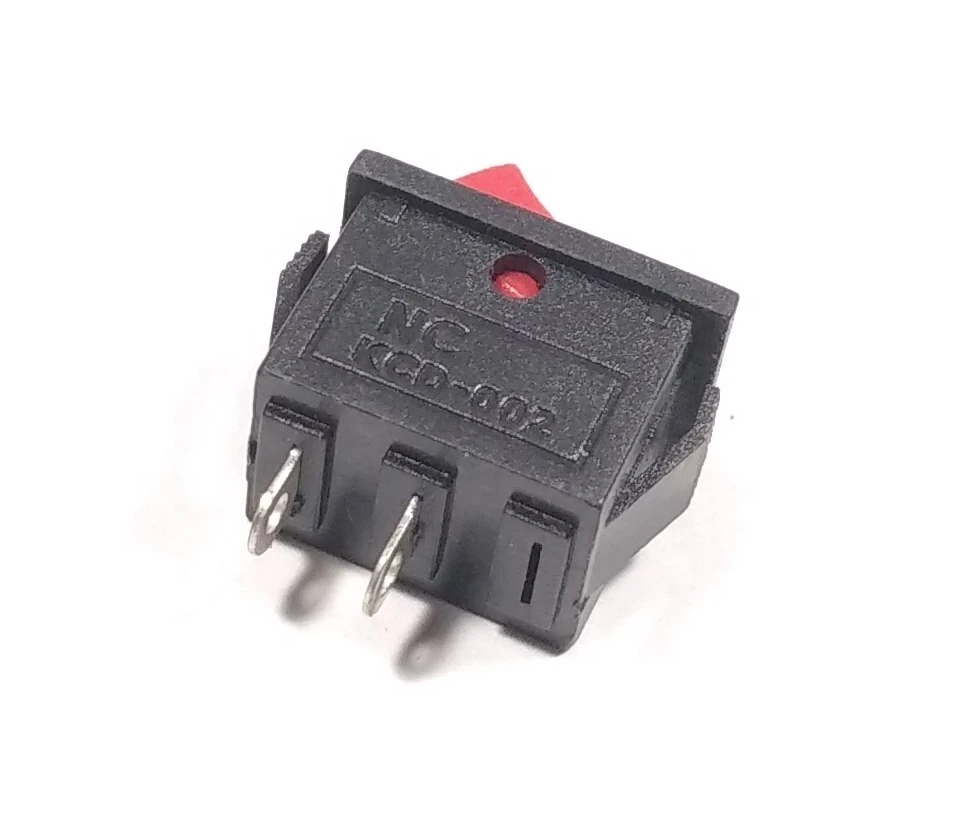

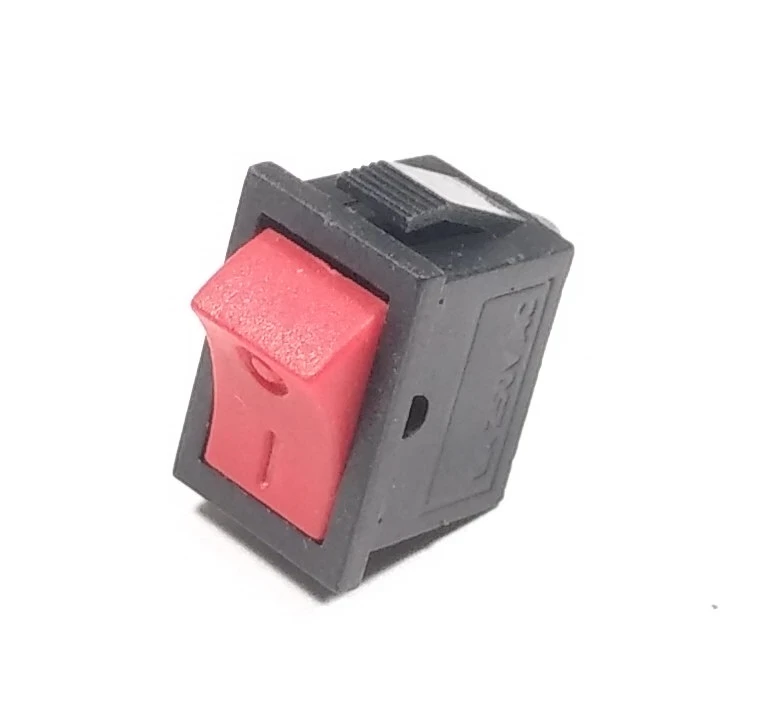

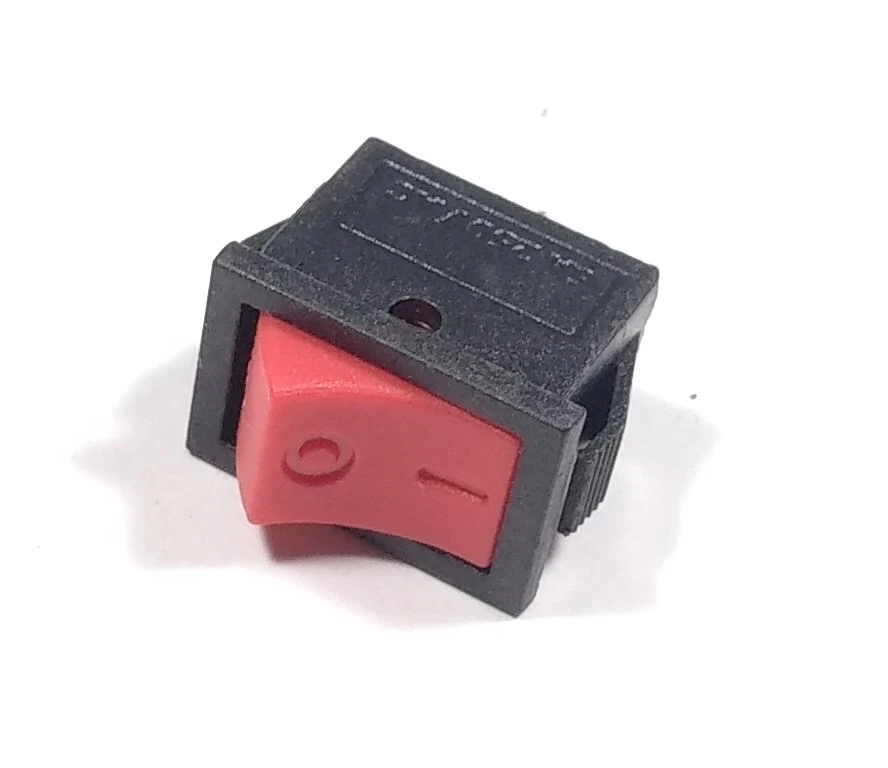

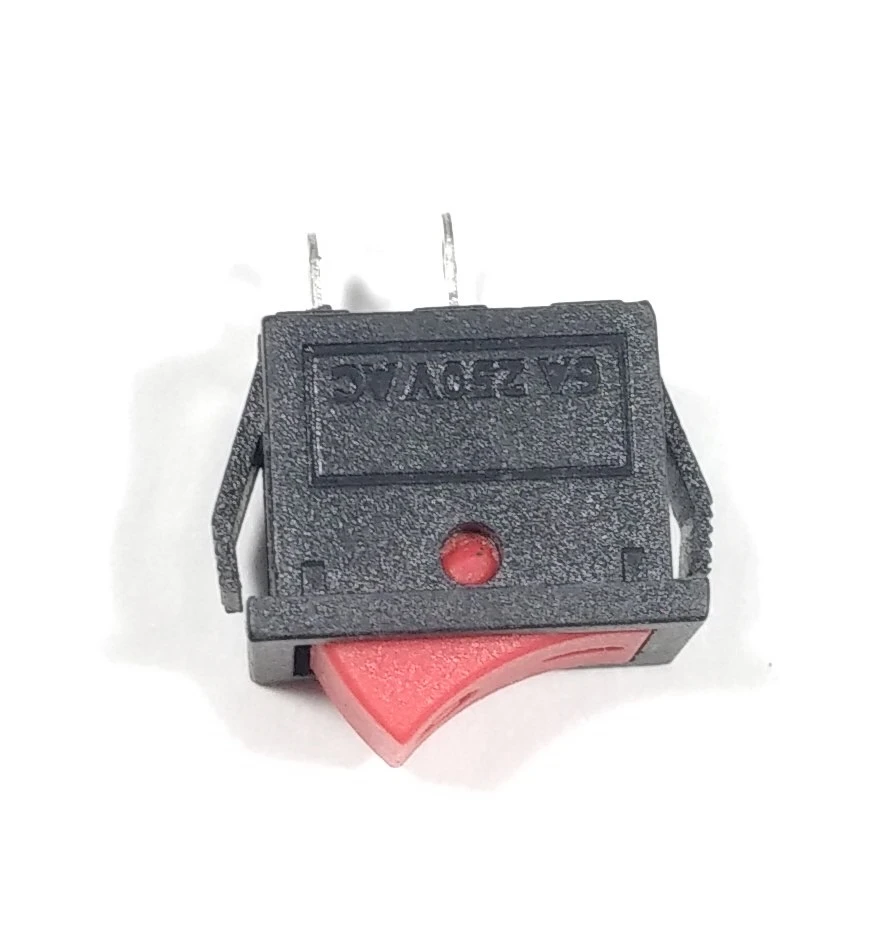

A compact 2-pin red rocker switch ideal for small appliances and electronics, offering reliable ON/OFF functionality with easy panel mounting.
Compact design with snap-in mounting
Clearly marked ON/OFF positions
Durable construction with long life
Easy installation with 2-pin terminals
Red actuator for clear visibility
Model: KCD002
Type: Micro rocker switch
Color: Red actuator
Configuration: SPST (Single Pole Single Throw)
Pin Count: 2
Rated Voltage: AC 250V / 6A or AC 125V / 10A
Switch Function: ON/OFF
Mounting Type: Snap-in panel mount
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥ 100 MΩ
Operating Temperature Range: -25°C to +85°C
Body Size (approx): 21mm x 15mm x 10mm
Small appliances
Power supply control
DIY electronics projects
LED lighting systems
Embedded control panels
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
