Description:

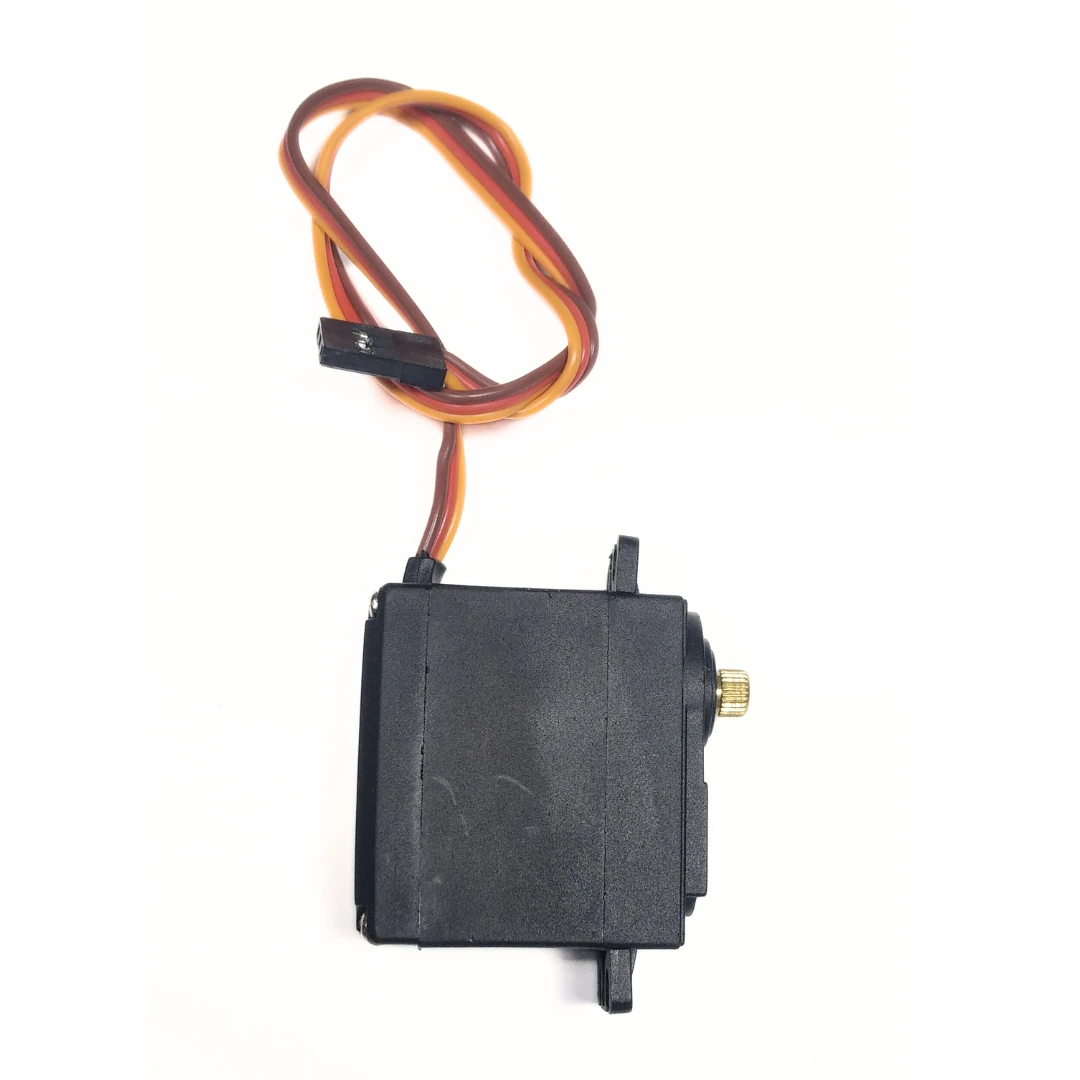

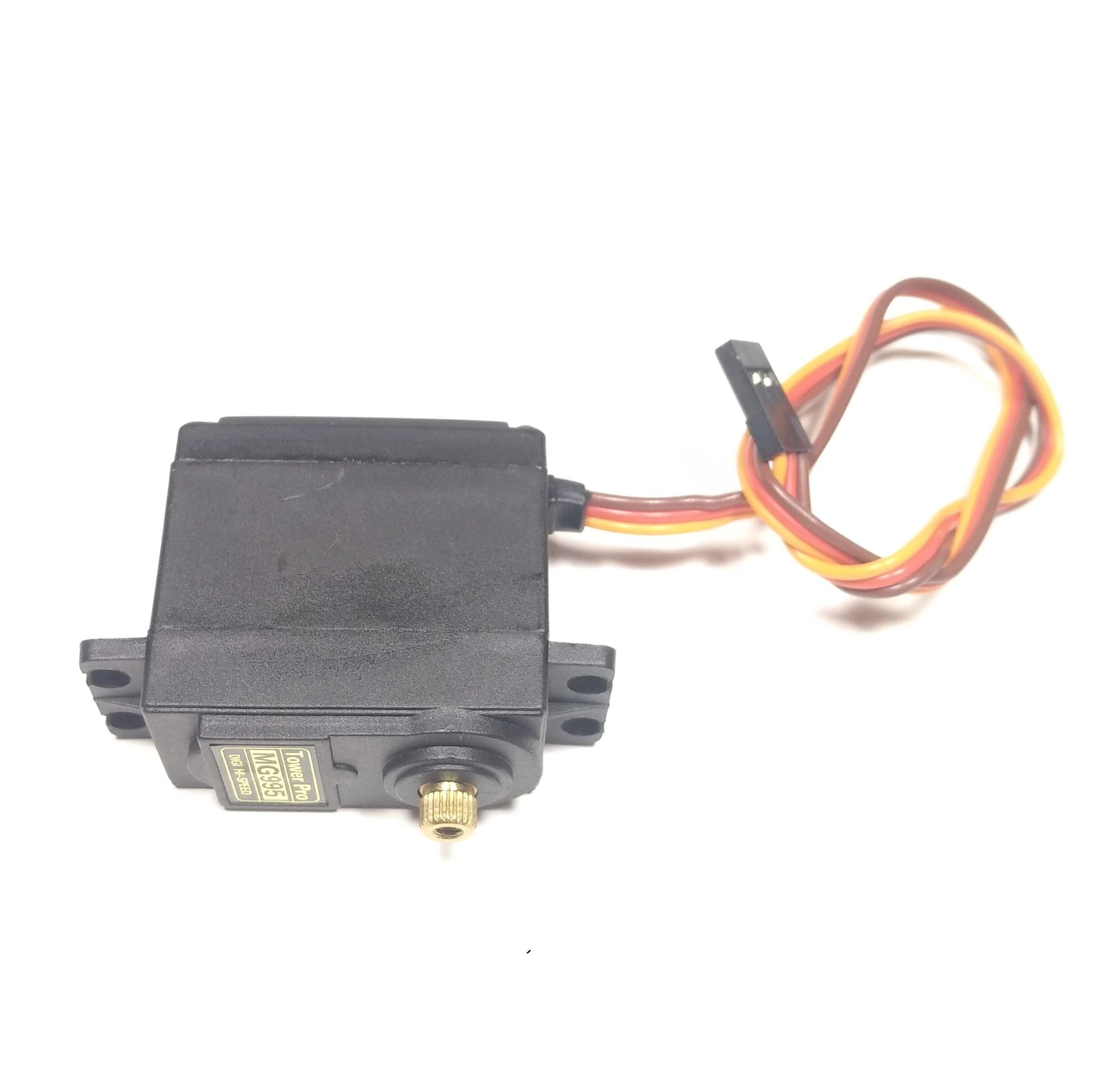

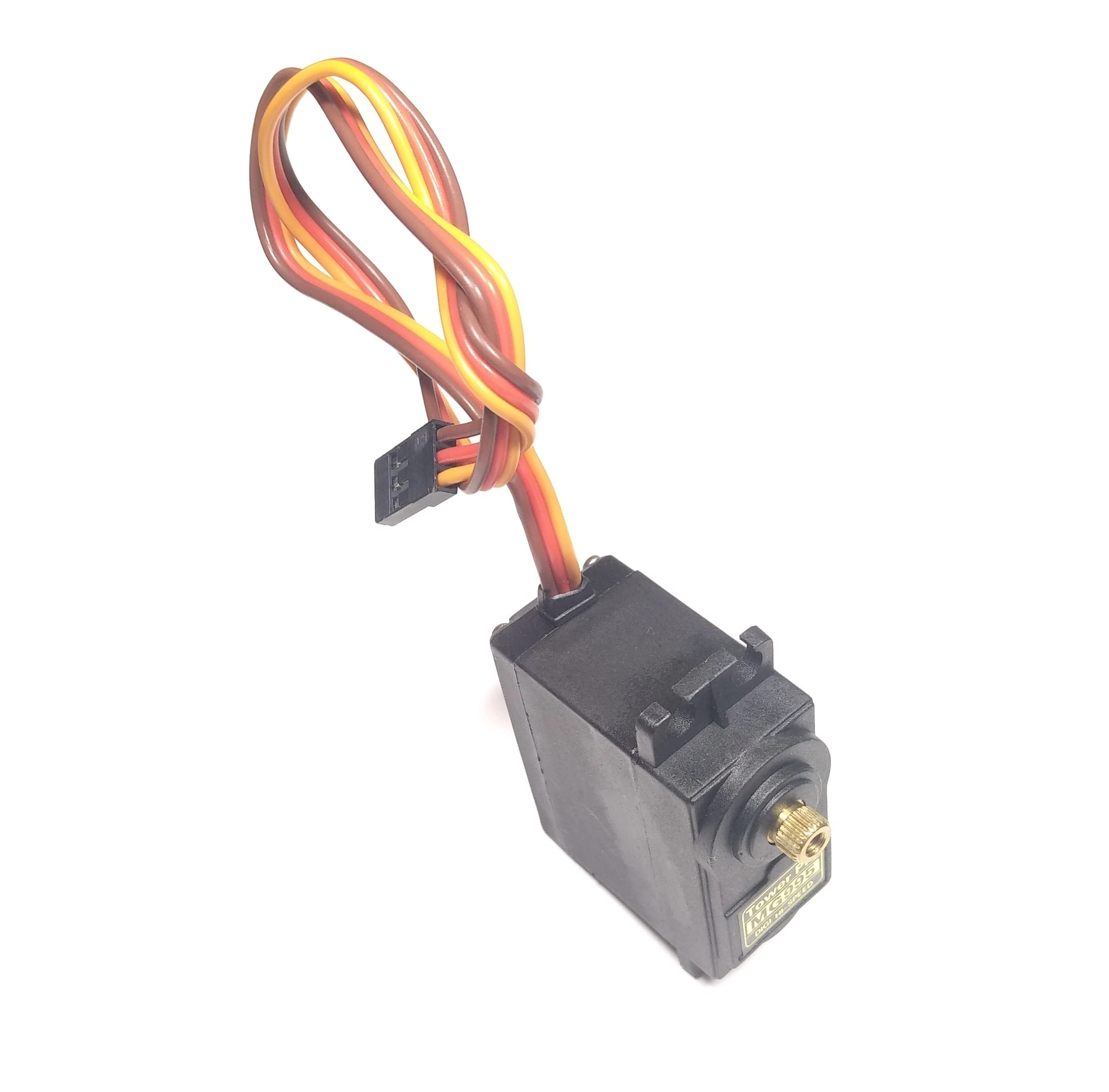

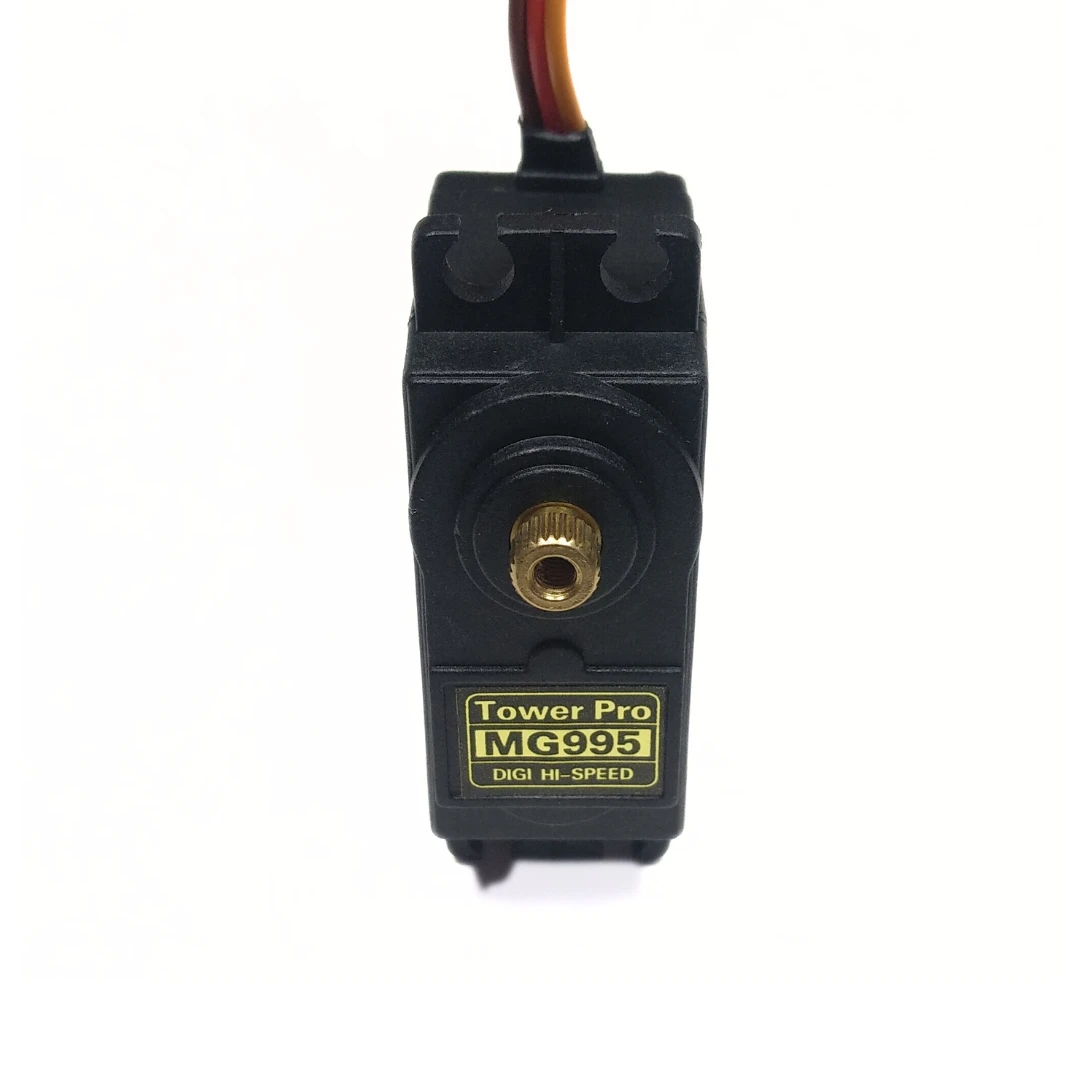

The MG995 is a high-torque, high-speed standard digital servo motor with metal gears designed for precision movement in RC models. With torque outputs up to 12kg/cm and robust construction, it's ideal for airplanes, helicopters, RC cars, and more.
Features:
Digital control for faster and more precise PWM signal processing
High-quality motor with excellent holding power
Thick, durable connection cable
All-metal gear construction for added strength and durability
Shockproof, stable double ball bearing design
High resolution and accurate positioning
Constant torque throughout full range of motion
Compatible with Futaba and JR servo plug
Product Specification:
Model: MG995
Weight: 55g
Dimensions: 40.7 × 19.7 × 42.9 mm
Operating Voltage: 4.8V – 7.2V
Operating Speed:
20 sec/60° @ 4.8V (no load)
16 sec/60° @ 6.0V (no load)
Stall Torque:
10kg/cm @ 4.8V
12kg/cm @ 6.0V
Gear Type: All Metal Gears
Bearing Type: Double ball bearing
Operating Angle: 120°
Dead Band Width: 5 µs
Temperature Range: 0°C – 55°C
Control System: Analog
Required Pulse: 900us – 2100us
Wire Color Coding:
Red – Positive
Brown – Negative
Orange – Signal
Application:
RC airplanes and helicopters
RC cars and monster trucks
Boats and other water-resistant robotics
Robotics requiring high torque and durability
DIY hobby and model building
Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
