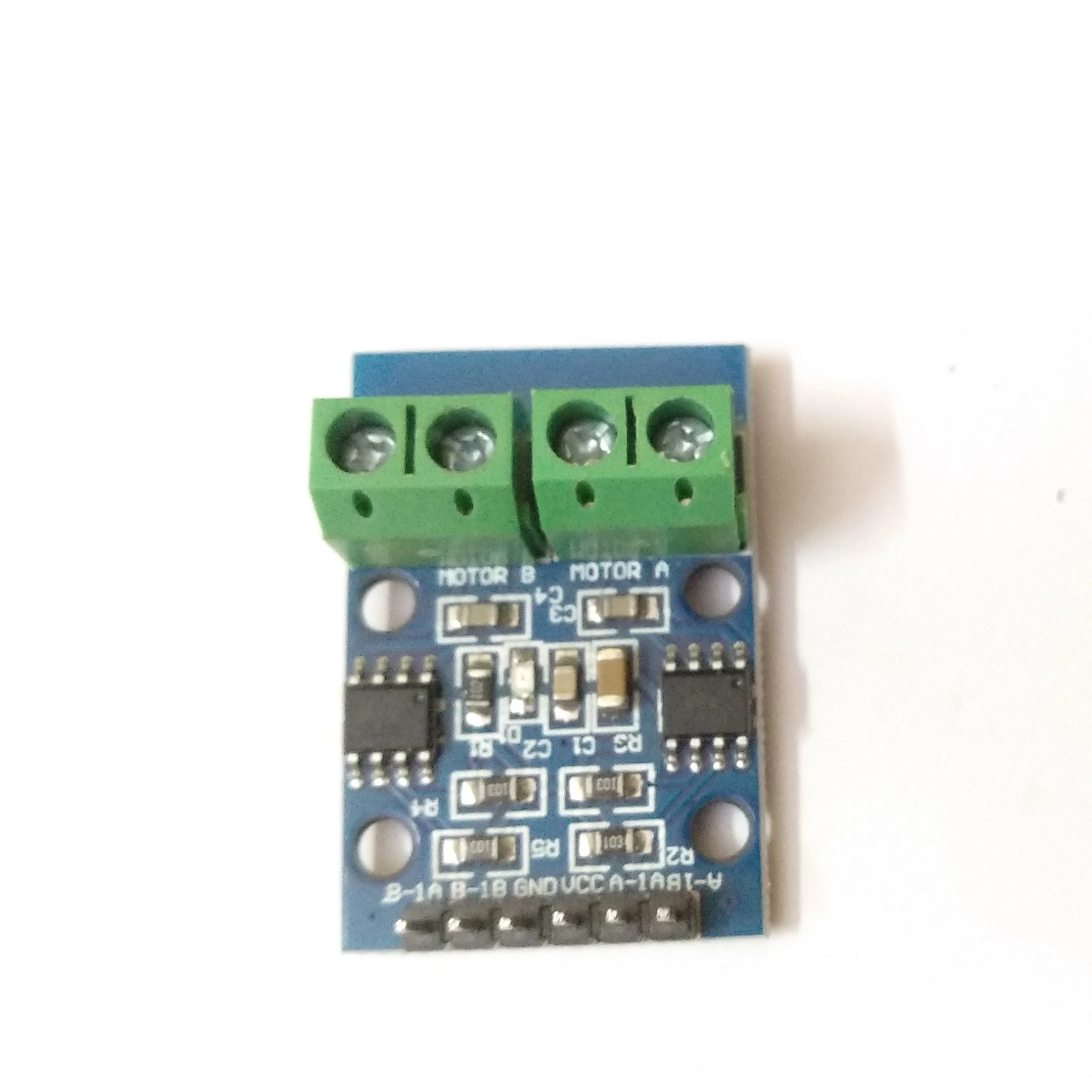

The L9110 Dual DC Motor / Stepper Motor Driver Module is a compact H-Bridge motor driver designed for controlling two DC motors independently or one bipolar stepper motor. Based on the L9110 driver IC, it offers simple bidirectional motor control with low power consumption and easy interfacing with popular microcontrollers such as Arduino, ESP32, Raspberry Pi, STM32, and other development boards.
Its compact size and reliable performance make it ideal for robotics, educational kits, battery-operated devices, smart vehicles, and DIY electronics projects.
| Parameter | Value |
|---|---|
| Product Type | L9110 Dual DC Motor / Stepper Motor Driver Module |
| Driver IC | L9110 |
| Motor Support | 2 DC Motors or 1 Bipolar Stepper Motor |
| Operating Voltage | 2.5V–12V DC |
| Logic Voltage | 3.3V–5V DC |
| Continuous Output Current | Up to 800mA per Channel |
| Peak Output Current | Up to 1.5A per Channel |
| Number of Channels | 2 |
| Motor Direction | Forward & Reverse |
| Interface | Digital Control Pins |
| Motor Connection | Screw Terminal Blocks |
| Mounting | PCB Mounting Holes |
Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
