KCD4 Rocker Switch (DPDT ON/OFF)

In Stock

SKU: R7-D-4-6

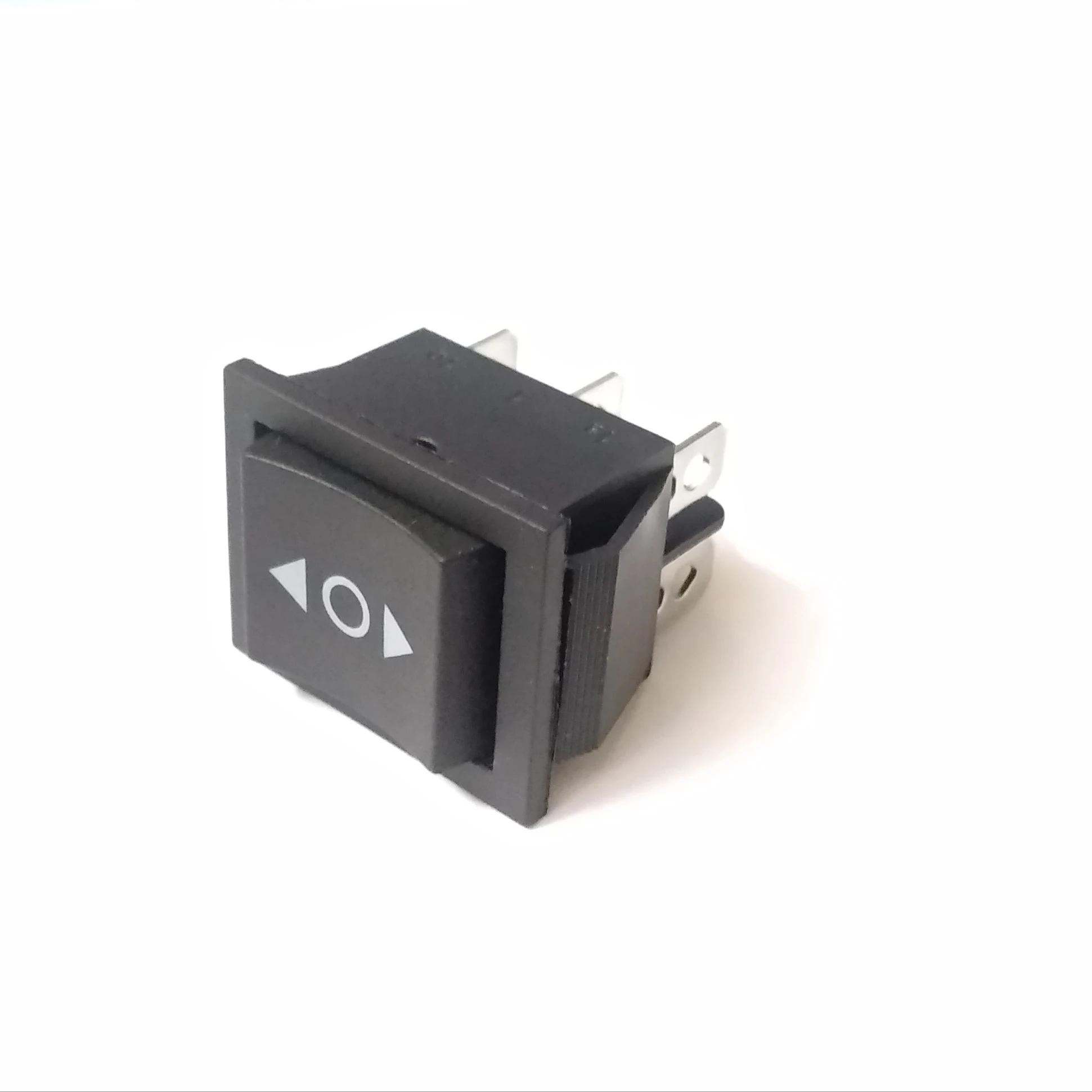

KCD4 Rocker Switch (DPDT ON/OFF)

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹70.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The KCD4 Rocker Switch is a heavy-duty panel-mount switch designed for reliable power control in electronic equipment, industrial machinery, appliances, DIY projects, and control panels. Featuring a robust rocker mechanism and six terminals, it is commonly used as a DPDT (Double Pole Double Throw) switch for switching multiple circuits simultaneously.

Its snap-in mounting design allows quick installation into panels and enclosures, making it a popular choice for professional and hobby electronics applications.

Features

KCD4 series rocker switch
Durable snap-in panel mounting
Heavy-duty construction

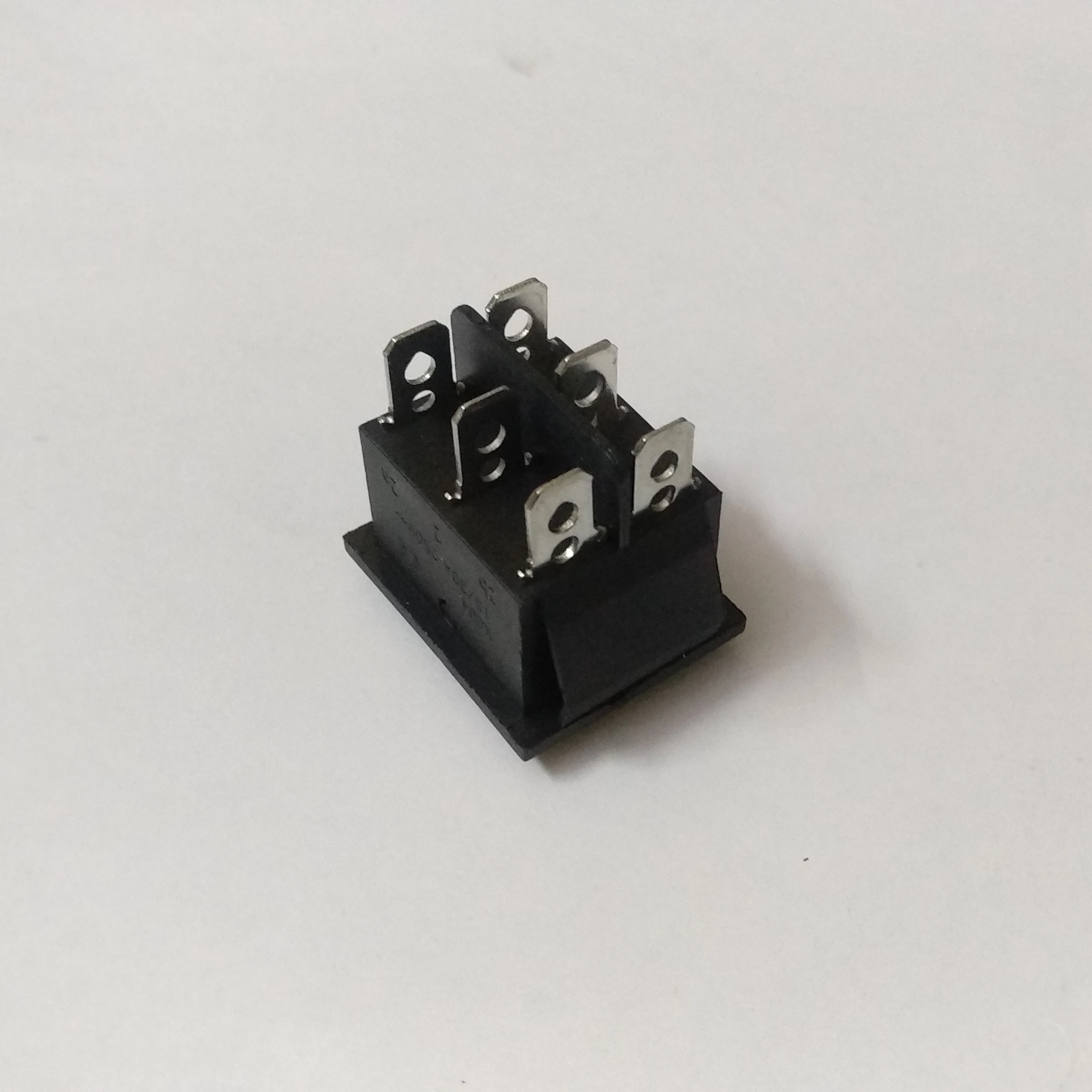

Six-terminal configuration
Reliable switching action
Long mechanical life
Compact rectangular design
Suitable for AC and DC applications
Easy installation and wiring

Specifications

Parameter	Details
Product Type	Rocker Switch
Model	KCD4
Switch Type	DPDT (Double Pole Double Throw)
Mounting Type	Panel Mount
Terminal Count	6 Pins
Actuator Type	Rocker
Housing Material	Flame-Retardant Plastic
Contact Material	Metal Alloy
Color	Black
Operation	Maintained / Latching

Applications

Power Supply Units
Industrial Control Panels
Electrical Equipment
Robotics Projects
Arduino and ESP32 Systems
Home Automation
DIY Electronics
Battery Switching Circuits
Laboratory Equipment
Automotive Electronics

Advantages

Controls two circuits simultaneously
Durable and reliable operation
Easy panel installation
Compact design
Long service life
Suitable for high-current applications

Working Principle

The rocker mechanism changes the internal contact connections when pressed. With its DPDT configuration, the switch can control two separate circuits simultaneously or reverse polarity in certain applications. The switch remains in the selected position until manually changed.

Package Includes

1 × KCD4 DPDT Rocker Switch (6 Pin)

Note

Terminal arrangement may vary slightly between manufacturers. Verify pin configuration before wiring in critical applications.

Disclaimer

Product appearance, markings, ratings, and dimensions may vary slightly depending on manufacturing batch without affecting functionality or performance.
