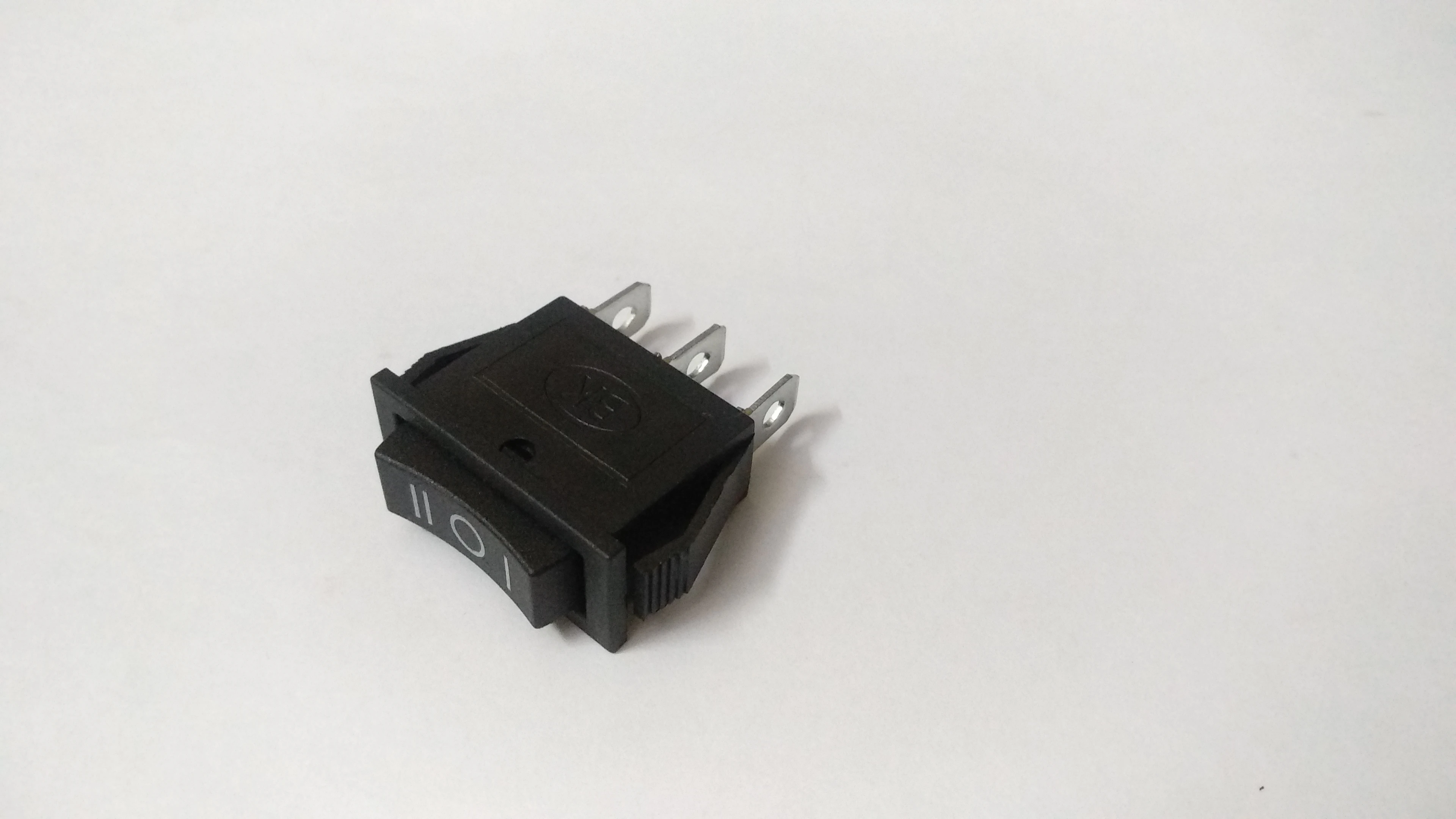

KCD3 Rocker Switch (ON/OFF)

In Stock

SKU: R7-D-4-5

KCD3 Rocker Switch (ON/OFF)

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹24.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The KCD3 Rocker Switch is a compact and reliable panel-mount ON/OFF switch widely used in electronic equipment, power supplies, DIY projects, appliances, and industrial control panels. Featuring a durable rocker mechanism with clear ON/OFF markings, it provides convenient power control while ensuring long service life.

Its snap-in panel mounting design allows quick installation without additional hardware, making it ideal for hobbyists, engineers, and manufacturers.

Features

KCD3 series rocker switch
ON/OFF maintained operation
Durable plastic housing
Clear rocker position markings
Easy snap-in panel mounting
Reliable electrical contacts
Compact design
Long operational life
Suitable for AC and DC applications

Specifications

Parameter	Details
Product Type	Rocker Switch
Model	KCD3
Switch Function	ON/OFF
Mounting Type	Panel Mount
Actuator Type	Rocker
Contact Type	SPST
Number of Terminals	3 Pin
Housing Material	Flame-Retardant Plastic
Contact Material	Metal Alloy
Color	Black

Applications

Power Supply Units
Electronic Projects
DIY Electronics
Battery-Powered Systems
Home Appliances
Industrial Equipment
Control Panels
Arduino Projects
Robotics
Laboratory Equipment

Advantages

Easy installation
Compact and lightweight
Reliable switching action
Durable construction
Cost-effective power control solution
Suitable for frequent operation

Working Principle

The rocker mechanism changes the internal contact position when pressed. In the ON position, electrical continuity is established, allowing current to flow. Pressing the opposite side disconnects the circuit and turns the connected device OFF.
