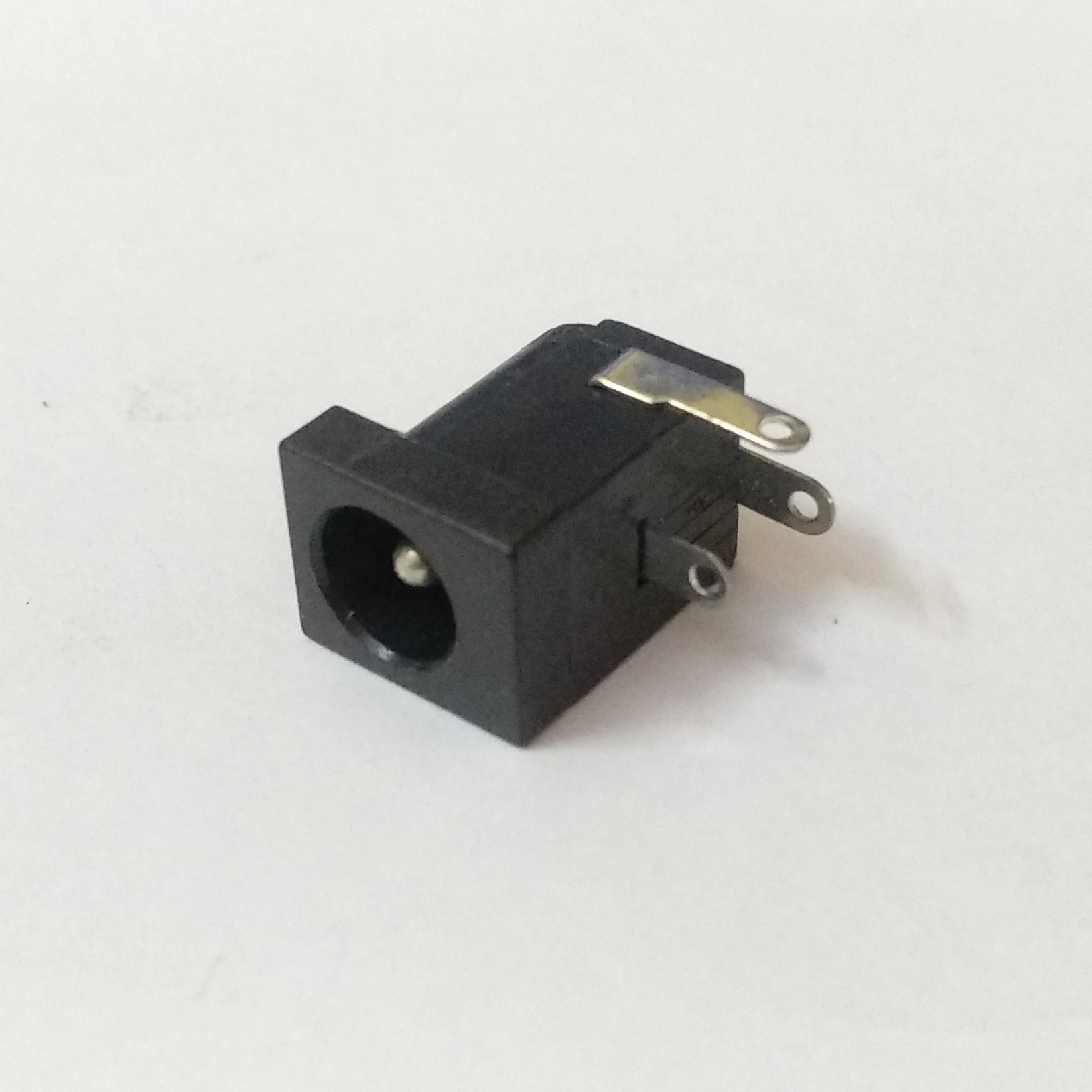

The Female DC Power Jack Connector is a widely used DC barrel power socket designed for connecting external DC power adapters to electronic circuits and devices. It provides a secure and reliable connection for powering Arduino boards, development kits, CCTV systems, LED projects, routers, and various DIY electronics applications.
Its compact design and solder terminals make it easy to integrate into custom PCBs, power distribution boards, and electronic enclosures.
| Parameter | Details |
|---|---|
| Product Type | Female DC Power Jack Socket |
| Connector Type | DC Barrel Socket |
| Mounting Type | PCB / Panel Mount |
| Contact Material | Nickel-Plated Metal |
| Housing Material | High-Quality Plastic |
| Terminal Type | Solder Lug |
| Color | Black |
| Gender | Female |
The connector accepts a compatible DC barrel plug and transfers power through its internal contacts to the connected circuit. The center pin and outer sleeve provide positive and negative connections respectively, ensuring stable DC power delivery.
Verify plug size compatibility before use. The most common application uses a 5.5 mm outer diameter and 2.1 mm inner diameter DC barrel plug.
Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
