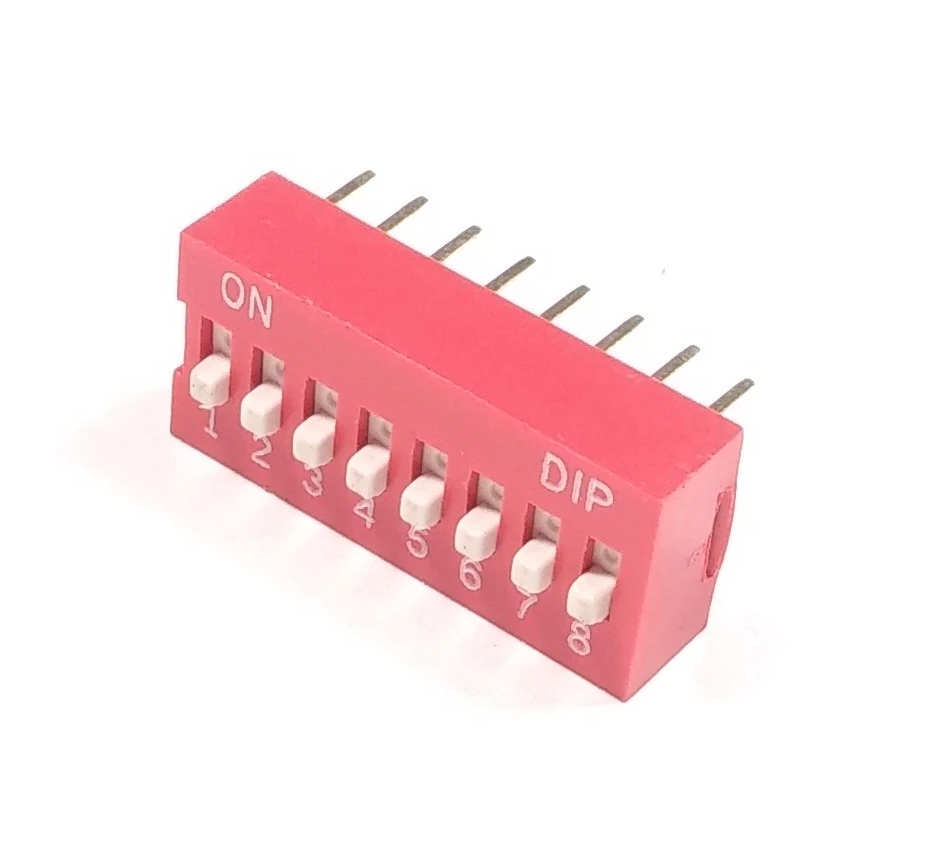

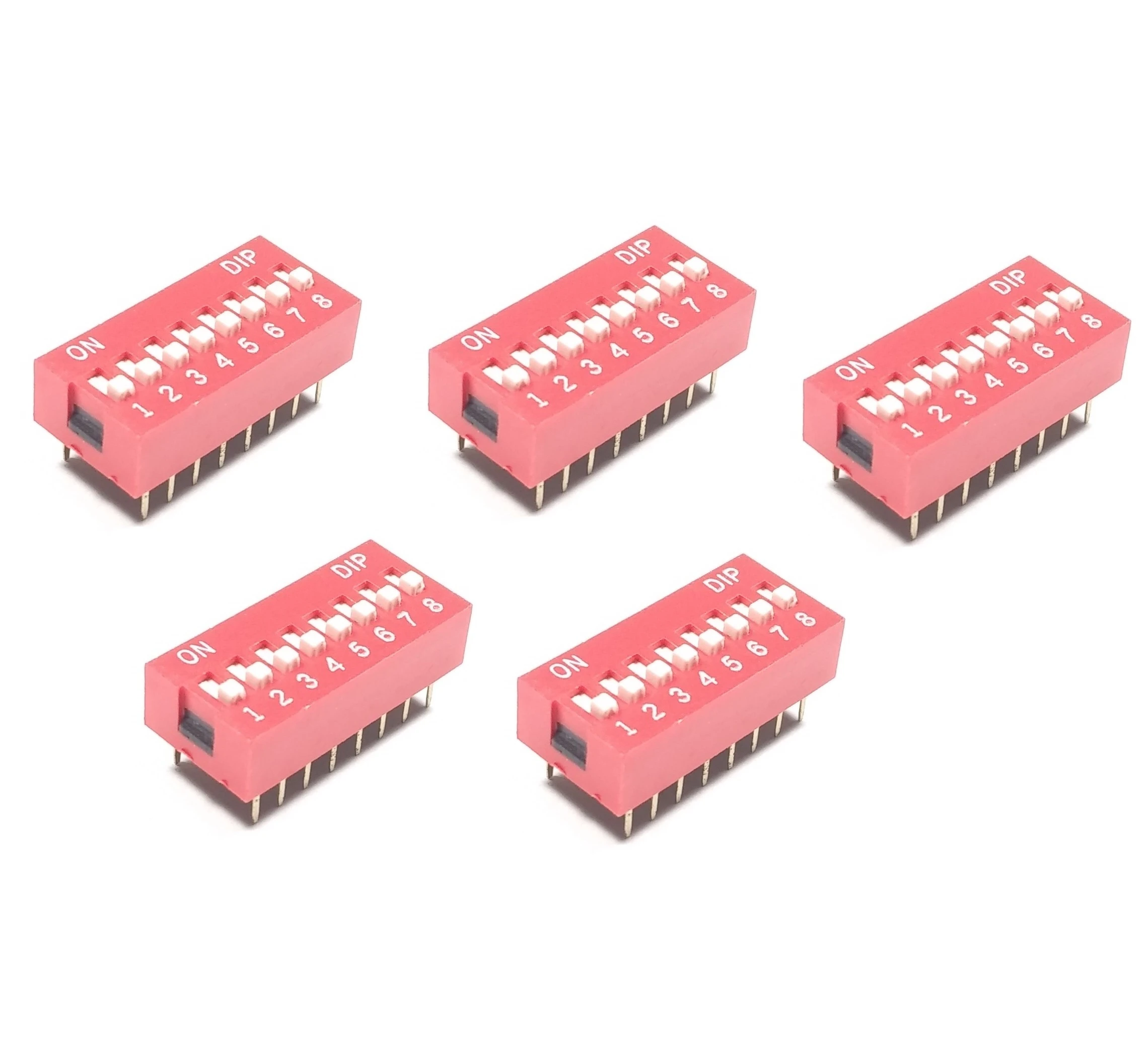

Compact 8-way DIP (Dual In-line Package) switch with 2.54 mm pitch, designed for configurable logic control, address setting, and function selection in electronic circuits.
8 individual switch positions for configuration flexibility
Standard 2.54 mm pitch for easy PCB mounting
Slide-type switches with firm tactile feedback

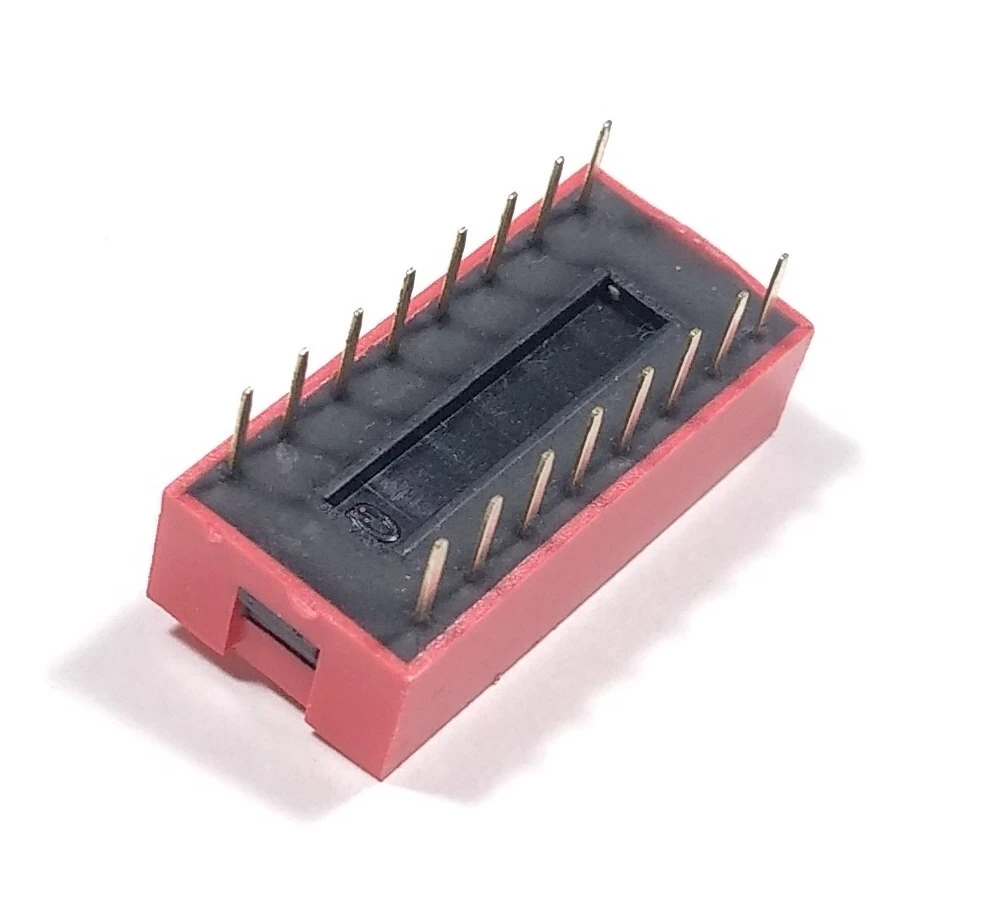

Compact 16-pin dual-row design
High reliability and long mechanical life

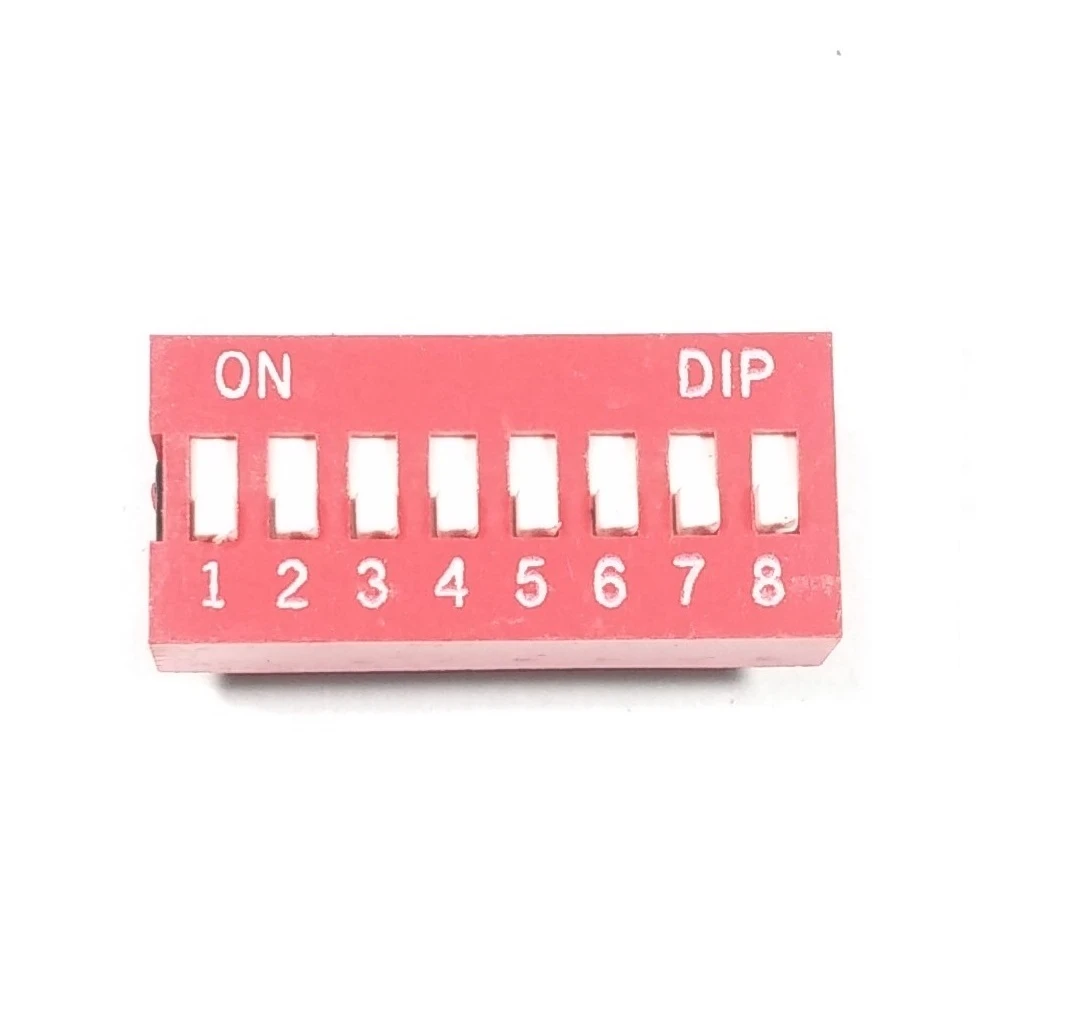

Easy-to-read ON/OFF position markings
Type: 8-Way DIP Switch
Pin Count: 16 pins (2 per switch)
Pitch: 2.54 mm (0.1 inch)
Switch Type: SPST (Single Pole Single Throw)
Contact Rating: 25 mA at 24V DC
Insulation Resistance: ≥100 MΩ at 500V DC
Dielectric Strength: 500V AC for 1 minute
Contact Resistance: ≤ 50 mΩ
Operating Temperature Range: -20°C to +85°C
Actuation Style: Slide
Material: Thermoplastic body with gold-plated contacts
Address selection in microcontroller applications
Mode configuration in embedded systems
Programming options in development boards
Test and debug tools for circuit selection
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
