6-Pin DPDT Toggle Switch

In Stock

SKU: R7-D-4-2

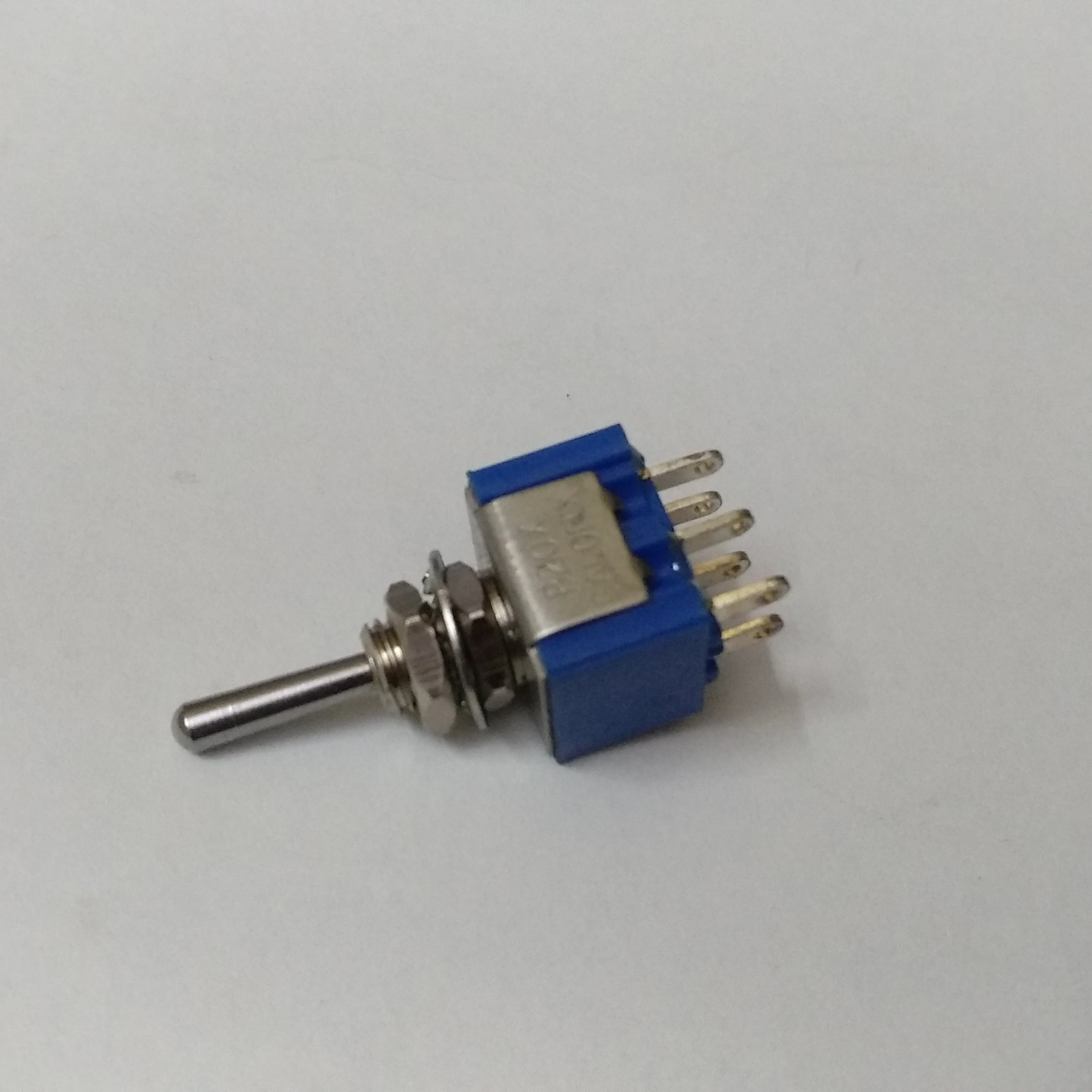

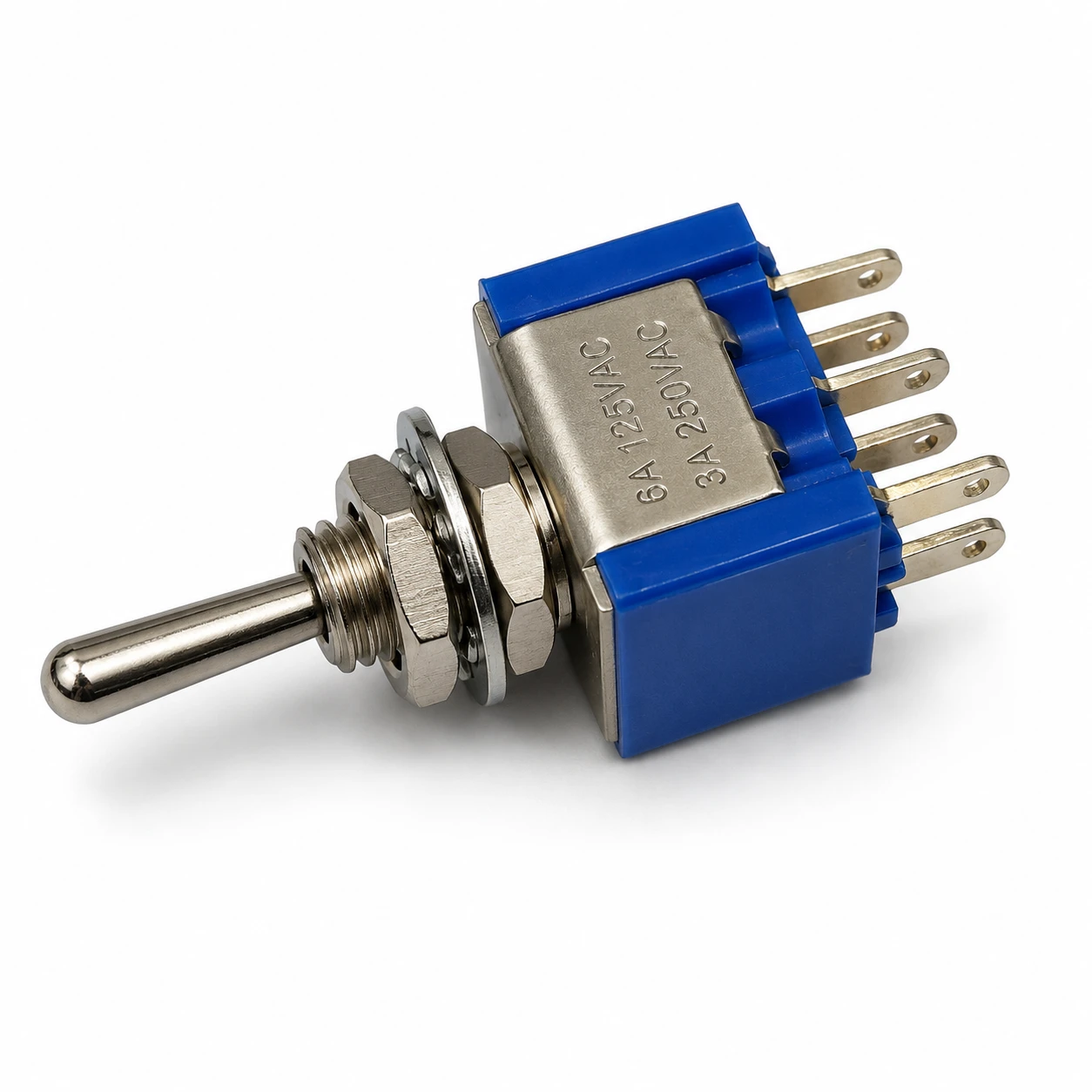

6-Pin DPDT Toggle Switch

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹29.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The 6-Pin DPDT (Double Pole Double Throw) Toggle Switch is a versatile mechanical switch that allows simultaneous switching of two separate circuits. It is commonly used for polarity reversal, motor direction control, power source selection, signal routing, and various electronic switching applications.

Featuring a robust metal toggle lever, panel-mount design, and six terminals, this switch is suitable for DIY electronics, robotics, industrial controls, automotive systems, and educational projects.

Features

Double Pole Double Throw (DPDT) configuration
6-pin terminal design
Durable metal toggle actuator
Reliable ON-ON switching operation
Panel-mount installation
Compact and rugged construction
Suitable for switching two independent circuits

Specifications

Parameter	Details
Product Type	Toggle Switch
Switch Type	DPDT (Double Pole Double Throw)
Number of Pins	6
Actuator Type	Metal Toggle Lever
Mounting Type	Panel Mount
Contact Type	ON-ON
Terminal Type	Solder Pins
Body Material	Metal and Plastic

Applications

Motor Direction Control
Polarity Reversal Circuits
Arduino Projects
ESP32 Projects
Robotics Systems
Power Source Selection
Control Panels
DIY Electronics
Industrial Automation
Automotive Electronics

Package Includes

1 × 6-Pin DPDT Toggle Switch
Mounting Nut and Washer

Advantages

Controls two circuits simultaneously
Reliable mechanical switching
Easy panel installation
Durable metal construction
Suitable for power and signal switching
Long operational life

Working Principle

A DPDT switch functions as two SPDT switches operated by a single toggle lever. Moving the lever changes the connection path for both poles simultaneously, making it ideal for reversing polarity or selecting between two outputs.
