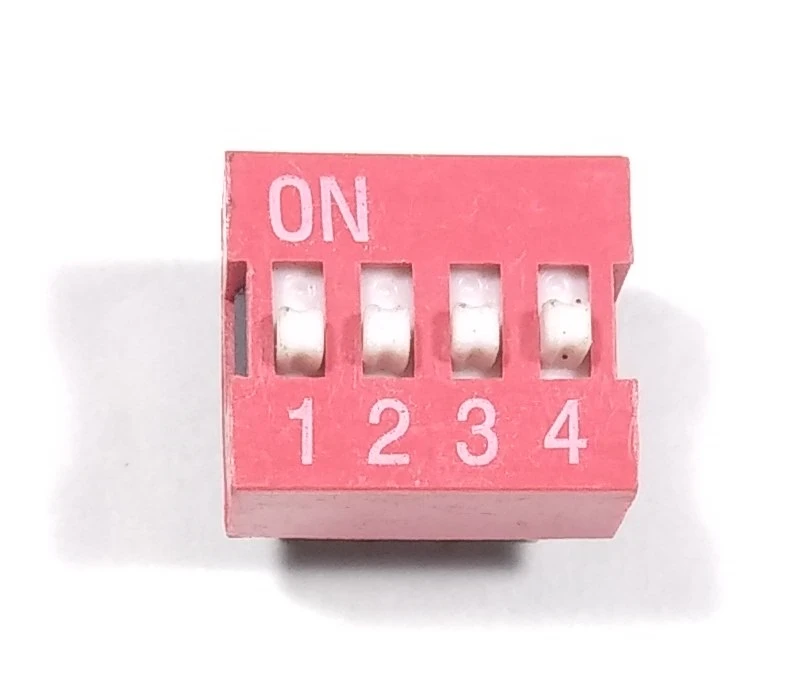

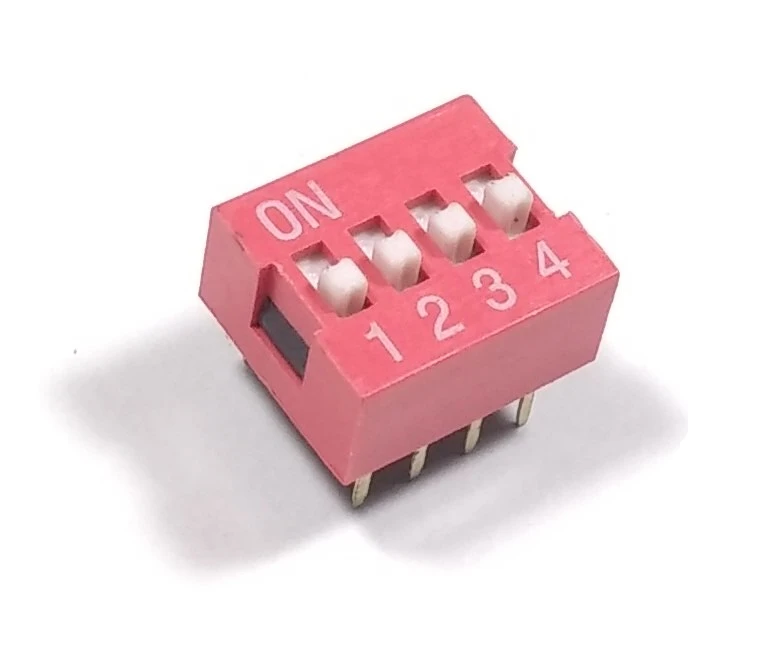

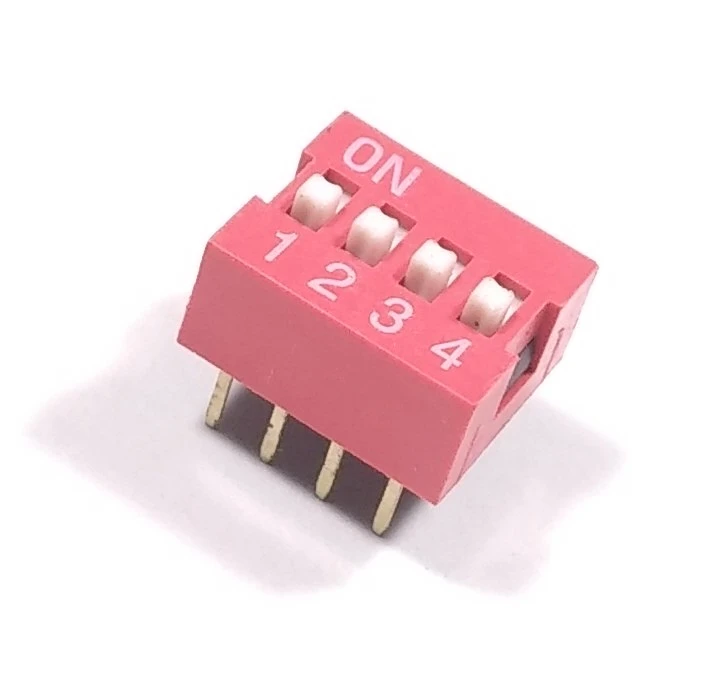

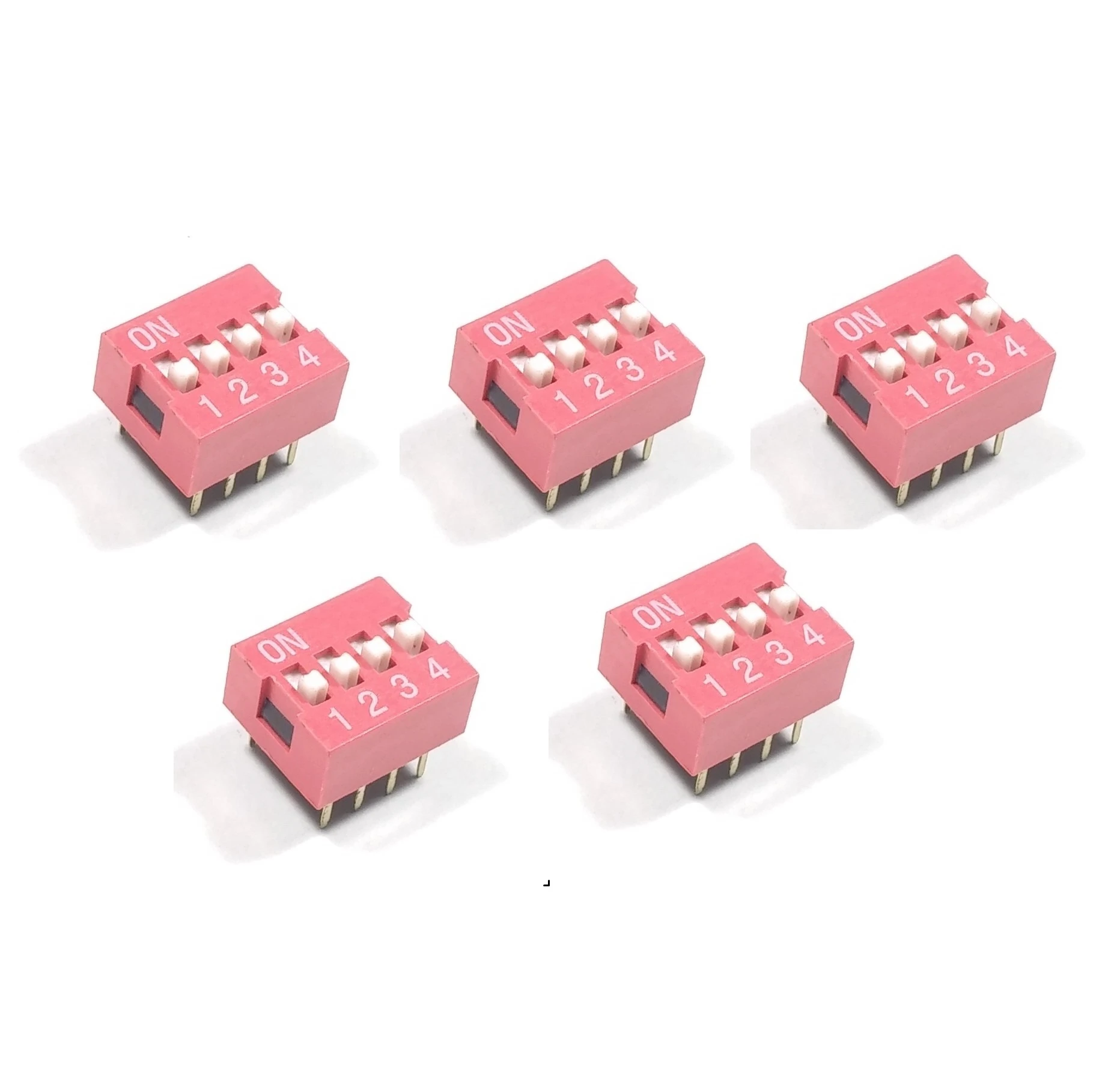

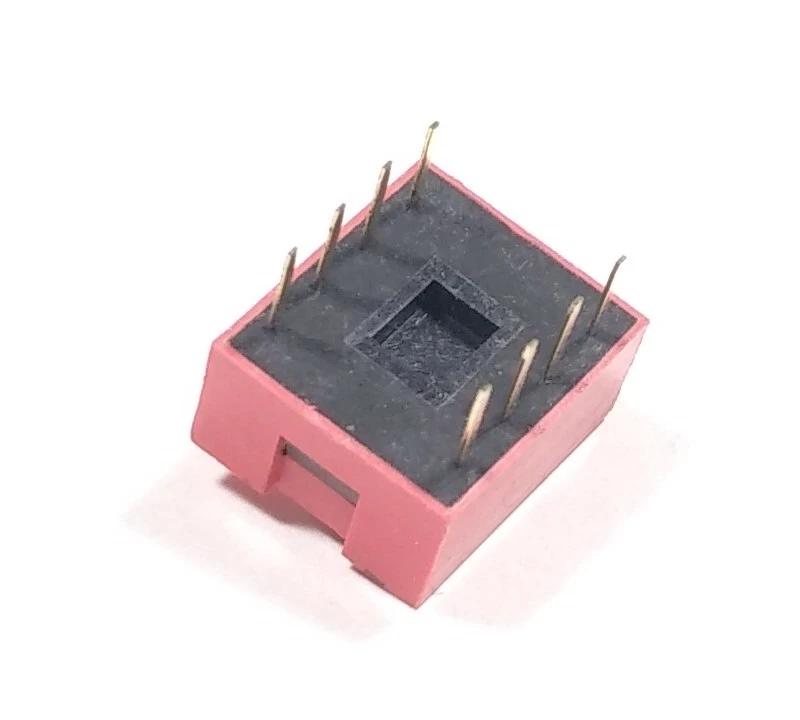

Compact 4-position DIP switch with 8 pins and 2.54 mm pitch, ideal for setting configurations, addresses, and operational modes in electronic circuits and embedded systems.
4 individual SPST slide switches
Standard 2.54 mm (0.1 inch) pitch for PCB compatibility
Dual in-line 8-pin format
Clearly marked ON/OFF positions for easy setup
Long mechanical life with reliable contact performance
RoHS compliant and lead-free construction
Type: 4-Way DIP Switch
Pin Count: 8 pins (2 per switch)
Pitch: 2.54 mm
Switch Type: SPST (Single Pole Single Throw)
Contact Rating: 25 mA at 24V DC
Contact Resistance: ≤ 50 mΩ
Insulation Resistance: ≥100 MΩ at 500V DC
Dielectric Strength: 500V AC for 1 minute
Actuation Type: Slide
Operating Temperature Range: -20°C to +85°C
Material: Durable thermoplastic with gold-plated contacts
Setting microcontroller or device addresses
Configuration control in embedded electronics
Logic-level selection and function toggling
Debugging or manual override in hardware setups
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
